Toyota Land Cruiser S/T,H/T
1984-11 → 1990-01 · chassis LJ71,BJ7# · catalogue 781120 · Japan
Discontinued model
Data version 1990-07

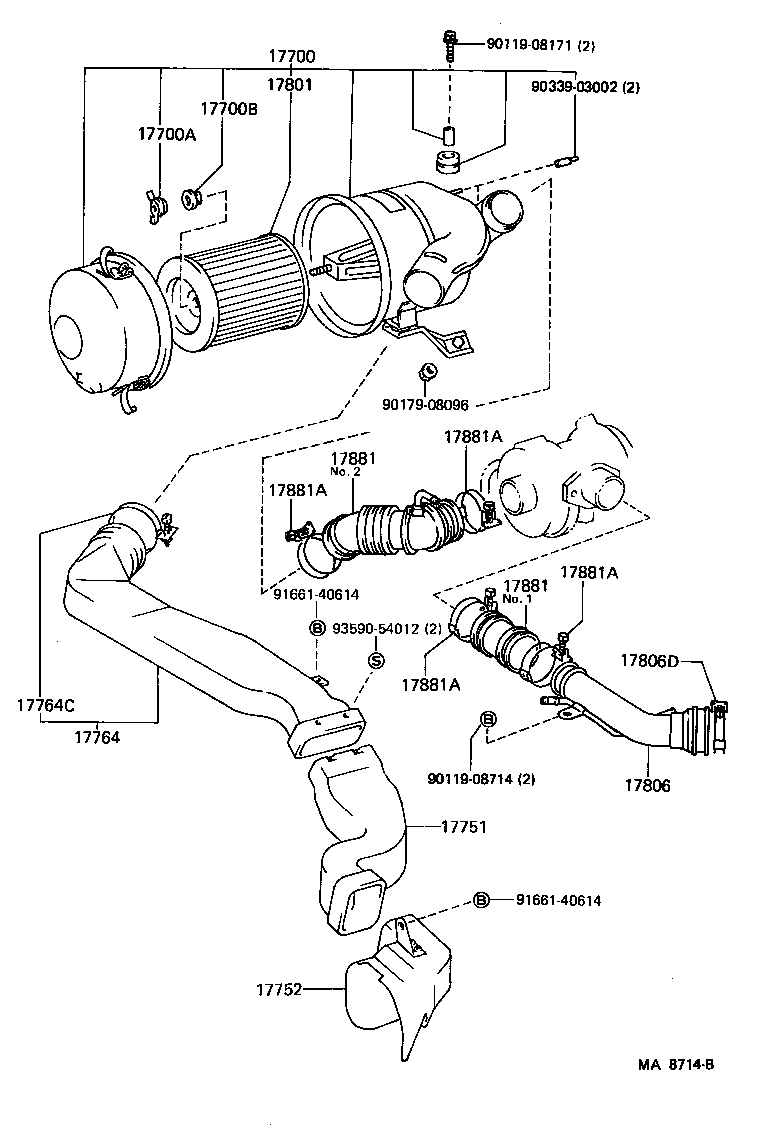

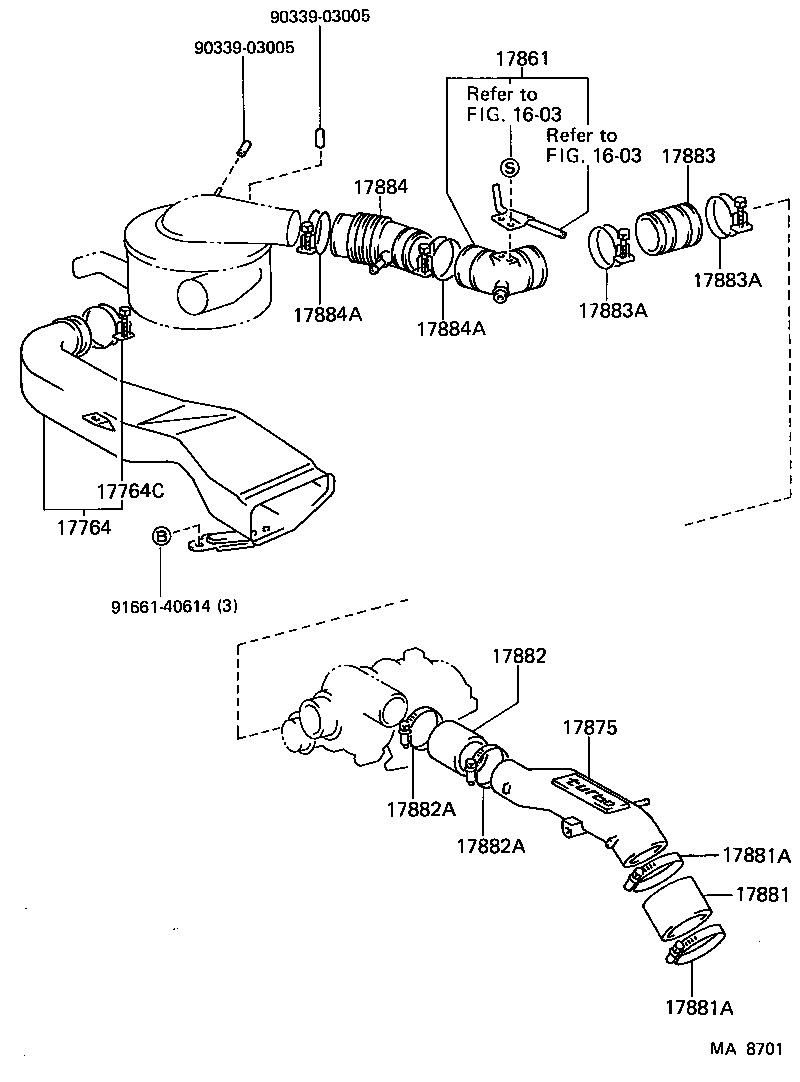

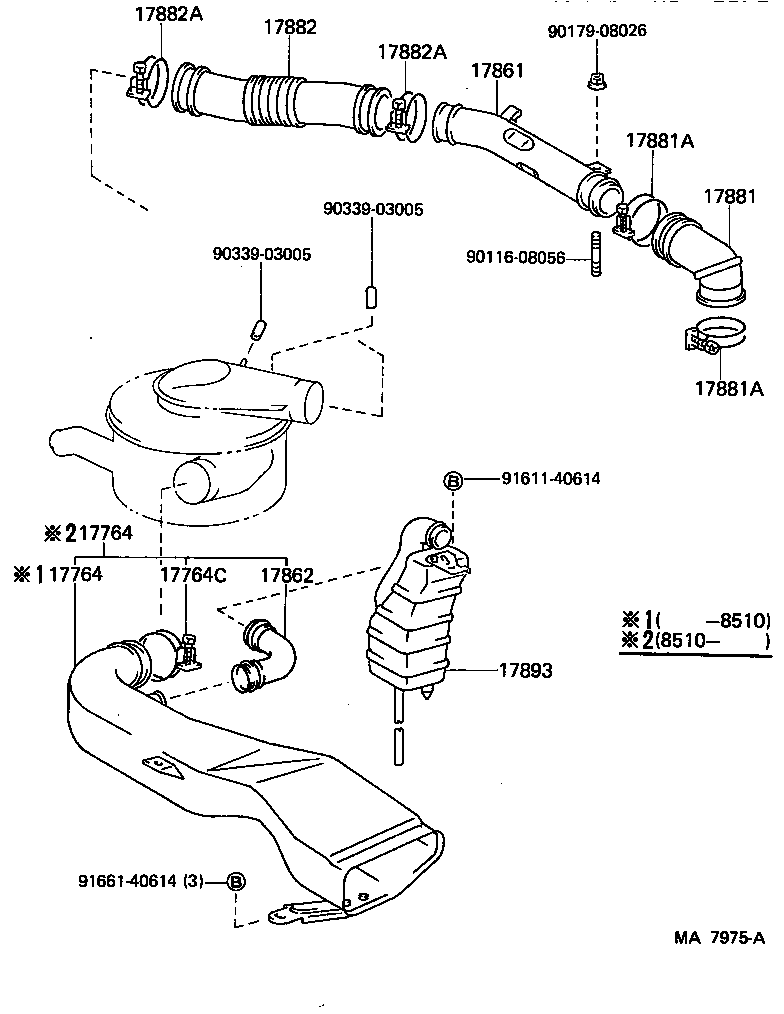

Air Cleaner
27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17700 | Cleaner Assy, Air |
| 17700A | Nut, Wing(FOR AIR CLEANER) |
| 17700B | Washer, Seal(FOR AIR CLEANER) |
| 17703 | Case Sub-assy, Bottom Air Cleaner Filter |
| 17703A | Gasket(FOR BOTTOM AIR CLEANER FILTER CASE) |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17751 | Inlet, Air Cleaner, NO.1 |
| 17752 | Inlet, Air Cleaner, NO.2 |
| 17764 | Duct, Air Cleaner |
| 17764C | Clamp, Hose(FOR AIR CLEANER DUCT) |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17806 | Pipe Sub-assy, Air Cleaner, NO.2 |
| 17806D | Clamp(FOR AIR CLEANER PIPE) |
| 17841 | Gasket, Filter Element |
| 17845 | Gasket, Air Cleaner Cap |
| 17861 | Connector, Intake Air |
| 17862 | Connector, Intake Air, NO.2 |
| 17875 | Pipe, Intake Air Connector |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17883 | Hose, Air Cleaner, NO.3 |
| 17883A | Clamp(FOR AIR CLEANER HOSE, NO.3) |
| 17884 | Hose, Air Cleaner, NO.4 |
| 17884A | Clamp(FOR AIR CLEANER HOSE, NO.4) |
| 17893 | Resonator, Intake Air |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
