Toyota Land Cruiser S/T,H/T
1984-11 → 1990-01 · chassis LJ71,BJ7# · catalogue 781120 · Japan
Discontinued model
Data version 1990-07

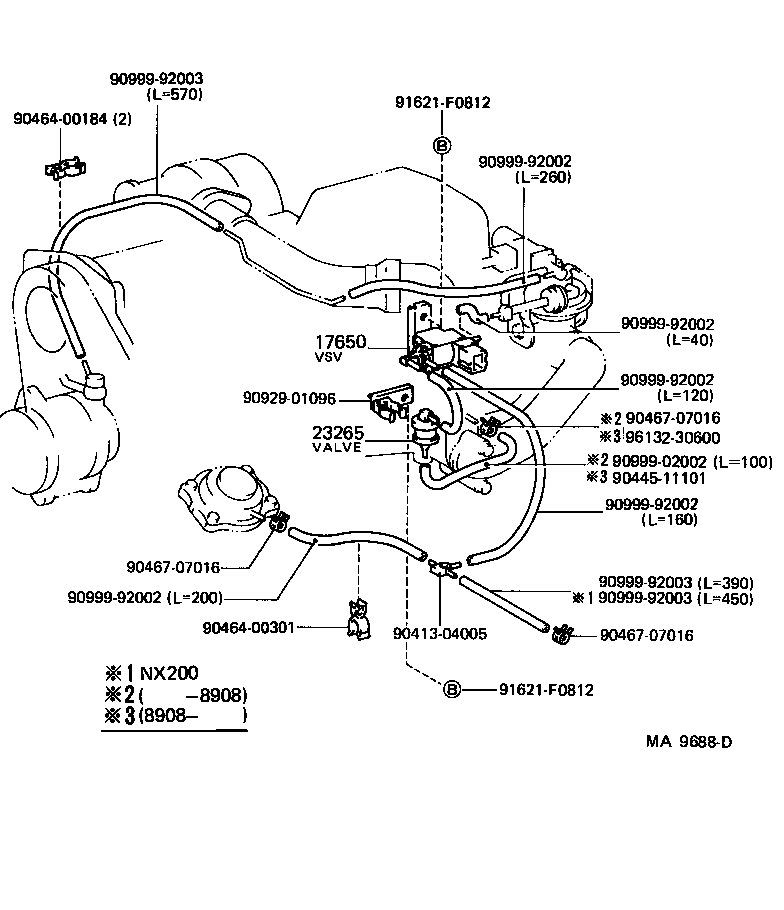

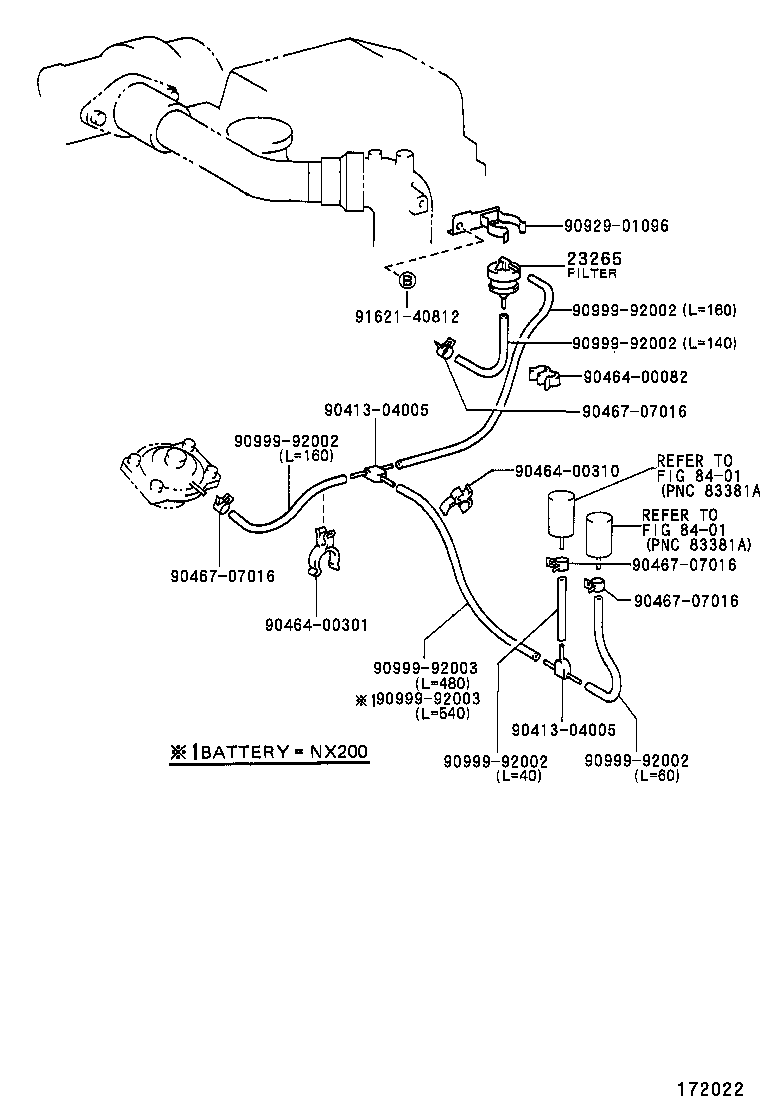

Vacuum Piping
5 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17650 | Valve Assy, Vacuum Switching |
| 23265 | Filter, Gas, NO.1 |
| 25706 | Pipe Sub-assy, Vacuum Transmitting, NO.1 |
| 25707 | Pipe Sub-assy, Vacuum Transmitting, NO.2 |
| 25708 | Pipe Sub-assy, Vacuum Transmitting, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
