Toyota Land Cruiser S/T,H/T
1984-11 → 1990-01 · chassis LJ71,BJ7# · catalogue 781120 · Japan
Discontinued model
Data version 1990-07

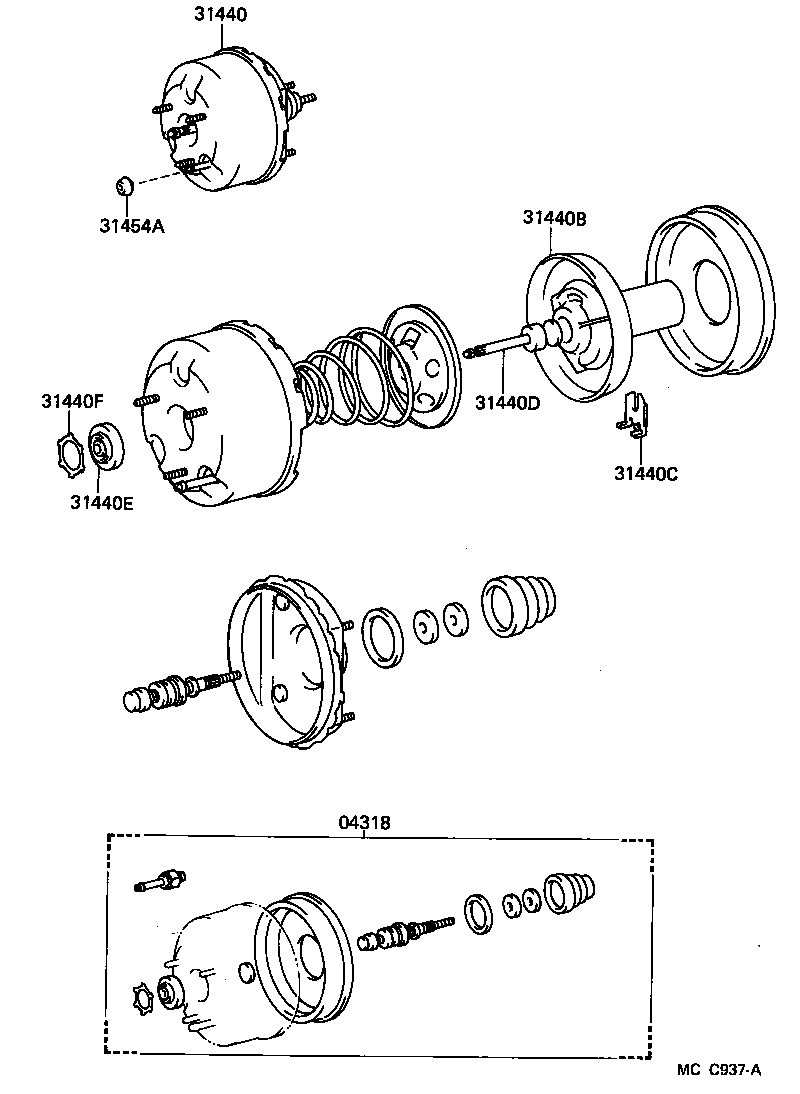

Clutch Booster
17 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04318 | Booster Kit, Clutch |
| 31403A | Valve Assy, Vacuum Check(FOR CLUTCH VACUUM) |
| 31430 | Reservoir Assy, Clutch Vacuum |
| 31436A | Hose, NO.1(FOR CLUTCH BOOSTER VACUUM) |
| 31437 | Hose, NO.2(FOR CLUTCH BOOSTER VACUUM) |
| 31440 | Booster Assy, Clutch W/Air Cleaner |
| 31440B | Piston, Booster(FOR CLUTCH BOOSTER) |
| 31440C | Key, Valve Stopper(FOR CLUTCH BOOSTER) |
| 31440D | Rod Sub-assy, Booster Piston(FOR CLUTCH BOOSTER) |
| 31440E | Seal, Booster Body NO.1(FOR CLUTCH BOOSTER) |
| 31440F | Ring, Circular Internal(FOR CLUTCH BOOSTER) |
| 31440G | Ring, E(FOR CLUTCH BOOSTER AIR VALVE) |
| 31440H | Gasket, Clutch Booster Bracket |
| 31449 | Cover, Clutch Booster Piston |
| 31454A | Boot, Clutch Booster |
| 31458 | Boot, Clutch Booster Piston Cover |
| 31458A | Separator, Air Cleaner(FOR CLUTCH BOOSTER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
