Toyota Land Cruiser S/T,H/T

1984-11 → 1990-01 · chassis LJ71,BJ7# · catalogue 781120 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

15 part groups · 2 illustrations

Illustrations

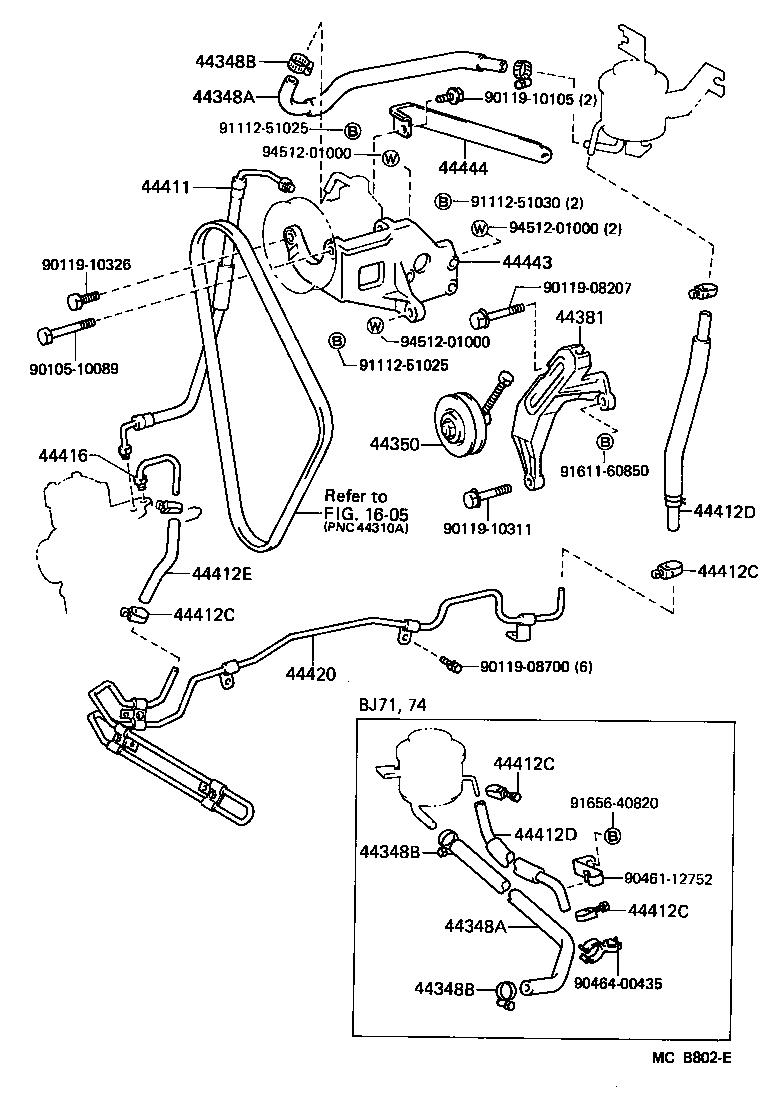

Figure MCB800D MCB800D 1985-10 → — Figure MCB802E MCB802E 1984-11 → —

Part groups

PNCDescription
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44350 Pulley Assy, Power Steering Idle
44381 Bracket, Power Steering Idle Pulley
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412C Clamp(FOR RETURN HOSE)
44412D Hose, Return, NO.1
44412E Hose, Return, NO.2
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44420 Cooler Assy, Oil
44441 Bracket, Pump, Front
44443 Bracket, Pump
44444 Stay, Pump, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
