Toyota Land Cruiser S/T,H/T
1984-11 → 1990-01 · chassis LJ71,BJ7# · catalogue 781120 · Japan
Discontinued model
Data version 1990-07

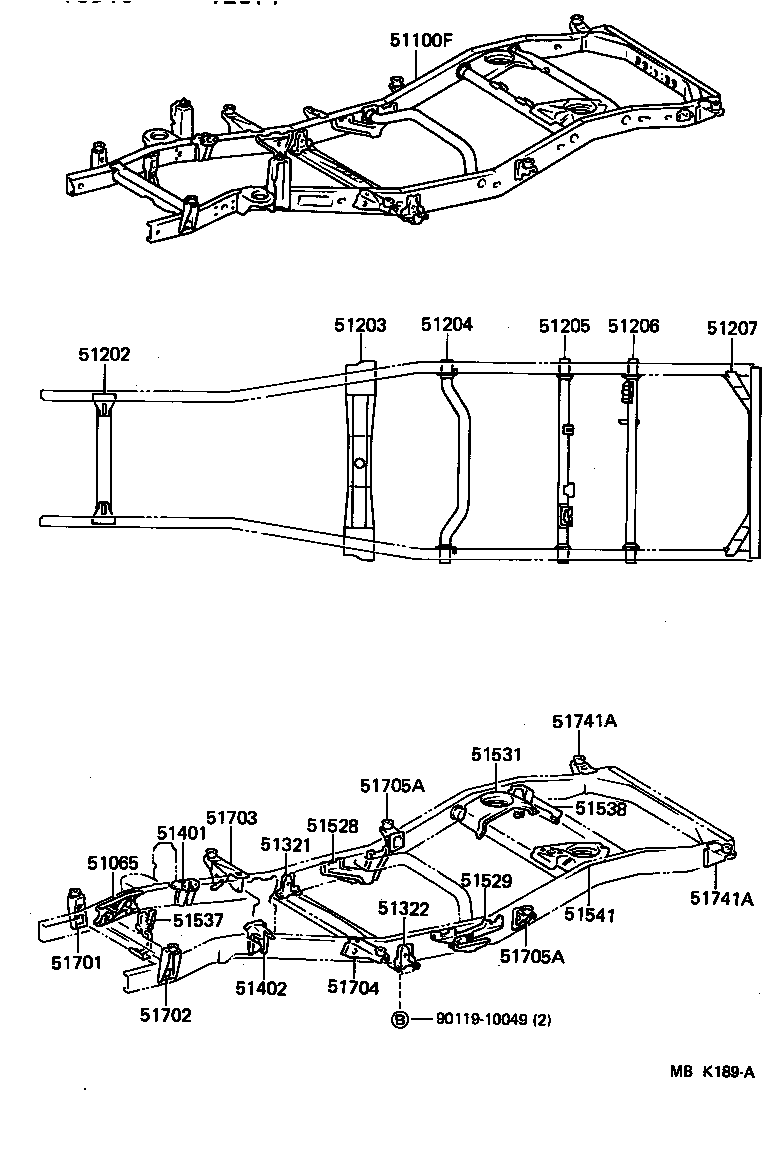

Frame
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51065 | Support Sub-assy, Steering Gear Box |
| 51100F | Frame Sub-assy |
| 51202 | Crossmember Sub-assy, Frame, NO.1 |
| 51203 | Crossmember Sub-assy, Frame, NO.2 |
| 51204 | Crossmember Sub-assy, Frame, NO.3 |
| 51205 | Crossmember Sub-assy, Frame, NO.4 |
| 51206 | Crossmember Sub-assy, Frame, NO.5 |
| 51207 | Crossmember Sub-assy, Frame, NO.6 |
| 51321 | Gusset, Crossmember, NO.2 RH |
| 51322 | Gusset, Crossmember, NO.2 LH |
| 51401 | Bracket Sub-assy, Engine Front Mounting, RH |
| 51402 | Bracket Sub-assy, Engine Front Mounting, LH |
| 51528 | Bracket, Trailing Arm, RH |
| 51529 | Bracket, Trailing Arm, LH |
| 51531 | Bracket, Rear Spring Support, RH |
| 51537 | Bracket, Lateral Rod Support |
| 51538 | Stay, Lateral Rod Support |
| 51541 | Bracket, Rear Spring Support, LH |
| 51701 | Bracket Sub-assy, Cab Mounting, NO.1 RH |
| 51702 | Bracket Sub-assy, Cab Mounting, NO.1 LH |
| 51703 | Bracket Sub-assy, Cab Mounting, NO.2, RH |
| 51704 | Bracket Sub-assy, Cab Mounting, NO.2 LH |
| 51705A | Bracket Sub-assy, Cab Mounting, NO.3 |
| 51741A | Bracket, Body Mounting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
