Toyota Land Cruiser S/T,H/T
1984-11 → 1990-01 · chassis LJ71,BJ7# · catalogue 781120 · Japan
Discontinued model
Data version 1990-07

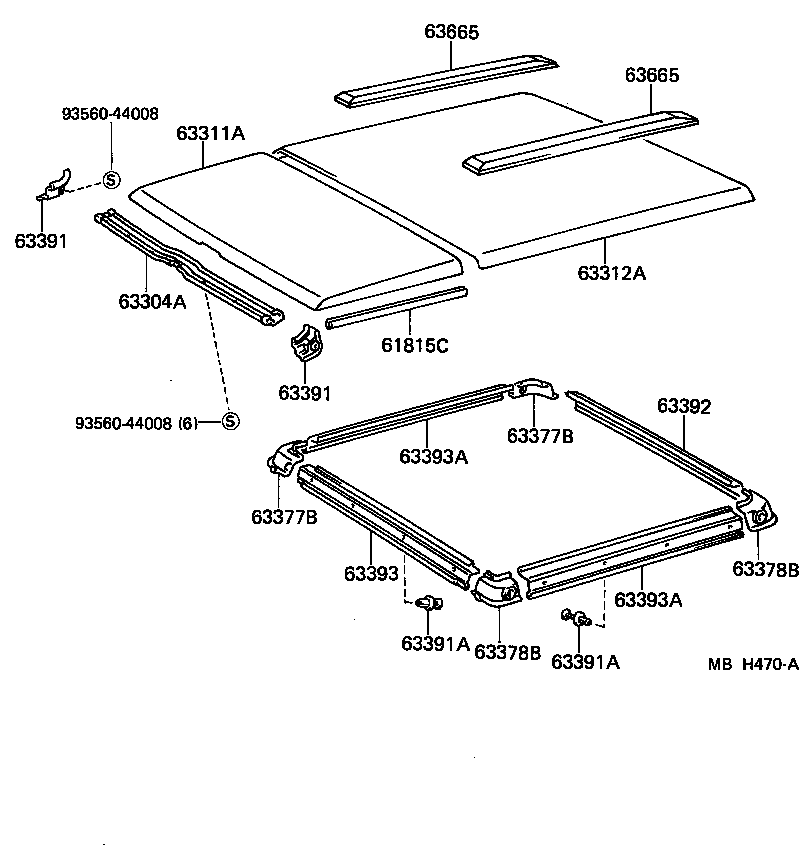

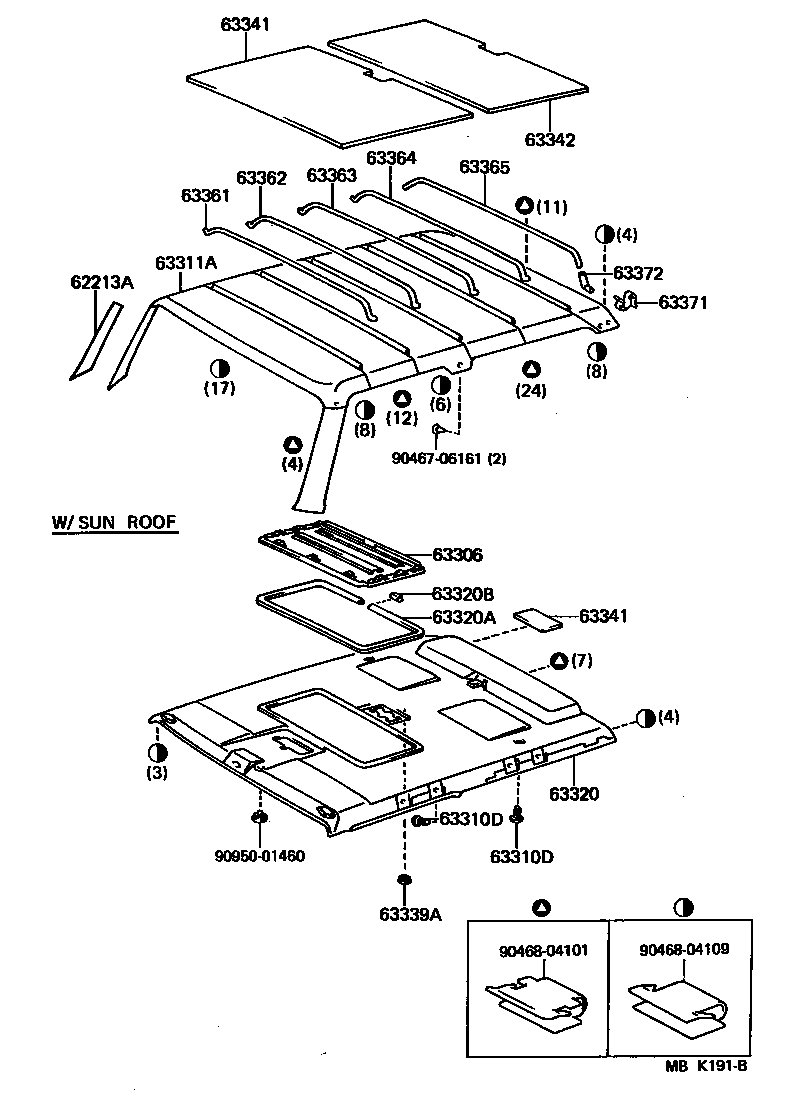

Roof Headlining & Silencer Pad
28 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 61815C | Cover, Roof Side, Inner Upper |
| 62213A | Pad, Front Pillar Garnish |
| 63304A | Trim Sub-assy, Roof Headlining, Front |
| 63306 | Trim Sub-assy, Sunshade |
| 63310D | Clip, Roof Headlining |
| 63311A | Headlining, Roof NO.1 |
| 63312A | Headlining, Roof, NO.2 |
| 63320 | Headlining Assy, Sun Roof OR Removable Roof |
| 63320A | Moulding, Sun Roof OR Removable Roof Opening Trim |
| 63320B | Joint, Sun Roof Opening Trim |
| 63339A | Cover, Roof Headlining Service Hole |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63361 | Support, Roof Headlining, NO.1 |
| 63362 | Support, Roof Headlining, NO.2 |
| 63363 | Support, Roof Headlining, NO.3 |
| 63364 | Support, Roof Headlining, NO.4 |
| 63365 | Support, Roof Headlining, NO.5 |
| 63371 | Hook, Roof Headlining Support |
| 63372 | Retainer, Headlining Support |
| 63377B | Moulding, Roof Headlining, Rear RH |
| 63378B | Moulding, Roof Headlining, Rear LH |
| 63391 | Trim, Roof Headlining, Front |
| 63391A | Clip(FOR ROOF HEADLINING TRIM) |
| 63392 | Trim, Roof Headlining, Rear |
| 63393 | Trim, Roof Headlining, Center |
| 63393A | Trim, Roof Headlining, Side, NO.1 |
| 63665 | Spacer, Roof Headlining |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
