Toyota Land Cruiser S/T,H/T
1984-11 → 1990-01 · chassis LJ71,BJ7# · catalogue 781120 · Japan
Discontinued model
Data version 1990-07

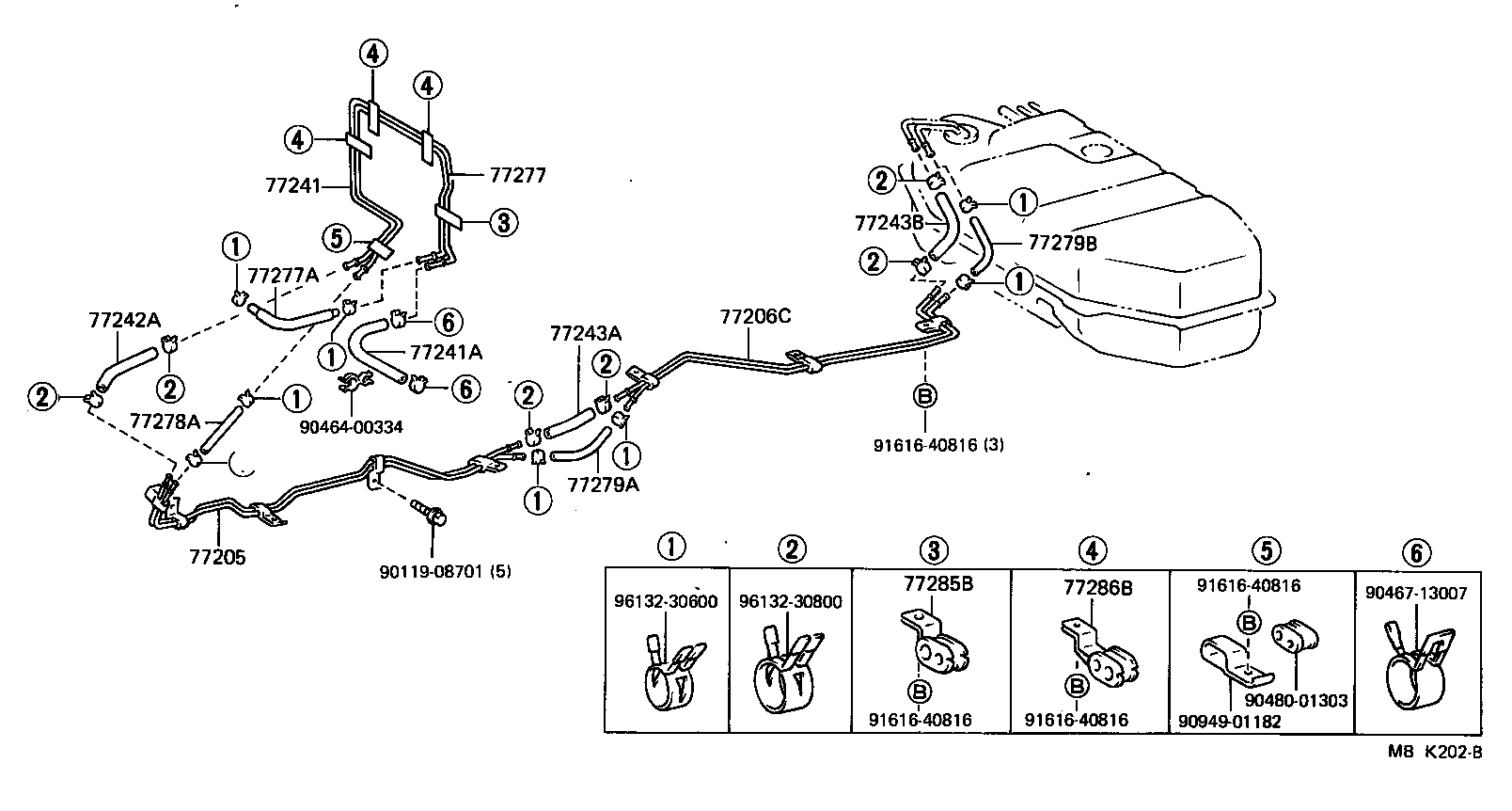

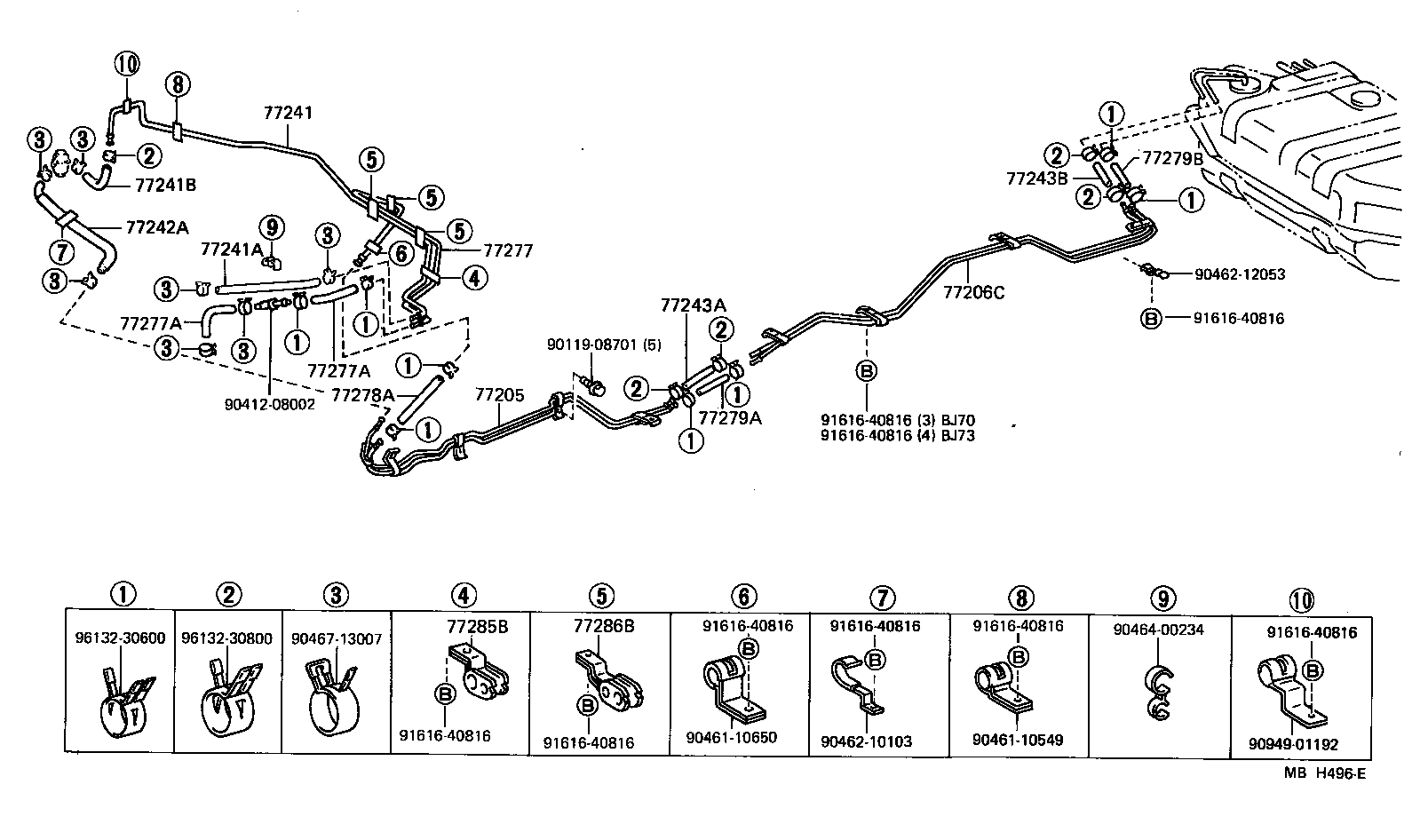

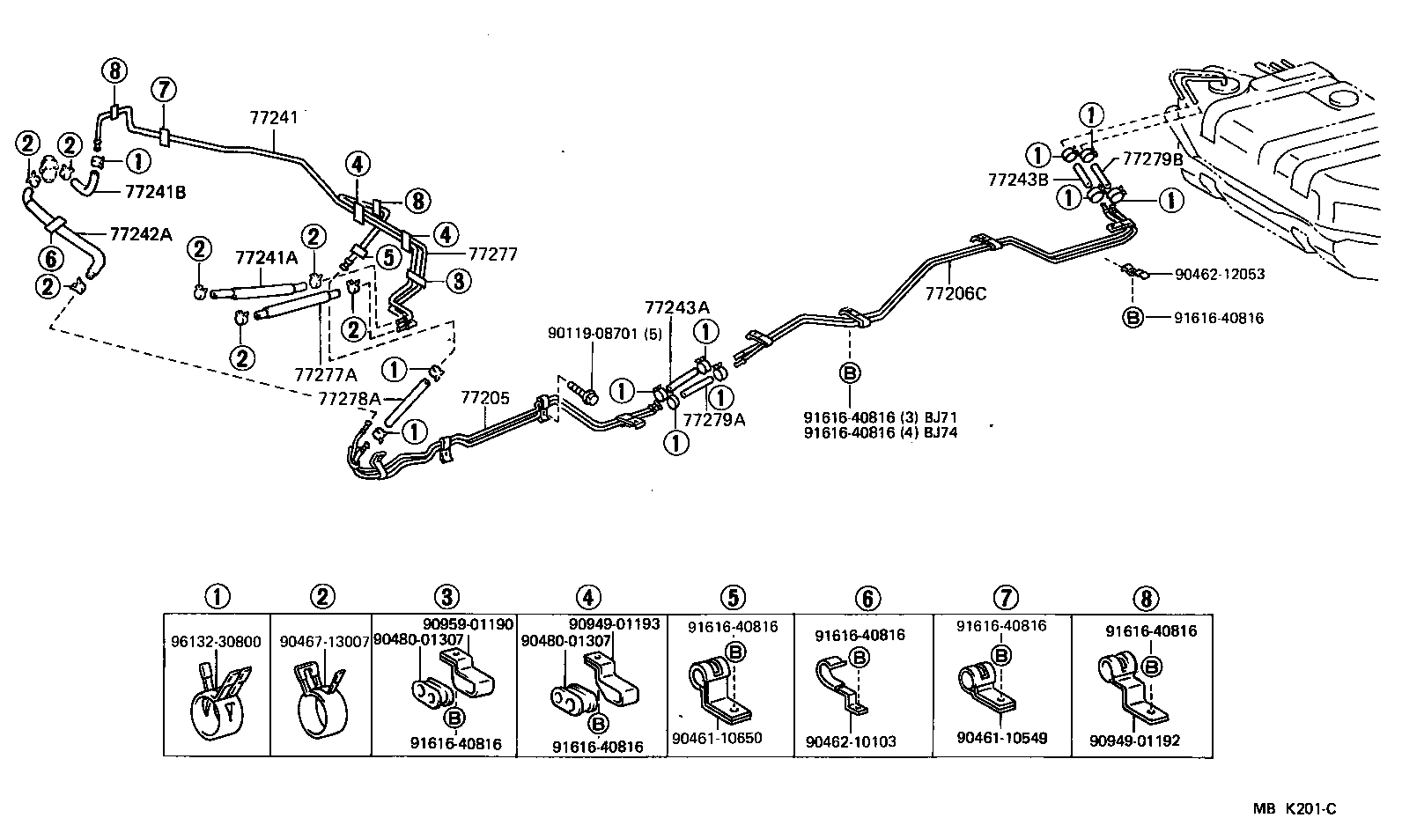

Fuel Tank & Tube
50 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 77022A | Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77031 | Cap Assy, Fuel Tank |
| 77031B | Gasket (FOR FUEL TANK CAP) |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77035A | Clamp (FOR FUEL LID LOCK CONTROL CABLE) |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77100D | Hose, Fuel, NO.1(FOR FUEL TANK) |
| 77131 | Bracket, Fuel Tank Filler Pipe Support |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77205 | Tube Sub-assy, Fuel Main |
| 77206 | Tube Sub-assy, Fuel Tank Suction |
| 77206A | Gasket (FOR FUEL TANK SUCTION TUBE) |
| 77206C | Tube Sub-assy, Fuel Main, NO.2 |
| 77213 | Hose, Fuel Tank Sub Inlet |
| 77241 | Tube, Fuel Main, NO.1 |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77241B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1) |
| 77242A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2) |
| 77243A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3) |
| 77243B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.3) |
| 77277 | Tube, Fuel Return, NO.1 |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77278A | Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2) |
| 77279A | Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.3) |
| 77279B | Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.3) |
| 77285B | Clamp, Fuel Tube W/Grommet, NO.1 |
| 77286 | Protector, Fuel Tank Inlet Pipe |
| 77286B | Clamp, Fuel Tube W/Grommet, NO.2 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77293A | Shield, Fuel Tank Filler Pipe, NO.3 |
| 77308 | Cover Sub-assy, Fuel Inlet Box |
| 77308A | Cushion(FOR FUEL INLET BOX COVER) |
| 77322 | Knob, Fuel Tank Cap |
| 77338A | Bracket, Fuel Tank Cap Lock Control Rod |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77367 | Stopper, Fuel Filler Opening Lid |
| 77378A | Cover, Fuel Filler Opening Lid Lock |
| 77387 | Ring, Fuel Inlet Box |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77611 | Band, Fuel Tank |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77631 | Bracket, Fuel Tank, NO.1 |
| 77632 | Bracket, Fuel Tank, NO.2 |
| 77675B | Bracket, Fuel Tank Filler Pipe Protector, NO.1 |
| 77676B | Bracket, Fuel Tank Filler Pipe Protector, NO.2 |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
