Toyota Land Cruiser S/T,H/T
1984-11 → 1990-01 · chassis LJ71,BJ7# · catalogue 781120 · Japan
Discontinued model
Data version 1990-07
Switch & Relay & Computer
91 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 27790 | Relay Assy, Charge Lamp |
| 28300 | Relay Assy, Starter |

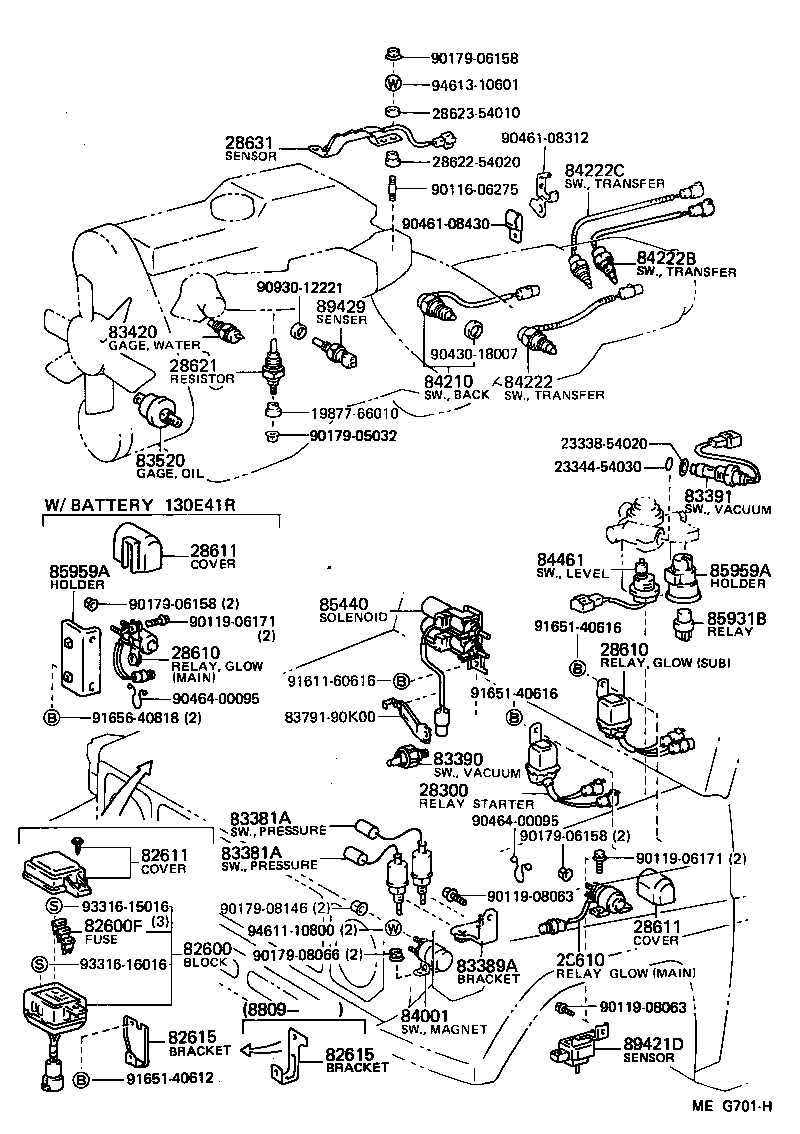

| 28521 | Timer, Preheating |
| 28560A | Block, Heater |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28611 | Cover, Glow Plug Relay |
| 28621 | Resistor, Glow Plug |
| 28624 | Plate, Current Sensor |
| 28631 | Sensor, Glow Plug Current |
| 81980 | Flasher Assy, Turn Signal |
| 82600 | Block Assy, Fuse |
| 82600F | Fuse, Fuse Block |
| 82600G | Plate, Caution(FOR FUSE) |
| 82611 | Cover, Fuse Block |
| 82615 | Bracket, Fuse |
| 82616 | Puller, Fuse |
| 82650 | Breaker Assy, Wiring Circuit, NO.1 |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83381A | Switch, Pressure |
| 83389A | Bracket, Pressure Switch |
| 83390 | Switch Assy, Vacuum Warning |
| 83391 | Switch, Vacuum |
| 83420 | Gage Assy, Water Temperature Sender |

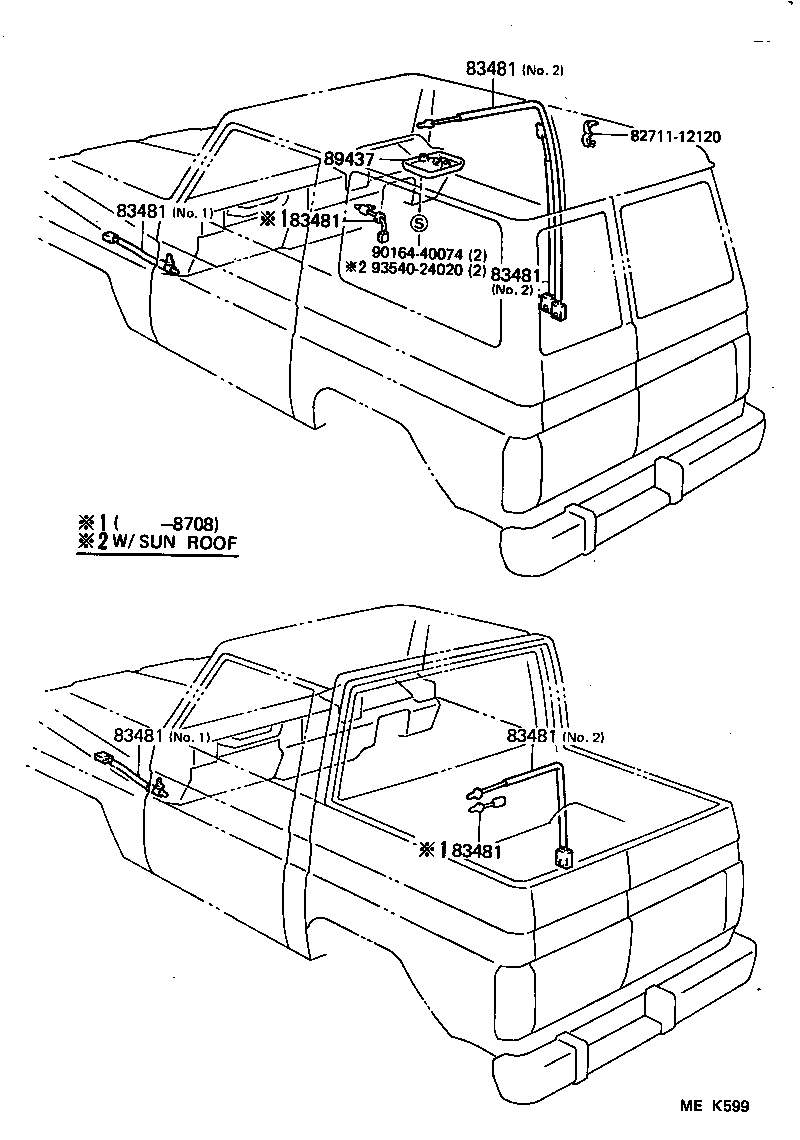

| 83481 | Sensor, Inner Ambient Temperature |
| 83482 | Sensor, Outer Ambient Temperature |
| 83520 | Gage Assy,Oil Pressure Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 84001 | Switch Assy, Magnet |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84113A | Bracket, Switch, NO.1 |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84222 | Switch, Transfer Indicator, NO.1 |
| 84222B | Switch, Transfer Indicator, NO.2 |
| 84222C | Switch, Transfer Indicator, NO.3 |
| 84222D | Switch, Transfer Indicator, NO.4 |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84290 | Switch Assy, Limit |

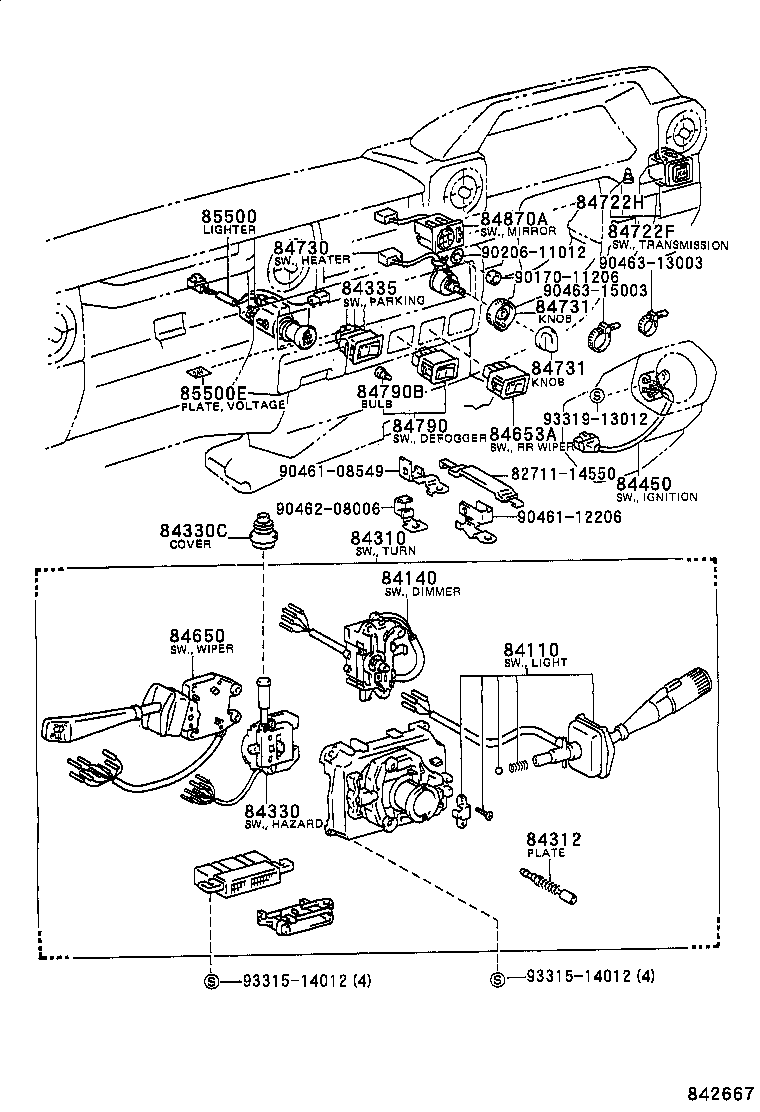

| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330C | Cover, Hazard Warning Signal Switch |
| 84335 | Switch Assy, Parking Lamp |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84461 | Switch, Level Warning |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84653A | Switch, Rear Wiper |
| 84722F | Switch, Transmission Control |
| 84722H | Bulb, Transmission Control Switch |
| 84730 | Switch Assy, Heater Blower |
| 84731 | Knob, Heater Blower Switch |
| 84732A | Switch, Rear Heater Blower |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |

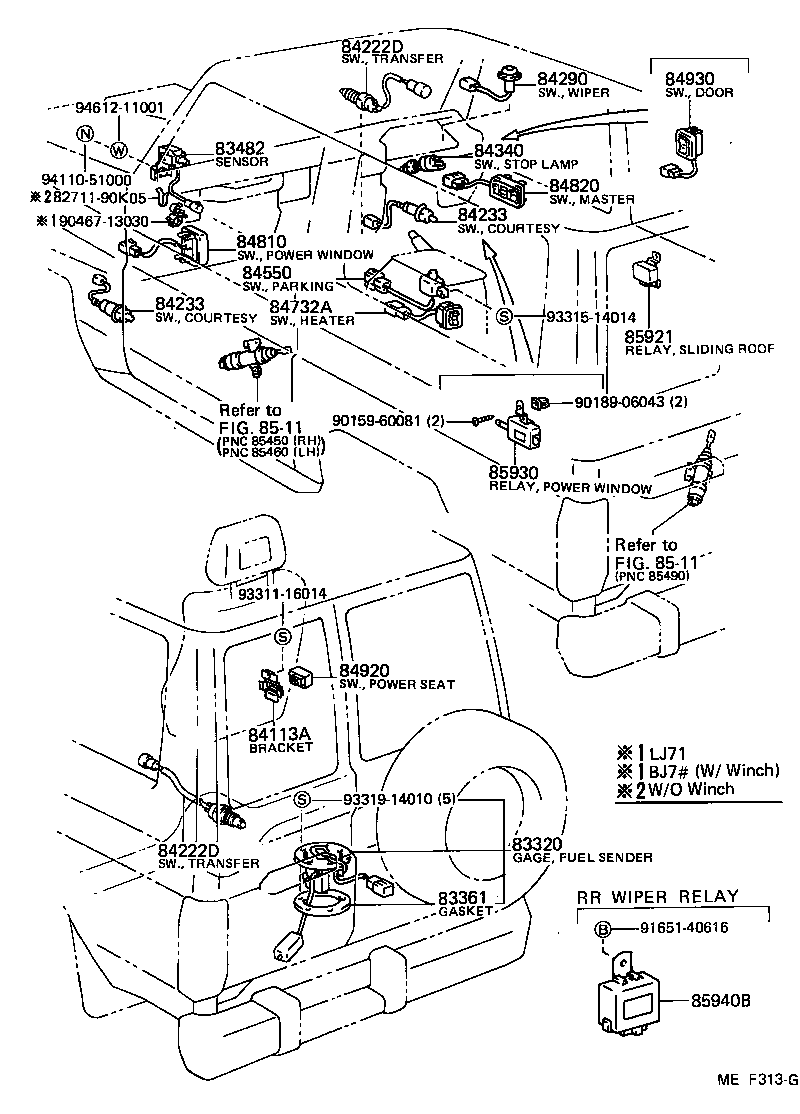

| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84920 | Switch Assy, Power Seat |
| 84930 | Switch Assy, Door Control |
| 85440 | Solenoid Assy, Front Drive |
| 85500 | Lighter Assy, Cigarette |
| 85500E | Plate, Voltage Caution |

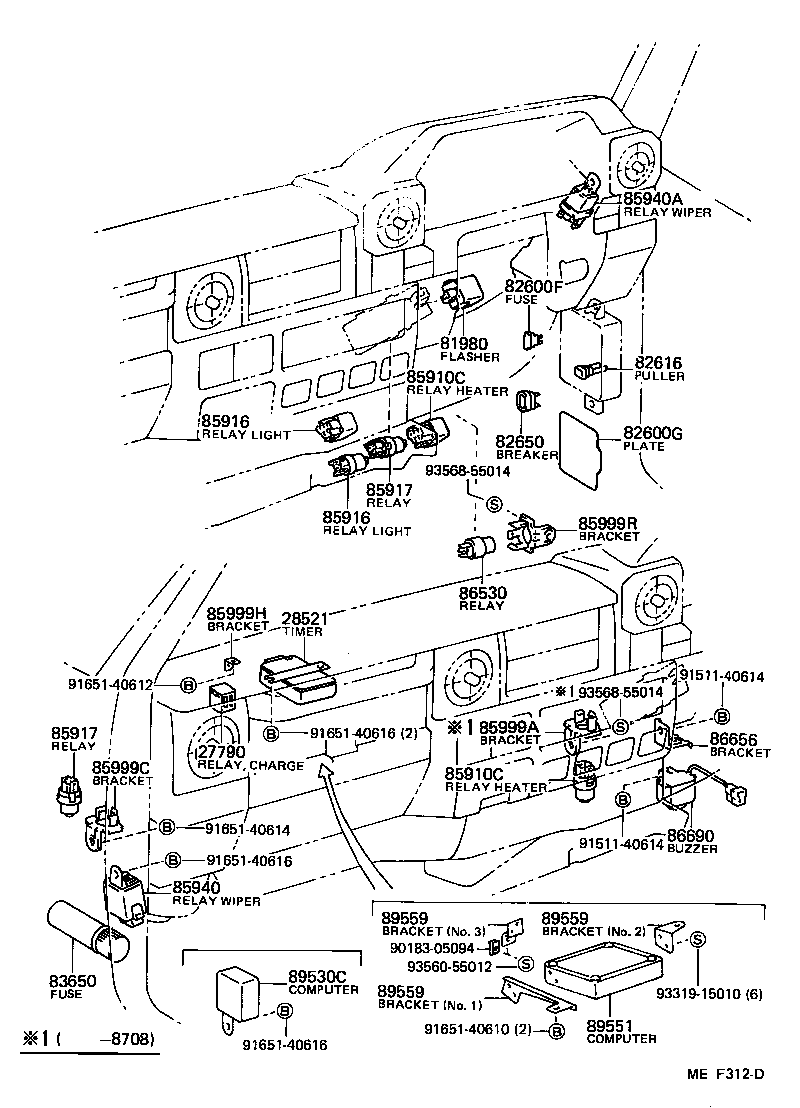

| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85916 | Relay, Light Control |
| 85917 | Relay, Front Drive |
| 85921 | Relay, Sliding Roof Control |
| 85930 | Relay Assy, Power Window |
| 85931B | Relay, Fuel Heater |
| 85940 | Relay Assy, Windshield Wiper |
| 85940A | Relay, Windshield Wiper Switch |
| 85940B | Relay Assy, Rear Wiper |
| 85959A | Holder, Relay |
| 85999A | Bracket, Relay, NO.2 |
| 85999C | Bracket, Relay, NO.3 |
| 85999H | Bracket, Relay |
| 85999R | Bracket, Relay, NO.6 |
| 86530 | Relay Assy, Horn |
| 86656 | Bracket, Buzzer |
| 86690 | Buzzer Assy, Speed Indicator |
| 89421D | Sensor, Turbo Pressure |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89429 | Sensor, Oil Temperature |
| 89437 | Cover, Sensor |
| 89530C | Computer Assy, Transmission Control |
| 89551 | Computer, Emission Control |
| 89559 | Bracket, Emission Control Computer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
