Toyota Land Cruiser S/T,H/T

1990-01 → 2004-08 · chassis FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781130 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 12 illustrations

Illustrations

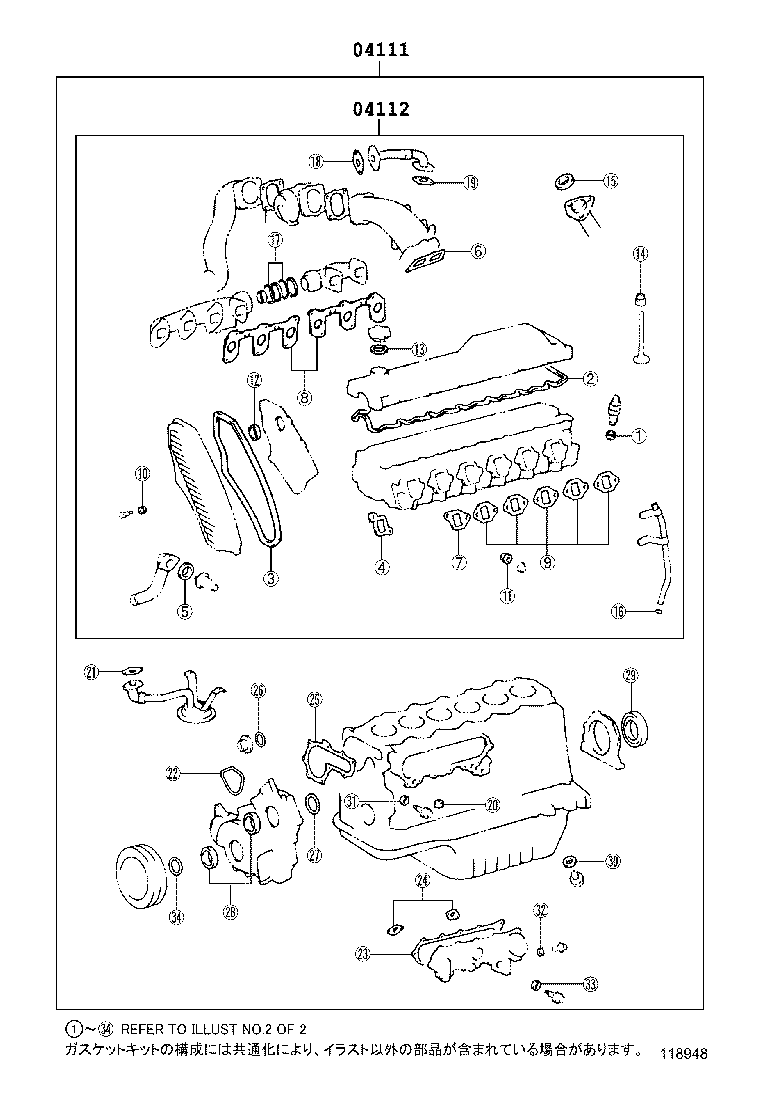

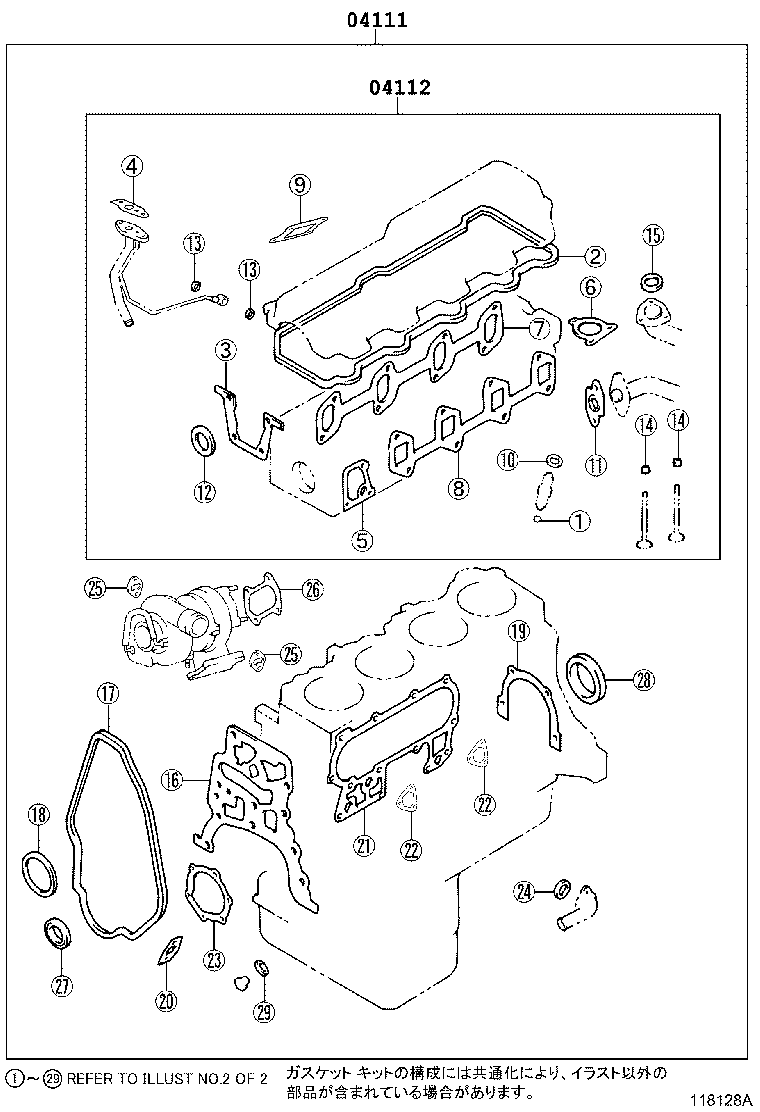

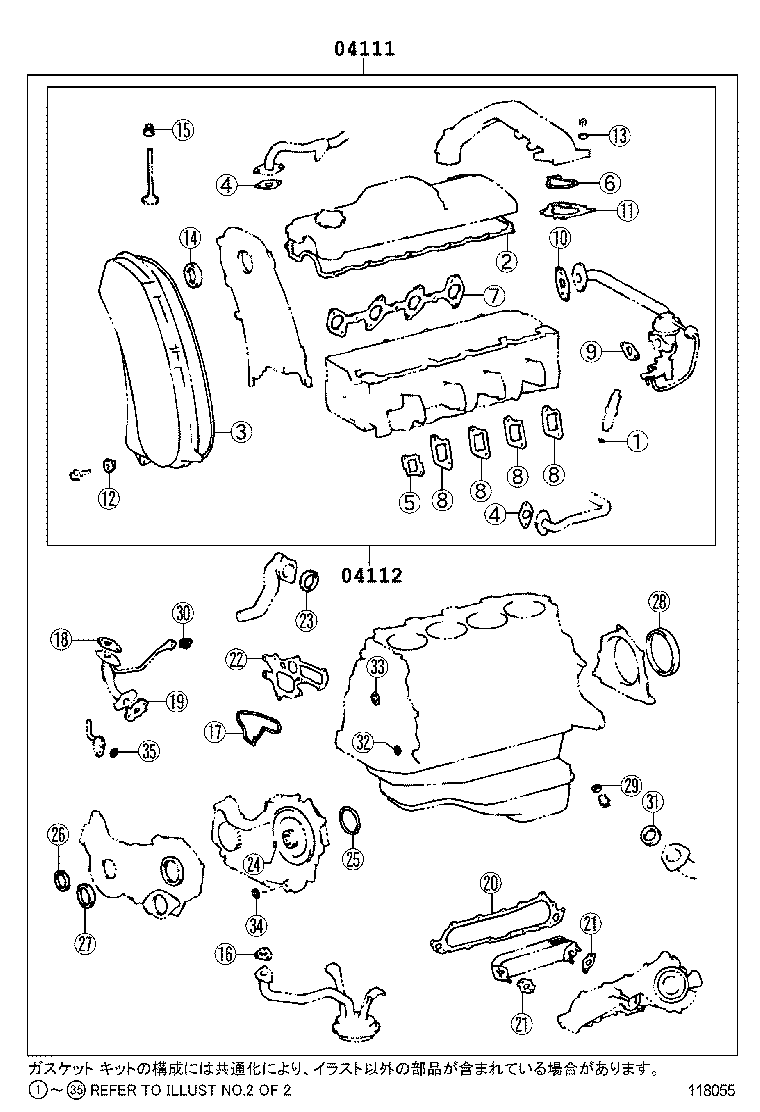

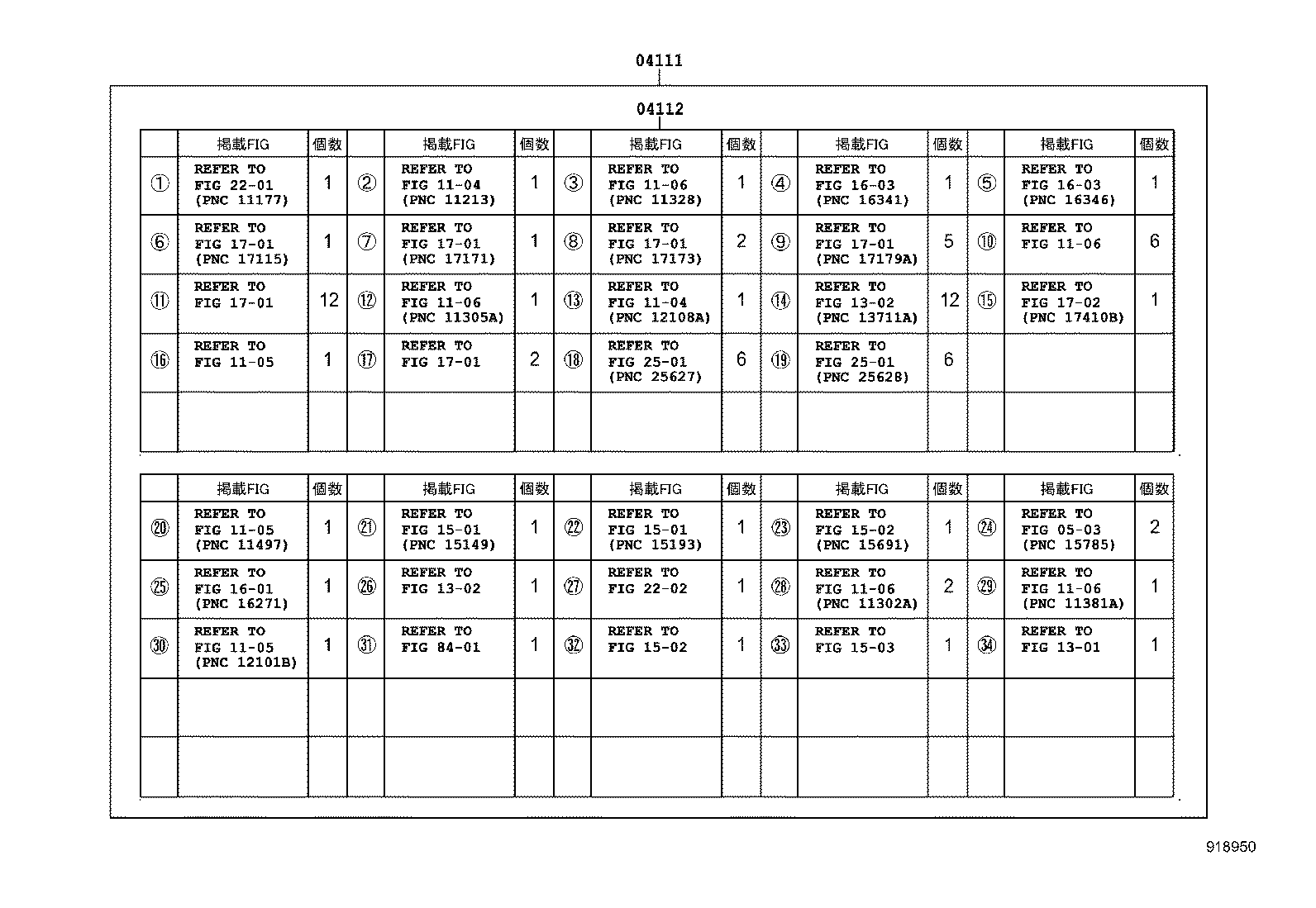

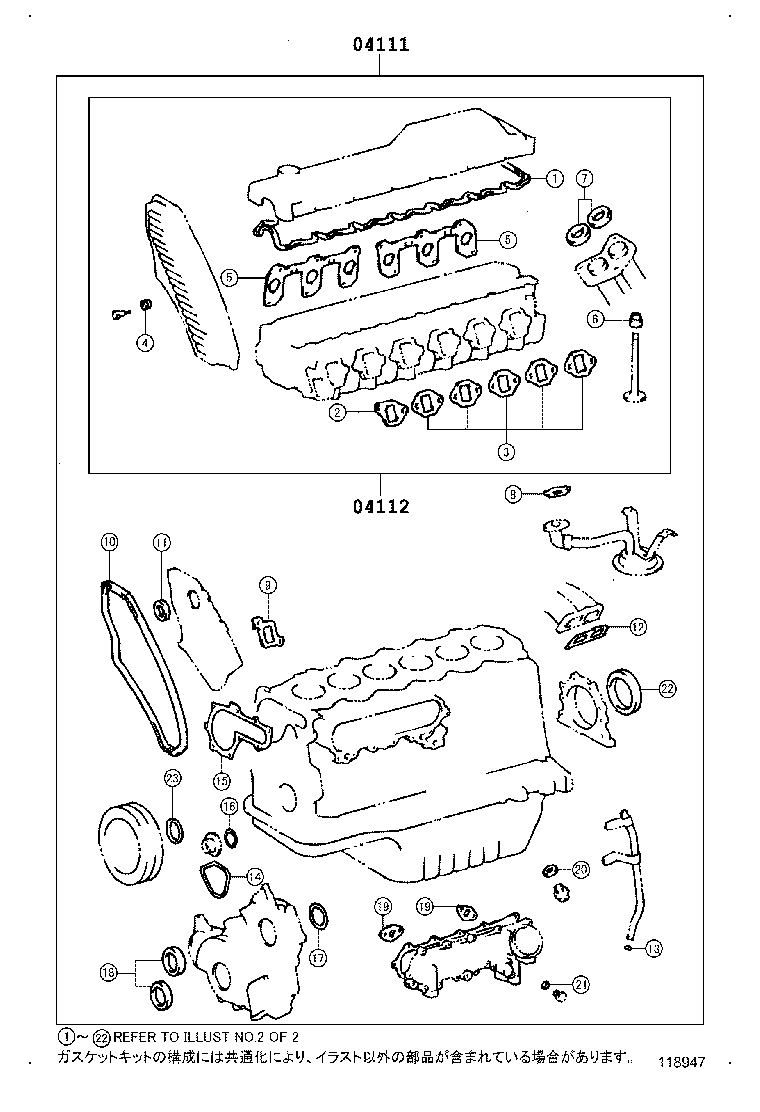

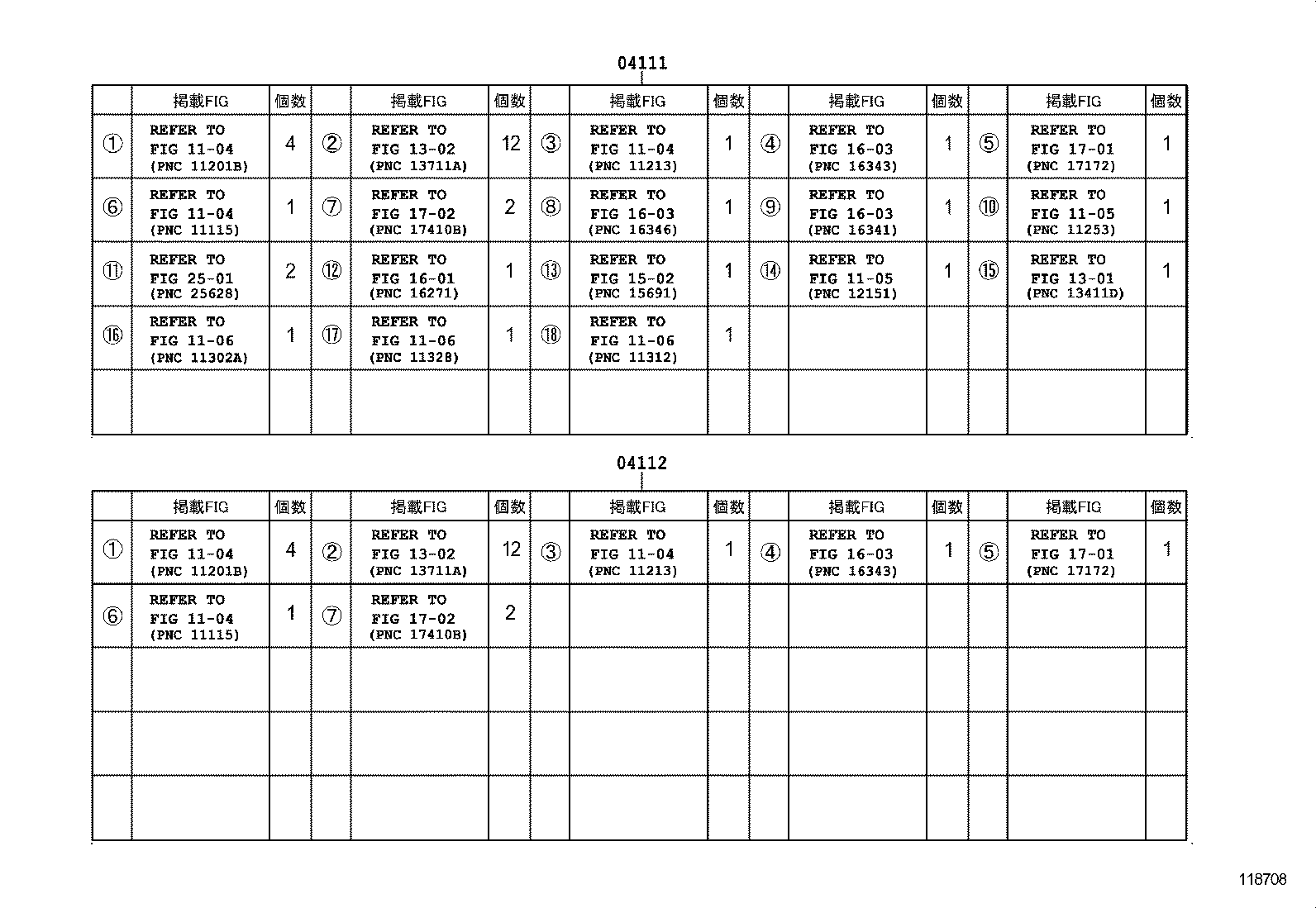

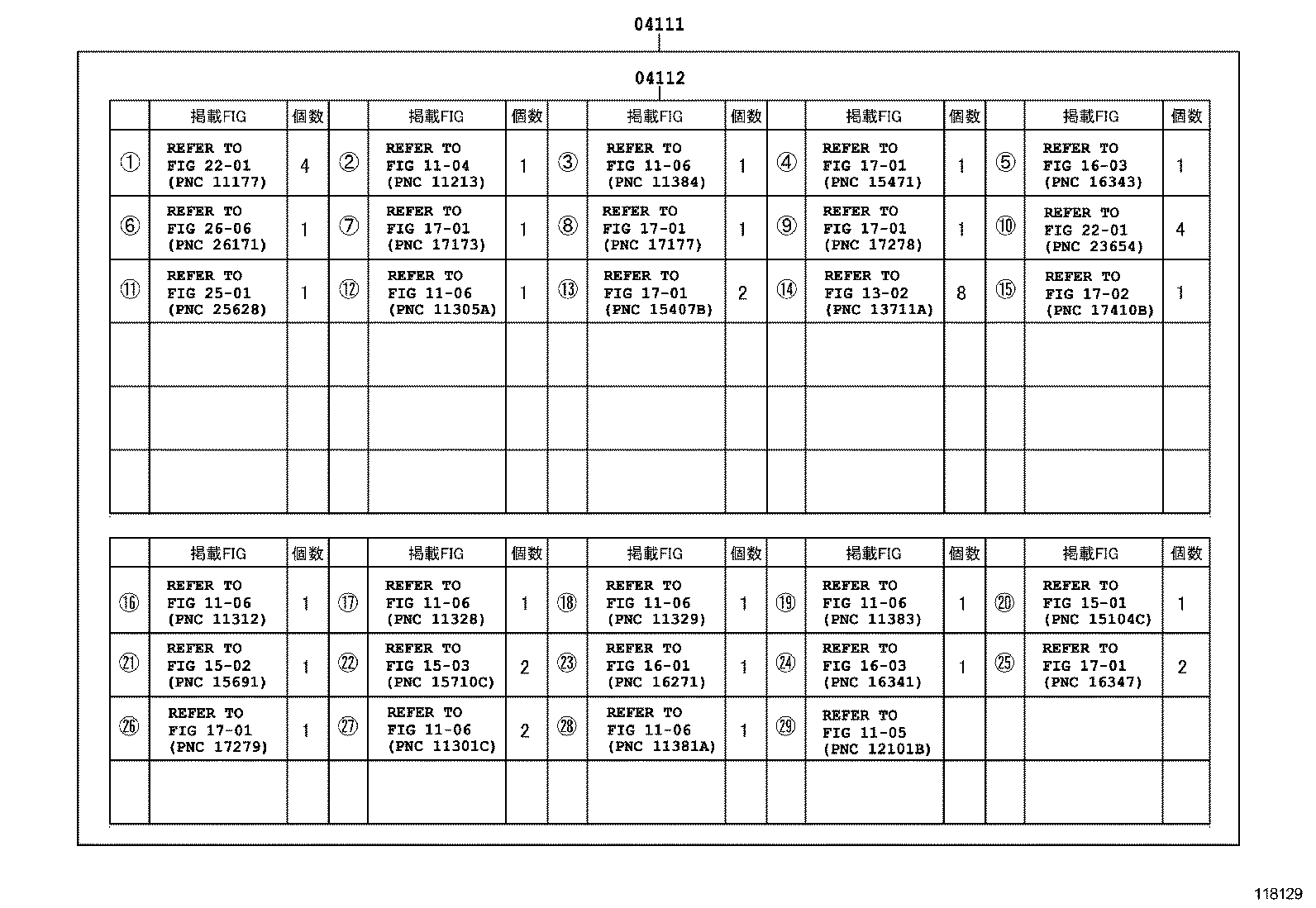

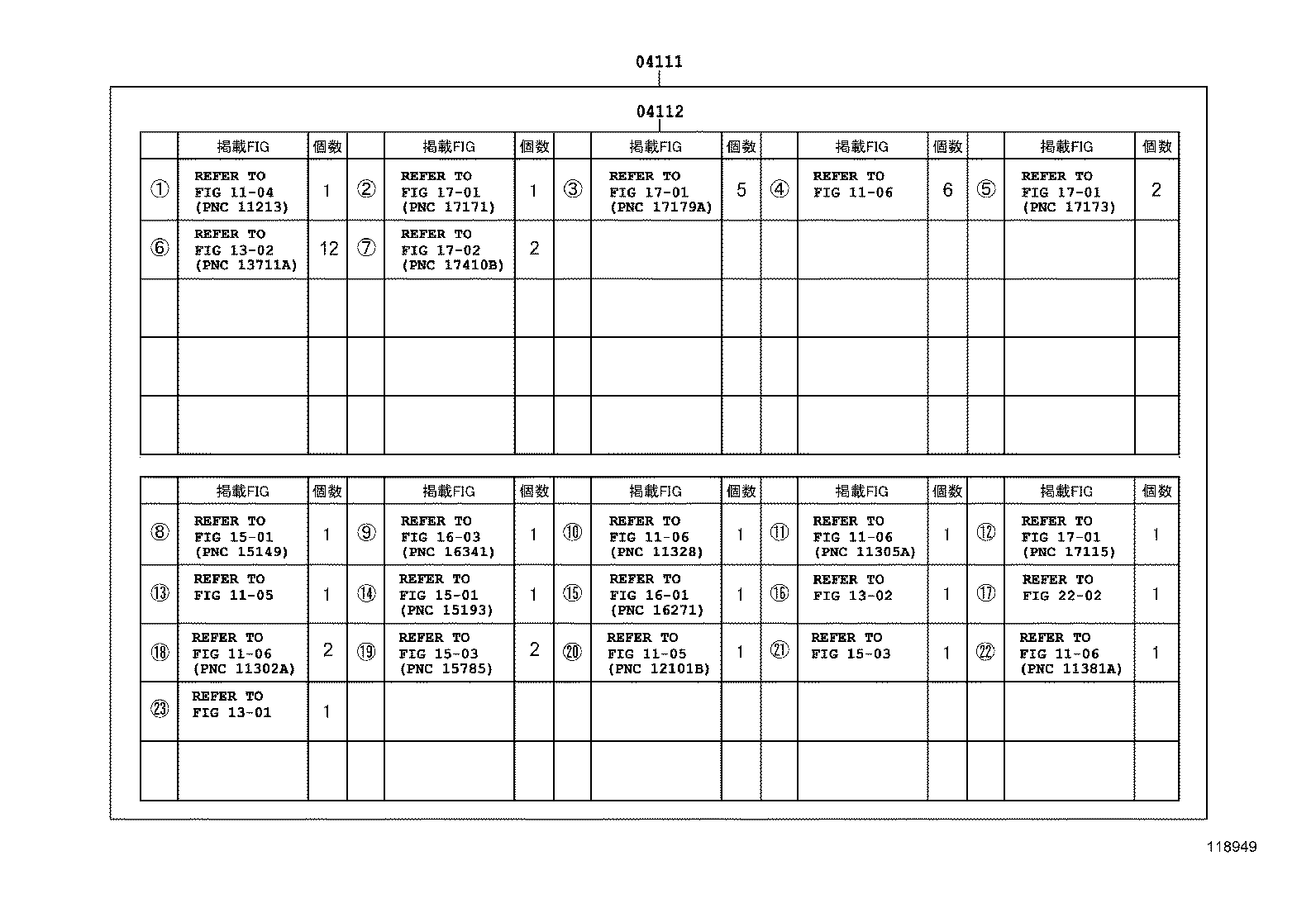

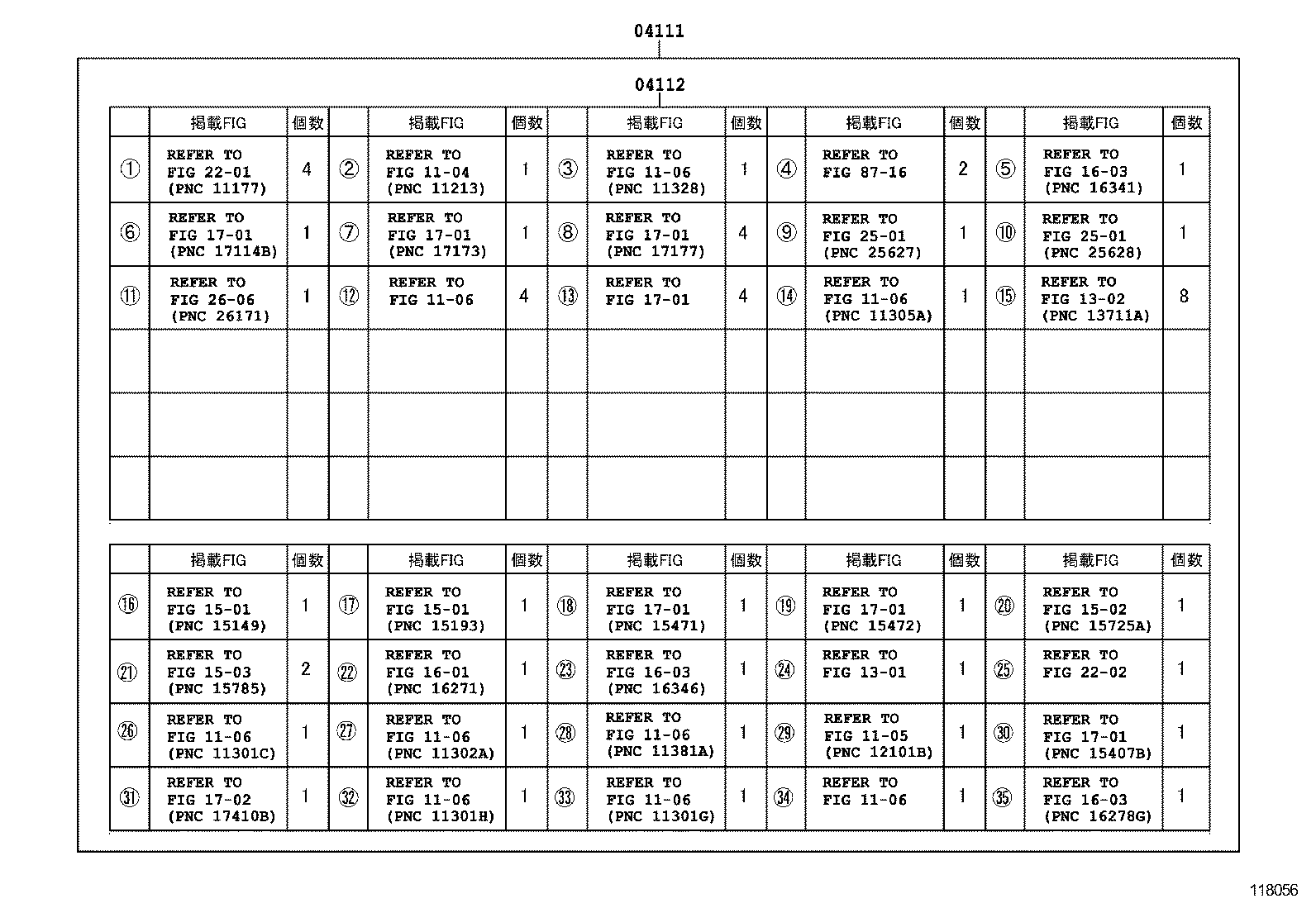

Figure 112010A 112010A 1990-06 → 1992-08 Figure 118708 118708 1990-06 → 1992-08 Figure 118947 118947 1990-01 → 1999-08 Figure 118948 118948 1999-08 → 2004-08 Figure 118949 118949 1990-01 → 1999-08 Figure 118950 118950 1999-08 → 2004-08 Figure 118055 118055 1993-05 → 1996-04 Figure 118056 118056 1993-05 → 1996-04 Figure 118128A 118128A 1990-04 → — Figure 118129 118129 1990-04 → — Figure 118947 118947 1990-01 → 1994-01 Figure 118949 118949 1990-01 → 1994-01

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
