Toyota Land Cruiser S/T,H/T

1990-01 → 2004-08 · chassis FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781130 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

12 part groups · 6 illustrations

Illustrations

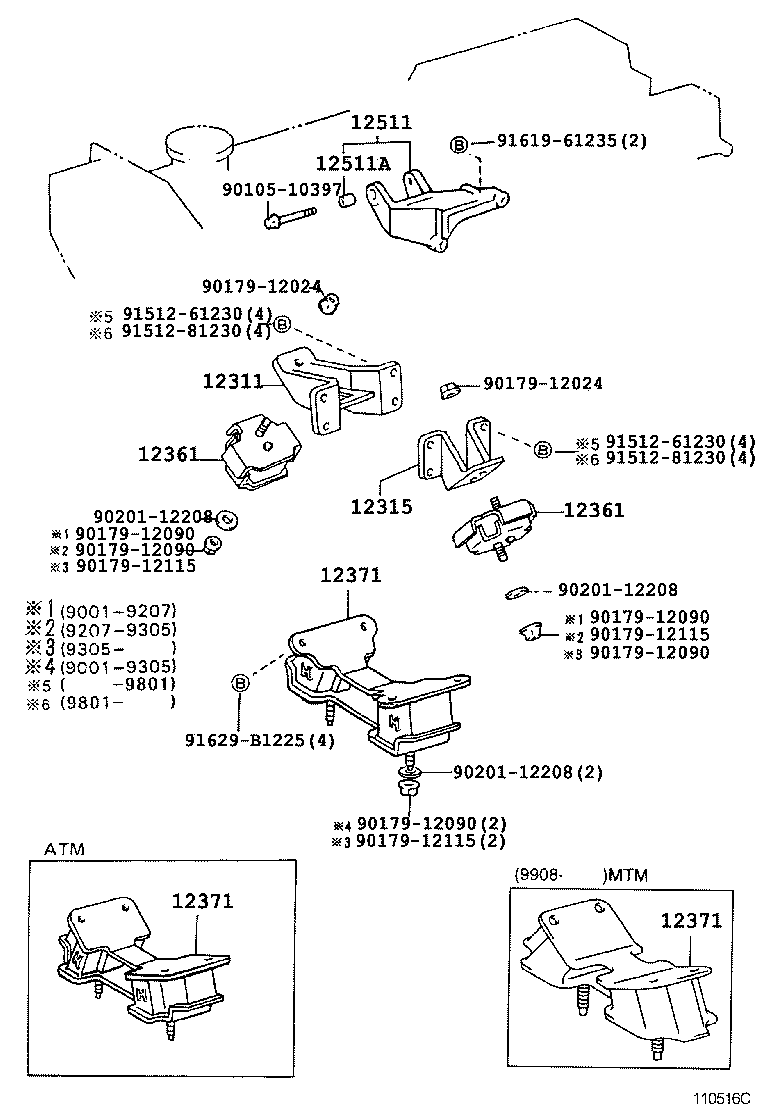

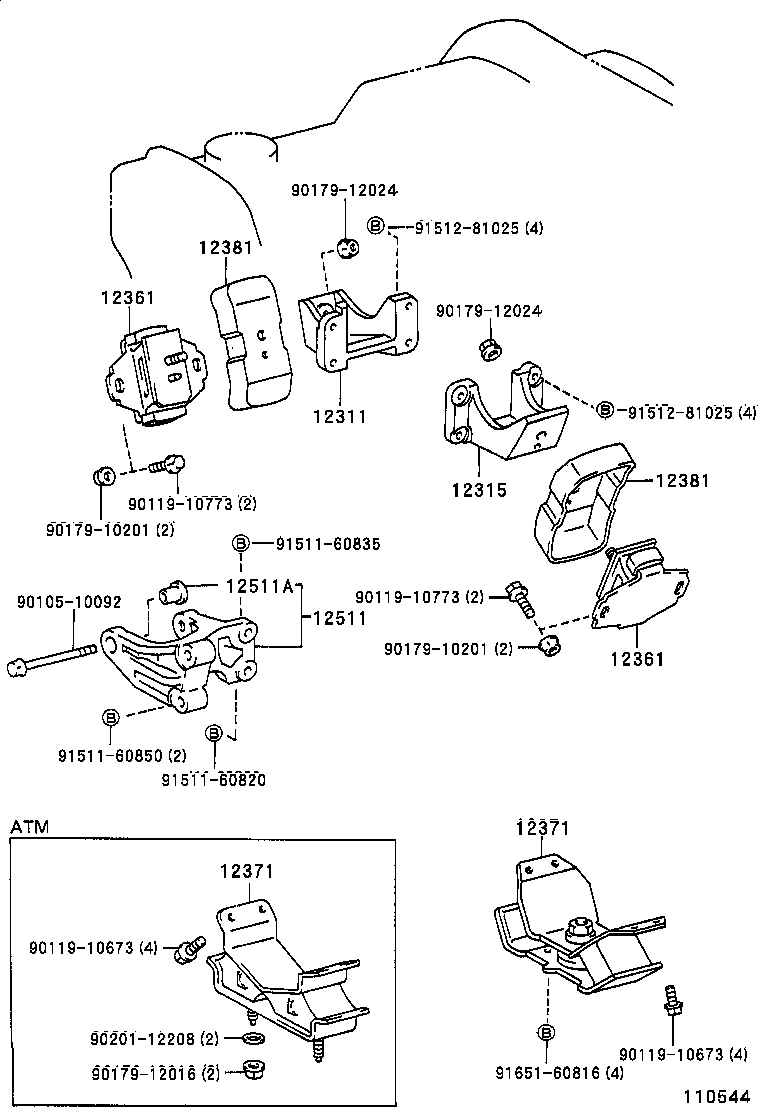

Figure 114466 114466 1990-06 → 1992-08 Figure 119777 119777 1990-06 → 1992-08 Figure 110516C 110516C 1990-01 → — Figure 110544 110544 1993-05 → 1996-04 Figure MAD868B MAD868B 1990-04 → 1993-05 Figure 110503 110503 1990-01 → 1994-01

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12364 Insulator, Engine Mounting, Front LH
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
16630 Pulley Assy, Idler
16630A Collar, Idle Pulley
16630B Cover, Dust
16630C Shaft, Idler Pulley
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
