Toyota Land Cruiser S/T,H/T

1990-01 → 2004-08 · chassis FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781130 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

46 part groups · 6 illustrations

Illustrations

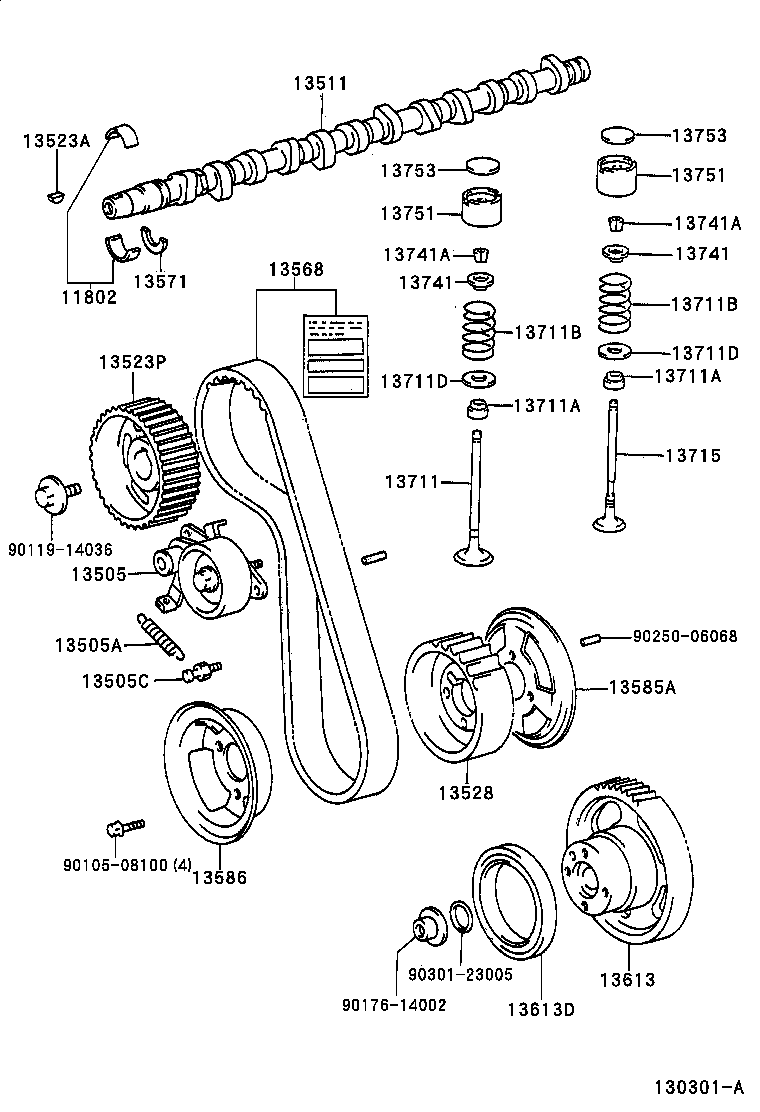

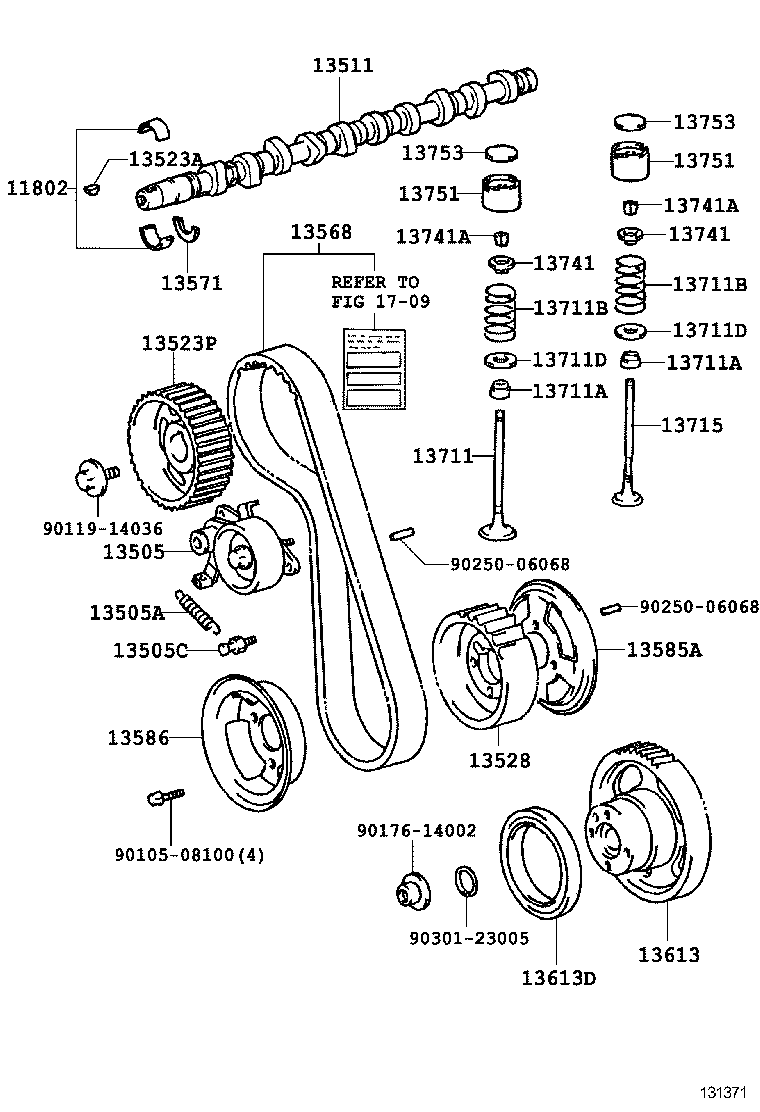

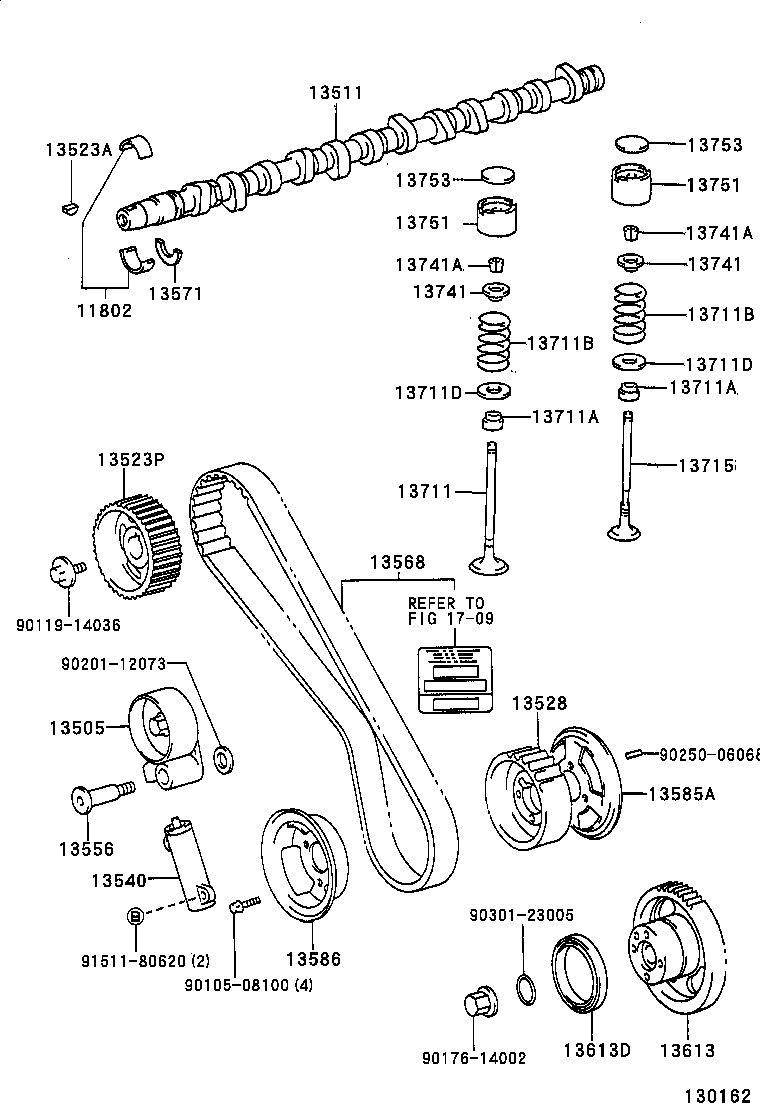

Figure 130098 130098 1990-06 → 1992-08 Figure 130301A 130301A 1990-01 → 1999-08 Figure 130162 130162 1999-08 → — Figure MAG455A MAG455A 1993-05 → 1996-04 Figure MAB227E MAB227E 1990-04 → 1993-05 Figure 131371 131371 1990-01 → 1994-01

Part groups

PNCDescription
11802 Bearing Set, Camshaft
13502 Idler Sub-assy, Timing Belt, NO.2
13505 Idler Sub-assy, Timing Belt, NO.1
13505A Spring, Tension(FOR IDLER)
13505C Pin(FOR IDLER SPRING TENSION)
13511 Camshaft
13511B Plug, Expansion(FOR CAMSHAFT)
13515A Washer, Plate(FOR DISTRIBUTOR DRIVE GEAR)
13523 Gear OR Sprocket, Camshaft Timing
13523A Key, Woodruff(FOR TIMING GEAR)
13523C Ring, Snap Camshaft(FOR TIMING GEAR)
13523P Pulley, Camshaft Timing
13528 Gear, Camshaft Drive
13540 Tensioner Assy, Chain, NO.1
13556 Shaft, Timing Belt Idler
13558 Bracket, Spring(FOR IDLER)
13568 Belt, Timing
13571 Plate, Camshaft Thrust
13585A Flange, Camshaft Timing Pulley, NO.1
13586 Flange, Camshaft Timing Pulley, NO.2
13613 Gear, Injection Pump Drive
13613D Bearing, Radial Ball
13613P Pulley, Injection Pump Drive
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13711D Washer, Plate(FOR VALVE SPRING SEAT)
13715 Valve, Exhaust
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13753 Shim, Valve Adjusting
13781 Rod, Valve Push
13801 Arm Sub-assy, Valve Rocker, NO.1
13801B Nut, Hexagon(FOR VALVE ADJUSTING)
13801C Screw, Valve Adjusting
13801D Spring, Compression(FOR ROCKER ARM)
13802 Arm Sub-assy, Valve Rocker, NO.2
13901 Shaft Sub-assy, Valve Rocker, NO.1
13901B Spring, Conical(FOR VALVE ROCKER SHAFT)
13901C Spring, Retainer(FOR VALVE ROCKER SHAFT)
13951 Support, Valve Rocker, NO.1
13951A Bolt(FOR ROCKER SUPPORT SET)
13951C Bolt, Stud(FOR ROCKER SUPPORT)
13952 Support, Valve Rocker, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
