Toyota Land Cruiser S/T,H/T

1990-01 → 2004-08 · chassis FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781130 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

78 part groups · 12 illustrations

Illustrations

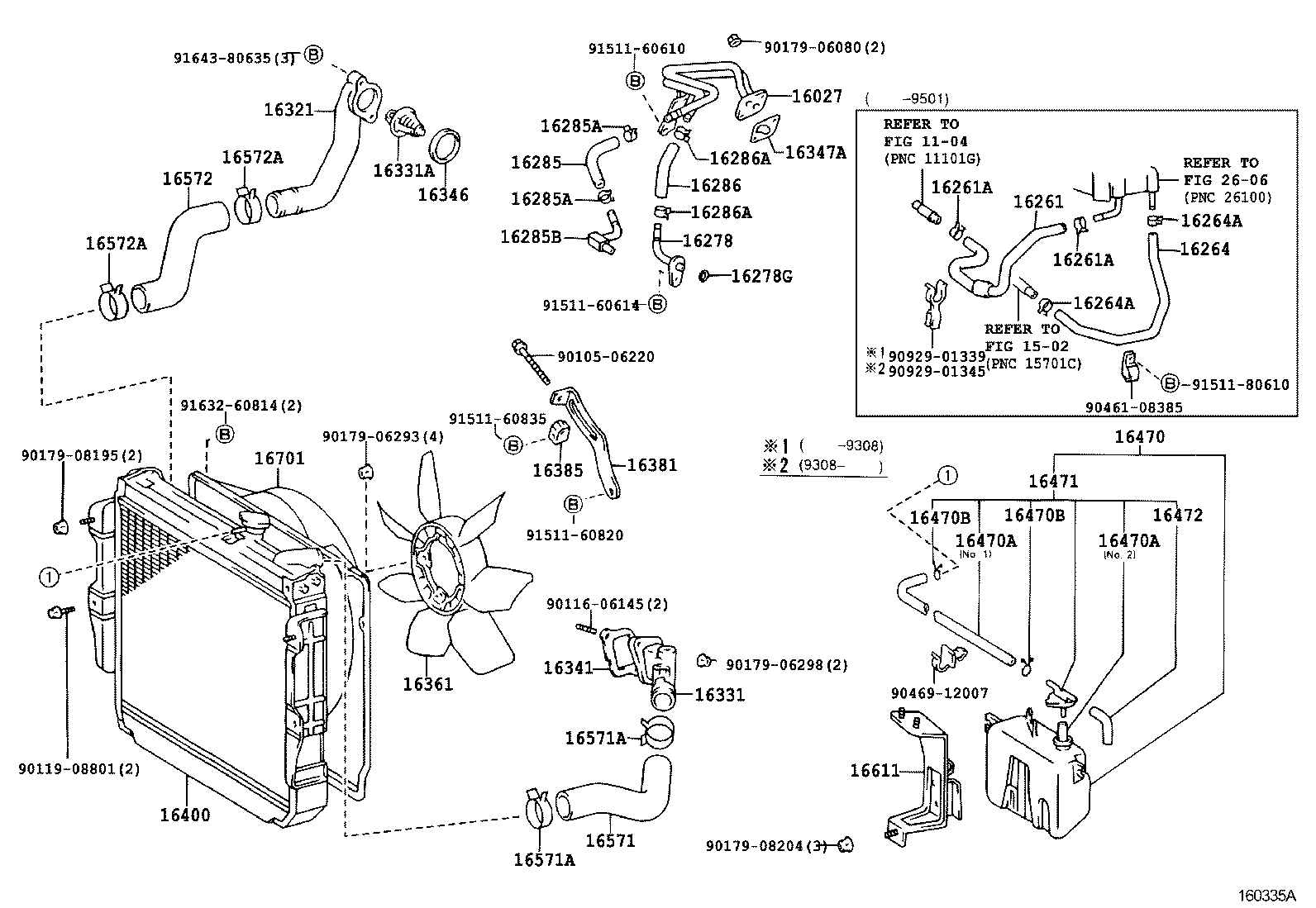

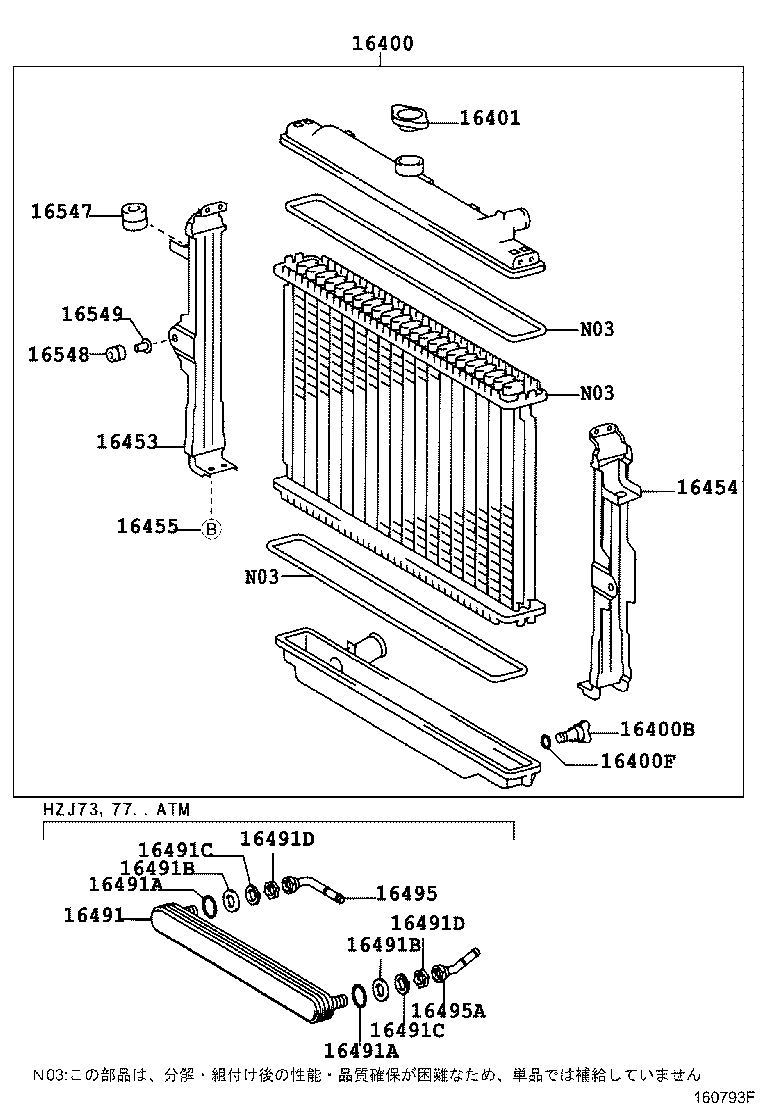

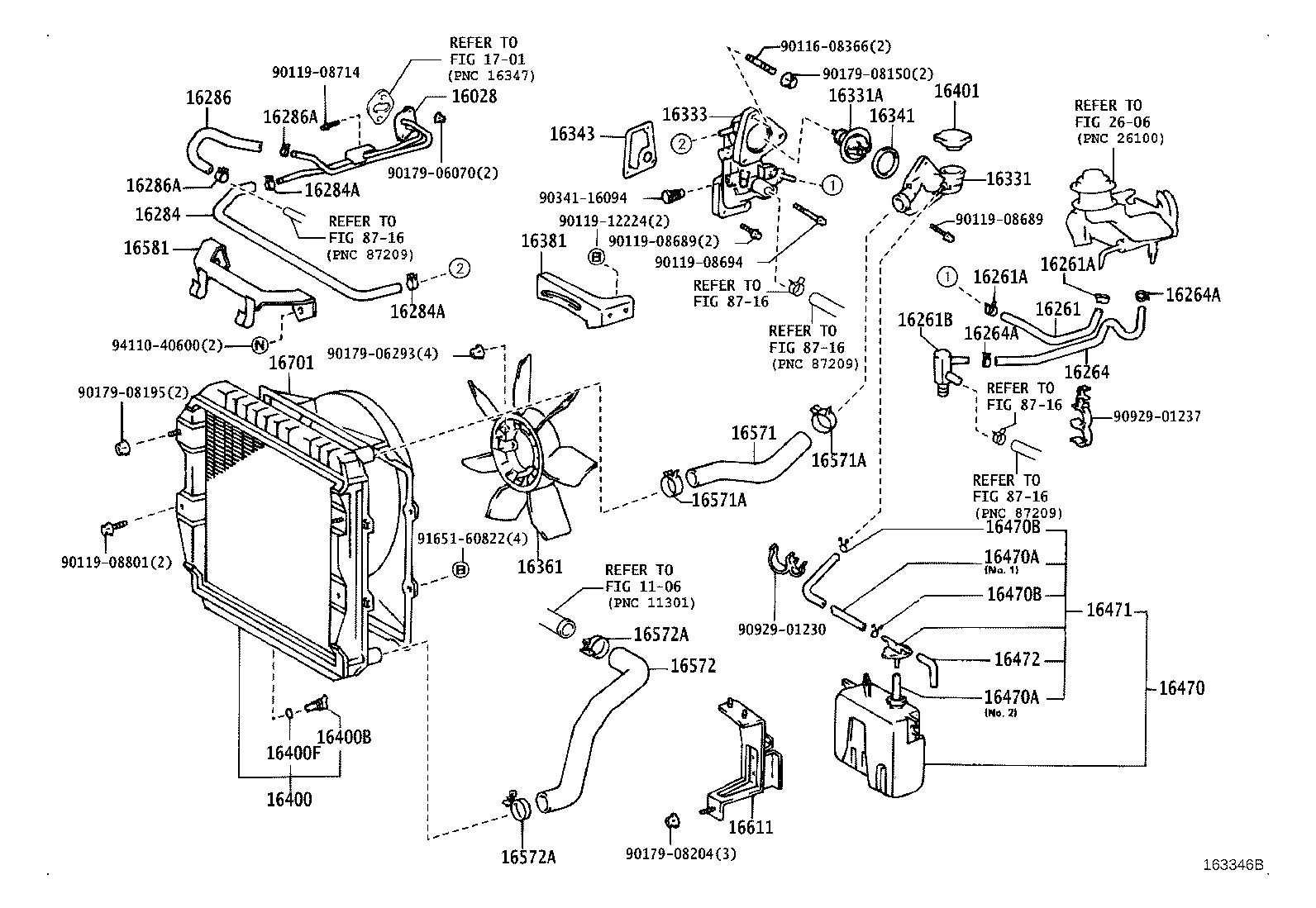

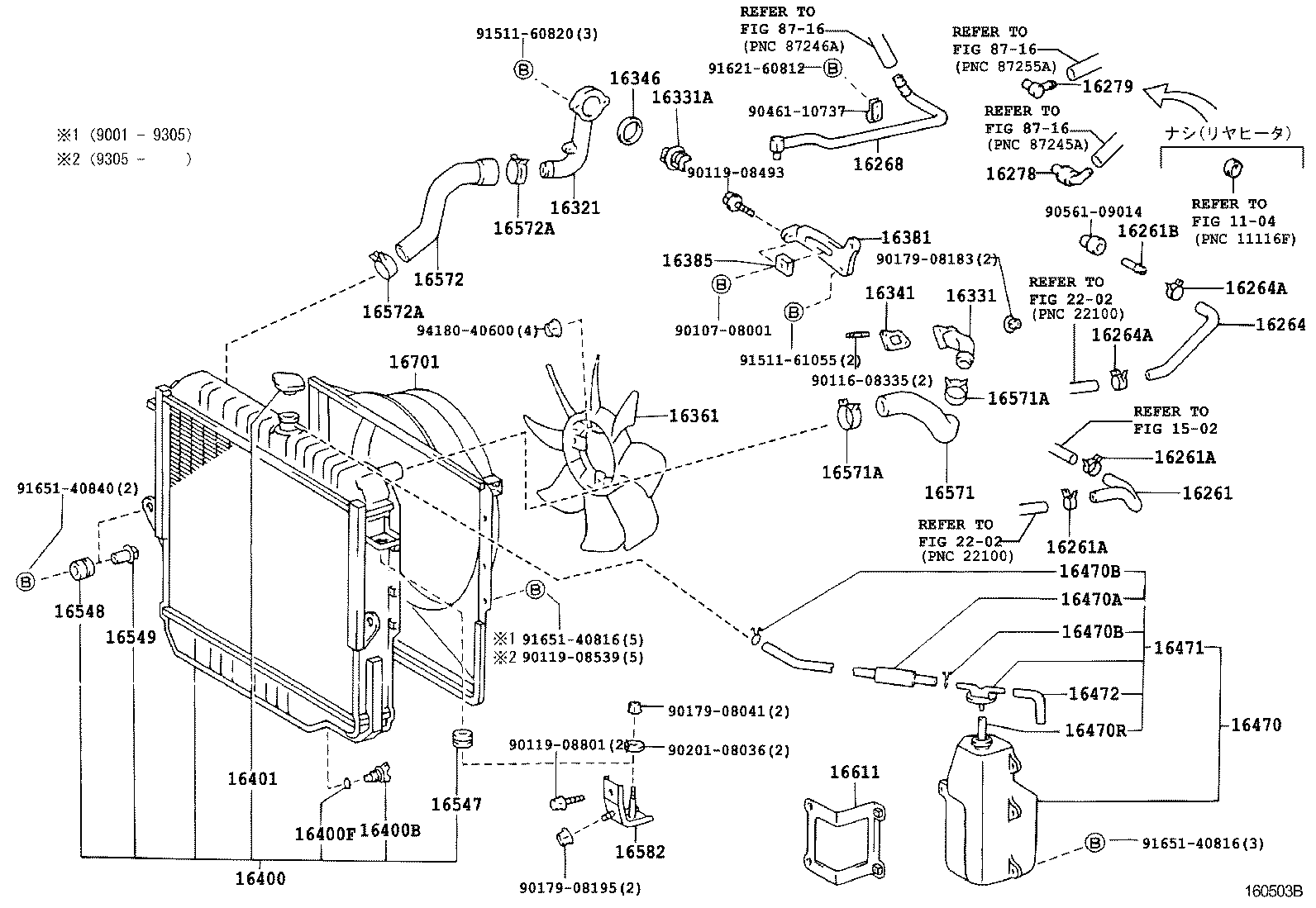

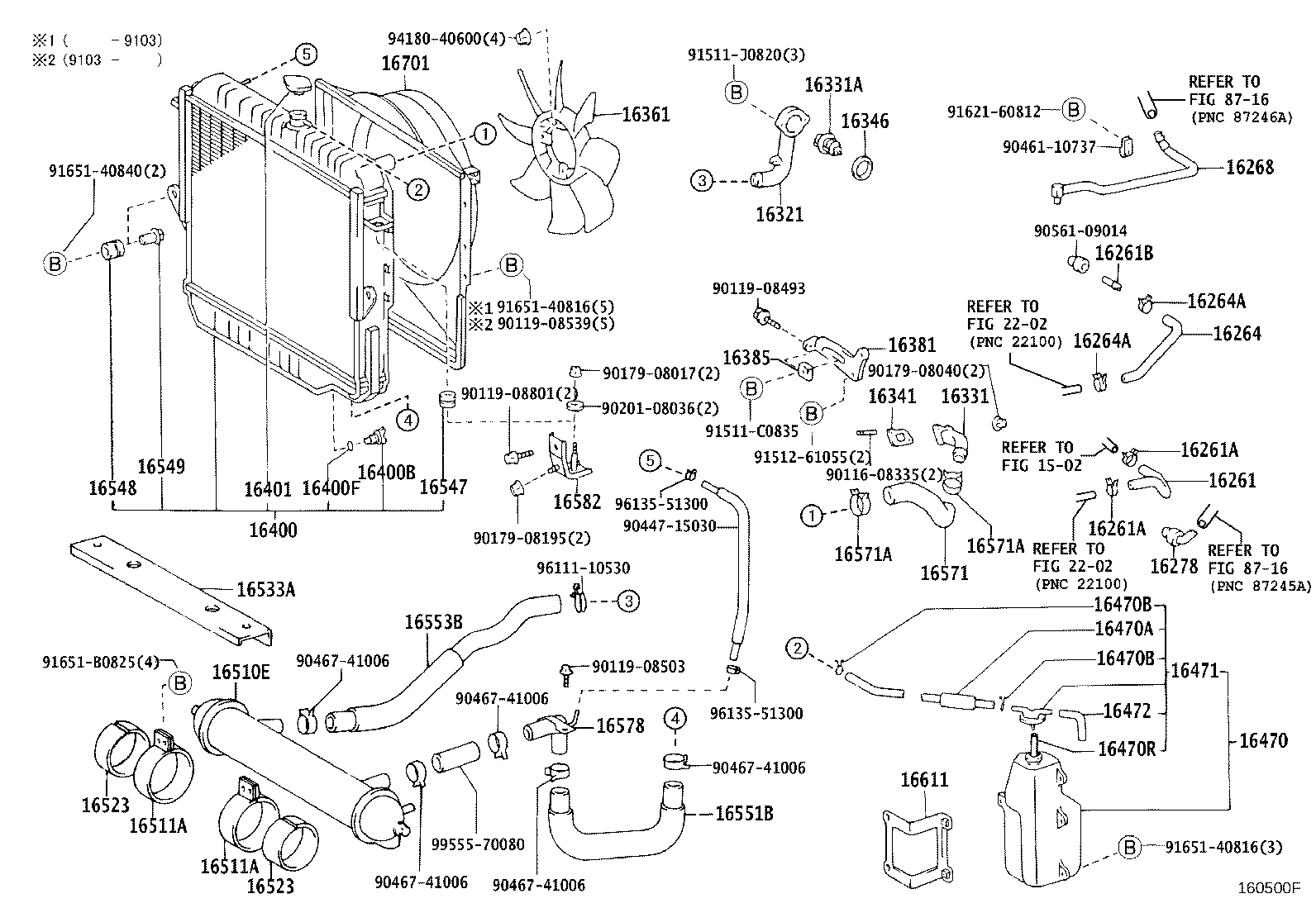

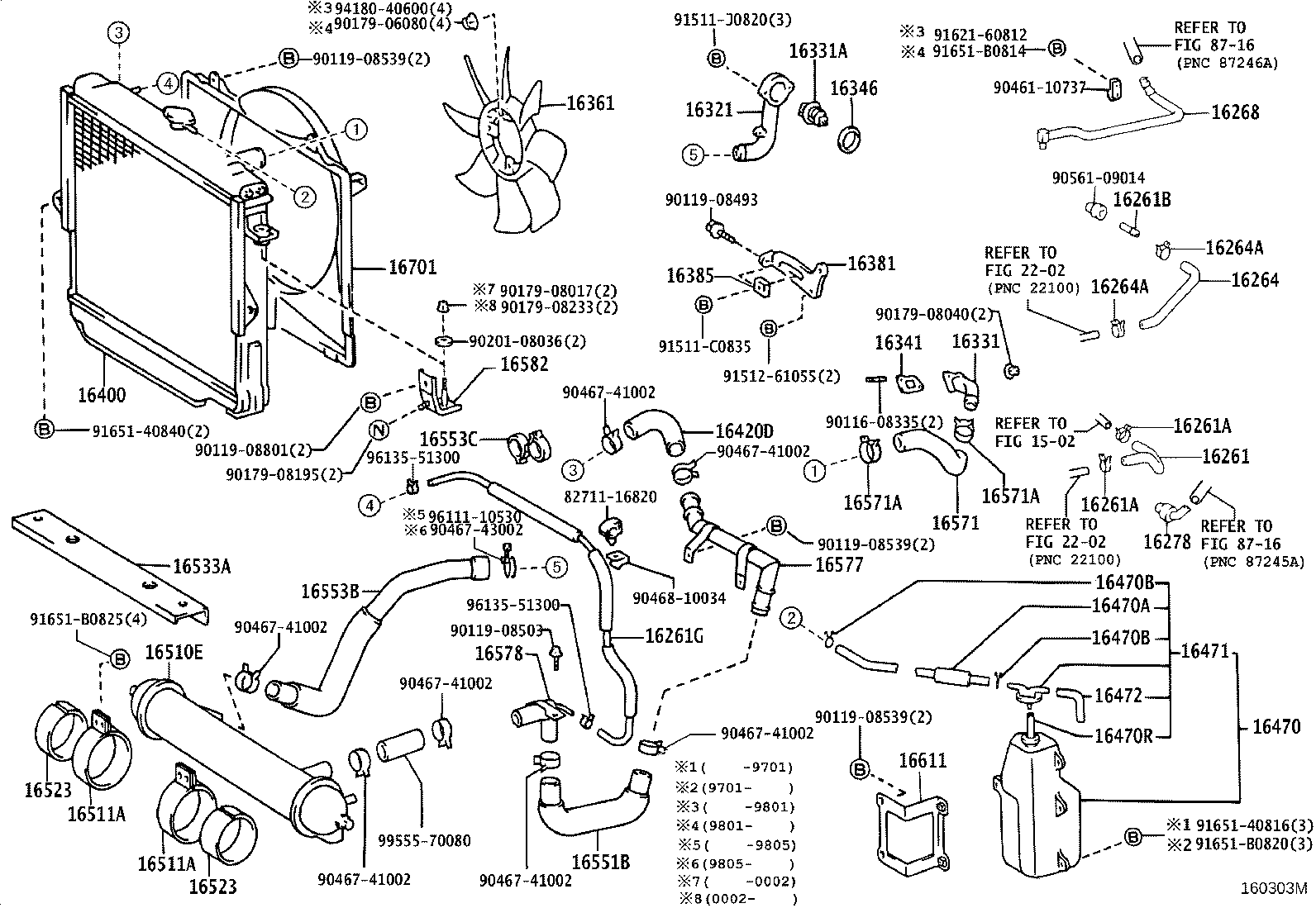

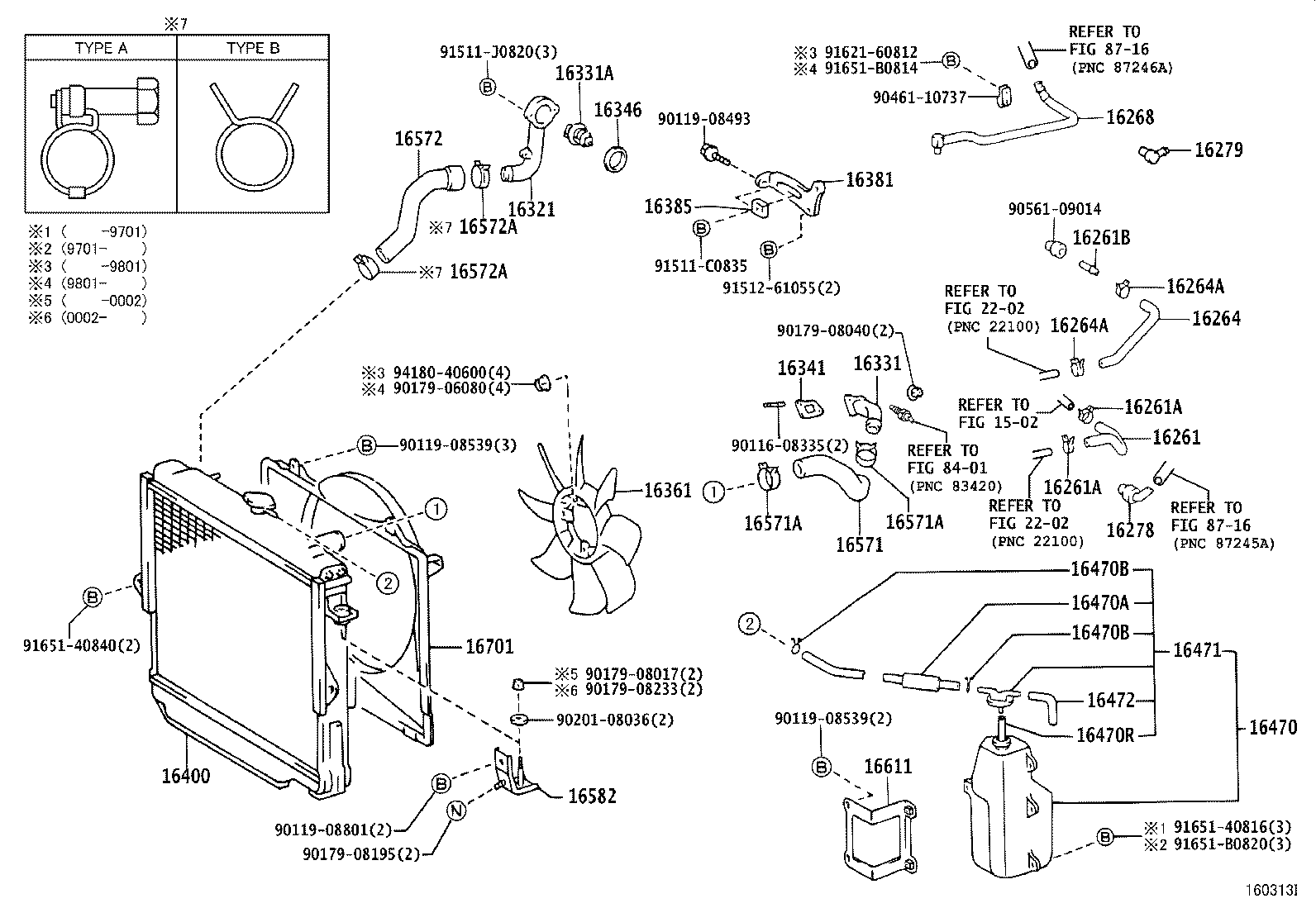

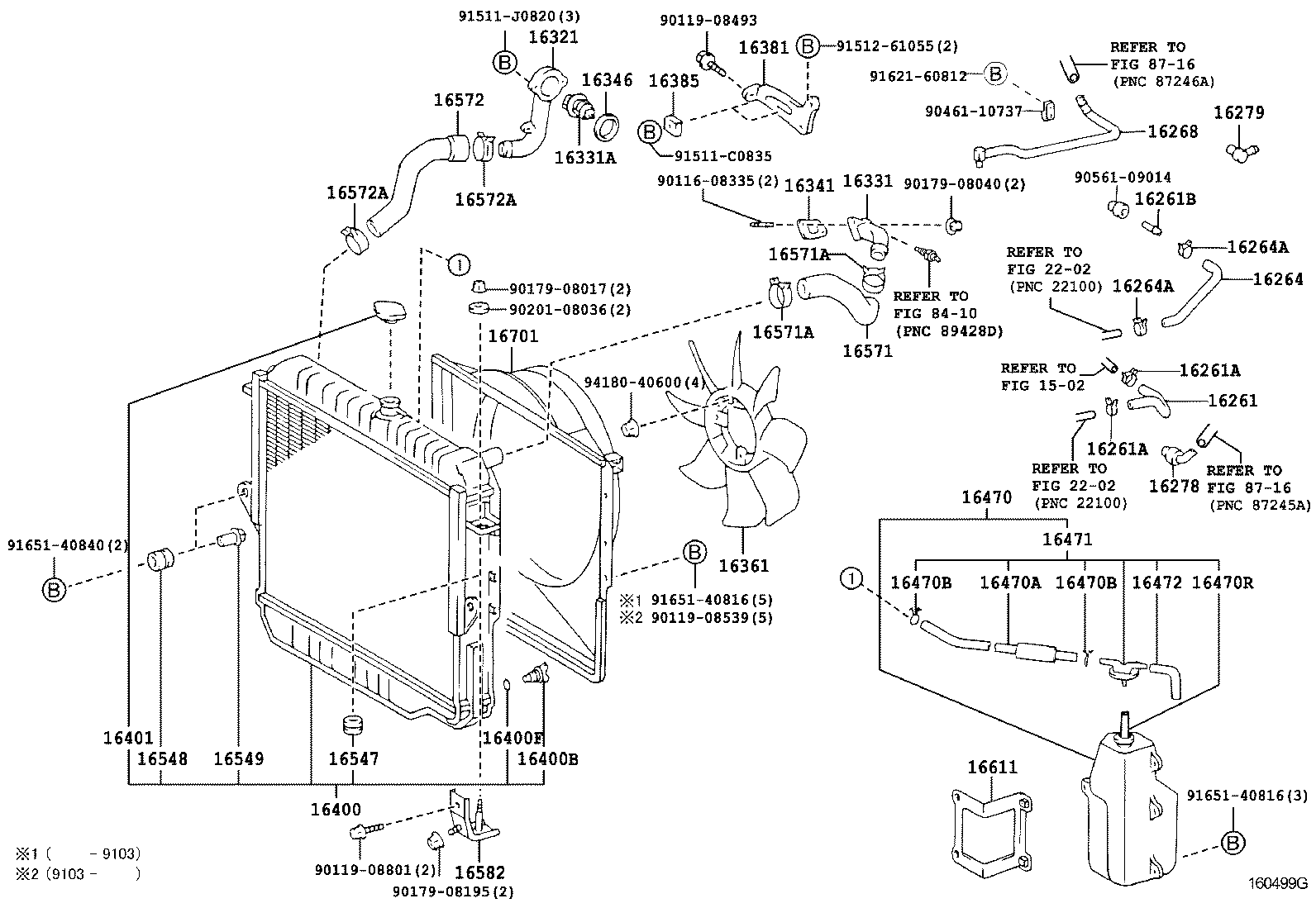

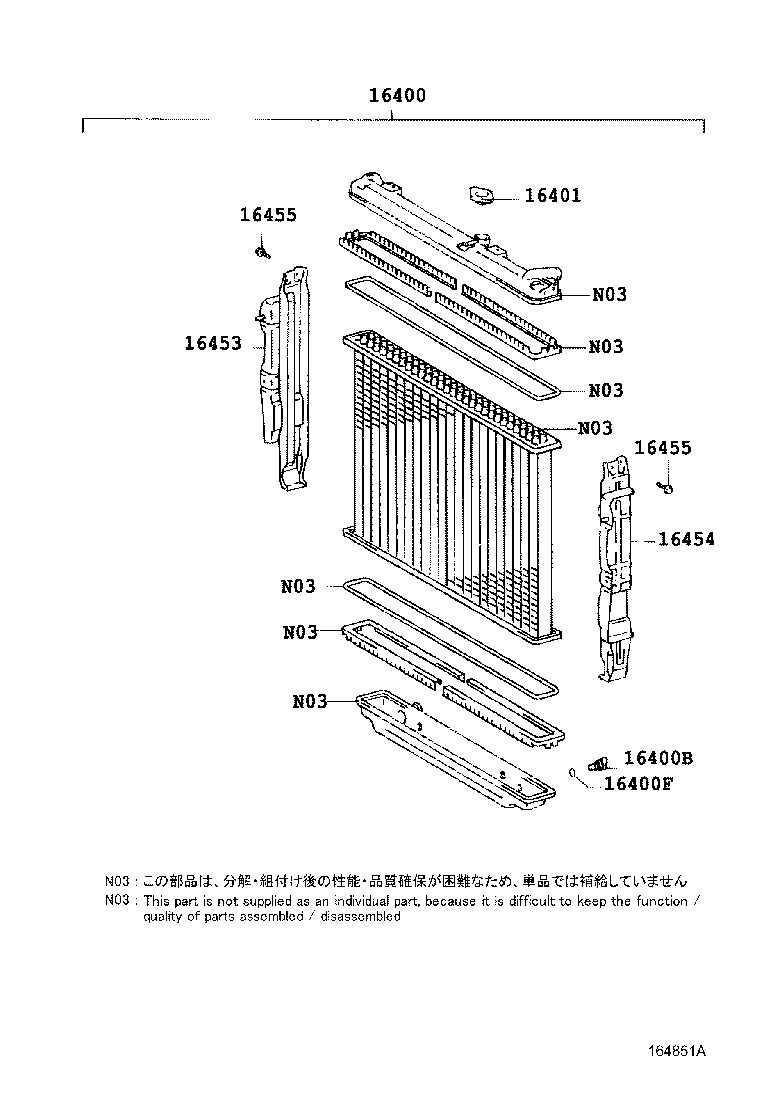

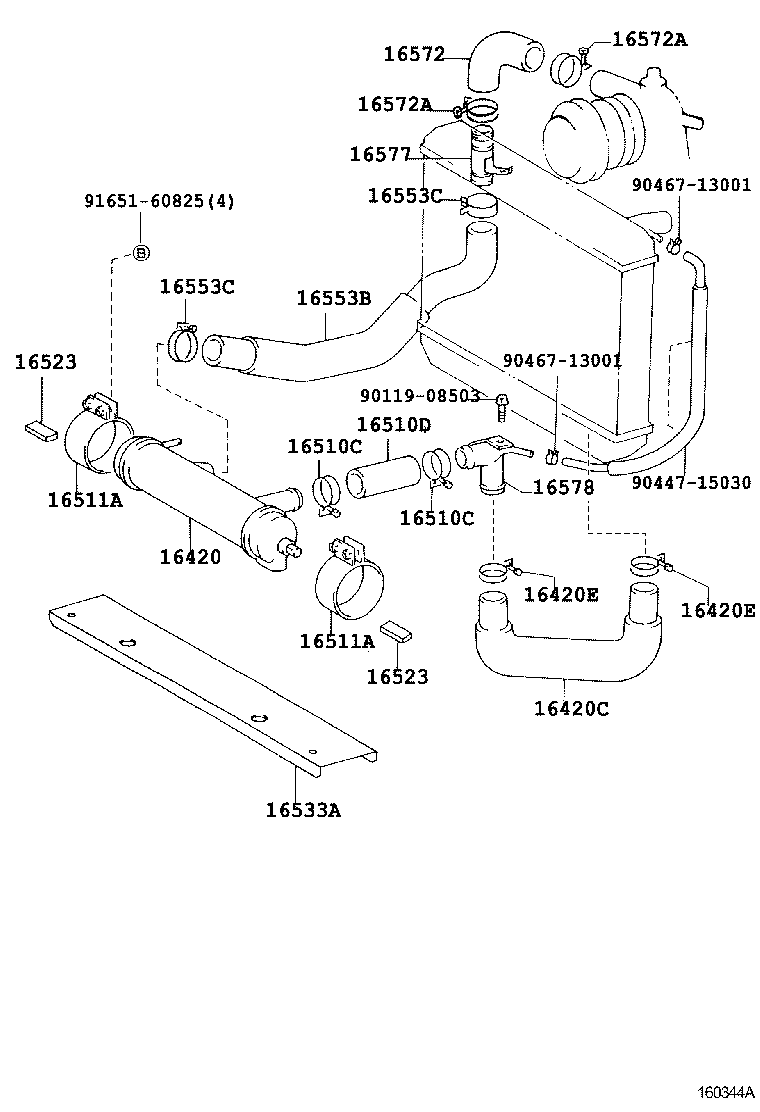

Figure 160343A 160343A 1990-06 → 1992-08 Figure 160344A 160344A 1990-06 → 1992-08 Figure 160500F 160500F 1992-12 → 1996-08 Figure 160499G 160499G 1990-01 → 1996-08 Figure 160303M 160303M 1996-08 → 1999-08 Figure 160303M 160303M 1999-11 → 2004-08 Figure 160313I 160313I 1996-08 → — Figure 160793F 160793F 1996-08 → — Figure 160335A 160335A 1993-05 → 1996-04 Figure 164851A 164851A 1993-05 → 1996-04 Figure 163346B 163346B 1990-04 → 1993-05 Figure 160503B 160503B 1990-01 → 1994-01

Part groups

PNCDescription
16027 Pipe Sub-assy, Turbo Water, NO.1
16028 Pipe Sub-assy, Turbo Water, NO.2
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261B Union(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16268 Pipe, Water By-pass, NO.1
16278 Pipe, Water By-pass, NO.2
16278G Ring, O(FOR WATER BY-PASS NO.2 PIPE)
16279 Pipe, Water By-pass, NO.3
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16285B Union(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16321 Inlet, Water
16331 Outlet, Water
16331A Thermostat
16331B Plug(FOR WATER OUTLET)
16333 Housing, Water Outlet
16341 Gasket, Water Outlet
16343 Gasket, Water Outlet Housing
16346 Gasket, Thermostat
16347A Gasket(FOR TURBO WATER PIPE)
16361 Fan
16381 Bar, Fan Belt Adjusting
16385 Slider, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16420 Radiator Assy, Sub
16420C Hose, Sub Radiator, NO.1
16420D Hose, Sub Radiator, NO.2
16420E Clamp OR Clip, Sub Radiator Hose
16453 Plate, Radiator Side
16454 Plate, Radiator Side
16455 Bolt, Radiator Side Support Plate
16470 Tank Assy, Radiator Reserve
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16470B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16470C Bracket(FOR RADIATOR RESERVE TANK)
16470R Hose, NO.2(FOR RADIATOR RESERVE TANK)
16471 Cap Sub-assy, Reserve Tank
16472 Hose, Breather
16491 Cooler, Oil(FOR ATM)
16491A Ring, O(FOR ATM OIL COOLER)
16491B Washer, Plate(FOR ATM OIL COOLER)
16491C Washer, Spring(FOR ATM OIL COOLER)
16491D Nut(FOR ATM OIL COOLER)
16495 Nut, Flare(FOR ATM OIL COOLER)
16495A Nut, Flare, NO.2(FOR ATM OIL COOLER)
16510C Clamp, Hose(FOR SUB-RADIATOR)
16510D Hose, Water(FOR SUB-RADIATOR)
16510E Sub-radiator Assy
16511A Bracket, Sub-radiator
16523 Cushion, Sub-radiator Support
16533A Support, Sub-radiator
16547 Bush, Radiator Support, NO.1
16548 Bush, Radiator Support, NO.2
16549 Collar, Radiator Support, NO.2
16551B Hose, Sub-radiator, NO.1
16553B Hose, Sub Radiator, NO.3
16553C Clamp, Hose
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16577 Pipe, Radiator, NO.7
16578 Pipe, Radiator, NO.2
16581 Clamp, Hose(FOR WATER HOSE)
16582 Bracket, Radiator, NO.1
16611 Bracket, Radiator Reserve Tank
16701 Shroud Sub-assy, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
