Toyota Land Cruiser S/T,H/T
1990-01 → 2004-08 · chassis FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781130 · Japan
Discontinued model
Data version 2005-04

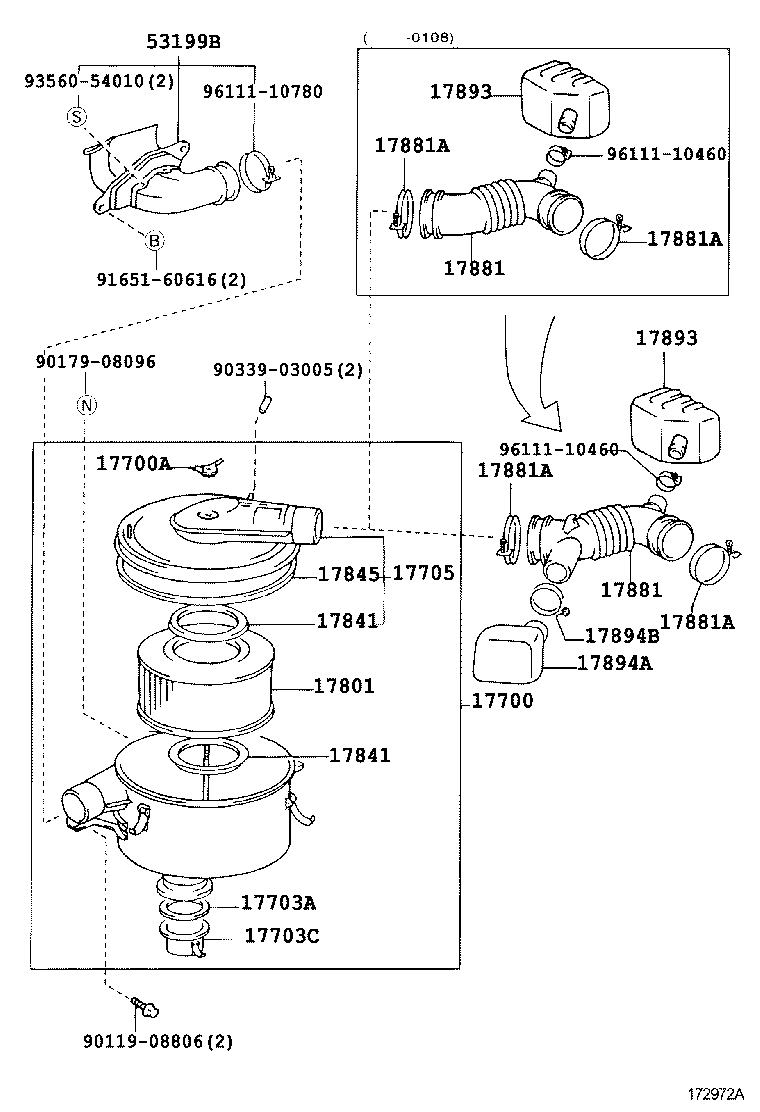

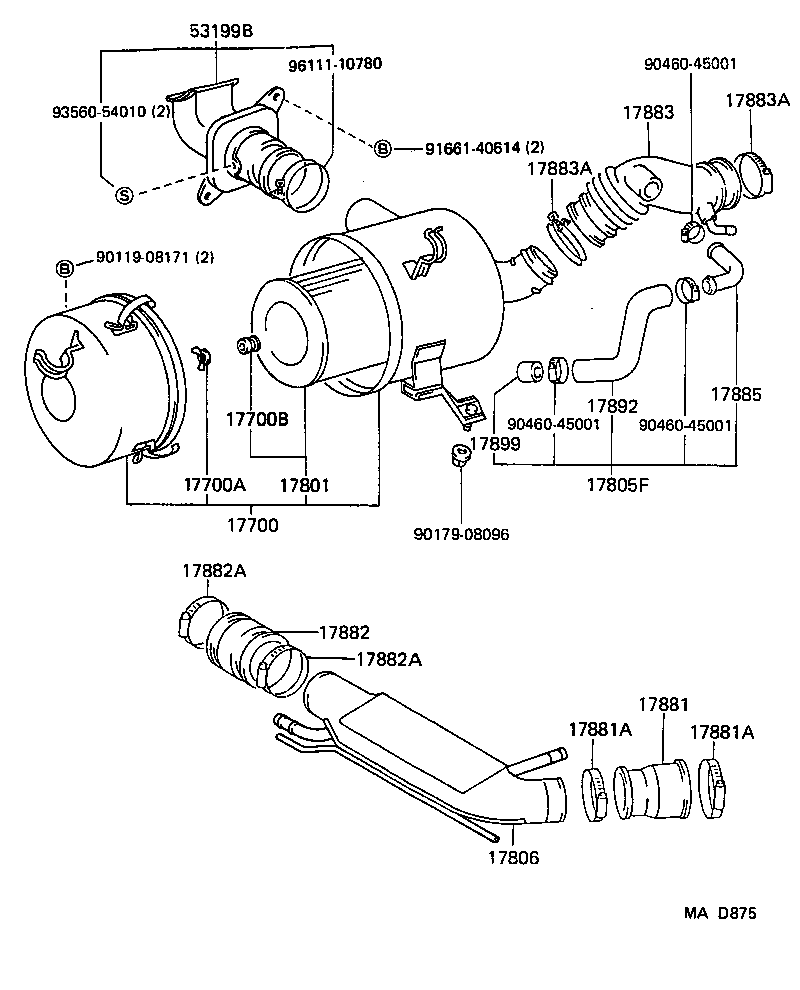

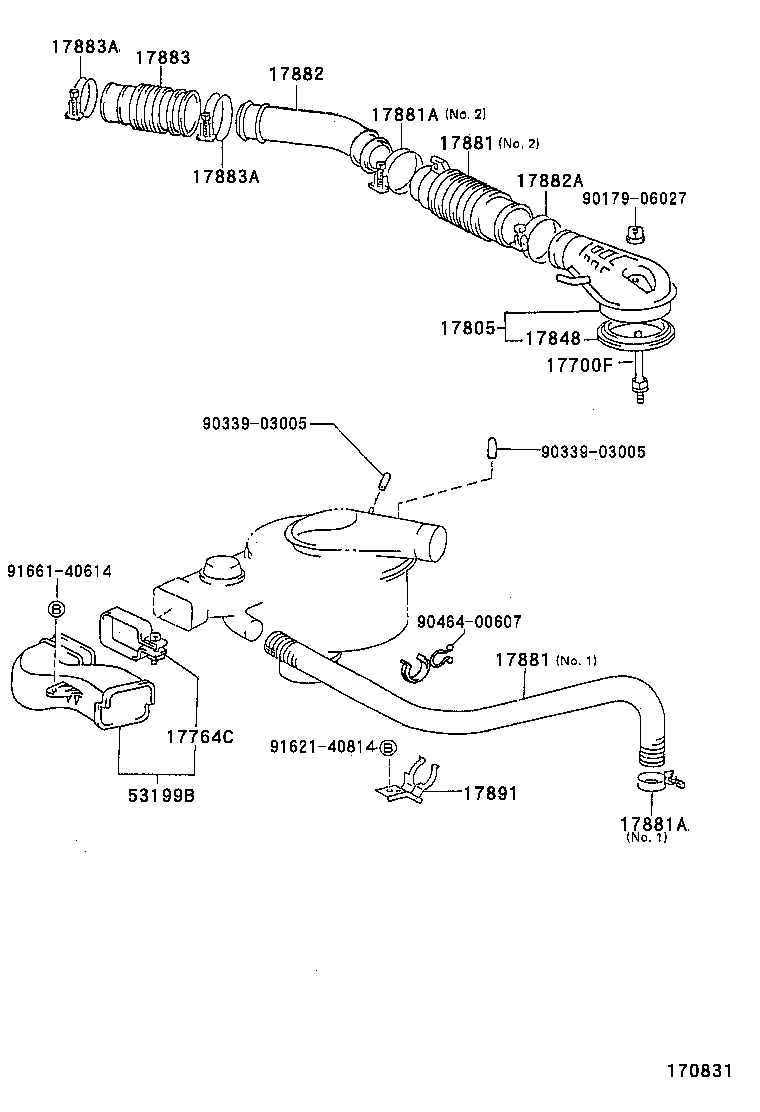

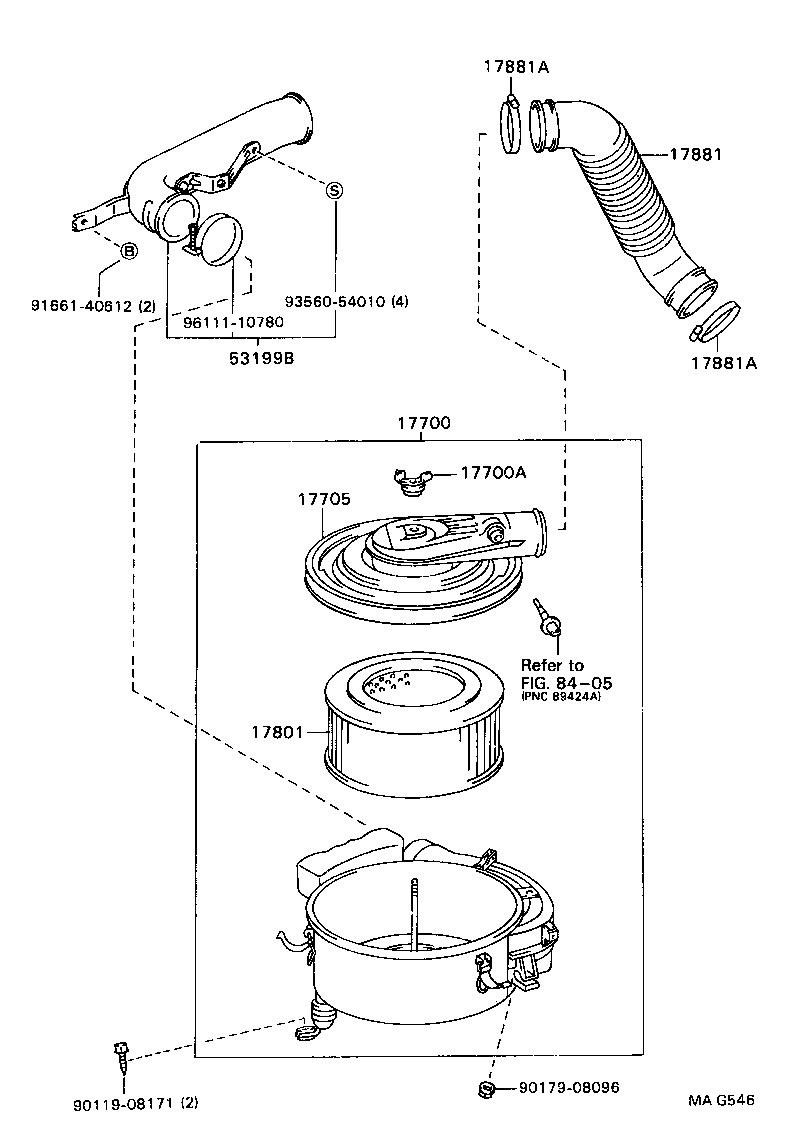

Air Cleaner
33 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 17061 | Diaphragm Sub-assy |
| 17700 | Cleaner Assy, Air |
| 17700A | Nut, Wing(FOR AIR CLEANER) |
| 17700B | Washer, Seal(FOR AIR CLEANER) |
| 17700F | Bolt, Stud(FOR AIR CLEANER SETTING) |
| 17703 | Case Sub-assy, Bottom Air Cleaner Filter |
| 17703A | Gasket(FOR BOTTOM AIR CLEANER FILTER CASE) |
| 17703C | Cap Sub-assy, Dust |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17728 | Valve, Thermostatic |
| 17728A | Bush |
| 17764C | Clamp, Hose(FOR AIR CLEANER DUCT) |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17805 | Connector Sub-assy, Intake Air |
| 17805F | Resonator Sub-assy, Intake Air |
| 17806 | Pipe Sub-assy, Air Cleaner, NO.2 |
| 17841 | Gasket, Filter Element |
| 17845 | Gasket, Air Cleaner Cap |
| 17848 | Gasket, Air Cleaner TO Carburetor |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17883 | Hose, Air Cleaner, NO.3 |
| 17883A | Clamp(FOR AIR CLEANER HOSE, NO.3) |
| 17885 | Pipe, Air Cleaner |
| 17891 | Clamp(FOR HOT AIR HOSE) |
| 17892 | Hose, Intake Air Resonator |
| 17893 | Resonator, Intake Air |
| 17894A | Resonator, Intake Air, NO.2 |
| 17894B | Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2) |
| 17899 | Plug, Resonator Hose |
| 53199B | Duct Sub-assy, Cool Air Intake |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
