Toyota Land Cruiser S/T,H/T

1990-01 → 2004-08 · chassis FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781130 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

10 part groups · 5 illustrations

Illustrations

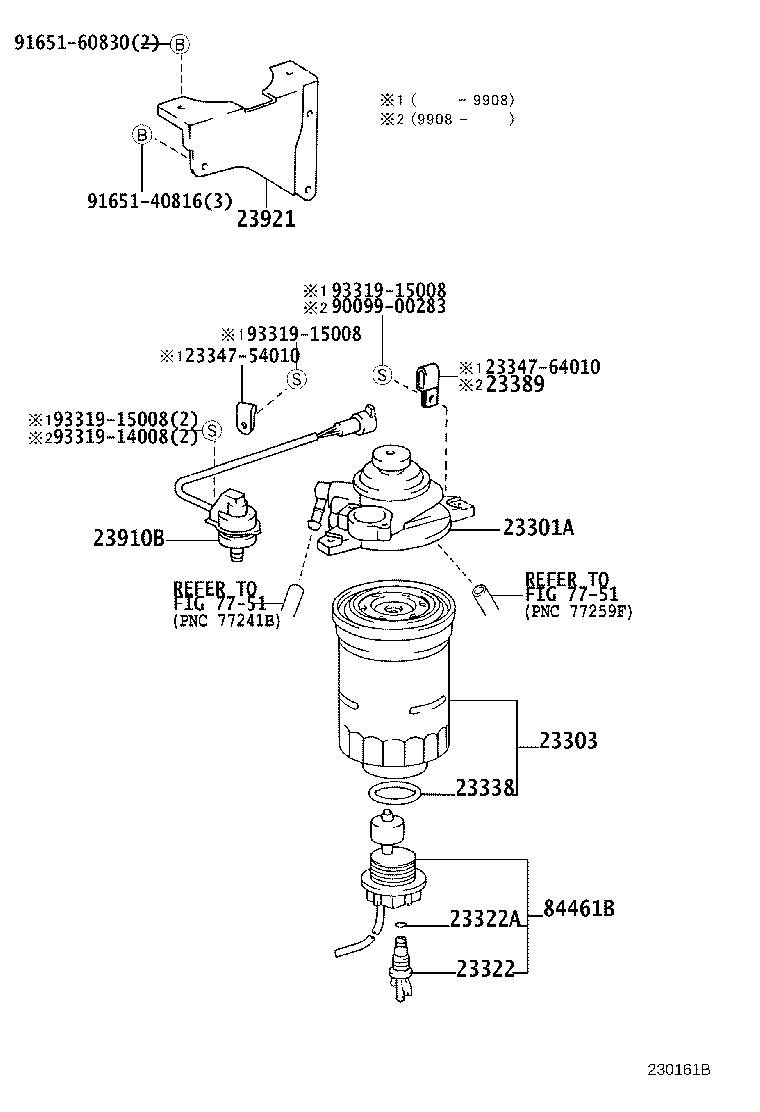

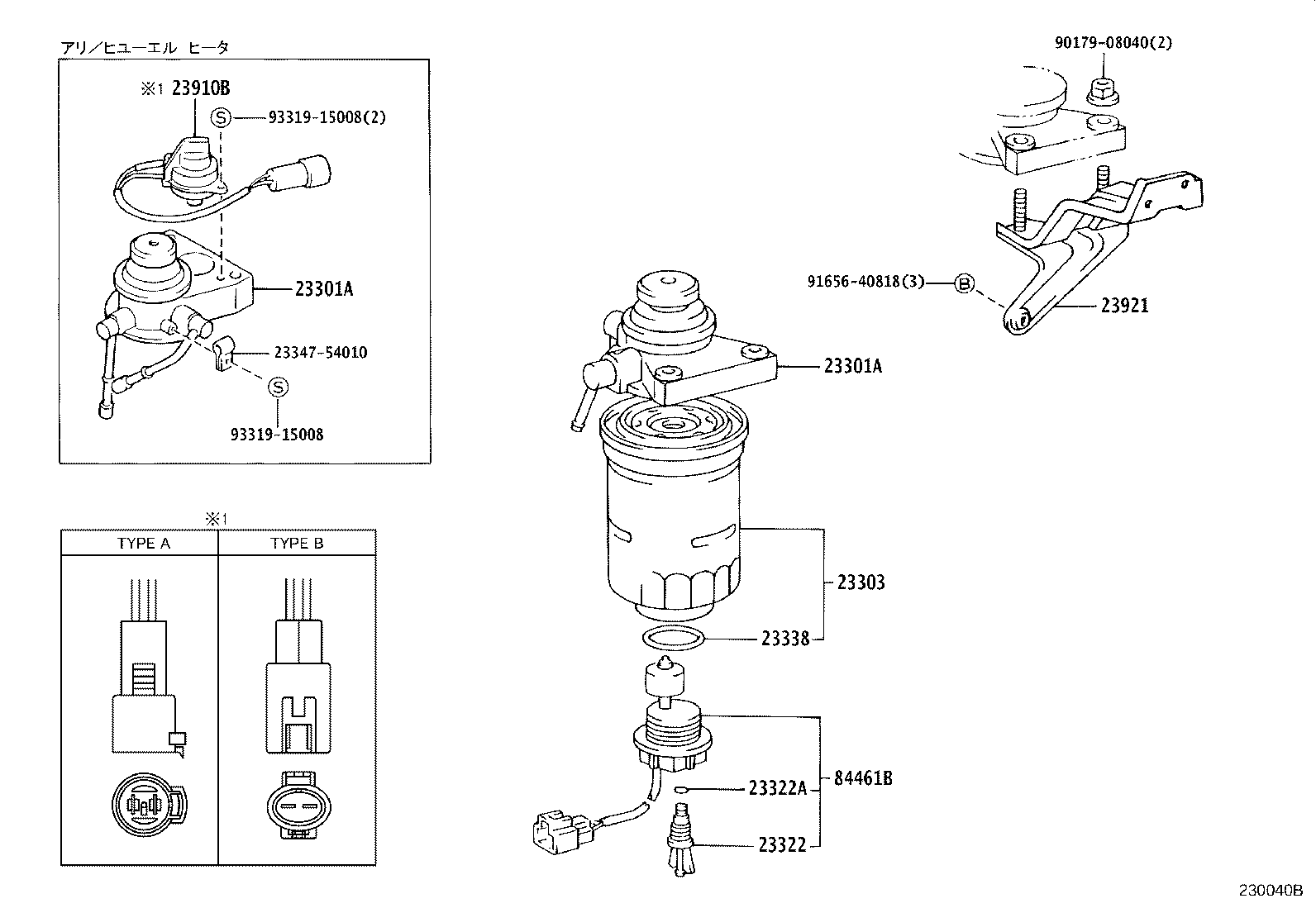

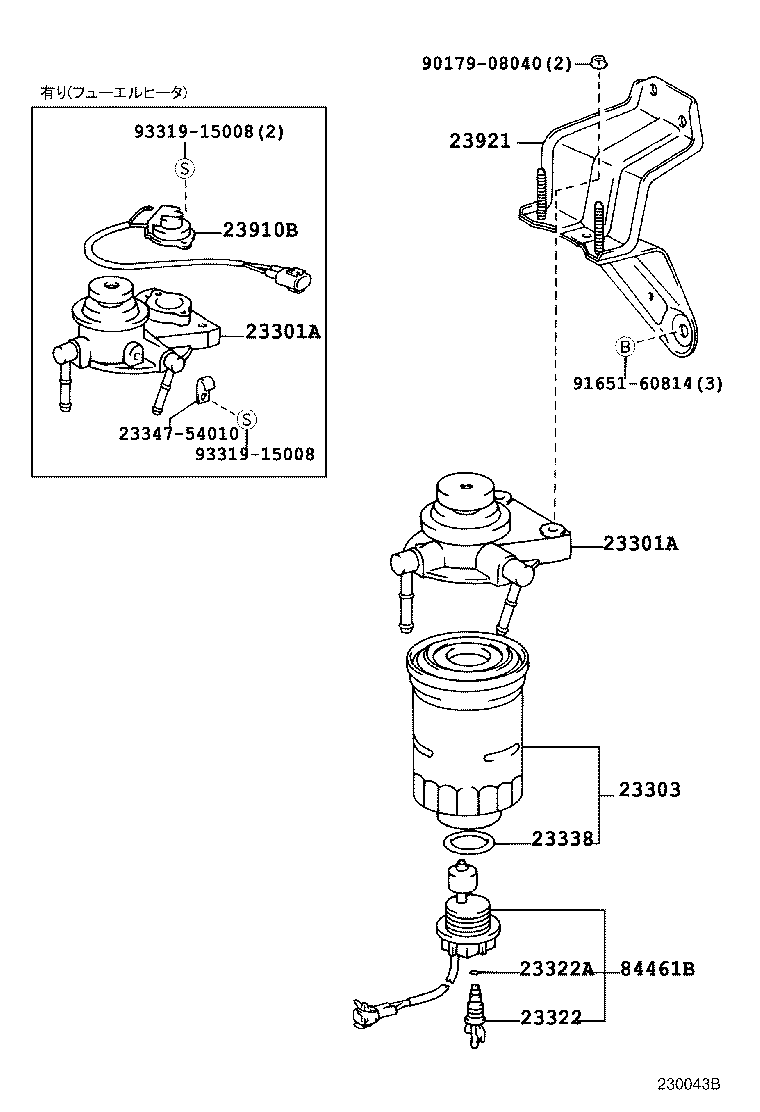

Figure 230181 230181 1990-06 → 1992-08 Figure 230161B 230161B 1990-01 → — Figure 230043B 230043B 1993-05 → 1996-04 Figure 230040B 230040B 1990-04 → 1993-05 Figure 230112 230112 1990-01 → 1994-01

Part groups

PNCDescription
23300 Filter Assy, Fuel
23301A Cap Assy, Fuel Filter
23303 Element Sub-assy, Fuel Filter
23322 Plug, Drain(FOR FUEL FILTER)
23322A Ring, O(FOR DRAIN PLUG)
23338 Gasket(FOR WARNING SWITCH)
23389 Clamp, Fuel Filter
23910B Heater Assy, Fuel
23921 Support, Fuel Filter
84461B Switch, Level Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
