Toyota Land Cruiser S/T,H/T
1990-01 → 2004-08 · chassis FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781130 · Japan
Discontinued model
Data version 2005-04

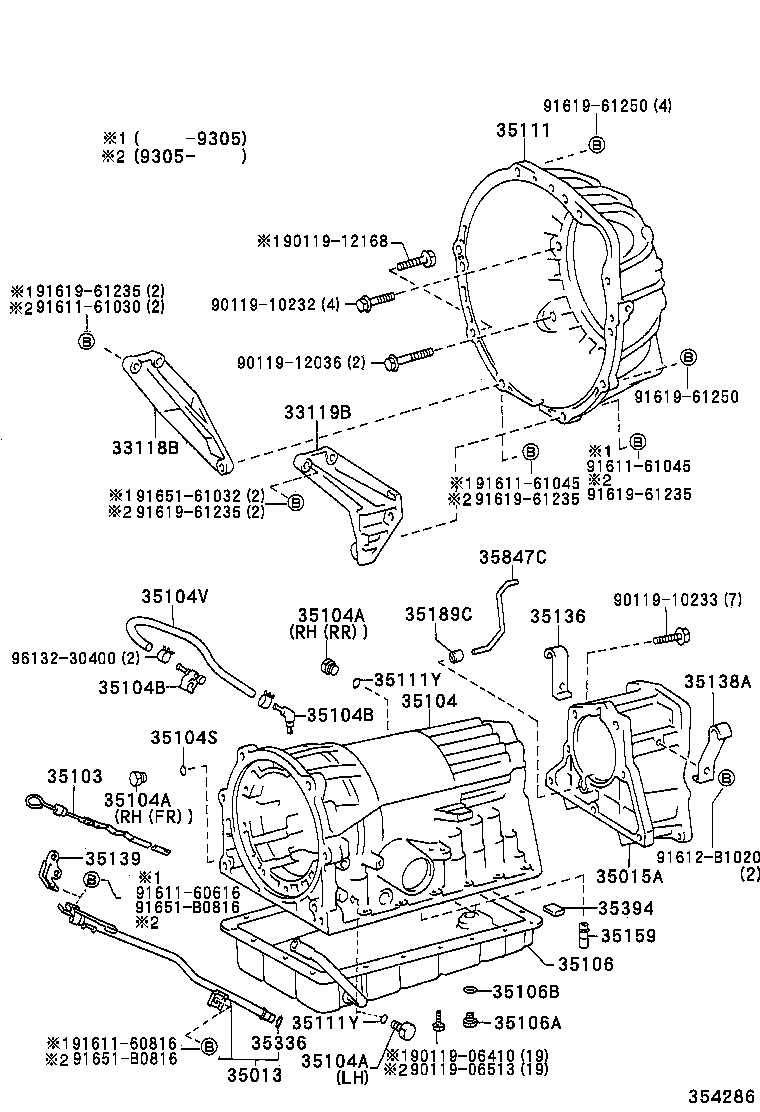

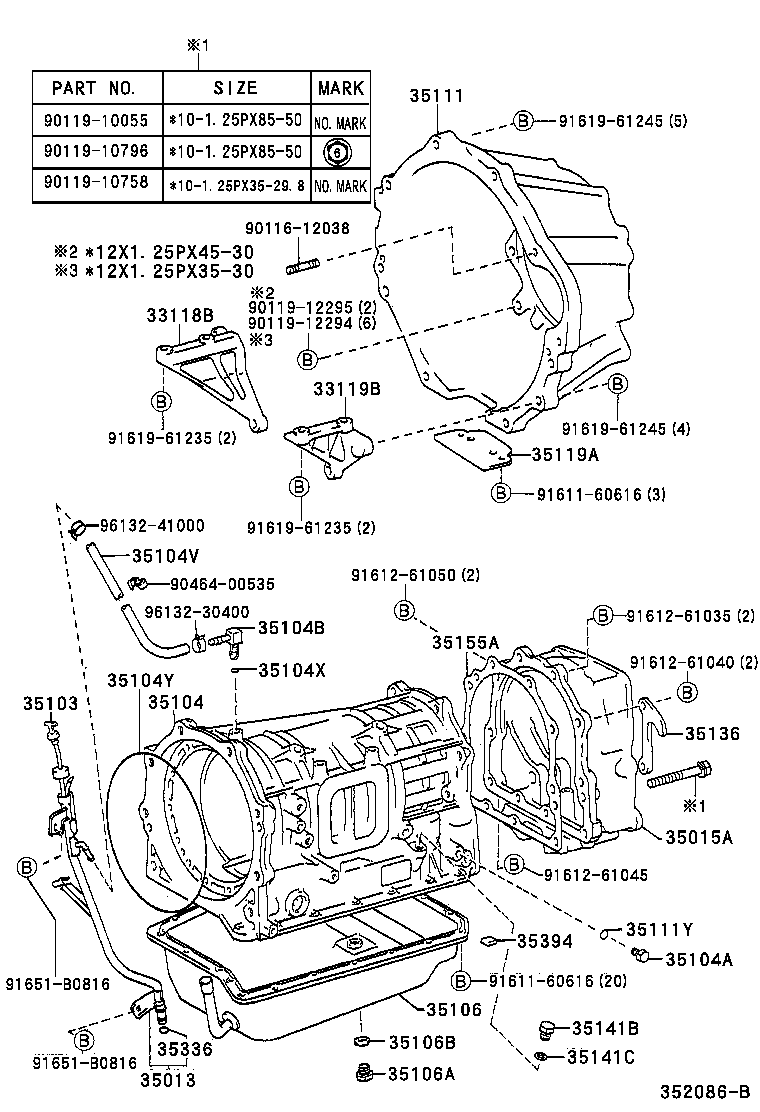

Transmission Case & Oil Pan (ATM)
31 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33118B | Plate, Stiffener, RH(ATM) |
| 33119B | Plate, Stiffener, LH(ATM) |
| 35013 | Tube Sub-assy, Transmission Oil Filler |
| 35015A | Adapter Sub-assy, Transmission Case, Rear |
| 35103 | Gage Sub-assy, Transmission Oil Level |
| 35104 | Case Sub-assy, Automatic Transmission |
| 35104A | Plug, Automatic Transmission Case |
| 35104B | Plug, Breather, NO.1 (ATM) |
| 35104S | Ring, O (FOR TRANSAXLE CASE PLUG NO.1) |
| 35104V | Hose (FOR BREATHER PLUG) |
| 35104X | Ring, O (FOR BREATHER PLUG) |
| 35104Y | Ring, O (FOR AUTOMATIC TRANSMISSION CASE) |
| 35106 | Pan Sub-assy, Automatic Transmission Oil |
| 35106A | Plug Sub-assy, Drain (ATM) |
| 35106B | Gasket, Drain Plug (ATM) |
| 35111 | Housing, Automatic Transmission |
| 35111Y | Ring, O (FOR AUTOMATIC TRANSMISSION CASE) |
| 35119A | Cover, Transmission Housing |
| 35136 | Hanger, Transmission,NO.1 |
| 35138A | Hanger, Transmission, NO.2 |
| 35139 | Bracket, Oil Filler Tube |
| 35141B | Plug (FOR AUTOMATIC TRANSMISSION CASE) |
| 35141C | Washer, Plate (FOR AUTOMATIC TRANSMISSION CASE) |
| 35143 | Cover, Transmission Case, Rear |
| 35144 | Gasket, Transmission Case Rear Cover |
| 35155A | Gasket, Transmission Case Adapter |
| 35159 | Gasket, Brake Drum |
| 35189C | Gasket, Transmission Lube Apply Tube |
| 35336 | Ring, O (FOR TRANSMISSION OIL FILLER TUBE) |
| 35394 | Magnet, Oil Cleaner (FOR TRANSMISSION) |
| 35847C | Tube, Transmission Lube Apply |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
