Toyota Land Cruiser S/T,H/T
1990-01 → 2004-08 · chassis FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781130 · Japan
Discontinued model
Data version 2005-04

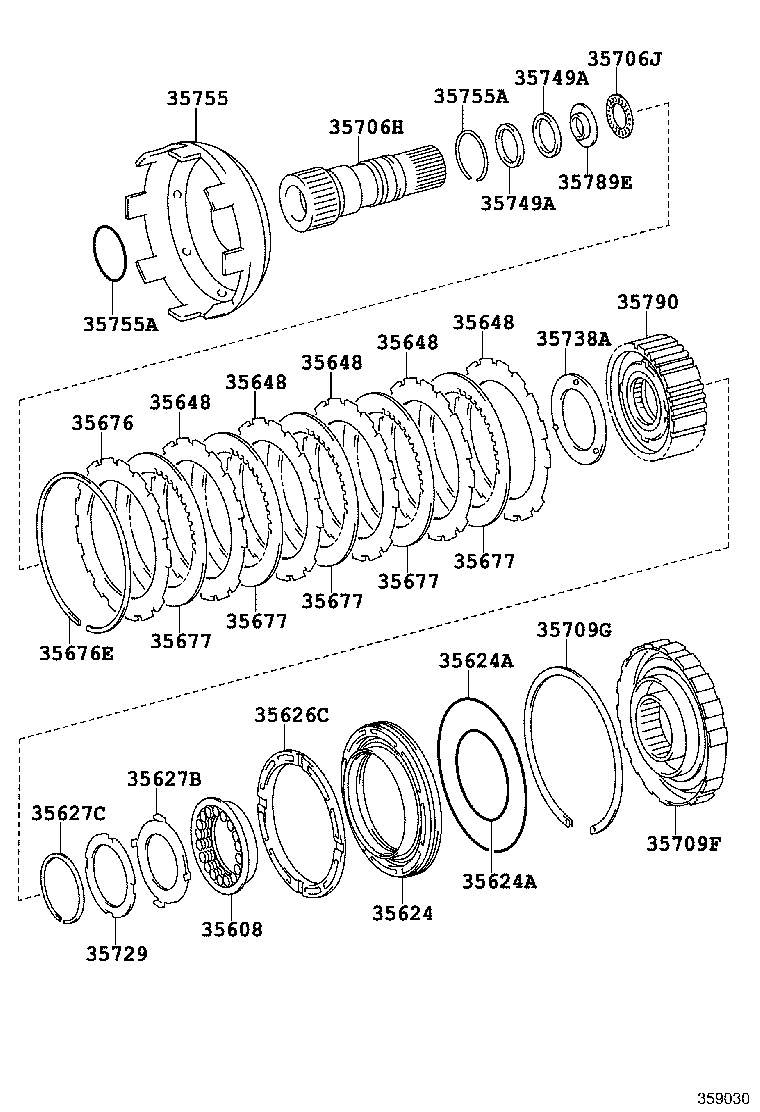

Center Support & Planetary Sun Gear (ATM)
39 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35608 | Spring Sub-assy, 2ND Brake Piston Return |
| 35608A | Spring Sub-assy, Brake Piston Return |
| 35608B | Ring, Hole Snap (FOR BRAKE PISTON RETURN SPRING) |
| 35620B | Disc, Clutch (FOR BRAKE) |
| 35621 | Piston, Brake, NO.1 |
| 35621A | Ring, O (FOR BRAKE PISTON OUTER) |
| 35621B | Ring, O (FOR BRAKE PISTON INNER) |
| 35624 | Piston, 2ND Brake |
| 35624A | Ring, O (FOR 2ND BRAKE PISTON) |
| 35626C | Sleeve, 2ND Brake Piston |
| 35627B | Seat, 2ND Brake Piston Return Spring |
| 35627C | Ring, Shaft Snap(FOR 2ND BRAKE PISTON RETURN SPRING SEAT) |
| 35632 | Plate, Brake |
| 35648 | Plate, Clutch (FOR 2ND BRAKE) |
| 35676 | Flange, Brake (FOR 2ND BRAKE) |
| 35676B | Flange, Brake, NO.1 |
| 35676C | Ring, Hole Snap (FOR BRAKE FLANGE NO.1) |
| 35676E | Ring, Hole Snap (FOR 2ND BRAKE) |
| 35677 | Disc, Clutch (FOR 2ND BRAKE) |
| 35706H | Gear Sub-assy, Planetary Sun |
| 35706J | Bearing, Thrust Needle Roller (FOR PLANETARY SUN GEAR) |
| 35706P | Gear Sub-assy, Front Planetary Sun |
| 35706Q | Ring, Shaft Snap (FOR FRONT PLANETARY SUN GEAR) |
| 35709 | Support Sub-assy, Center |
| 35709B | Ring, O (FOR CENTER SUPPORT) |
| 35709C | Ring, Oil Seal (FOR CENTER SUPPORT) |
| 35709E | Washer (FOR CENTER SUPPORT) |
| 35709F | Drum Sub-assy, 2ND Brake |
| 35709G | Ring, Hole Snap (FOR 2ND BRAKE DRUM) |
| 35709H | Bolt (FOR CENTER SUPPORT) |
| 35719A | Gear, Rear Planetary Sun |
| 35729 | Washer, 1 Way Clutch Thrust, NO.2 |
| 35738A | Washer, 1 Way Clutch Thrust, NO.1 |
| 35749A | Ring, Sun Gear Shaft Oil Seal |
| 35755 | Drum, Sun Gear Input |
| 35755A | Ring, Shaft Snap (FOR SUN GEAR INPUT DRUM) |
| 35785 | Retainer, Center Support Ring |
| 35789E | Race, Thrust Bearing (FOR PLANETARY SUN GEAR) |
| 35790 | Clutch Assy, 1 Way |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
