Toyota Land Cruiser S/T,H/T

1990-01 → 2004-08 · chassis FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781130 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Assembly & Gasket Kit

1 part groups · 9 illustrations

Illustrations

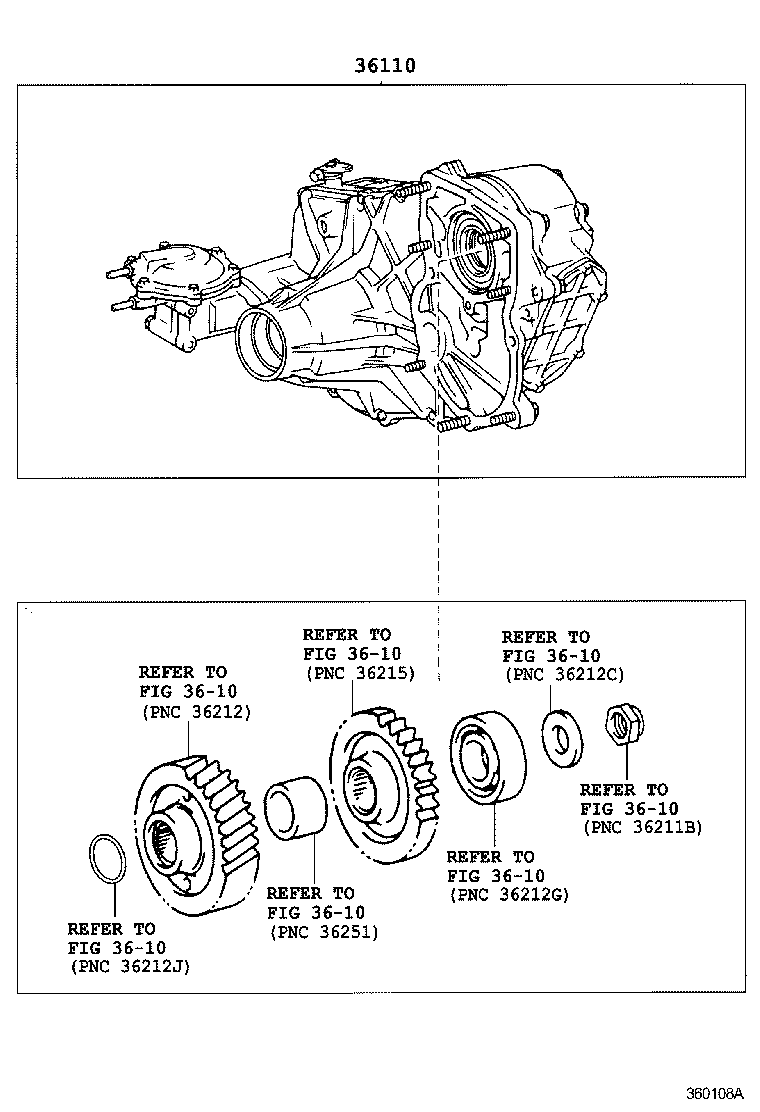

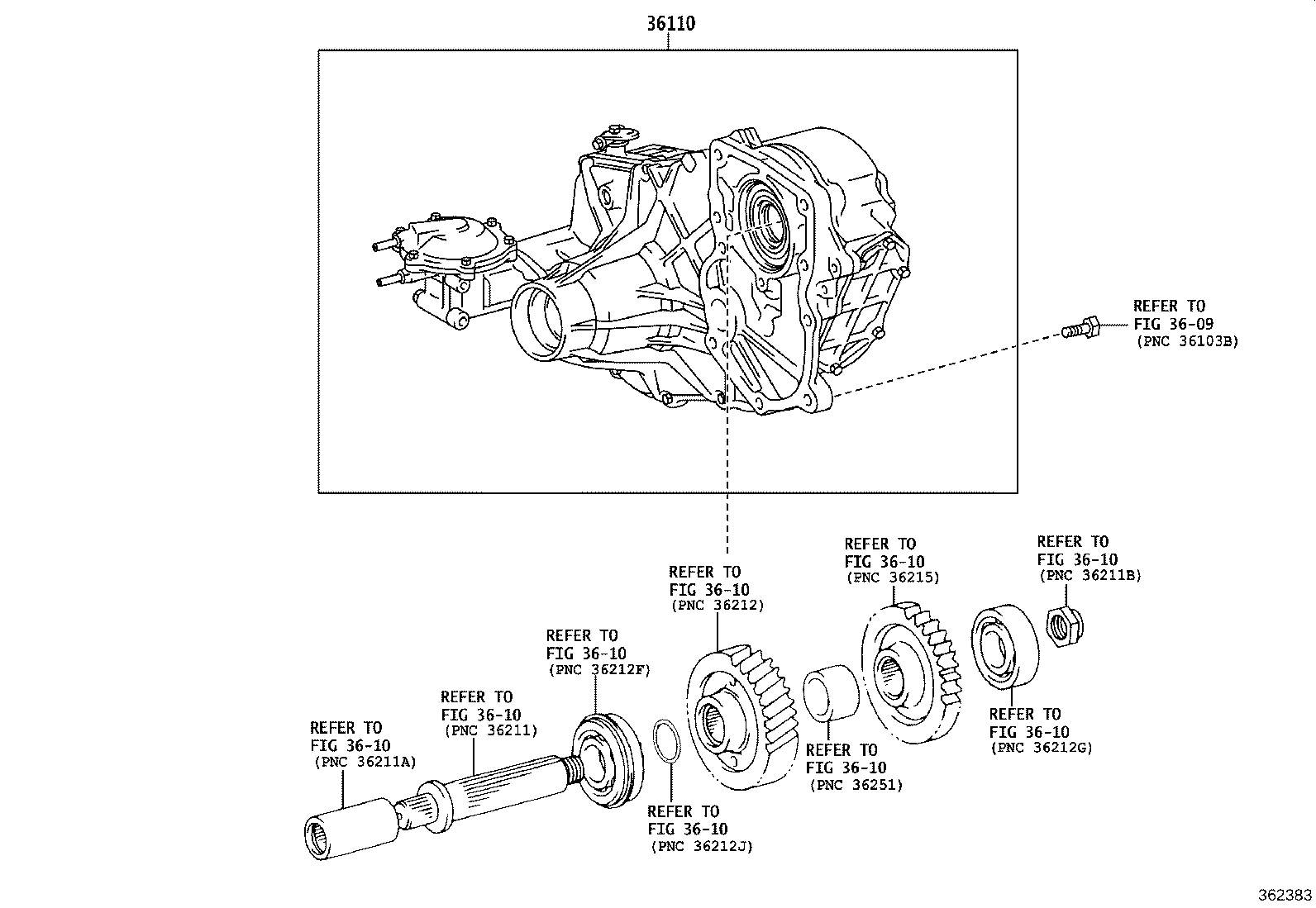

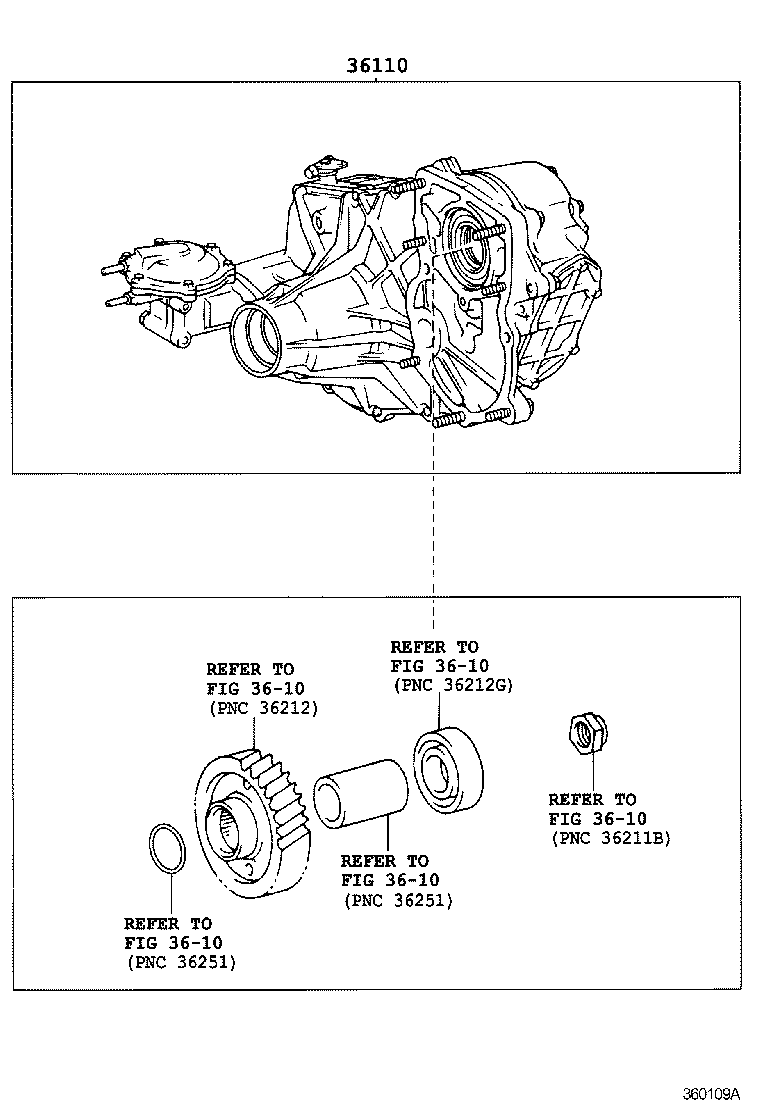

Figure 360107B 360107B 1990-01 → 1994-01 Figure 360107B 360107B 1990-04 → 1993-05 Figure 360107B 360107B 1993-05 → 1996-04 Figure 360107B 360107B 1999-11 → — Figure 360108A 360108A 1990-01 → — Figure 360108A 360108A 1990-06 → 1992-08 Figure 360109A 360109A 1990-01 → — Figure 362383 362383 1990-04 → 1993-05 Figure 362383 362383 1993-05 → 1996-04

Part groups

PNCDescription
36110 Transfer Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
