Toyota Land Cruiser S/T,H/T

1990-01 → 2004-08 · chassis FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781130 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

20 part groups · 7 illustrations

Illustrations

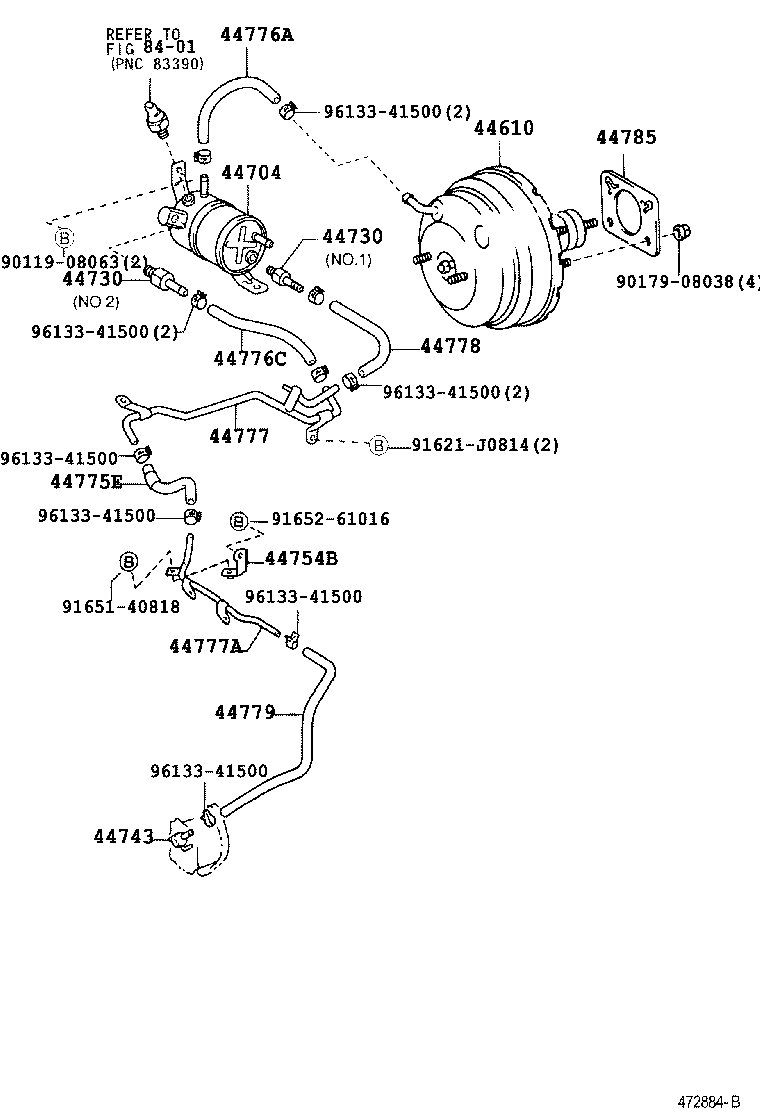

Figure 471684 471684 1990-01 → 1999-08 Figure 475493 475493 1990-06 → 1992-08 Figure 475494 475494 1990-04 → 1993-05 Figure 471639C 471639C 1990-01 → 1999-08 Figure 475495 475495 1993-05 → 1996-04 Figure 472883B 472883B 1999-08 → — Figure 472884B 472884B 1999-08 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44740 Reservoir Assy, Vacuum
44743 Union(FOR VACUUM PUMP)
44754B Bracket, Vacuum Tube
44758 Bracket, Vacuum Check Valve
44771 Hose, Vacuum Tube Connector
44774 Hose, Union TO Connector Tube
44775E Hose, Way TO Connector
44776A Hose, Vacuum Reservoir TO Brake Booster
44776C Hose, Vacuum Reservoir TO Connector
44777 Connector, Vacuum Hose, NO.1
44777A Connector, Vacuum Hose, NO.2
44778 Hose, Connector TO Check Valve
44779 Hose, Union TO Connector
44785 Gasket, Brake Booster
44799 Way, Brake Vacuum Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
