Toyota Land Cruiser S/T,H/T

1990-01 → 2004-08 · chassis FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781130 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

18 part groups · 8 illustrations

Illustrations

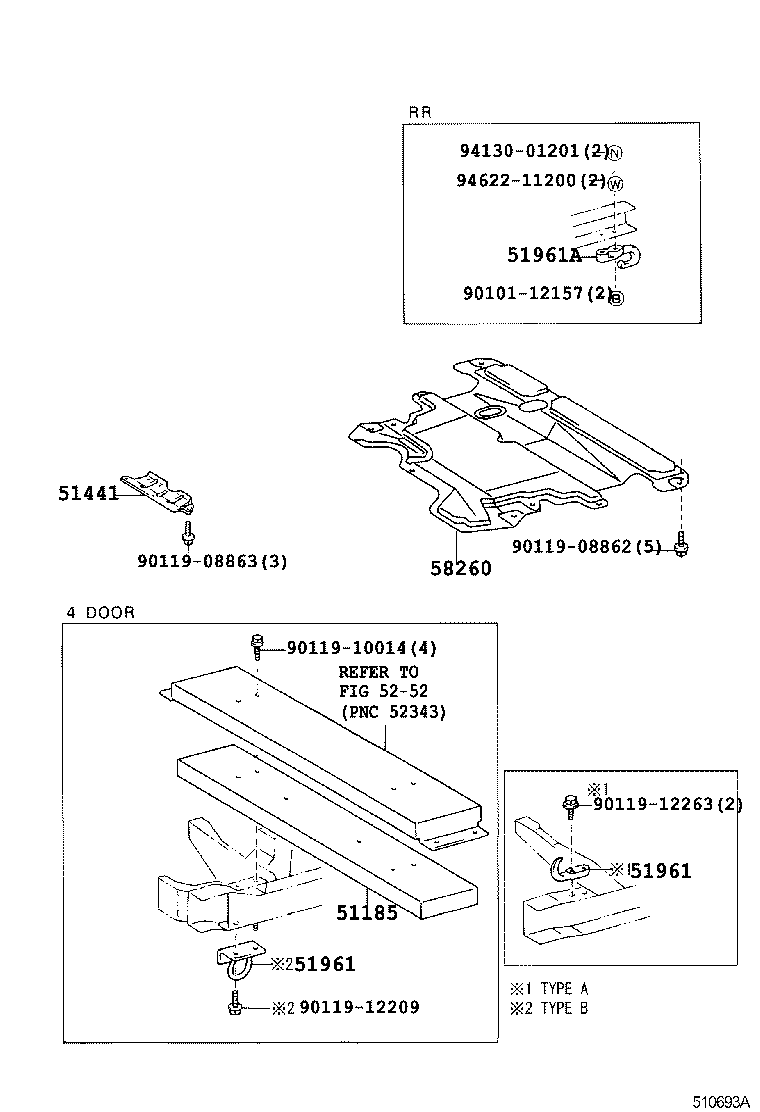

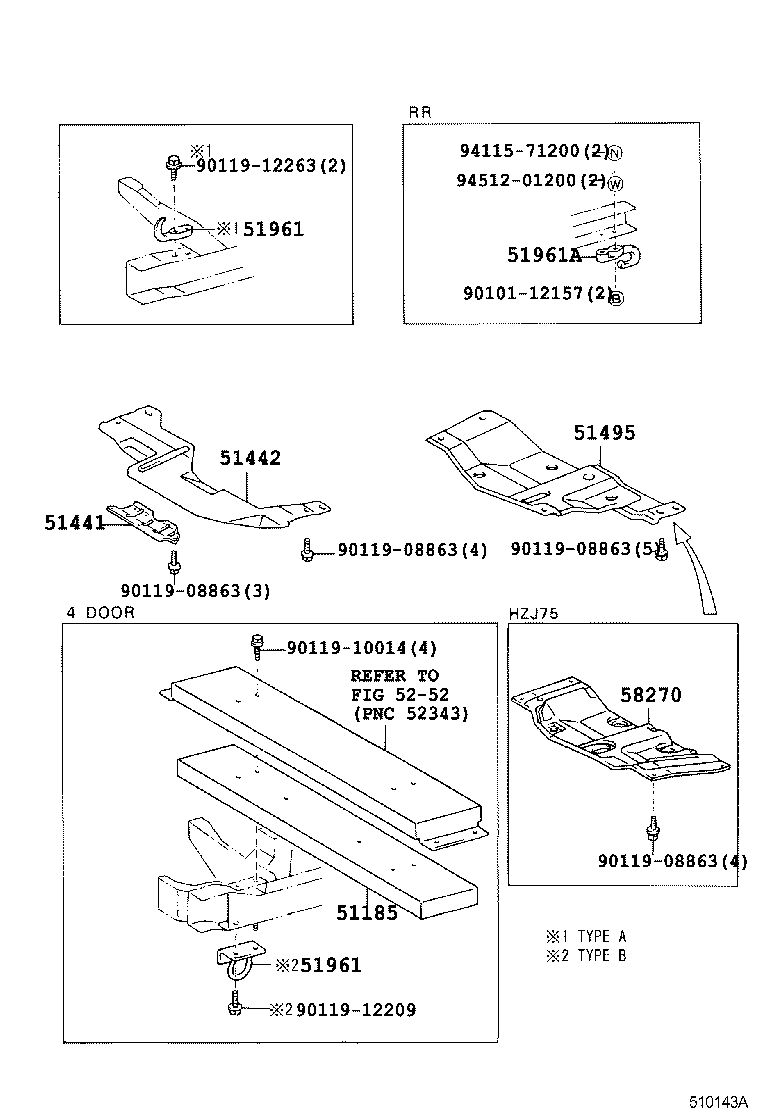

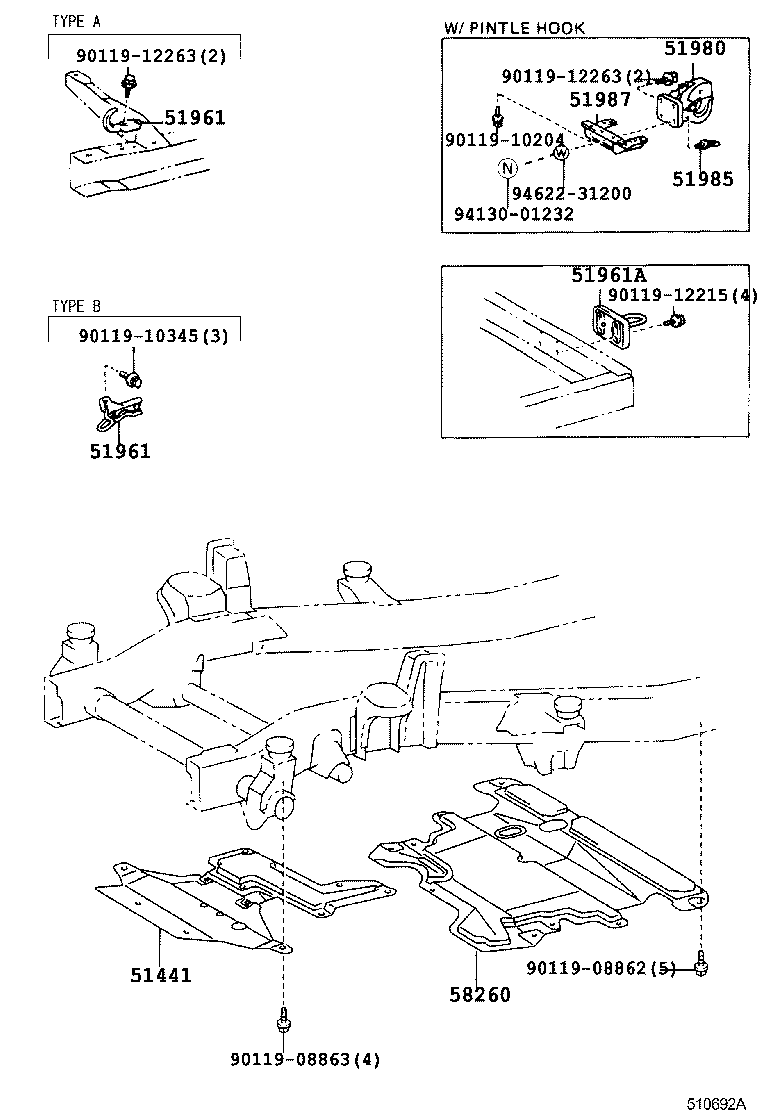

Figure 510141C 510141C 1990-01 → 1999-08 Figure 510142 510142 1990-04 → 1999-08 Figure 510517A 510517A 1999-08 → 2001-08 Figure 510692A 510692A 2001-08 → — Figure 510143A 510143A 1990-06 → 1992-08 Figure 510143A 510143A 1992-12 → 1999-08 Figure 510556A 510556A 1999-11 → 2001-08 Figure 510693A 510693A 2001-08 → —

Part groups

PNCDescription
51185 Weight, Frame, Front NO.1
51405A Cover Sub-assy, Engine Under, NO.1
51406A Cover Sub-assy, Engine Under, NO.2
51407A Cover Sub-assy, Engine Under, NO.3
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51447C Protector, Transfer Case
51454A Silencer, Engine Rear Cover
51495 Cover, Transmission Under
51496 Cover, Transmission Under, NO.2
51961 Hook, NO.1
51961A Hook, NO.3
51962 Hook, NO.2
51980 Hook Assy, Pintle
51985 Hook, Eyelet Pintle
51987 Bracket, Pintle Hook
58260 Cover Assy, Transmission, Front
58270 Cover Assy, Transmission, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
