Toyota Land Cruiser S/T,H/T

1990-01 → 2004-08 · chassis FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781130 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Member

12 part groups · 2 illustrations

Illustrations

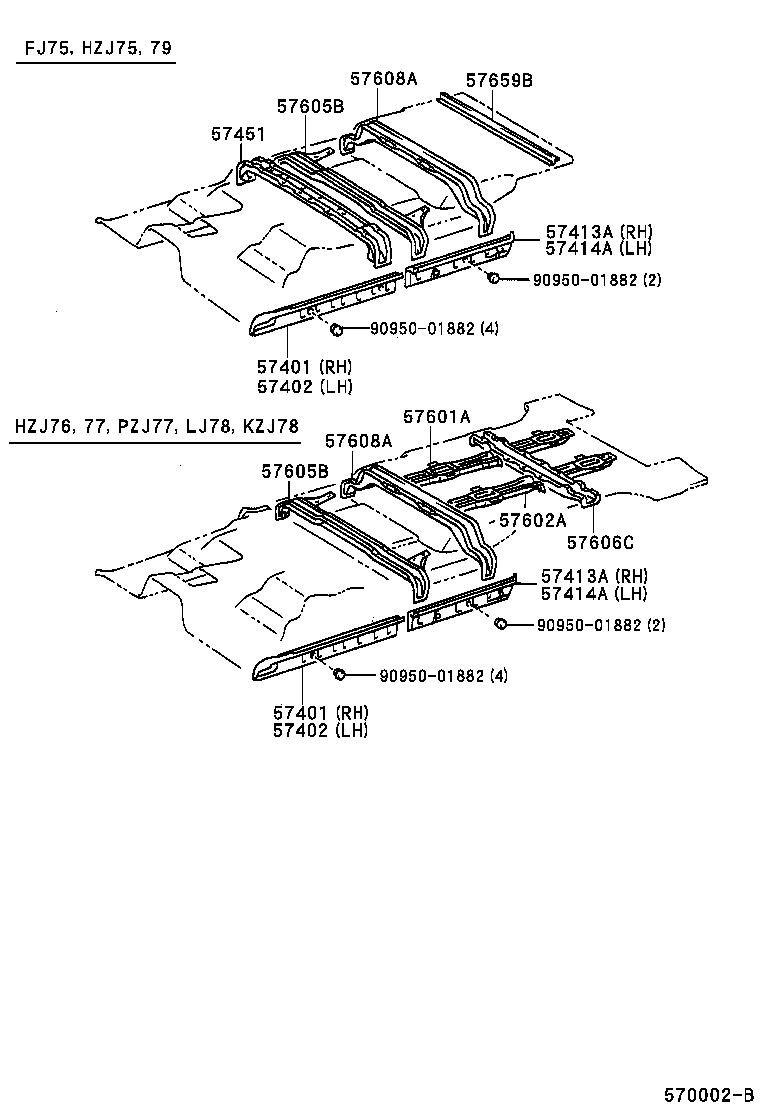

Figure 570001A 570001A 1990-01 → — Figure 570002B 570002B 1990-04 → —

Part groups

PNCDescription
57401 Member Sub-assy, Main Floor Side, RH
57402 Member Sub-assy, Main Floor Side, LH
57413A Member, Floor Side, Inner Rear RH
57414A Member, Floor Side, Inner Rear LH
57451 Member, Front Floor Cross
57601A Member Sub-assy, Rear Floor Side, RH
57602A Member Sub-assy, Rear Floor Side, LH
57605B Member Sub-assy, Rear Floor Cross, NO.1
57606C Member Sub-assy, Rear Floor Cross, NO.2
57607A Member Sub-assy, Rear Floor Cross, NO.3
57608A Member Sub-assy, Rear Floor Cross, NO.4
57659B Member, Rear Floor Cross, Rear Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
