Toyota Land Cruiser S/T,H/T
1990-01 → 2004-08 · chassis FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781130 · Japan
Discontinued model
Data version 2005-04

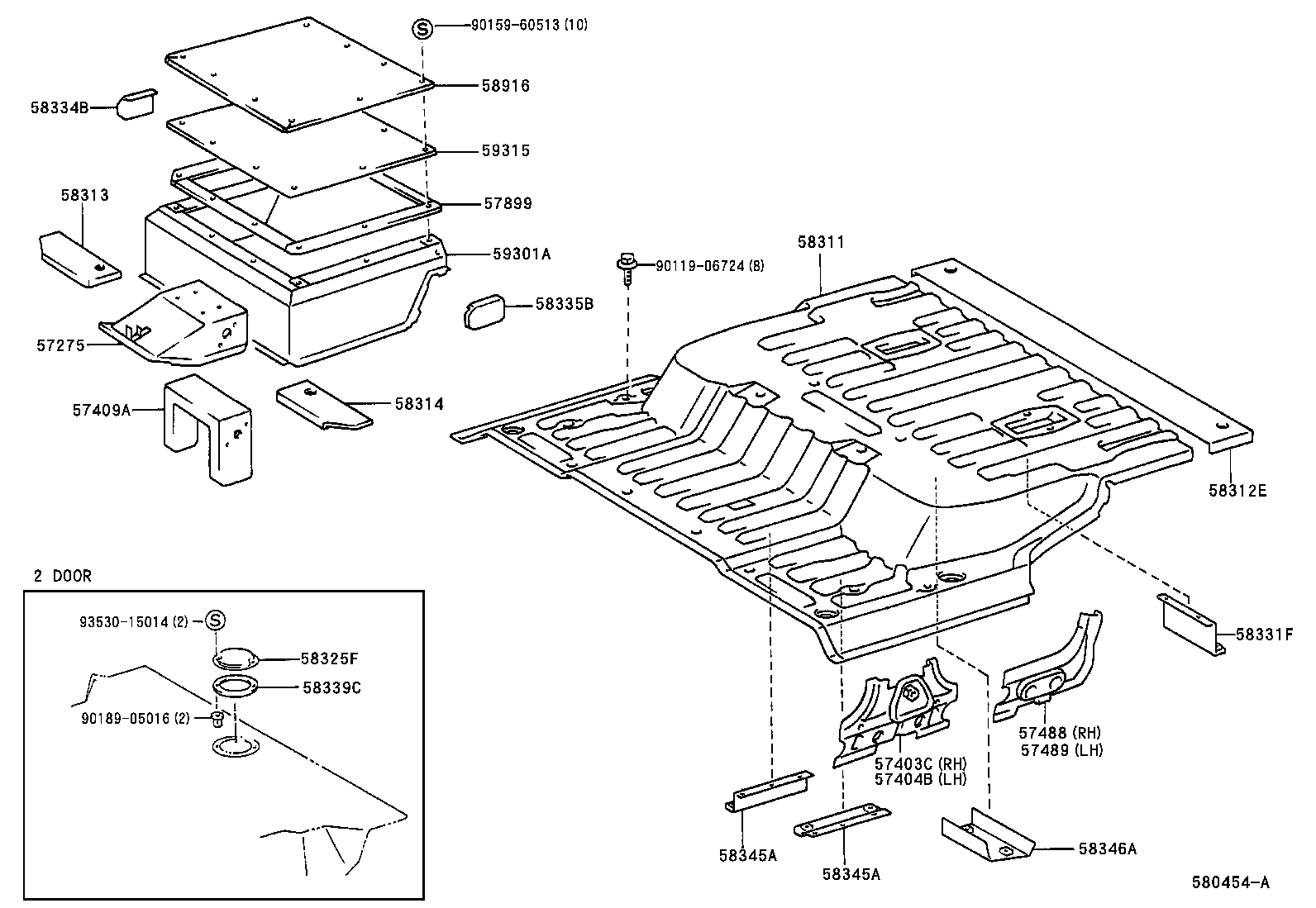

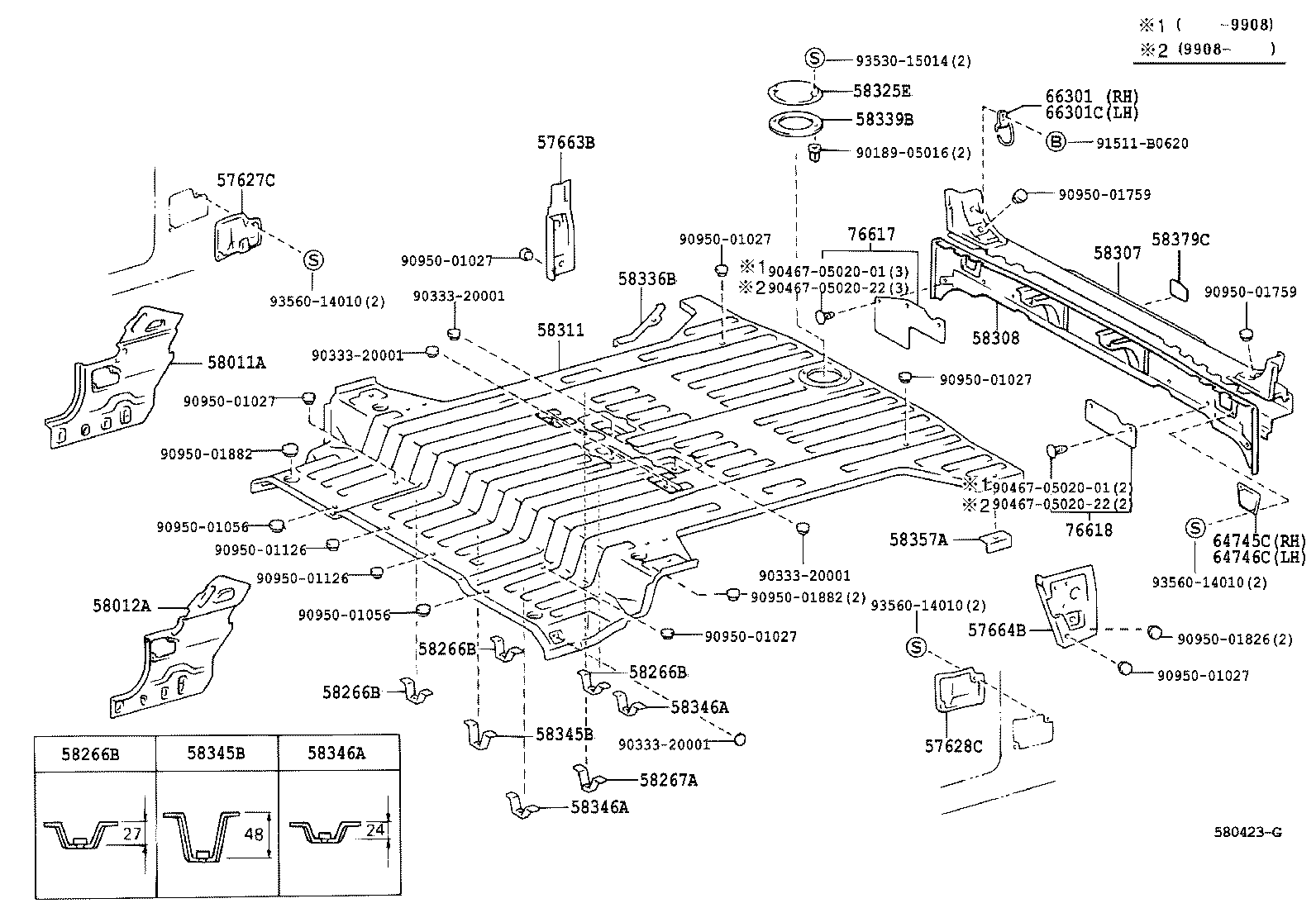

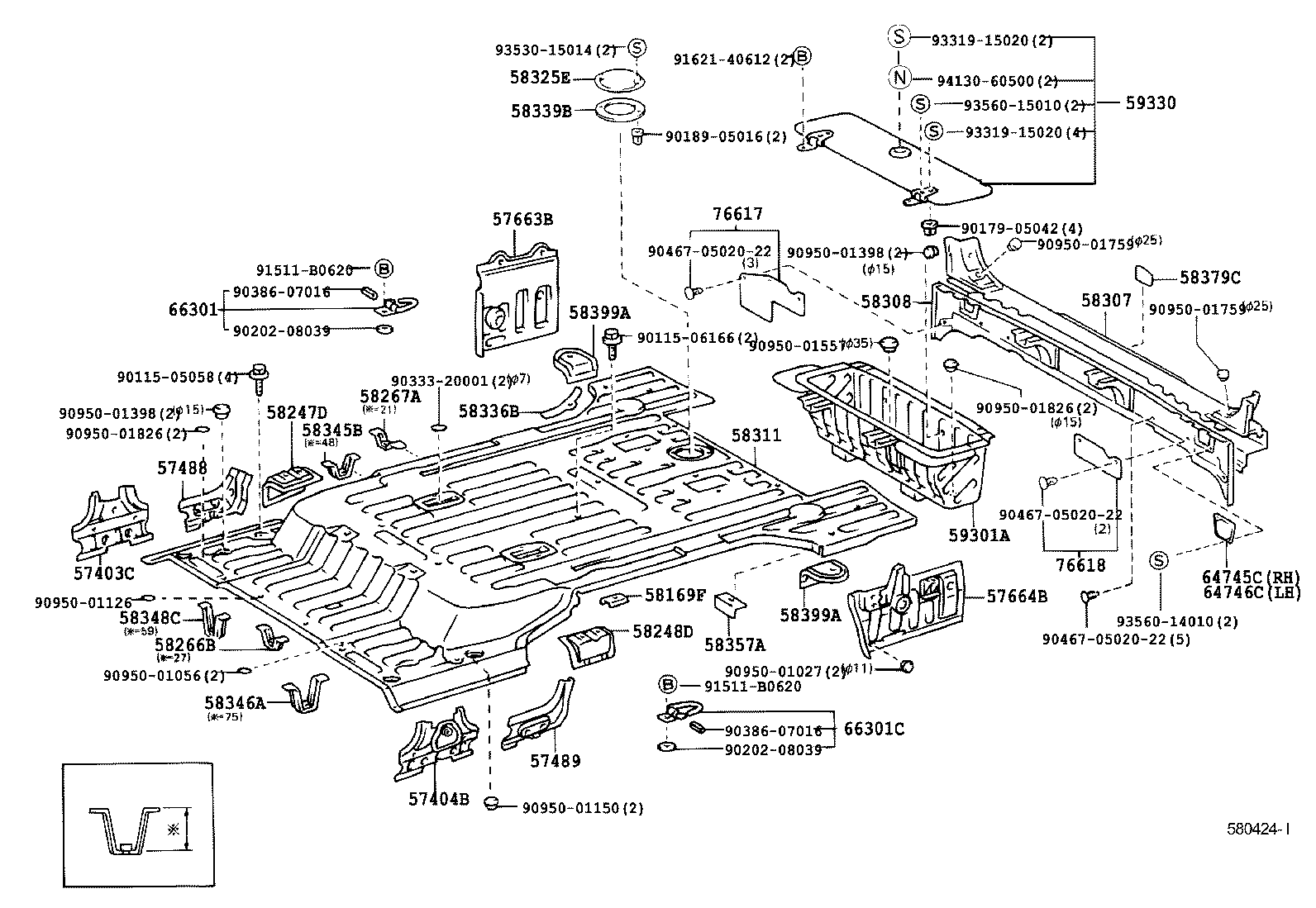

Rear Floor Panel & Rear Floor Member
53 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 57275 | Gusset, Rear Floor Housing, Center |
| 57403C | Reinforce Sub-assy, Floor Side, Inner RH |
| 57404B | Reinforce Sub-assy, Floor Side, Inner LH |
| 57409A | Strength Sub-assy, Rear Floor Housing |
| 57488 | Reinforcement, Floor Side Member, NO.2 RH |
| 57489 | Reinforcement, Floor Side Member, NO.2 LH |
| 57627C | Cover, Rear Floor Side Member, RH |
| 57628C | Cover, Rear Floor Side Member, LH |
| 57663B | Panel, Rear Floor Side, Rear RH |
| 57664B | Panel, Rear Floor Side, Rear LH |
| 57899 | Seal, Rear Floor, Rear |
| 58011A | Panel Sub-assy, Floor Panel Side, RH |
| 58012A | Panel Sub-assy, Floor Panel Side, LH |
| 58169F | Retainer, Rear Heater Mounting |
| 58247C | Reinforcement, Rear Seat Cushion Hinge, RH |
| 58247D | Bracket, Rear Seat Hinge, Outer RH |
| 58248C | Reinforcement, Rear Seat Cushion Hinge, LH |
| 58248D | Bracket, Rear Seat Hinge, Outer LH |
| 58266B | Bracket, Fuel Tube Clamp |
| 58267A | Bracket, Fuel Tube Clamp, NO.2 |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58308 | Panel Sub-assy, Body Lower Back, Inner |
| 58311 | Pan, Rear Floor |
| 58312E | Panel, Rear Floor, Rear |
| 58313 | Panel, Rear Floor Side, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58325F | Cover, Rear Floor Service Hole |
| 58331F | Bracket, Rear Floor Heat Insulator, NO.3 |
| 58334B | Plate, Rear Floor Crossmember, Center RH |
| 58335B | Plate, RH Footrest Coner, NO.1 |
| 58336B | Reinforcement, Rear Floor Pan |
| 58339B | Packing, Rear Floor Service Hole |
| 58339C | Packing, Rear Floor Service Hole |
| 58345A | Bracket, Rear Floor Heat Insulator, NO.1 |
| 58345B | Bracket, Rear Floor Heat Insulator, NO.1 |
| 58346A | Bracket, Rear Floor Heat Insulator, NO.2 |
| 58348C | Bracket, Rear Floor Heat Insulator, NO.3 |
| 58351B | Reinforcement, Rear Floor Panel, RH |
| 58352B | Reinforcement, Rear Floor Panel, LH |
| 58357A | Reinforcement, Jack Carrier |
| 58379C | Protector, Body Lower Back |
| 58399A | Retainer, NO.3 Seat Belt Anchor TO Floor |
| 58916 | Mat, Box Bottom |
| 59301A | Panel Sub-assy, Rear Floor Box |
| 59315 | Cover, Rear Floor Box |
| 59330 | Cover Assy, Rear Floor Box |
| 64745C | Cover, Lower Back Service Hole, RH |
| 64746C | Cover, Lower Back Service Hole, LH |
| 66301 | Hook Sub-assy, Rope |
| 66301C | Hook Sub-assy, Rope, LH |
| 76617 | Mudguard, Lower Back Panel, Front RH |
| 76618 | Mudguard, Lower Back Panel, Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
