Toyota Land Cruiser S/T,H/T

1990-01 → 2004-08 · chassis FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781130 · Japan

Discontinued model Data version 2005-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

8 part groups · 4 illustrations

Illustrations

Figure 740939B

740939B 1990-01 → —

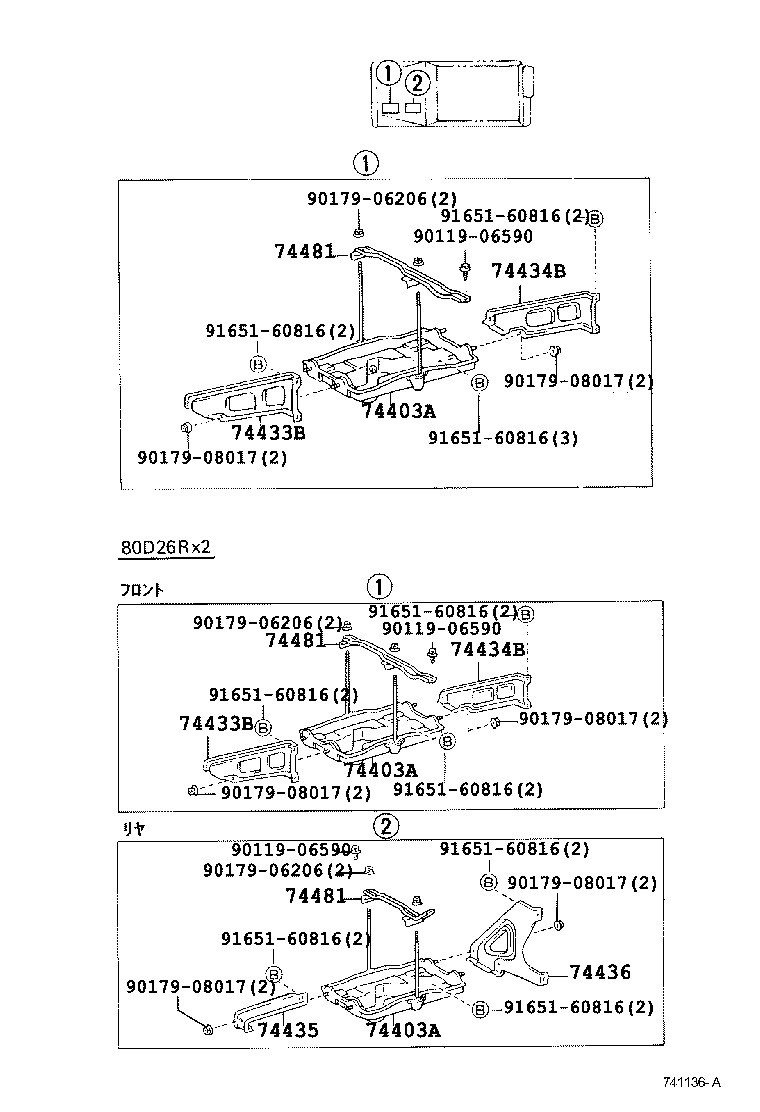

Figure 741136A

741136A 1990-04 → 1993-05

Figure 741136A

741136A 1993-05 → —

Figure 740247A

740247A 1990-04 → 1992-08

Part groups

PNC	Description
74403A	Carrier Sub-assy, Battery
74413	Bolt, Battery Clamp
74431	Tray, Battery
74433B	Support, Battery Tray, NO.1
74434B	Support, Battery Tray, NO.2
74435	Support, Battery Tray, NO.3
74436	Support, Battery Tray, NO.4
74481	Clamp, Battery Hold Down

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
