Toyota Land Cruiser S/T,H/T

1990-01 → 2004-08 · chassis FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781130 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

7 part groups · 10 illustrations

Illustrations

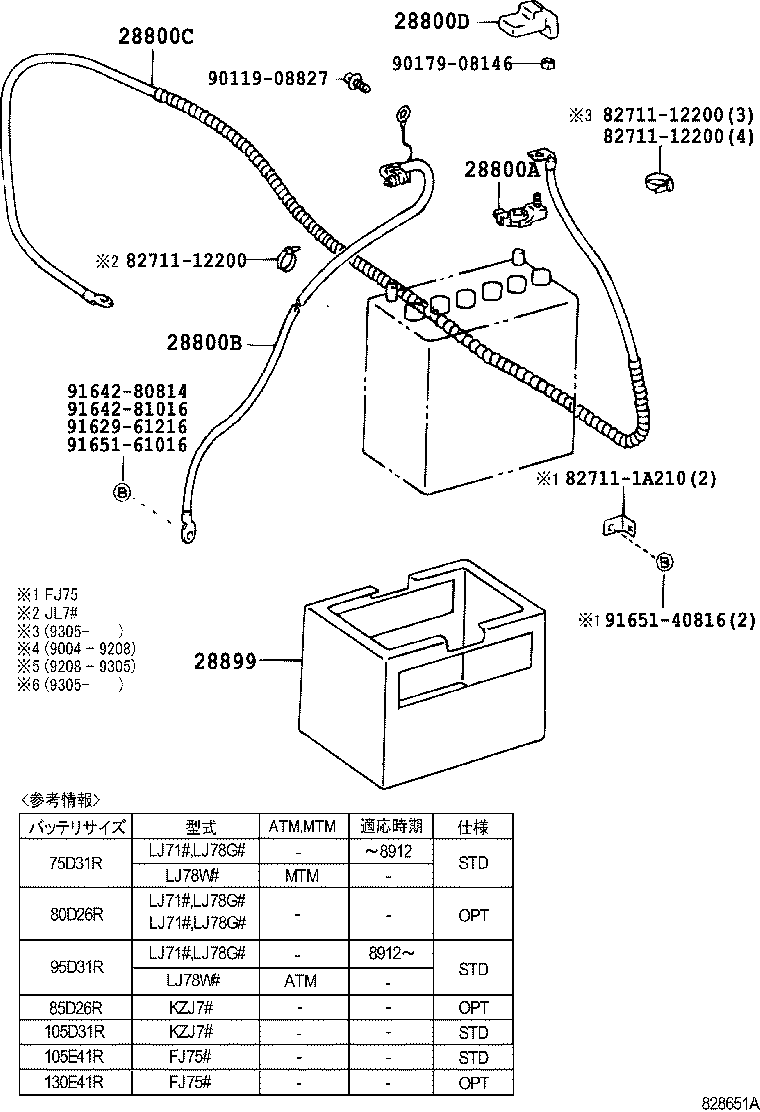

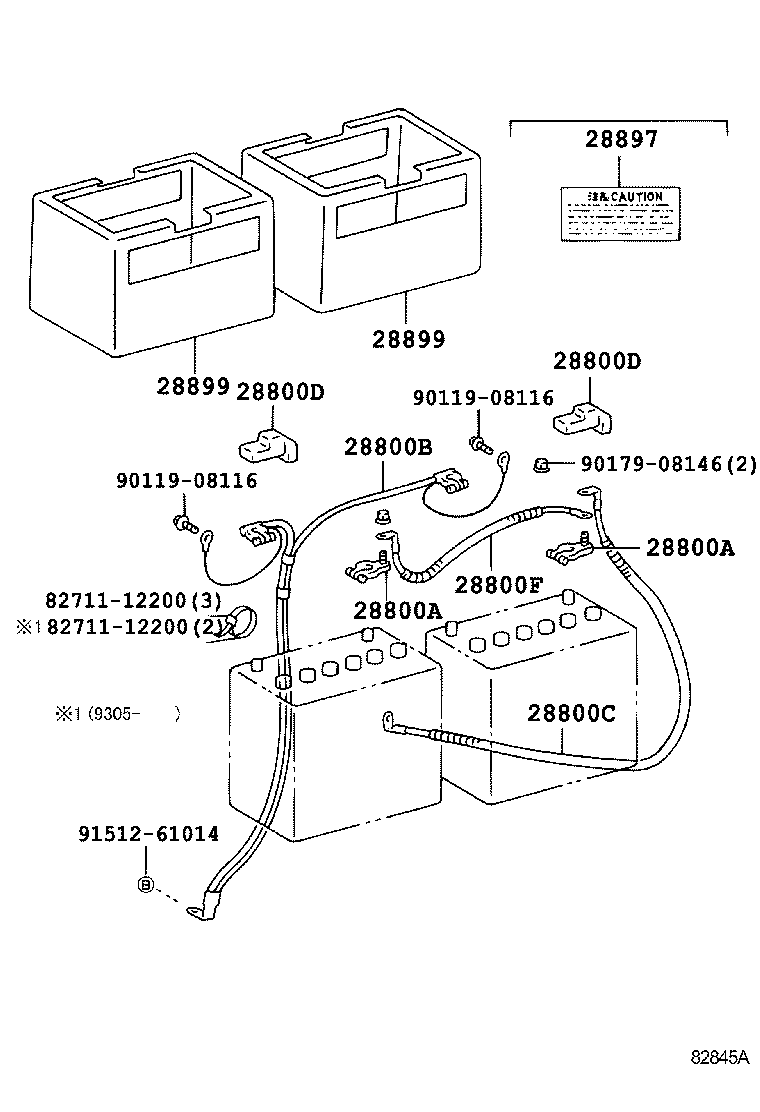

Figure 828650A 828650A 1990-01 → 1999-08 Figure 828651A 828651A 1990-04 → 1993-05 Figure 828651A 828651A 1993-05 → 1996-04 Figure 821845A 821845A 1990-04 → 1993-05 Figure 821845A 821845A 1993-05 → 1996-04 Figure 821845A 821845A 1993-05 → 1996-08 Figure 821845A 821845A 1999-08 → — Figure 828685A 828685A 1990-04 → 1993-05 Figure 828685A 828685A 1993-05 → 1996-04 Figure 828685A 828685A 1999-08 → —

Part groups

PNCDescription
28800A Terminal, Battery Positive
28800B Cable, Battery TO Ground
28800C Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
28800D Cover, Connector(FOR BATTERY TERMINAL)
28800F Cable, Battery TO Battery
28897 Plate, Battery Caution
28899 Insulator, Battery
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
