Toyota Land Cruiser S/T,H/T

1990-01 → 2004-08 · chassis FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781130 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

43 part groups · 17 illustrations

Illustrations

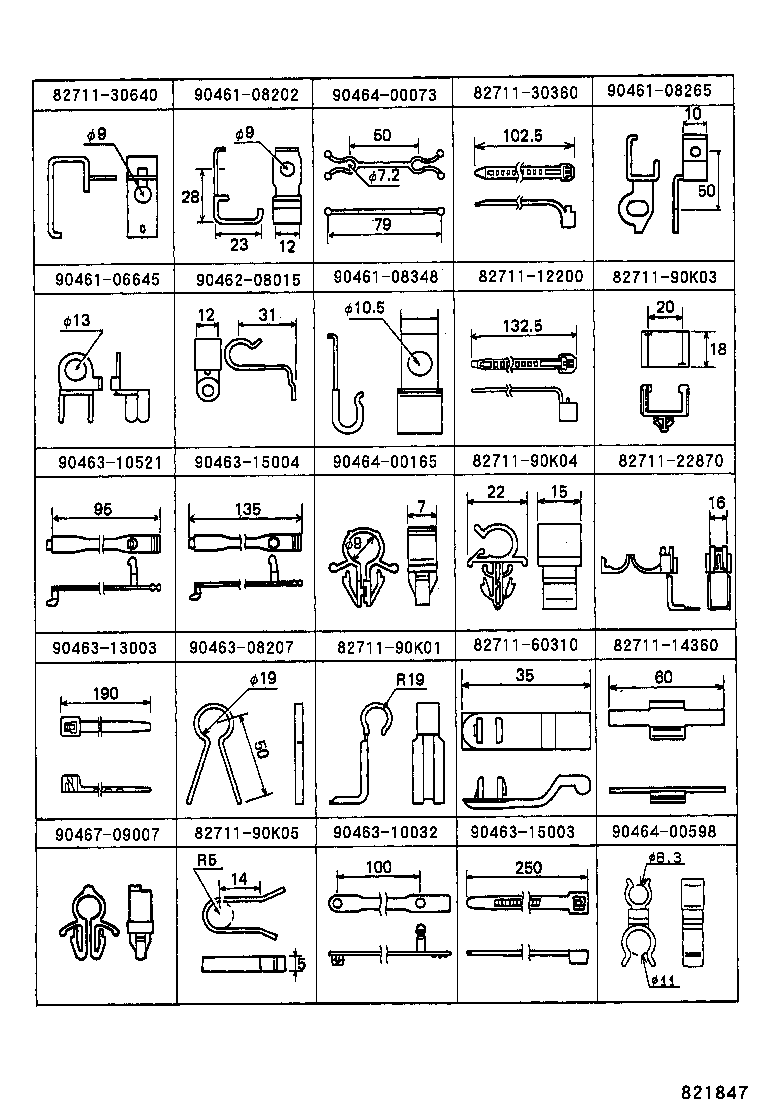

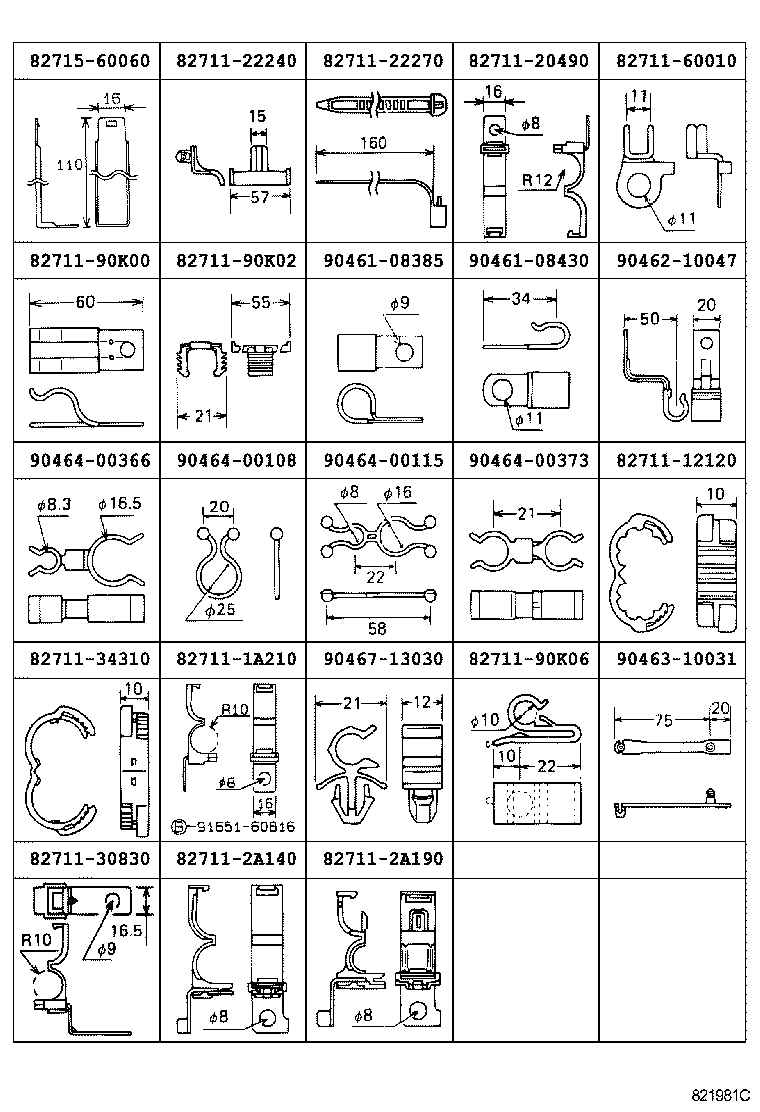

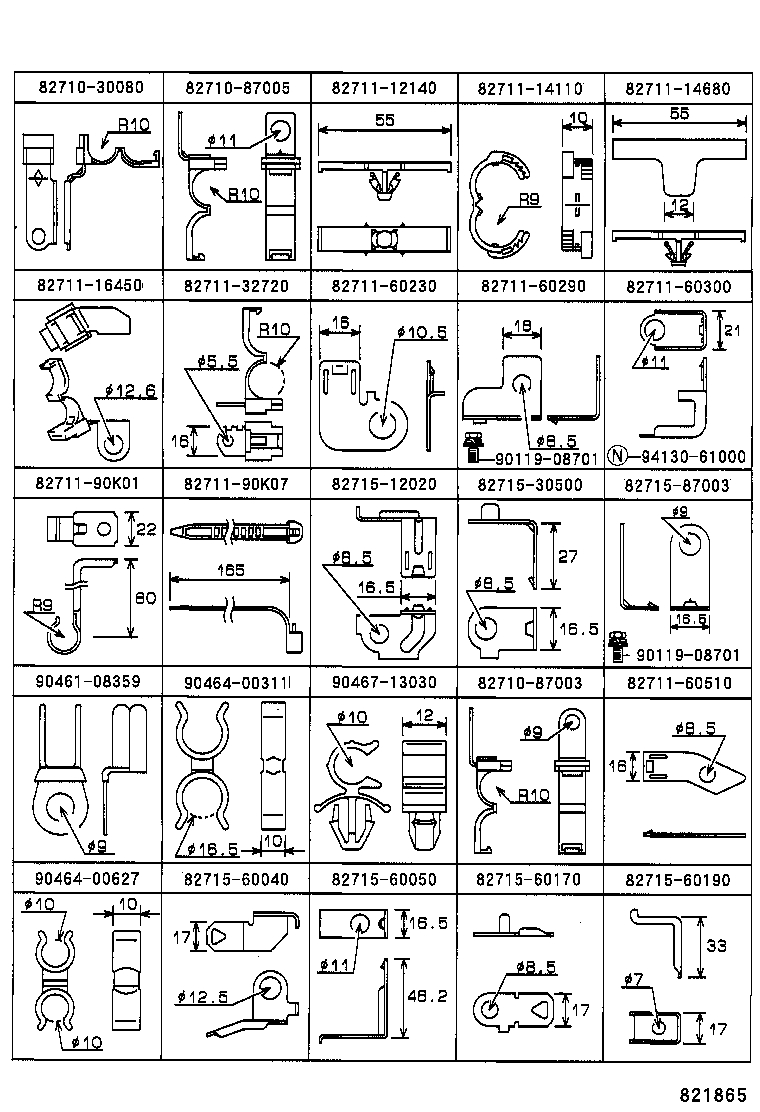

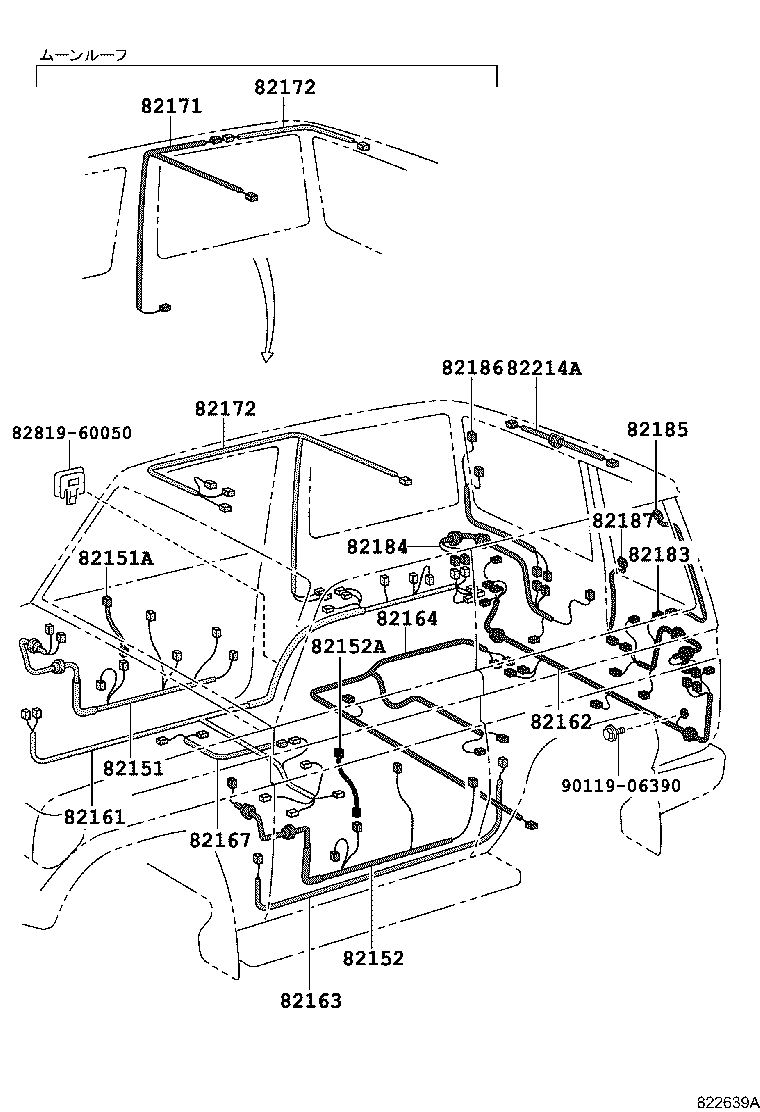

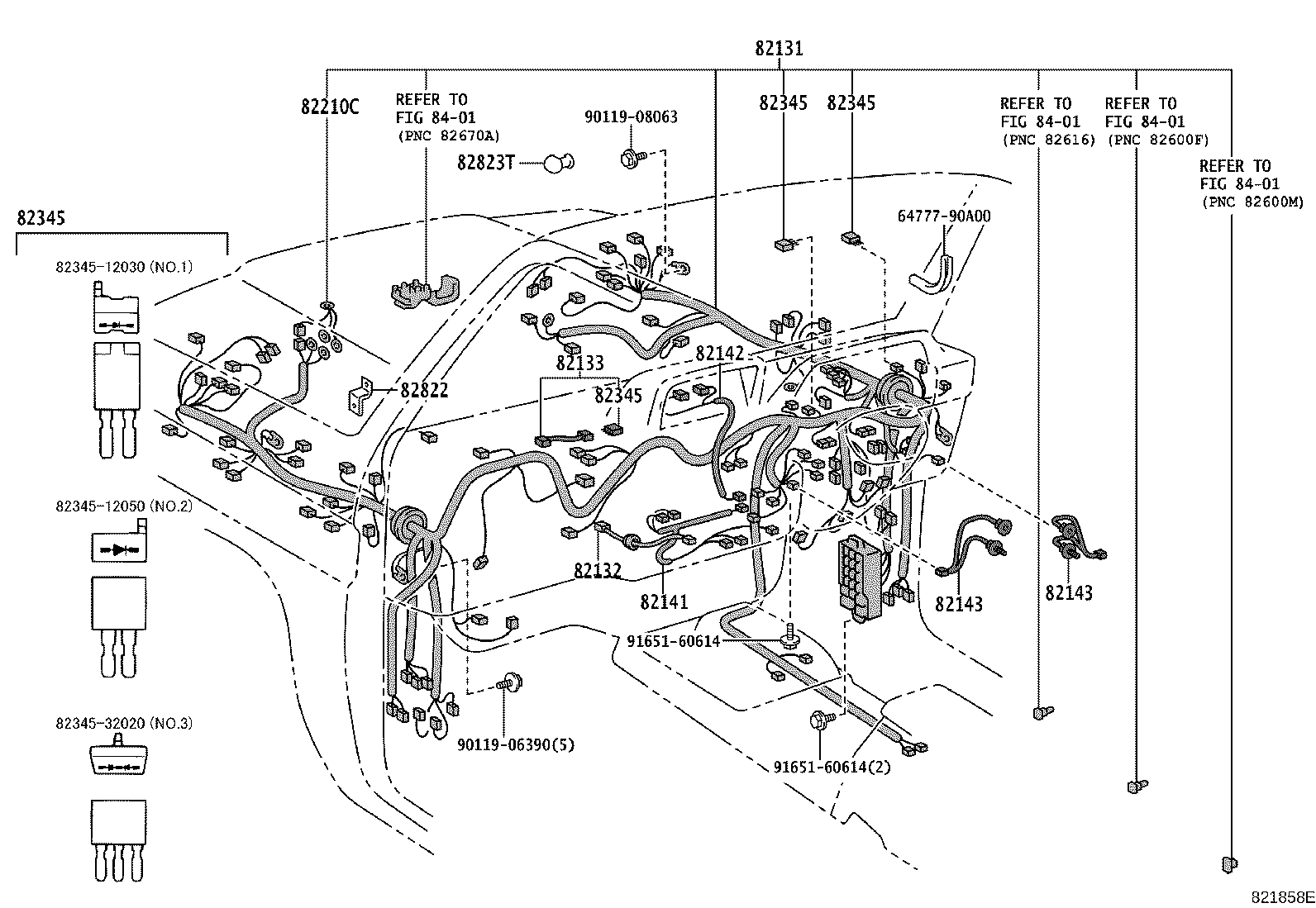

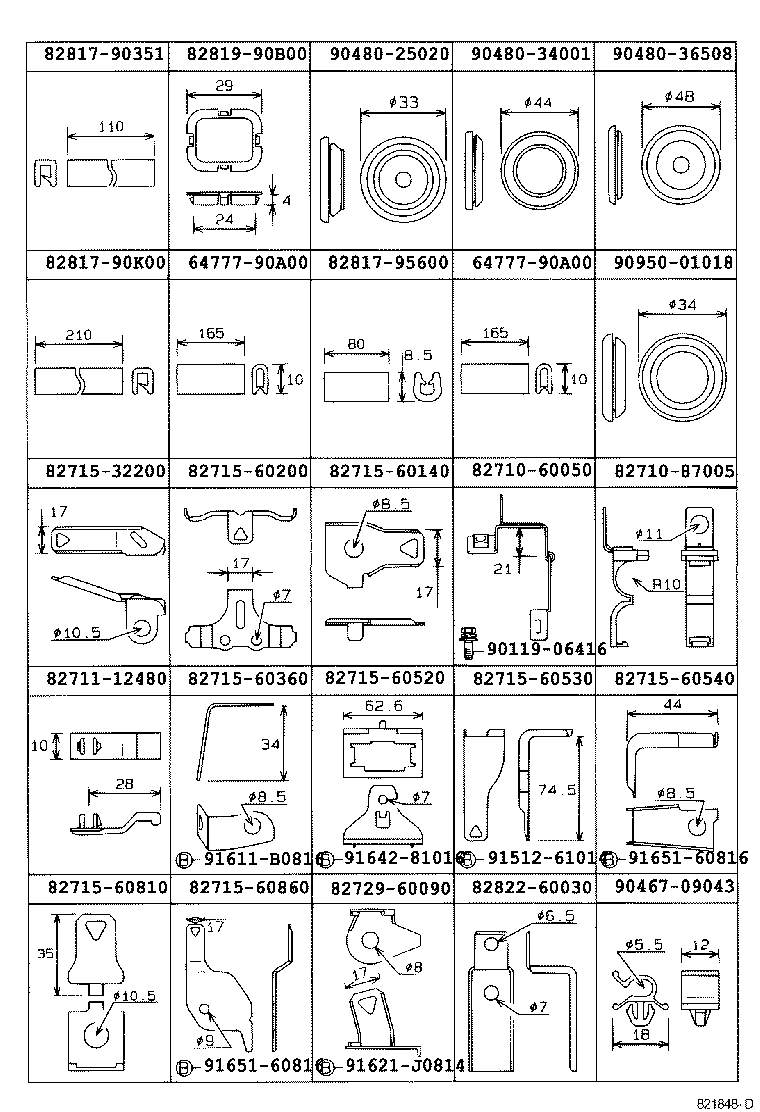

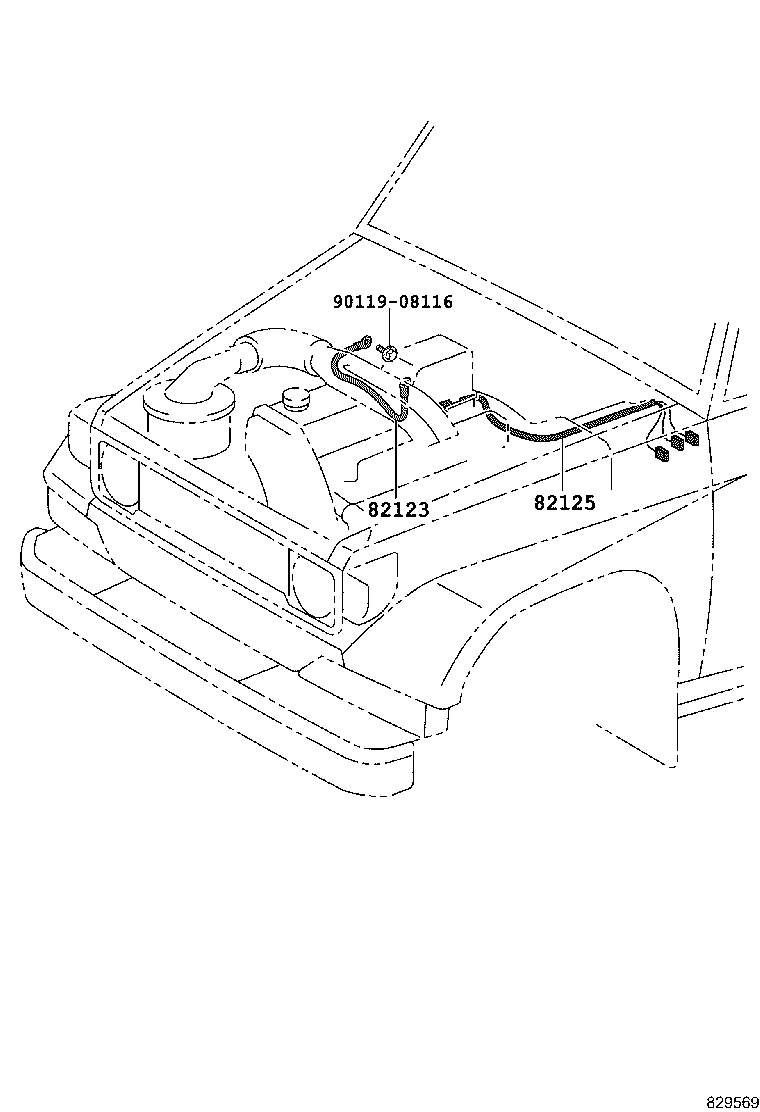

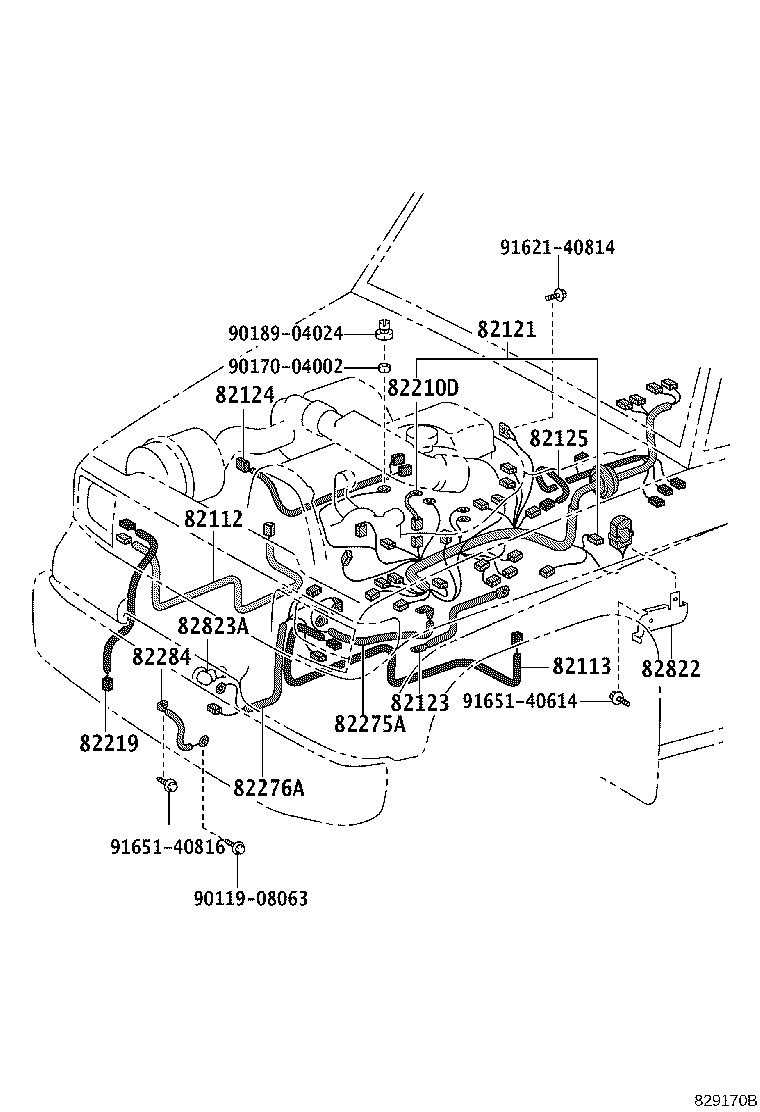

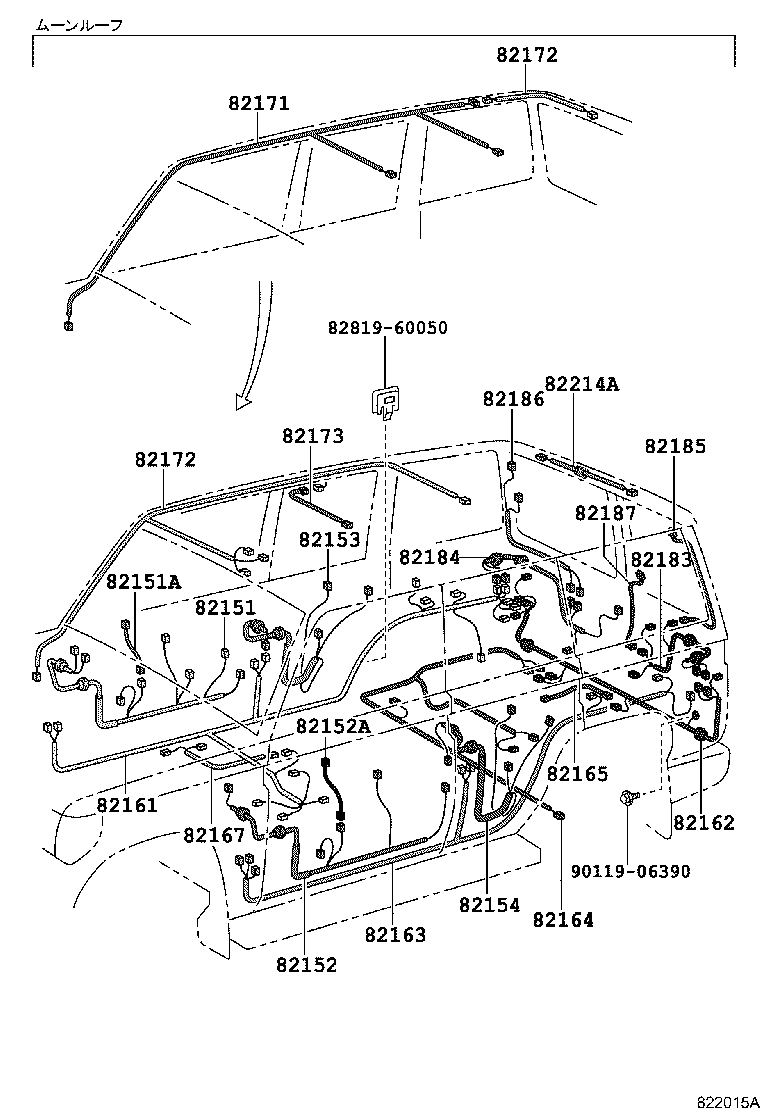

Figure 821860E 821860E 1990-01 → — Figure 829569 829569 1990-06 → 1992-08 Figure 829170B 829170B 1990-04 → 1993-05 Figure 829170B 829170B 1993-05 → — Figure 821858E 821858E 1990-01 → — Figure 822639A 822639A 1990-01 → — Figure 822639A 822639A 1993-05 → — Figure 822639A 822639A 1994-01 → — Figure 822639A 822639A 1999-11 → — Figure 822015A 822015A 1990-04 → — Figure 822015A 822015A 1993-05 → — Figure 826039 826039 1990-01 → — Figure 821847 821847 1990-01 → — Figure 821981C 821981C 1990-01 → — Figure 821865 821865 1990-01 → — Figure 822111A 822111A 1990-01 → — Figure 821848D 821848D 1990-01 → —

Part groups

PNCDescription
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82133 Wire, Cowl, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82210D Fusible Link
82214A Wire, Lamp
82219 Wire, Thermo Sensor
82275A Cable, Battery TO Magnet Switch
82276A Cable, Magnet Switch TO Winch
82284 Wire, Earth
82345 Diode
82822 Bracket,Connector Block
82823A Cap, Terminal, NO.2
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
