Toyota Land Cruiser S/T,H/T
1990-01 → 2004-08 · chassis FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781130 · Japan
Discontinued model
Data version 2005-04
Switch & Relay & Computer
127 part groups · 11 illustrations

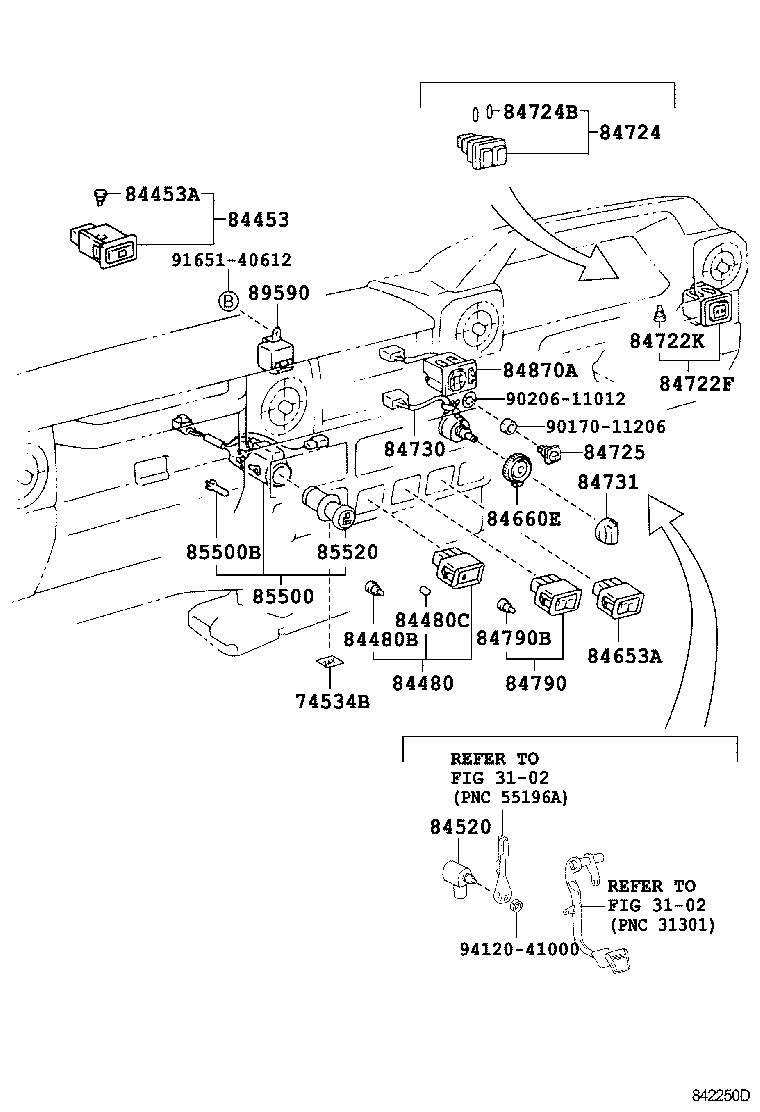

Illustrations
Part groups
| PNC | Description |
|---|---|
| 27790 | Relay Assy, Charge Lamp |
| 28300 | Relay Assy, Starter |
| 28317 | Bracket, Starter Relay |
| 28521 | Timer, Preheating |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28610A | Relay Assy, Glow Plug(SUB) |
| 28611 | Cover, Glow Plug Relay |
| 28621 | Resistor, Glow Plug |
| 74534B | Plate, Voltage Caution |
| 81402 | Socket Sub-assy, Inspection Lamp, NO.1 |
| 81980 | Flasher Assy, Turn Signal |
| 82600 | Block Assy, Fuse |
| 82600F | Fuse, Fuse Block |
| 82600G | Plate, Caution(FOR FUSE) |
| 82600M | Fuse, Medium Current |
| 82610A | Block Assy, Fuse |
| 82611 | Cover, Fuse Block |
| 82615 | Bracket, Fuse |
| 82616 | Puller, Fuse |
| 82670A | Block Assy, Junction, NO.1 |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83390 | Switch Assy, Vacuum Warning |
| 83420 | Gage Assy, Water Temperature Sender |
| 83420A | Gage Assy, Oil Temperature Sender |
| 83481 | Sensor, Inner Ambient Temperature |
| 83482 | Sensor, Outer Ambient Temperature |
| 83520 | Gage Assy,Oil Pressure Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 83790 | Buzzer Assy, Reverse Warning |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84113A | Bracket, Switch, NO.1 |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84222 | Switch, Transfer Indicator, NO.1 |
| 84222B | Switch, Transfer Indicator, NO.2 |
| 84222C | Switch, Transfer Indicator, NO.3 |
| 84222D | Switch, Transfer Indicator, NO.4 |
| 84225A | Switch, Shift Position |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |
| 84290 | Switch Assy, Limit |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84314 | Switch, Cornering Lamp |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84333 | Cover, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84453 | Switch, Idle UP |
| 84453A | Bulb, Idle UP Switch |
| 84480 | Switch Assy, Main |
| 84480B | Bulb, Main Switch Assy |
| 84480C | Cap Bulb, Main Switch Assy |
| 84520 | Switch Assy, Clutch Start |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84653A | Switch, Rear Wiper |
| 84660E | Knob, Cooler Switch |
| 84722F | Switch, Transmission Control |
| 84722K | Bulb, Transmission Control Switch |
| 84724 | Switch, 4 Wheel Drive Control |
| 84724B | Bulb, 4 Wheel Drive Control Switch |
| 84725 | Switch, Center Differential Lock |
| 84727 | Switch, Shift Lock Control |
| 84730 | Switch Assy, Heater Blower |
| 84731 | Knob, Heater Blower Switch |
| 84732A | Switch, Rear Heater Blower |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84920 | Switch Assy, Power Seat |
| 84931B | Switch, Door Control |
| 85276A | Relay, Cleaner Control |
| 85431 | Solenoid, Shift Lock |
| 85432 | Solenoid, Key Interlock |
| 85440A | Solenoid Assy, Four Wheel Drive Control |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85910Y | Relay, Rear Heater |
| 85916 | Relay, Light Control |
| 85916F | Relay, Cornering Lamp |
| 85917 | Relay, Front Drive |
| 85917A | Relay, Four Wheel Drive Indicator |
| 85921 | Relay, Sliding Roof Control |
| 85930 | Relay Assy, Power Window |
| 85933 | Computer, Shift Lock Control |
| 85940 | Relay Assy, Windshield Wiper |
| 85940A | Relay, Windshield Wiper Switch |
| 85940B | Relay Assy, Rear Wiper |
| 85945 | Relay, Governor Control Solenoid |
| 85959A | Holder, Relay |
| 85959D | Holder, Relay |
| 85980 | Relay Assy, Door Control |
| 85985 | Relay, Key Reminder |
| 85991 | Relay, Seat Belt Warning |
| 85999C | Bracket, Relay, NO.3 |
| 85999D | Bracket, Relay, NO.4 |
| 85999H | Bracket, Relay |
| 85999R | Bracket, Relay, NO.6 |
| 85999Y | Bracket,Relay |
| 86530 | Relay Assy, Horn |
| 86650H | Buzzer Assy, Back |
| 86659 | Bracket, Buzzer |
| 86659B | Bracket, Buzzer |
| 86690 | Buzzer Assy, Speed Indicator |
| 88620C | Thermo Switch Assy |
| 89390 | Relay, Brake Warning |
| 89421D | Sensor, Turbo Pressure |
| 89422A | Sensor, Water Temperature |
| 89437 | Cover, Sensor |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 89533 | Computer, 4 Wheel Drive Control |
| 89533A | Computer, 4 Wheel Drive Control, NO.2 |
| 89551 | Computer, Emission Control |
| 89559A | Bracket, Emission Control Computer |
| 89559B | Bracket, Emission Control Computer |
| 89590 | Computer Assy, Condition Indicator |
| 89668B | Bracket, Engine Control Computer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
