Toyota Land Cruiser S/T,H/T
1990-01 → 2004-08 · chassis FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781130 · Japan
Discontinued model
Data version 2005-04
Overdrive & Electronic Controlled Transmission
15 part groups · 4 illustrations

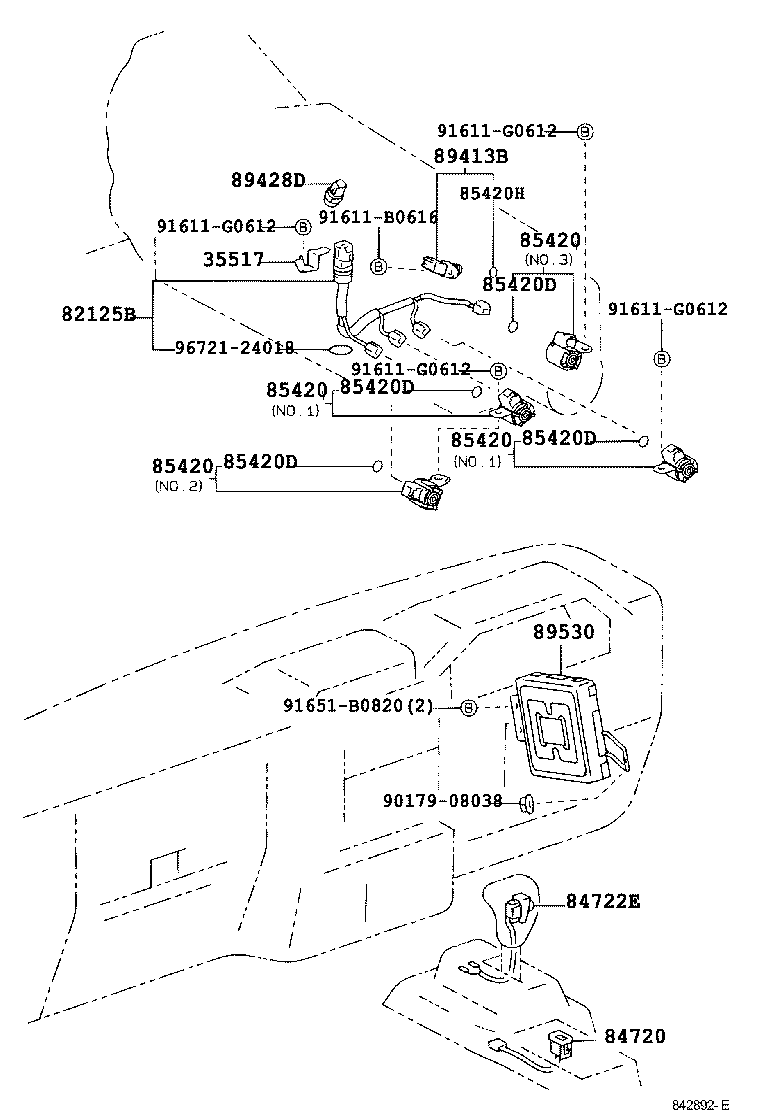

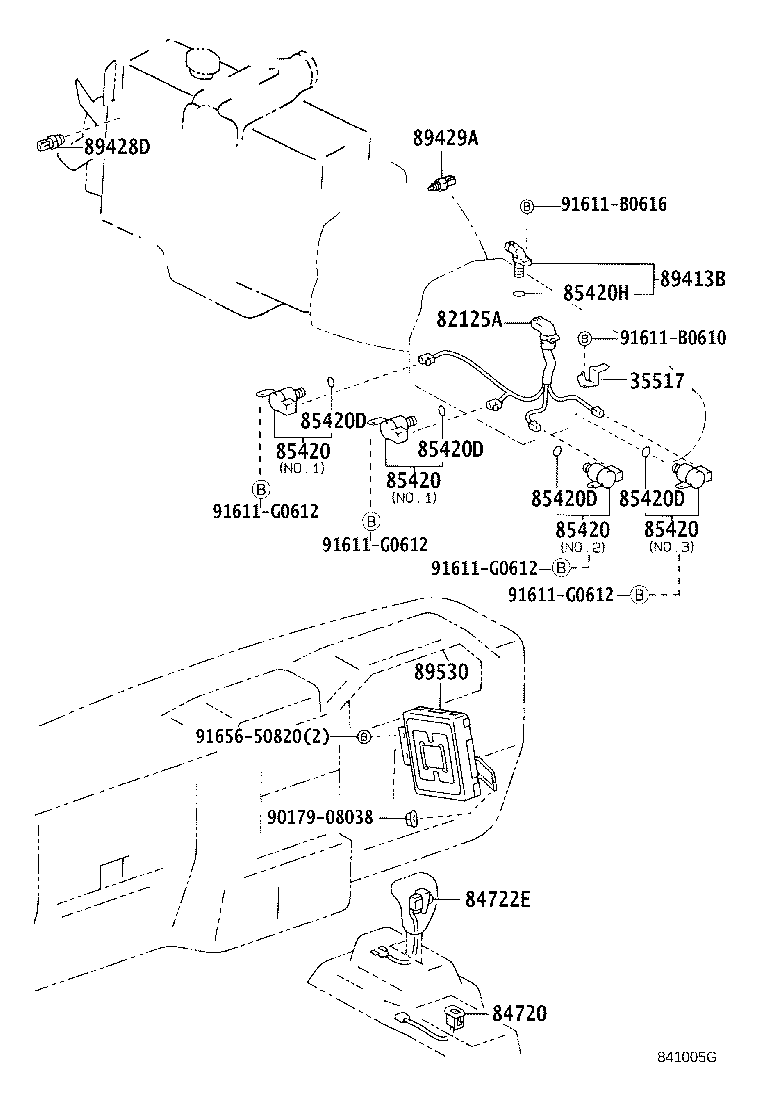

Part groups
| PNC | Description |
|---|---|
| 33485C | Plate, Speedometer Sleeve Lock |
| 35517 | Plate, Transmission Wire Lock |
| 82125A | Wire, Transmission |
| 82125B | Wire, Transmission |
| 84720 | Switch Assy, Pattern Select |
| 84722E | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 85420H | Ring, O(FOR SPEED SENSOR) |
| 89411C | Sensor, Speed |
| 89413B | Sensor, Transmission Revolution |
| 89414 | Rotor, Sensor |
| 89428D | Switch, Temperature, NO.2 |
| 89429A | Sensor, Temperature |
| 89530 | Computer Assy, Transmission Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
