Toyota Land Cruiser S/T,H/T
1990-01 → 2004-08 · chassis FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781130 · Japan
Discontinued model
Data version 2005-04
Radio Receiver & Amplifier & Condenser
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

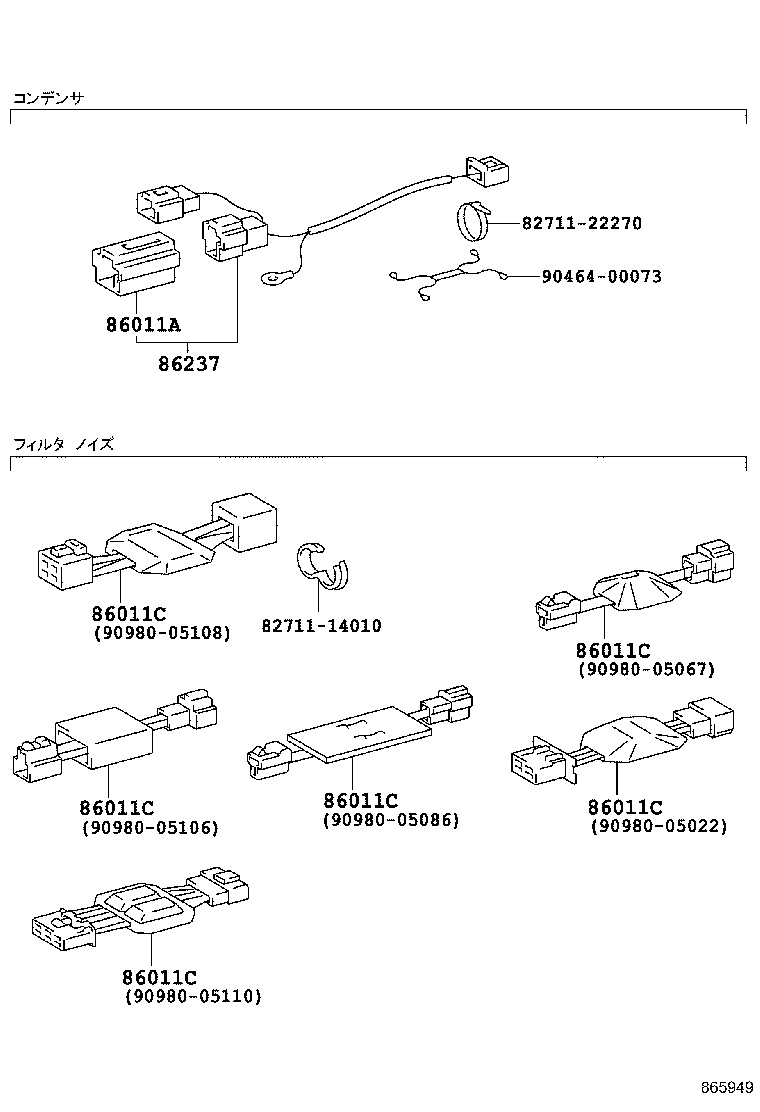

| 86011A | Condenser, Radio Setting |
| 86011C | Filter, Noise |
| 86120 | Receiver Assy, Radio |
| 86203 | Wire, Radio |
| 86206 | Converter Sub-assy, Voltage |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86237 | Wire, Condenser |
| 86260 | Tape Player Assy |
| 86270A | Disc Player Assy |
| 86280 | Amplifier Assy, Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
