Toyota Land Cruiser S/T,H/T

1990-01 → 2004-08 · chassis FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781130 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

15 part groups · 3 illustrations

Illustrations

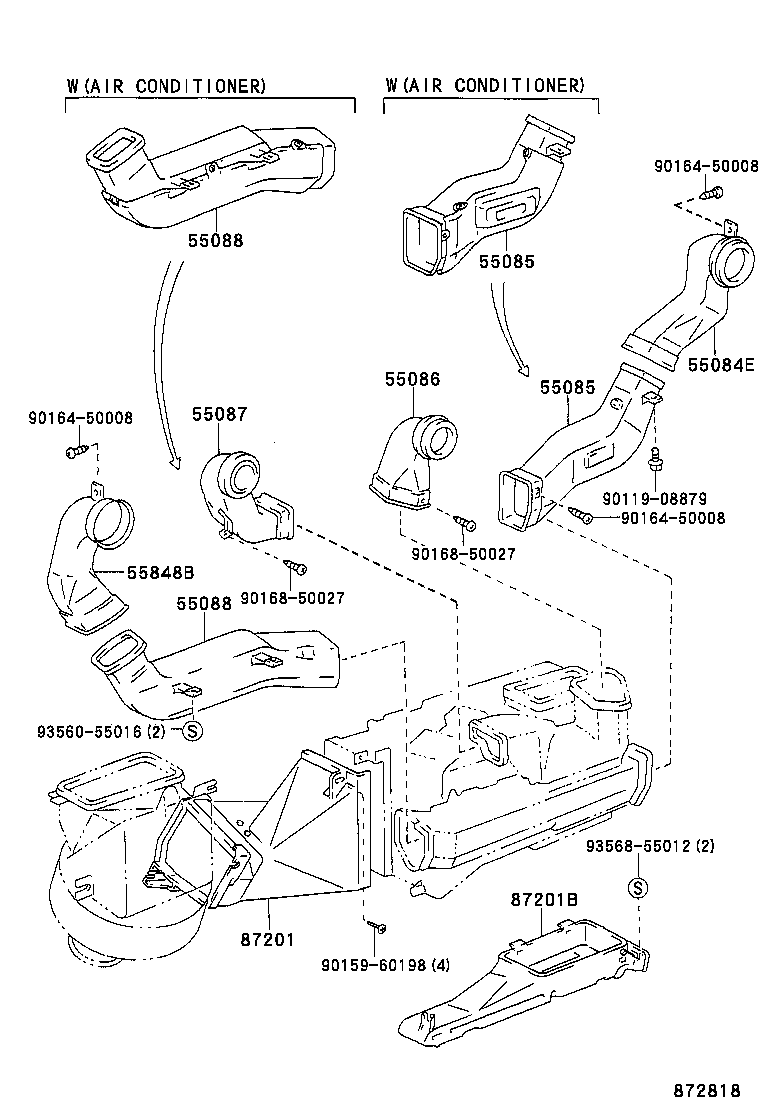

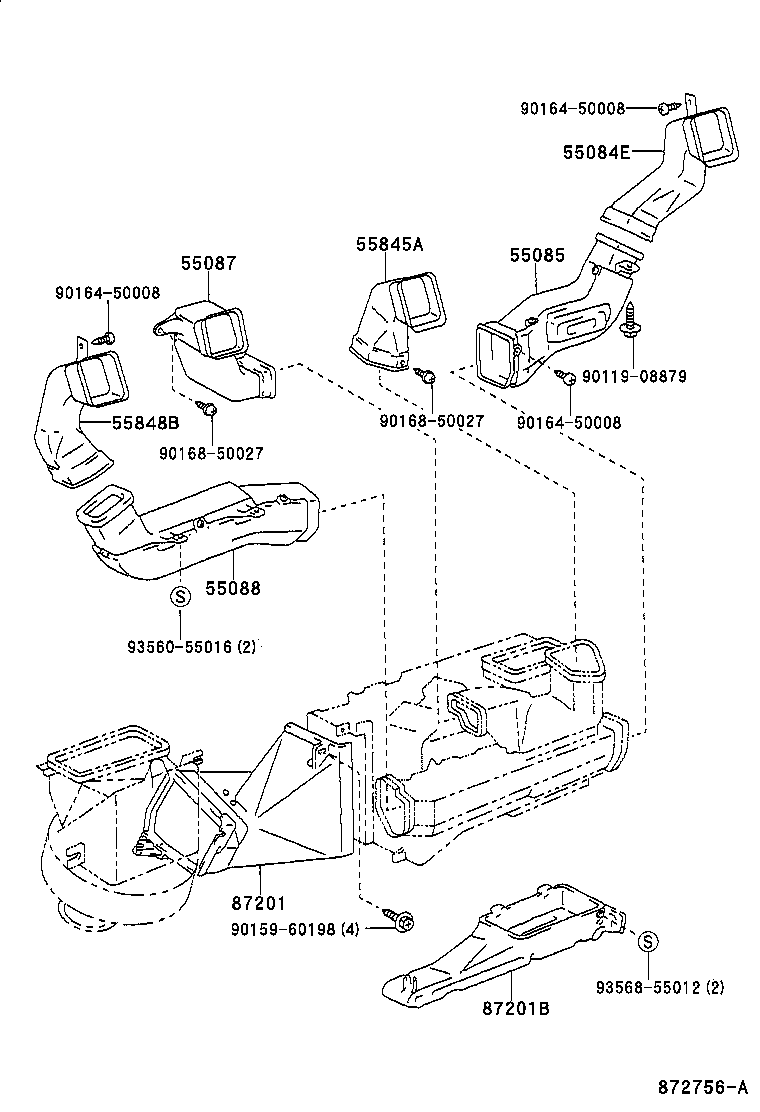

Figure 87D500 87D500 1990-01 → — Figure 872818 872818 1990-01 → — Figure 872756A 872756A 1993-05 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3
55087 Duct Sub-assy, Heater TO Register, NO.4
55088 Duct Sub-assy, Heater TO Register, NO.5
55845A Duct, Heater TO Register, NO.3
55848B Duct, Heater TO Register, NO.6
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
