Heating & Air Conditioning - Cooler Piping

20 part groups · 5 illustrations

Illustrations

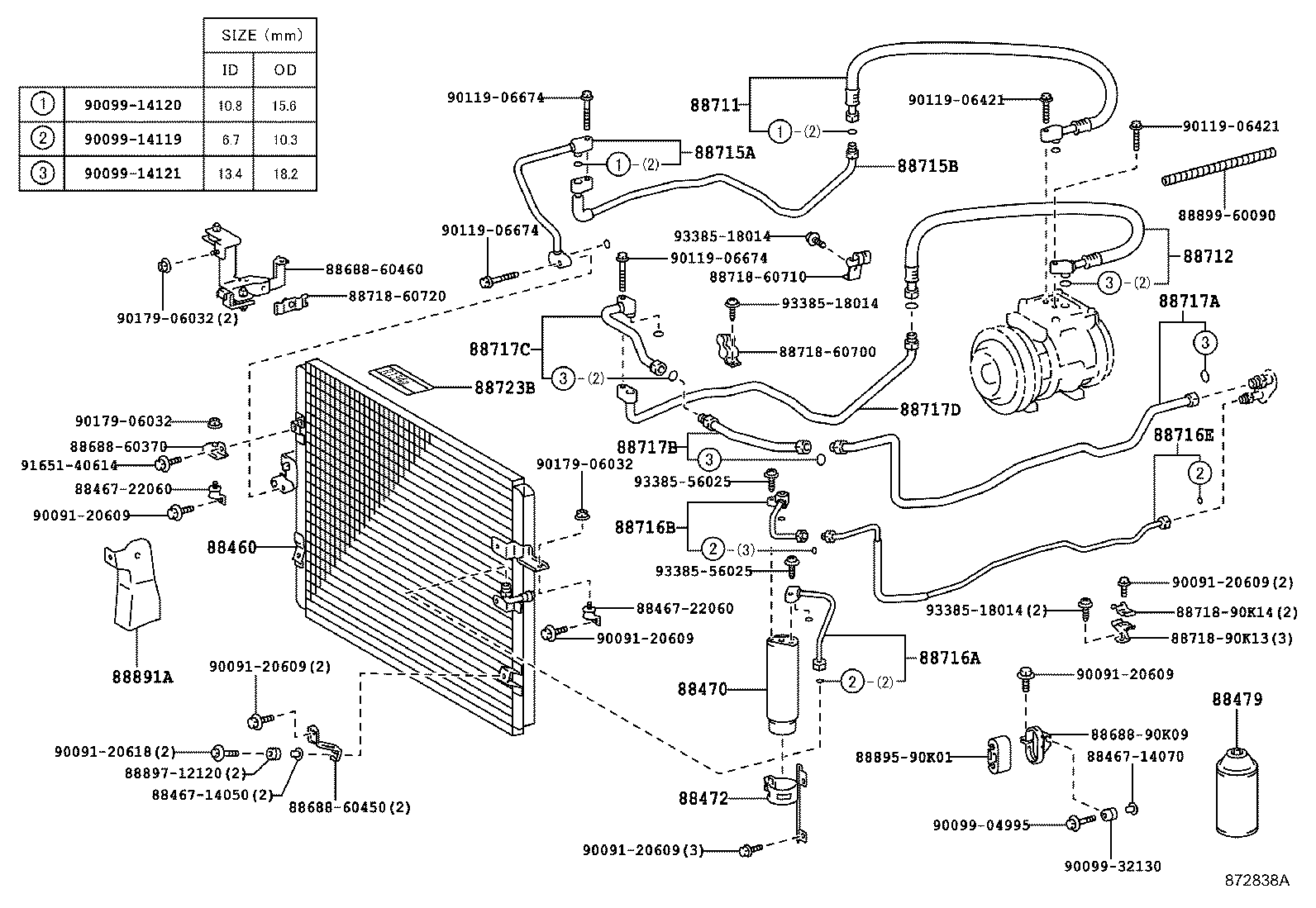

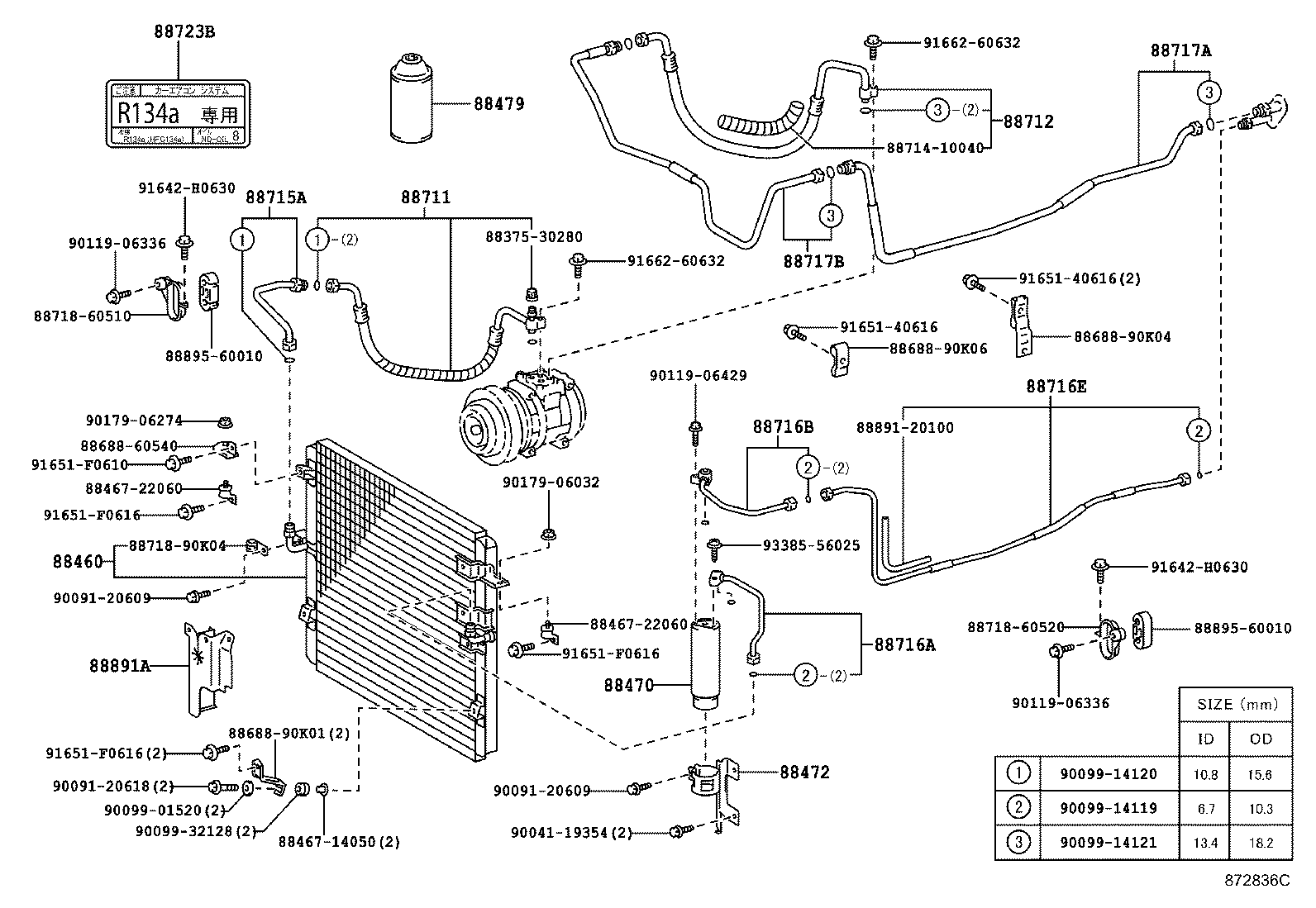

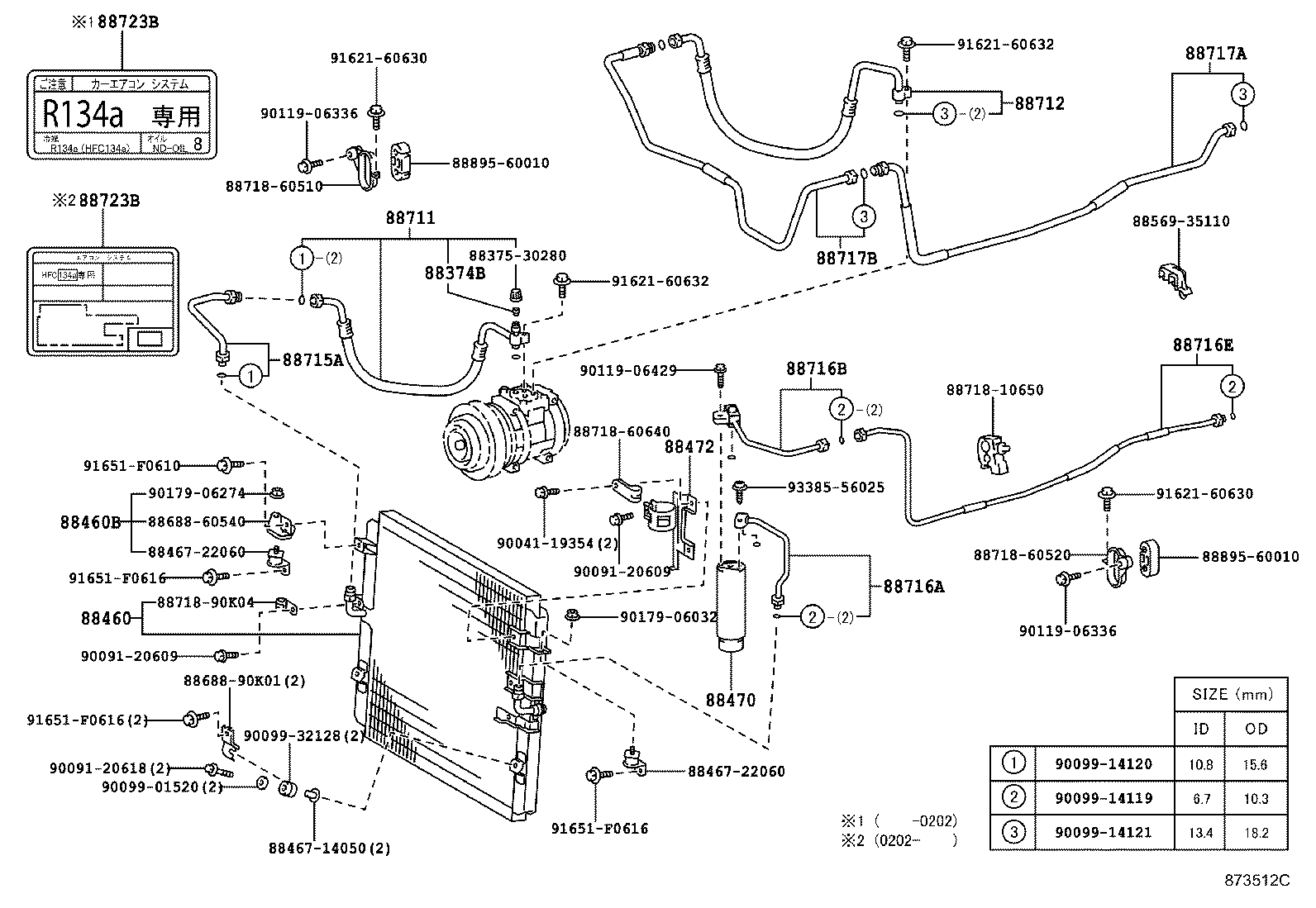

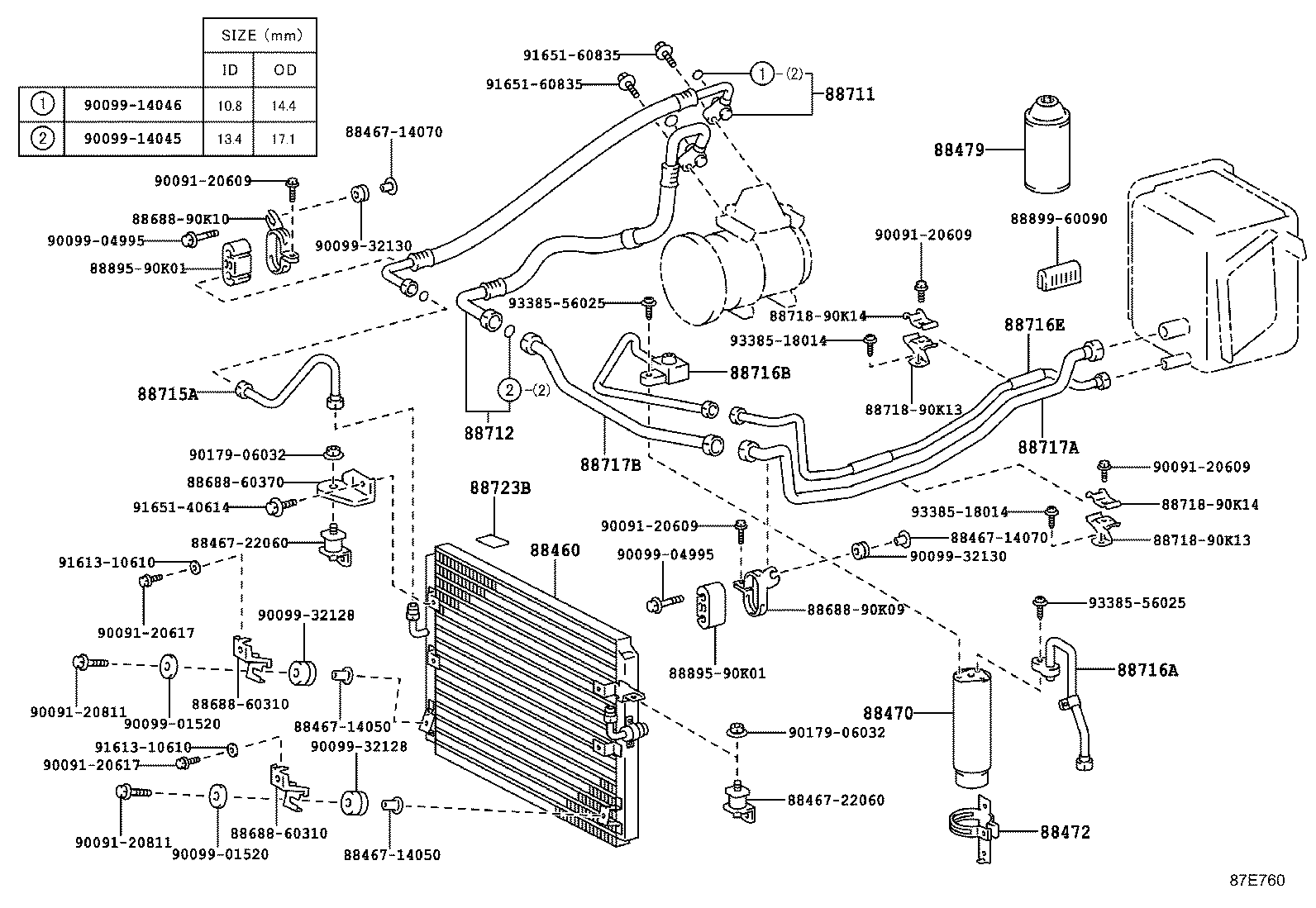

Figure 87E759 87E759 1990-01 → 1993-05 Figure 87E760 87E760 1990-04 → 1993-05 Figure 872838A 872838A 1993-05 → 1996-04 Figure 872836C 872836C 1993-05 → 1999-08 Figure 873512C 873512C 1999-08 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717D Pipe, Cooler Refrigerant Suction, D
88723B Label, Cooler Service Caution
88891A Packing A (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
