Toyota Land Cruiser Prado
1996-04 → 2002-11 · chassis KDJ9#,KZJ9#,RZJ9#,VZJ9# · catalogue 781140 · Japan
Discontinued model
Data version 2003-04

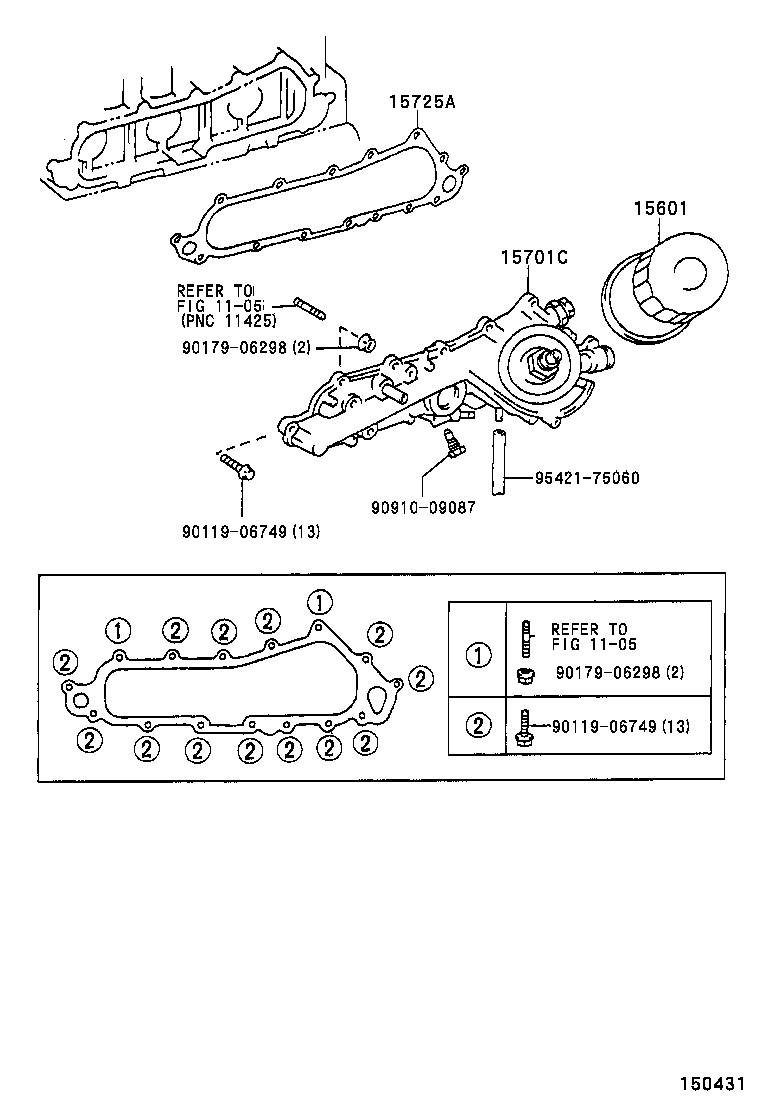

Oil Filter
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 15194A | Ring, O |
| 15600A | Union(FOR OIL FILTER) |
| 15601 | Filter Sub-assy, Oil |
| 15609 | Bracket Sub-assy, Oil Filter |
| 15609D | Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET) |
| 15609E | Gasket, W/Head Straight Screw Plug |
| 15690B | Valve Assy, Oil Cooler Relief |
| 15691 | Gasket, Oil Filter |
| 15701C | Cover Sub-assy, Oil Cooler |
| 15725A | Gasket, Oil Cooler Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
