Toyota Land Cruiser Prado

1996-04 → 2002-11 · chassis KDJ9#,KZJ9#,RZJ9#,VZJ9# · catalogue 781140 · Japan

Discontinued model Data version 2003-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

10 part groups · 3 illustrations

Illustrations

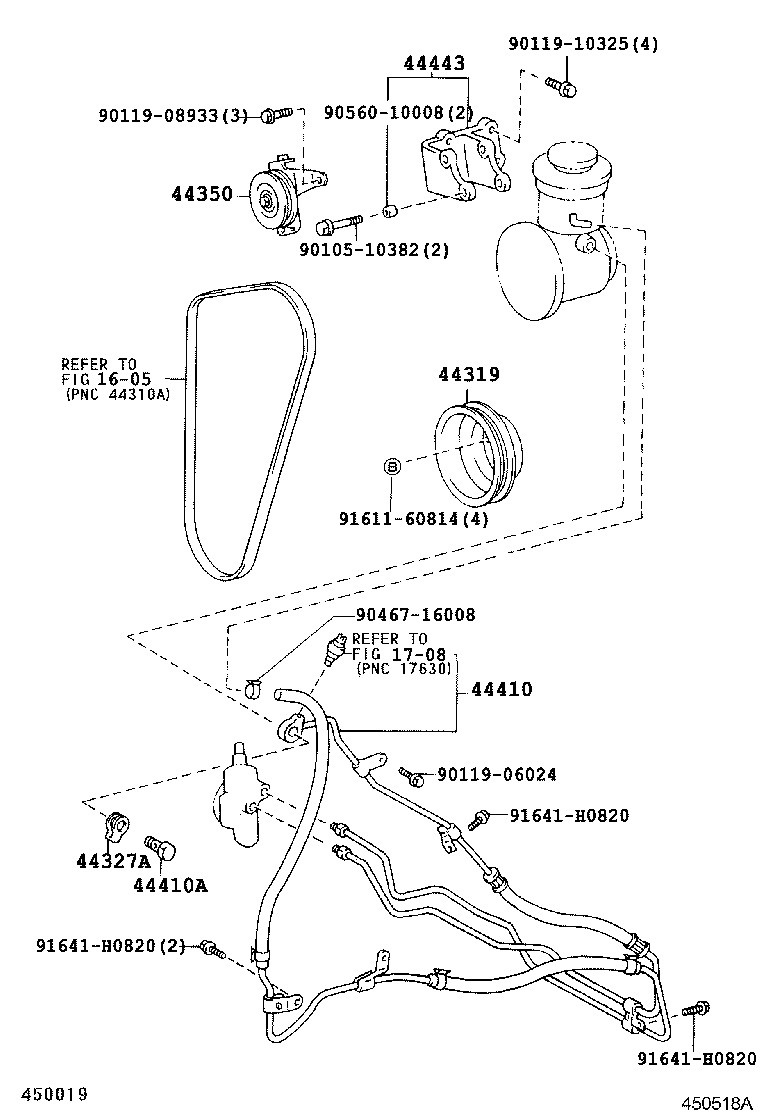

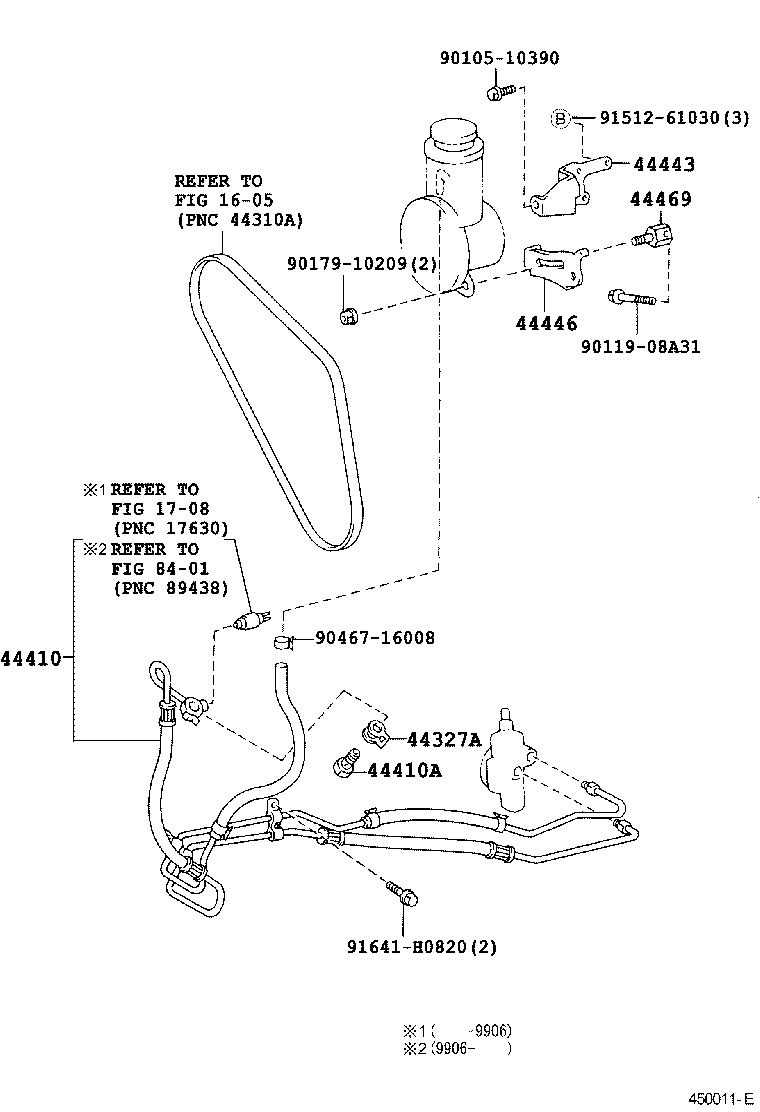

Figure 450010A 450010A 1996-04 → — Figure 450011E 450011E 1996-04 → — Figure 450518A 450518A 1997-04 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44350 Pulley Assy, Power Steering Idle
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44443 Bracket, Pump
44446 Strut, Adjusting
44469 Slider, Power Steering Belt Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
