Toyota Land Cruiser Prado
1996-04 → 2002-11 · chassis KDJ9#,KZJ9#,RZJ9#,VZJ9# · catalogue 781140 · Japan
Discontinued model
Data version 2003-04

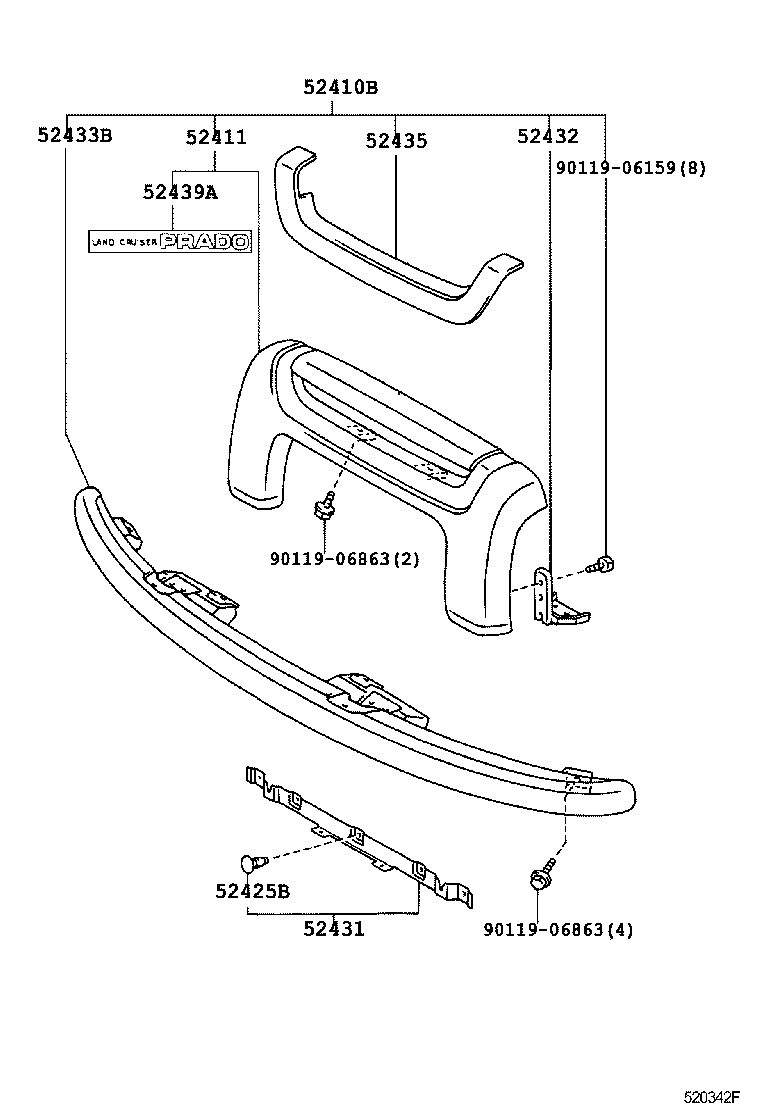

Front Bumper & Bumper Stay
25 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52147E | Bracket, Front Bumper Mounting, RH |
| 52148E | Bracket, Front Bumper Mounting, LH |
| 52410B | Guard Assy, Front Bumper |
| 52411 | Guard, Front Bumper |
| 52425B | Insert, Front Bumper Pad, Center |
| 52431 | Retainer, Front Bumper Guard |
| 52432 | Retainer, Front Bumper Guard |
| 52433B | Support, Front Bumper Guard |
| 52435 | Garnish, Front Bumper Guard |
| 52437B | Cover, Front Bumper Guard Base |
| 52439A | Tape, Front Bumper Guard Prtector |
| 52441 | Base, Front Bumper Guard, NO.1 RH |
| 52442 | Base, Front Bumper Guard, NO.1 LH |
| 52447 | Pad, Front Bumper Guard, NO.2 RH |
| 52448 | Pad, Front Bumper Guard, NO.2 LH |
| 52492 | Bolt, Bumper Pad, NO.2 |
| 52492A | Bolt, Bumper Pad, NO.3 |
| 52503B | Retainer Sub-assy, Front Bumper Side, NO.1 RH |
| 52504 | Retainer Sub-assy, Front Bumper Side, NO.1 LH |
| 52521 | Retainer, Front Bumper, Upper Center |
| 52715B | Insert, Front Bumper Moulding |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
