Toyota Land Cruiser Prado
1996-04 → 2002-11 · chassis KDJ9#,KZJ9#,RZJ9#,VZJ9# · catalogue 781140 · Japan
Discontinued model
Data version 2003-04

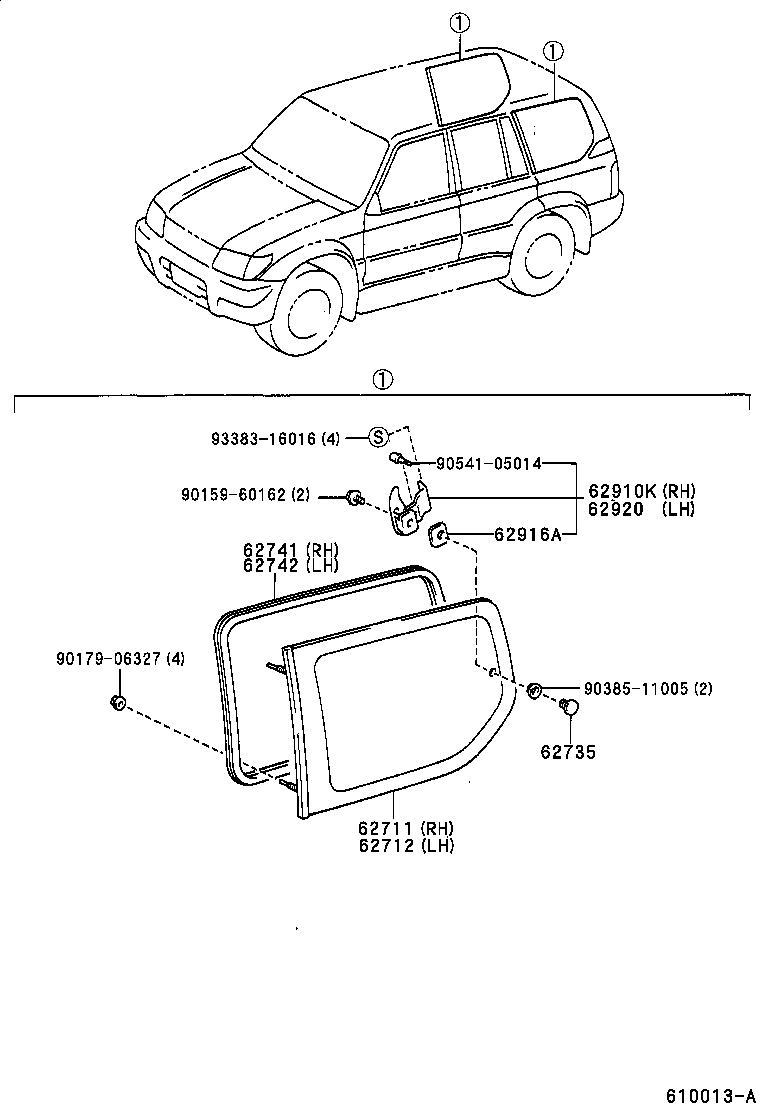

Side Window
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62711 | Glass, Quarter Window, RH |
| 62712 | Glass, Quarter Window, LH |
| 62731C | Hinge, Quarter Window, RH |
| 62731E | Hinge, Quarter Window, LH |
| 62732D | Hinge, Quarter Window, NO.2, RH |
| 62732E | Hinge, Quarter Window, LH |
| 62735 | Retainer, Quarter Window Hinge |
| 62741 | Weatherstrip, Quarter Window, RH |
| 62742 | Weatherstrip, Quarter Window, LH |
| 62777Z | Plate, Quarter Window Retainer |
| 62785A | Spacer, Quarter Window Glass |
| 62786D | Spacer, Quarter Window Glass, NO.2 |
| 62910K | Lock Assy, Quarter Window, RH |
| 62916A | Pad, Side Window Lock |
| 62920 | Lock Assy, Quarter Window, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
