Toyota Land Cruiser Prado

1996-04 → 2002-11 · chassis KDJ9#,KZJ9#,RZJ9#,VZJ9# · catalogue 781140 · Japan

Discontinued model Data version 2003-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

12 part groups · 4 illustrations

Illustrations

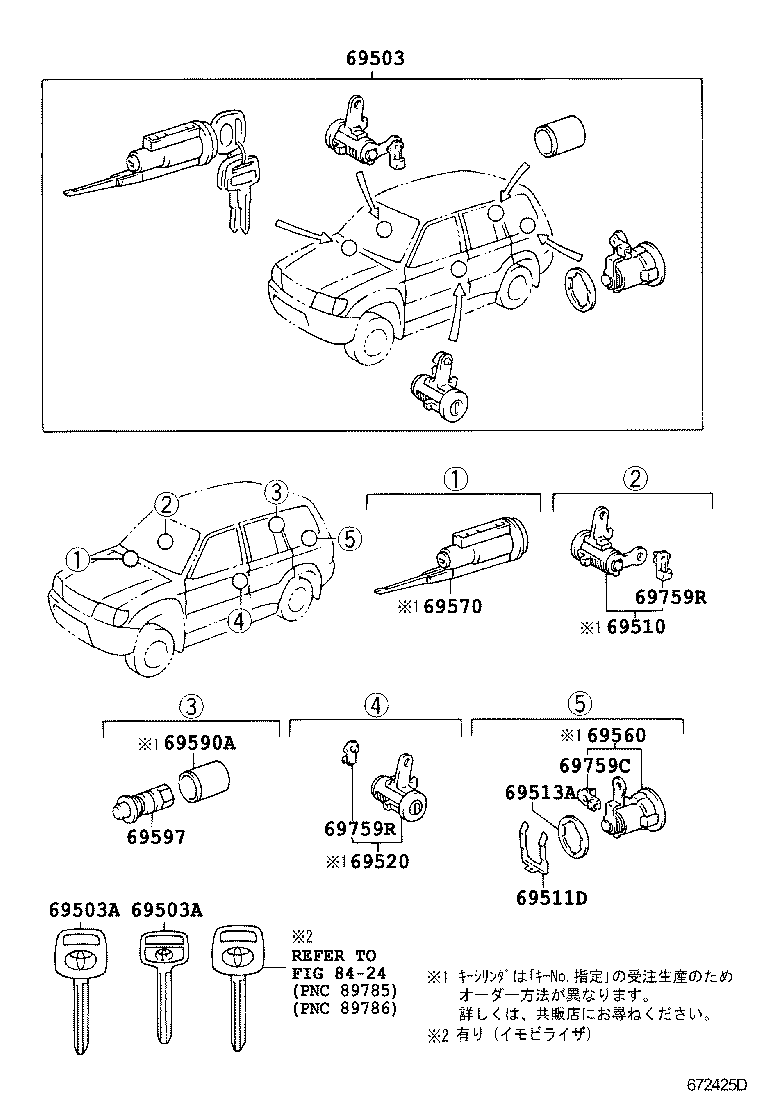

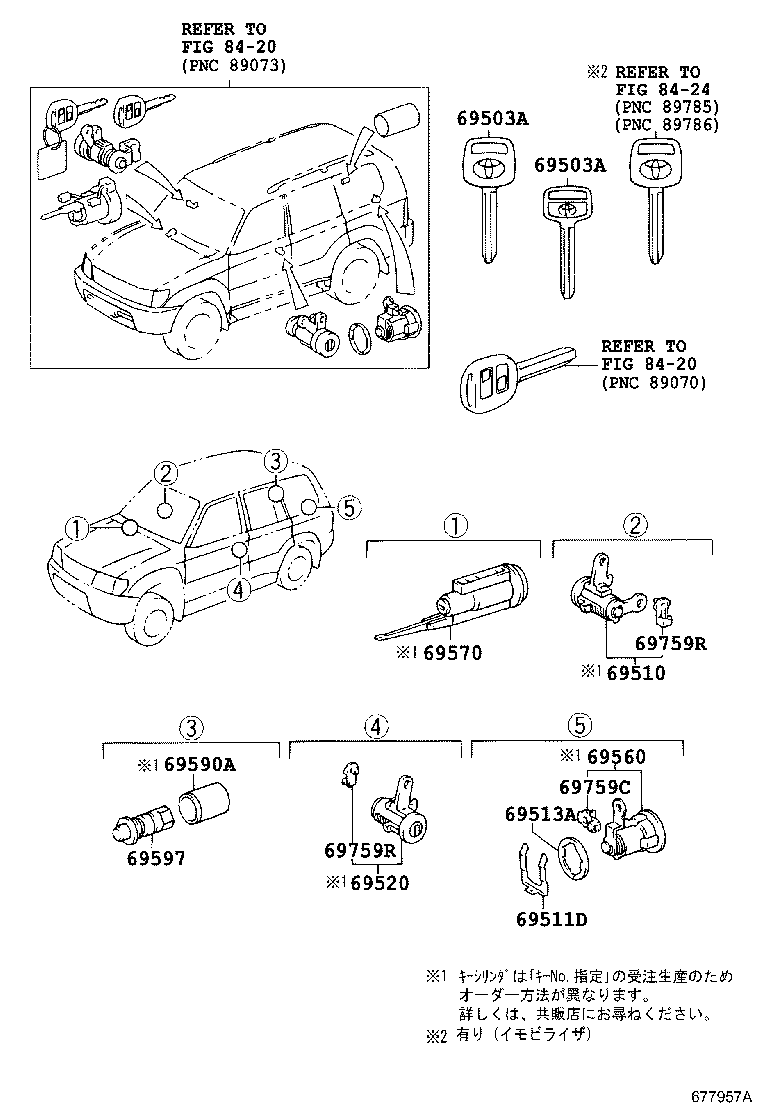

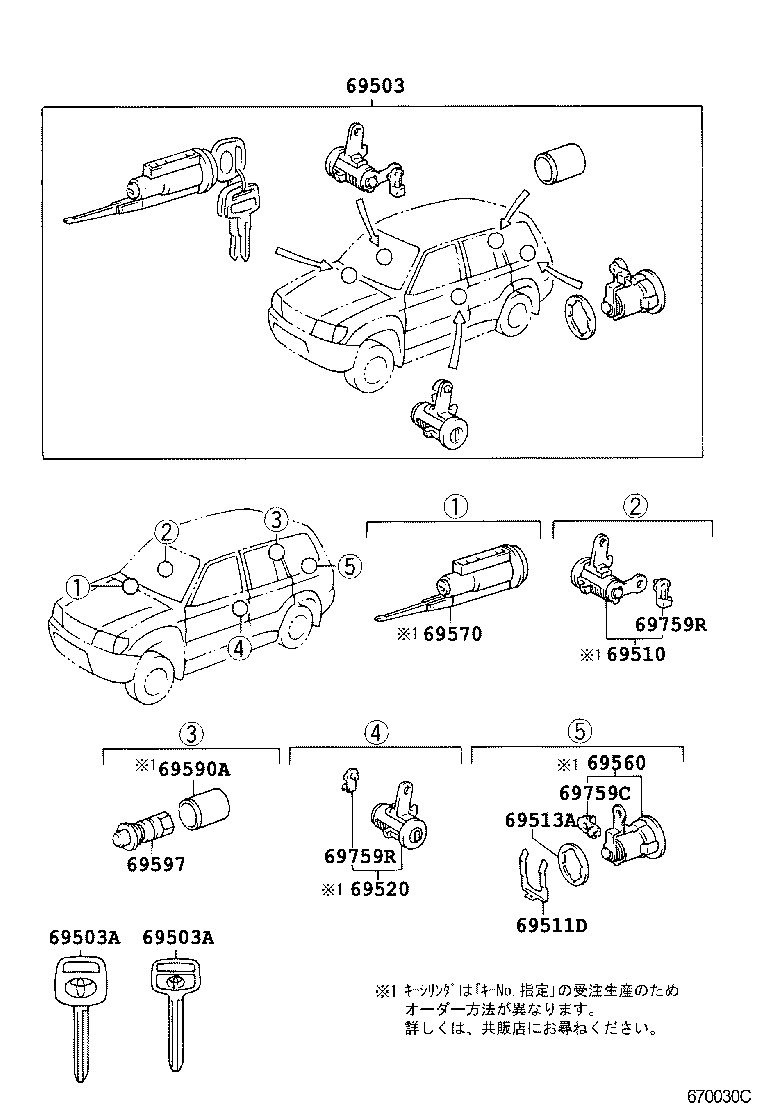

Figure 677958 677958 1996-04 → 1999-06 Figure 670030C 670030C 1996-04 → 1999-06 Figure 677957A 677957A 1999-06 → 2002-11 Figure 672425D 672425D 1999-06 → 2002-11

Part groups

PNCDescription
69503 Cylinder Set, Lock
69503A Key, Blank
69510 Cylinder Assy, Front Door Lock, RH
69511D Retainer, Back Door Lock Cylinder
69513A Pad, Door Cylinder
69520 Cylinder Assy, Front Door Lock, LH
69560 Cylinder Assy, Back Door Lock
69570 Cylinder Assy, Ignition Switch Lock
69590A Cylinder Assy, Spare Wheel Lock
69597 Nut, Spare Wheel Lock
69759C Snap, Back Door Lock Cylinder
69759R Snap, Front Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
