Toyota Land Cruiser Prado
1996-04 → 2002-11 · chassis KDJ9#,KZJ9#,RZJ9#,VZJ9# · catalogue 781140 · Japan
Discontinued model
Data version 2003-04

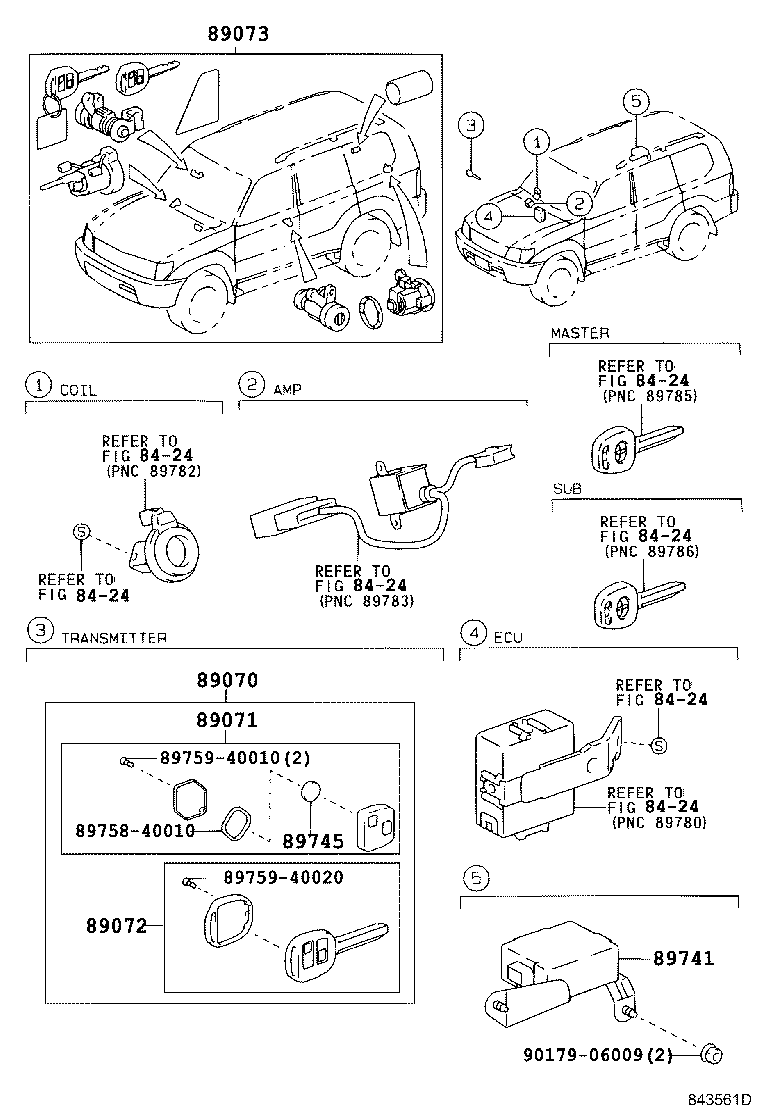

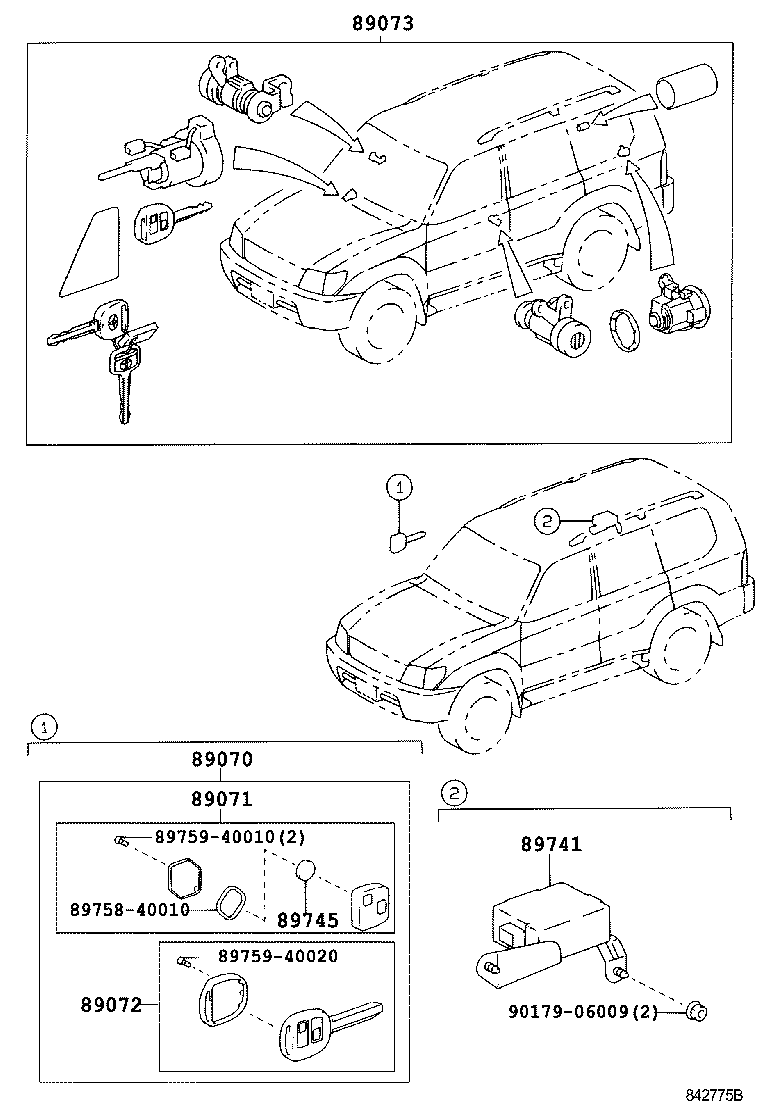

Wireless Door Lock
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 89070 | Transmitter Assy, Door Control |
| 89071 | Module Set, Transmitter Sub-assy, Door Control |
| 89072 | Housing Set, Door Control Transmitter |
| 89073 | Cylinder Set, Lock W/Transmitter Housing(LESS MODULE) |
| 89706 | Battery Set, Transmitter |
| 89708 | Cylinder Set, Wireless Door Lock |
| 89741 | Receiver, Door Control |
| 89742 | Transmitter, Door Control |
| 89745 | Battery, Transmitter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
