Toyota Land Cruiser Prado
1996-04 → 2002-11 · chassis KDJ9#,KZJ9#,RZJ9#,VZJ9# · catalogue 781140 · Japan
Discontinued model
Data version 2003-04

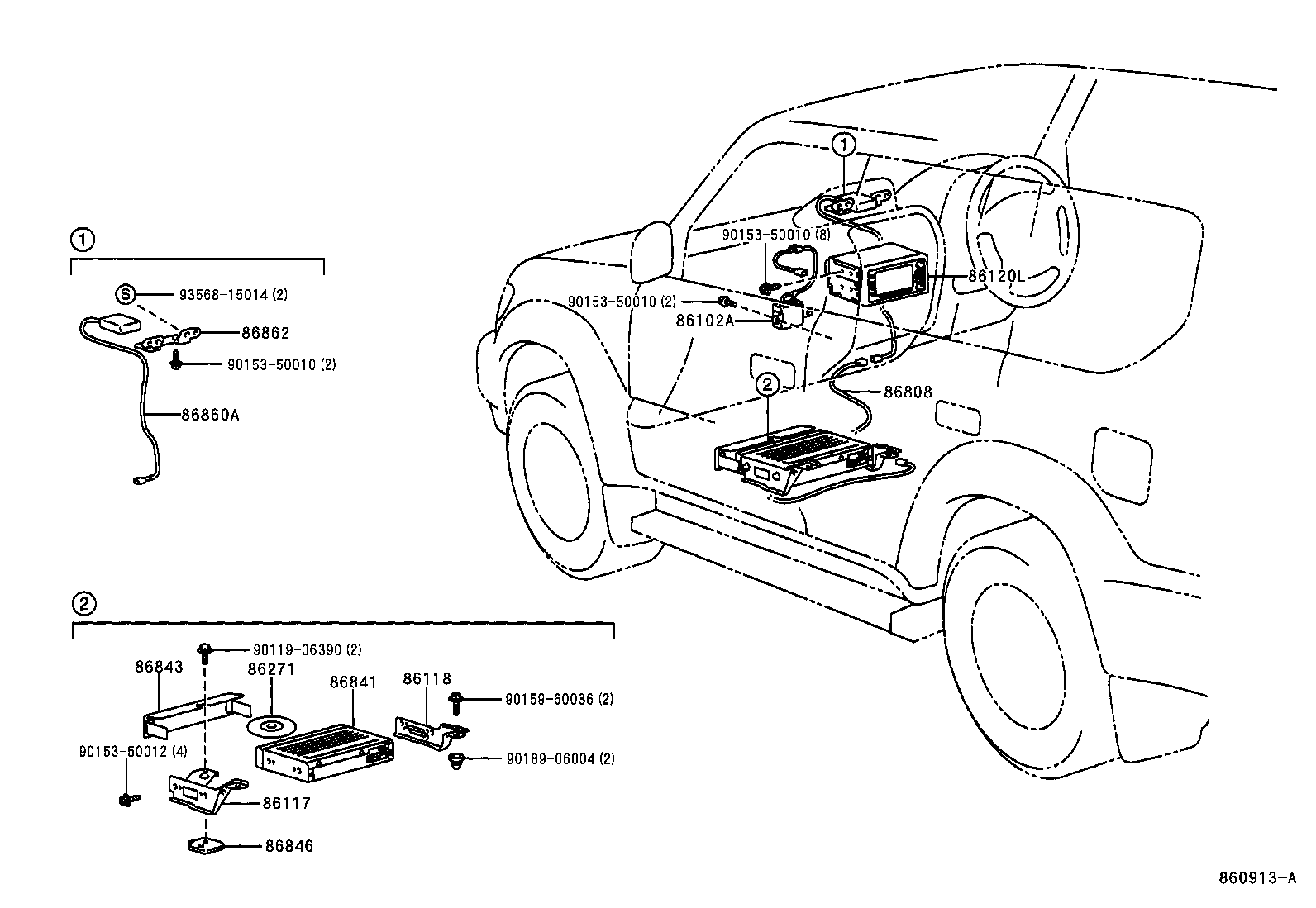

Navigation & Front Monitor Display
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86102A | Selector Sub-assy, Antenna |
| 86110A | Controller Assy, Multi-display |
| 86117 | Bracket, Multi-display Controller, A |
| 86118 | Bracket, Multi-display Controler, B |
| 86120L | Receiver Assy, Navigation |
| 86271 | Disc, Disc Player |
| 86807 | Disc Kit, Cd-rom |
| 86808 | Cord Sub-assy, Navigation Antenna, NO.1 |
| 86841 | Computer, Navigation |
| 86843 | Cover, Navigation Computer |
| 86844 | Retainer, Navigation Computer Cover |
| 86846 | Plate, Navigation Computer |
| 86860A | Antenna, Navigation |
| 86862 | Bracket, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
