Factory parts data · Europe

Toyota Land Cruiser Prado

1996-04 → 2002-11 · chassis KDJ9#,KZJ9#,RZJ9#,VZJ9# · catalogue 781140 · Japan

Discontinued model Data version 2003-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

8 part groups · 3 illustrations

Illustrations

Figure 860051B

860051B 1996-04 → —

Figure 860011G

860011G 1996-04 → —

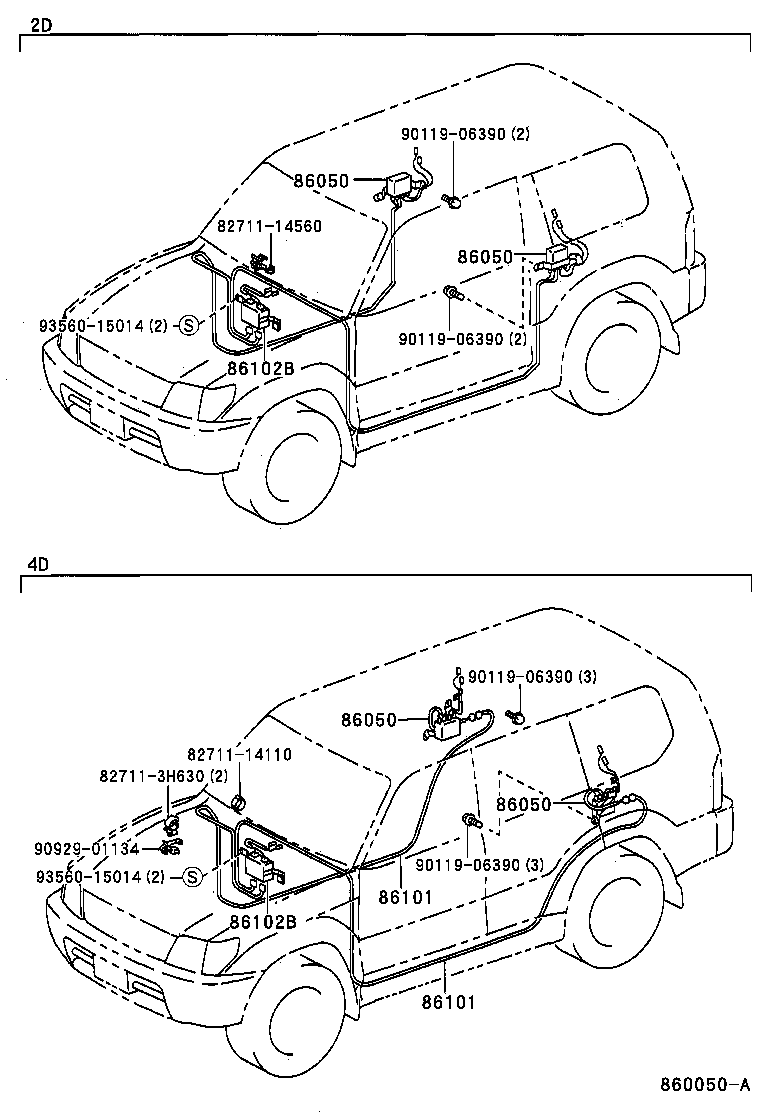

Figure 860050A

860050A 1996-04 → —

Part groups

PNC	Description
85914	Relay, Motor Antenna Control
86050	Antenna Assy, Television
86101	Cord Sub-assy, Antenna
86102B	Selector Sub-assy, Antenna
86300	Antenna Assy, W/Holder
86337	Rod & Pipe, Sealed W/Cable
86392	Ornament, Antenna
86396	Nut, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
