Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12# · catalogue 781150 · Japan

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

29 part groups · 7 illustrations

Illustrations

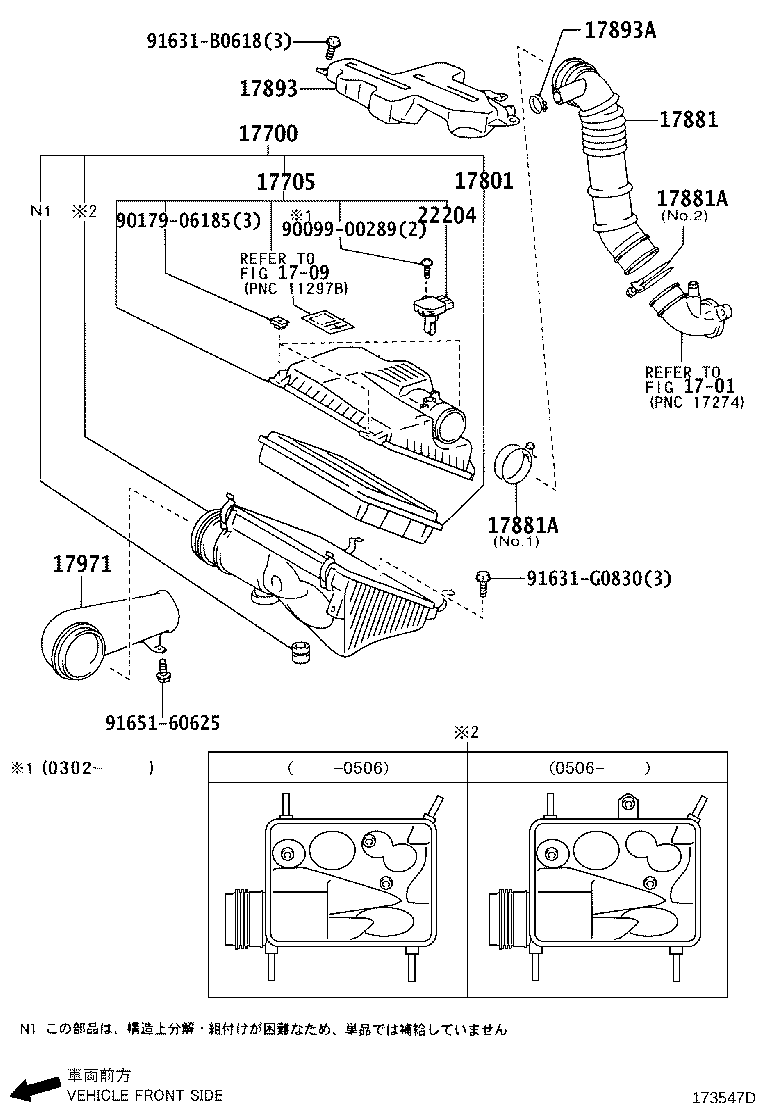

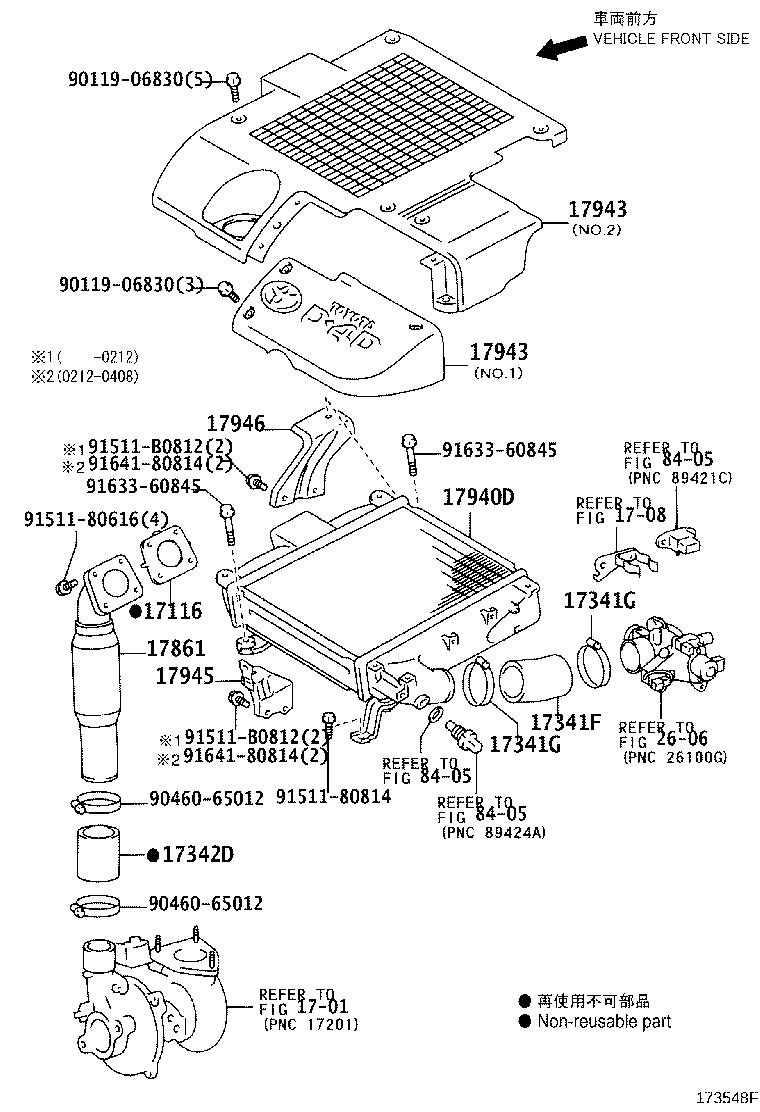

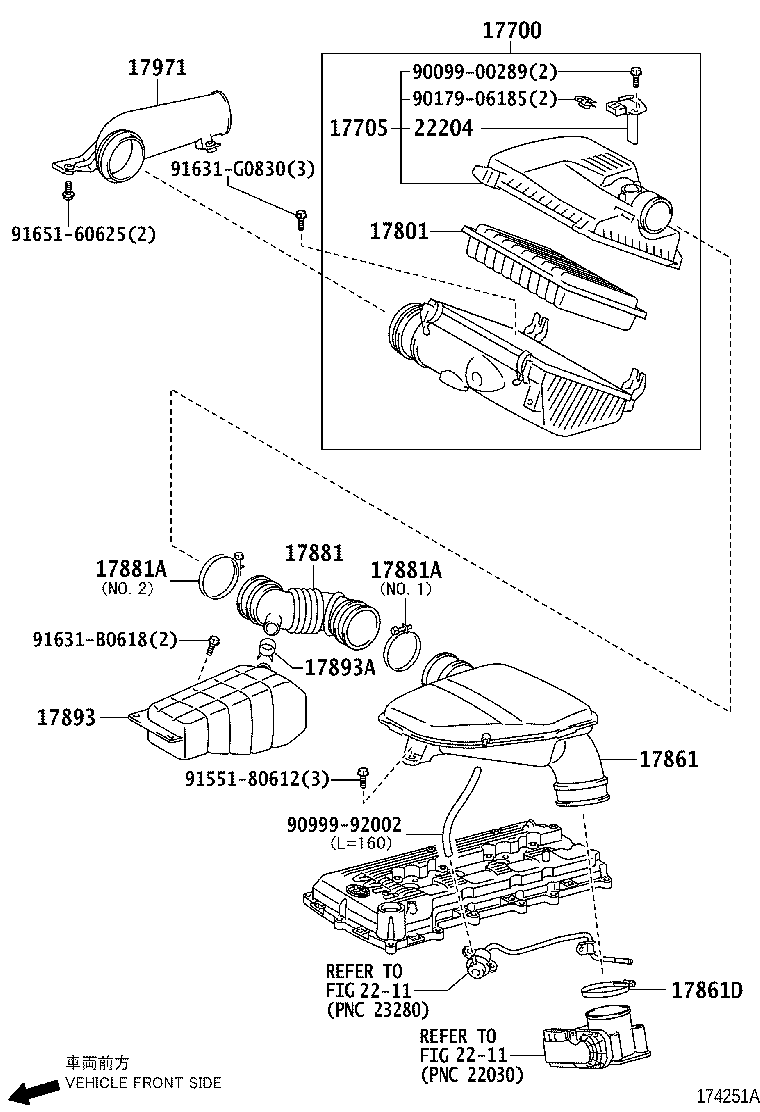

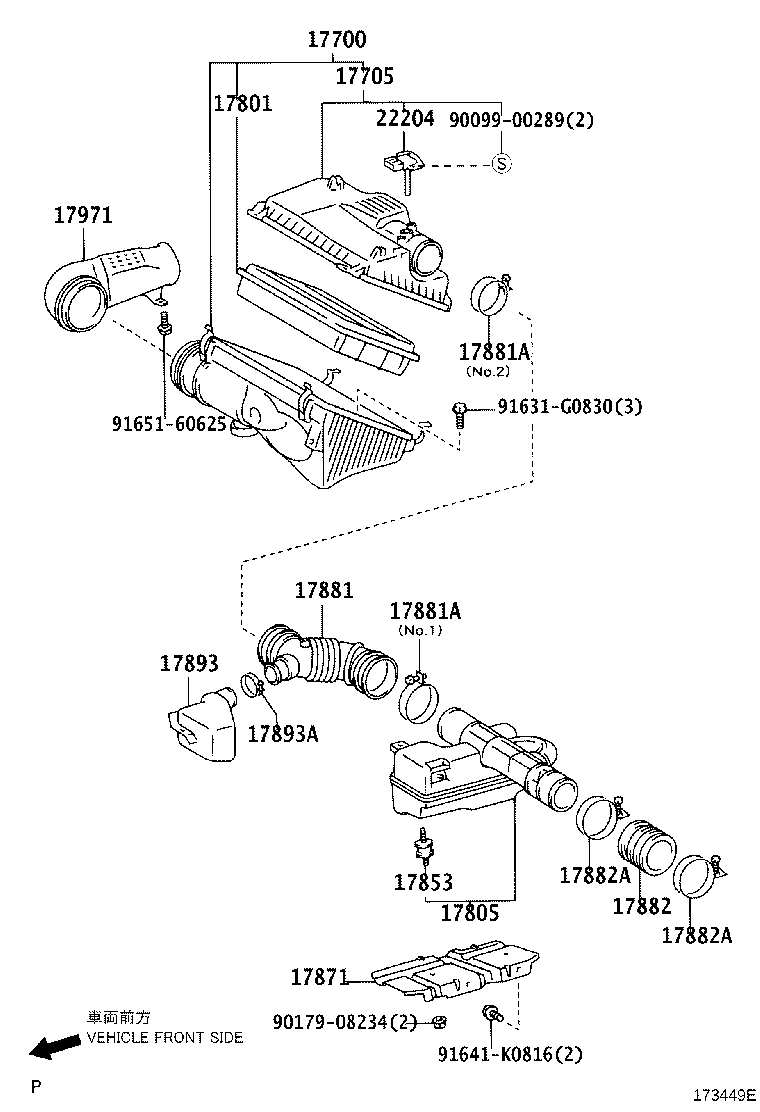

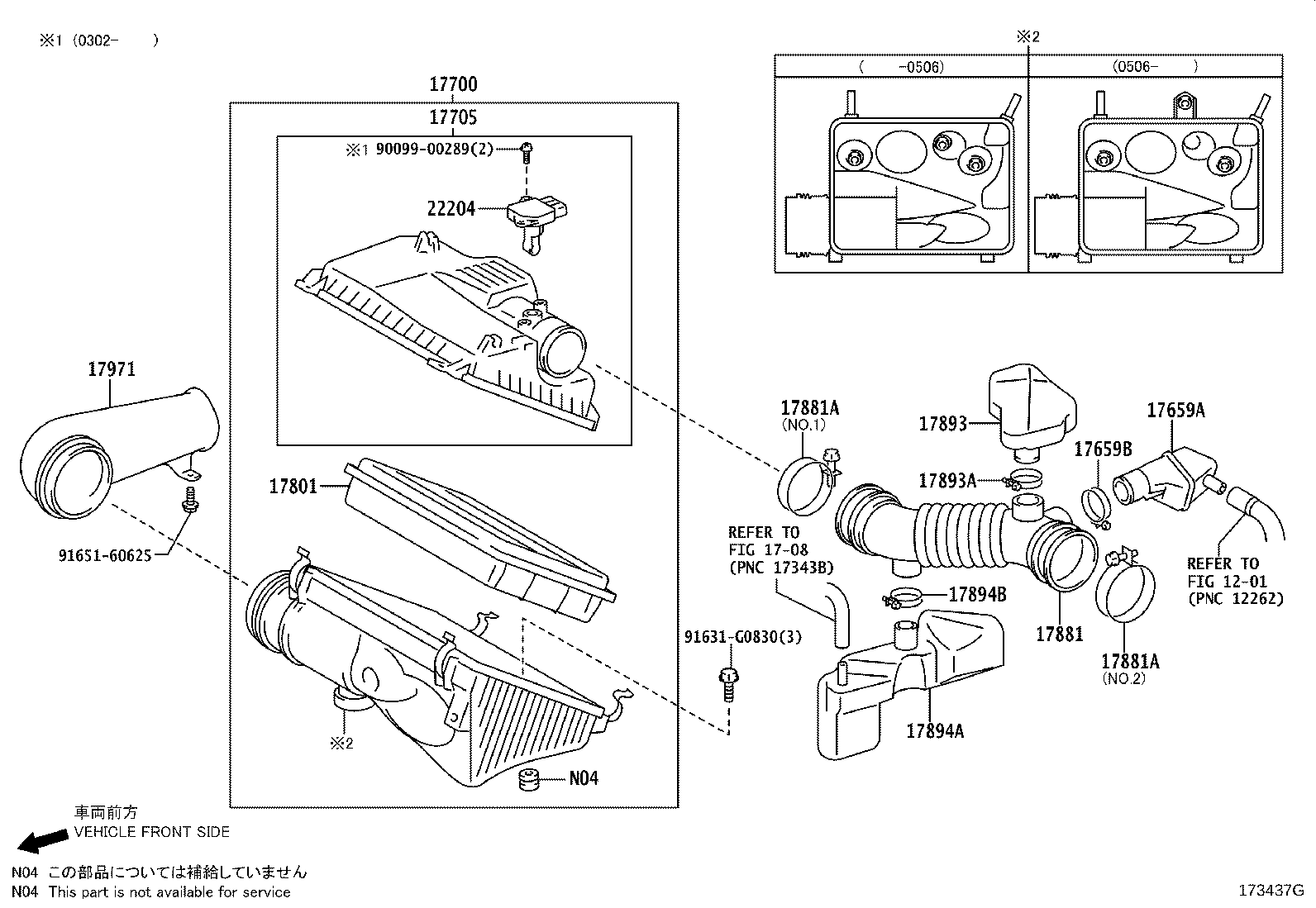

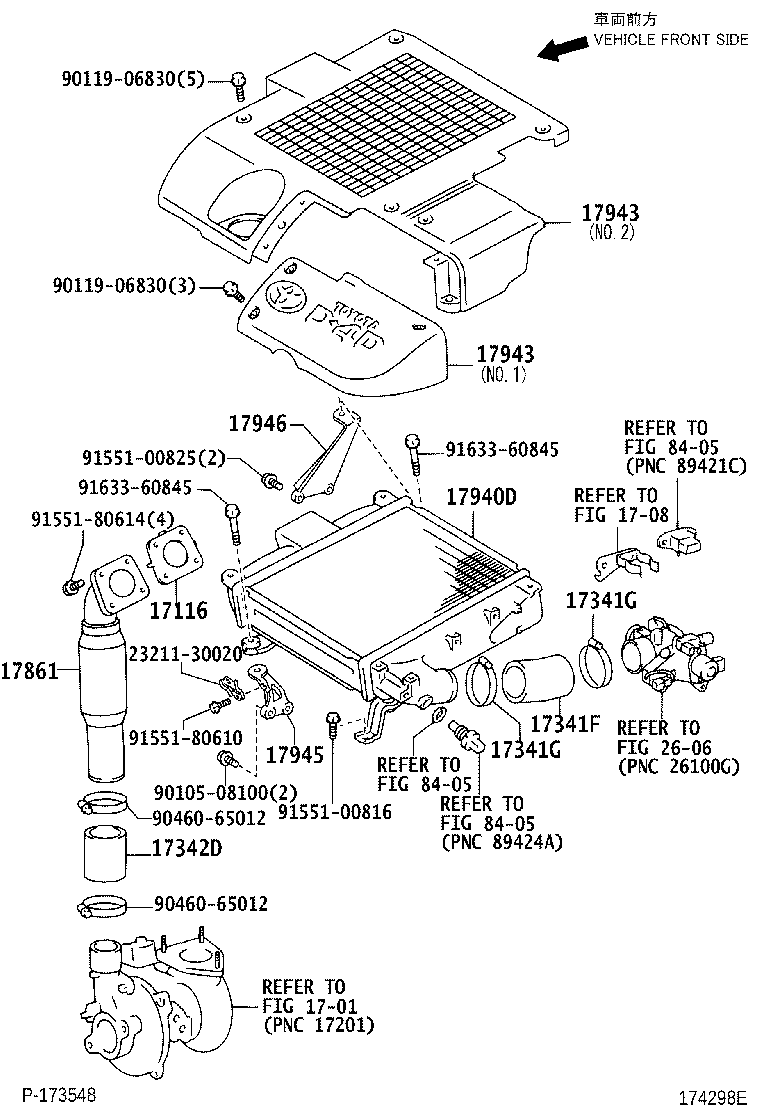

Figure 173500D 173500D 2005-08 → — Figure 173547D 173547D 2002-11 → — Figure 173548F 173548F 2002-11 → 2004-08 Figure 174298E 174298E 2004-08 → — Figure 173449E 173449E 2002-09 → — Figure 174251A 174251A 2004-08 → — Figure 173437G 173437G 2002-09 → 2005-08

Part groups

PNCDescription
17116 Gasket, Intake Flange
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17342D Hose, Air, NO.2
17659A Connector, Air
17659B Clamp, Hose(FOR AIR CONNECTOR)
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17853 Insulator, Air Cleaner Bracket
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17871 Stay, Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
17893A Clamp, Hose
17894A Resonator, Intake Air, NO.2
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
17940D Intercooler Assy
17943 Protector, Intercooler
17945 Bracket, Intercooler Support
17946 Bracket, Intercooler Support, NO.2
17971 Inlet, Cool Air, NO.1
22204 Meter Sub-assy, Intake Air Flow
22204A Ring, O(FOR INTAKE AIR FLOW METER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
