Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12# · catalogue 781150 · Japan

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

21 part groups · 6 illustrations

Illustrations

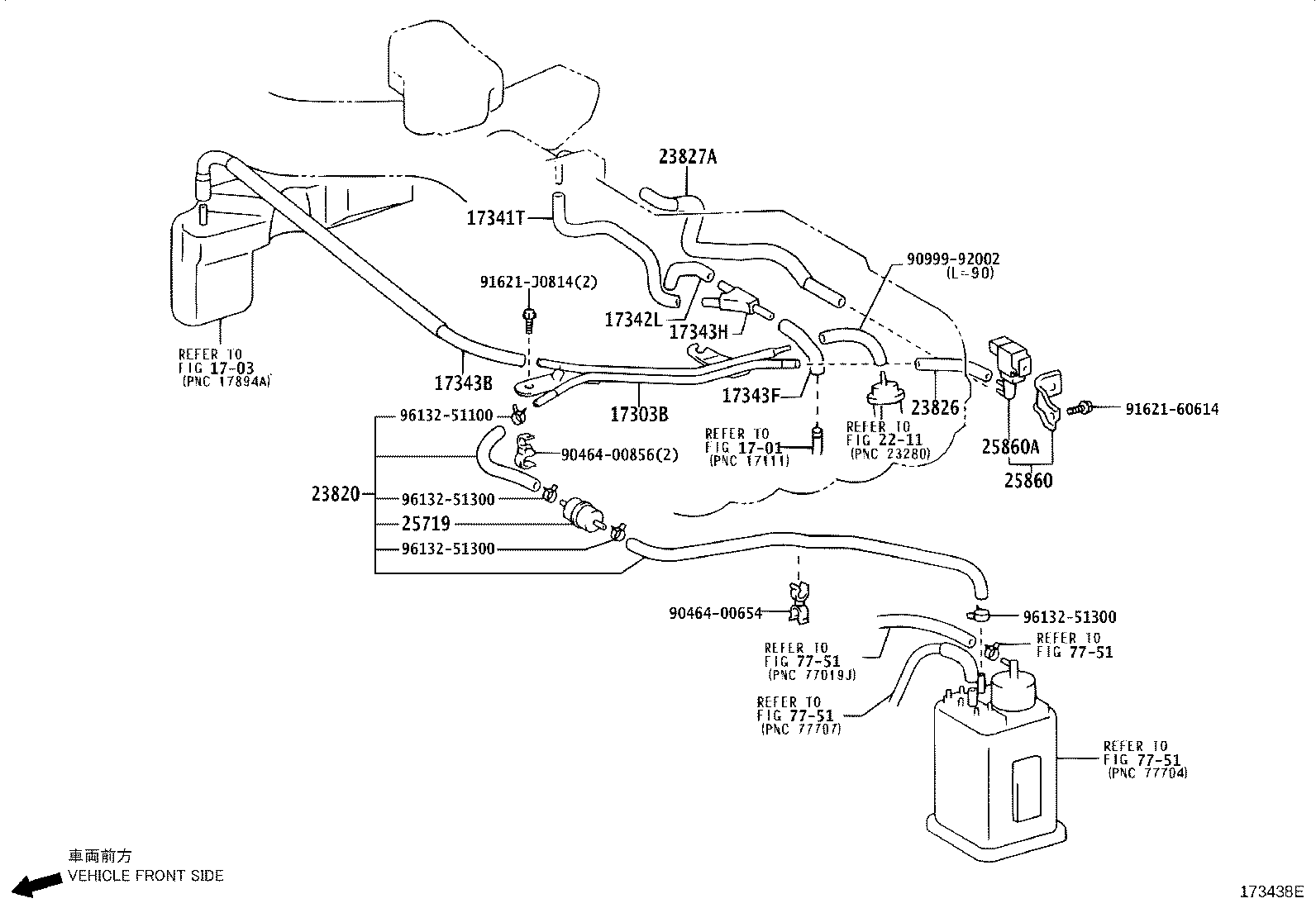

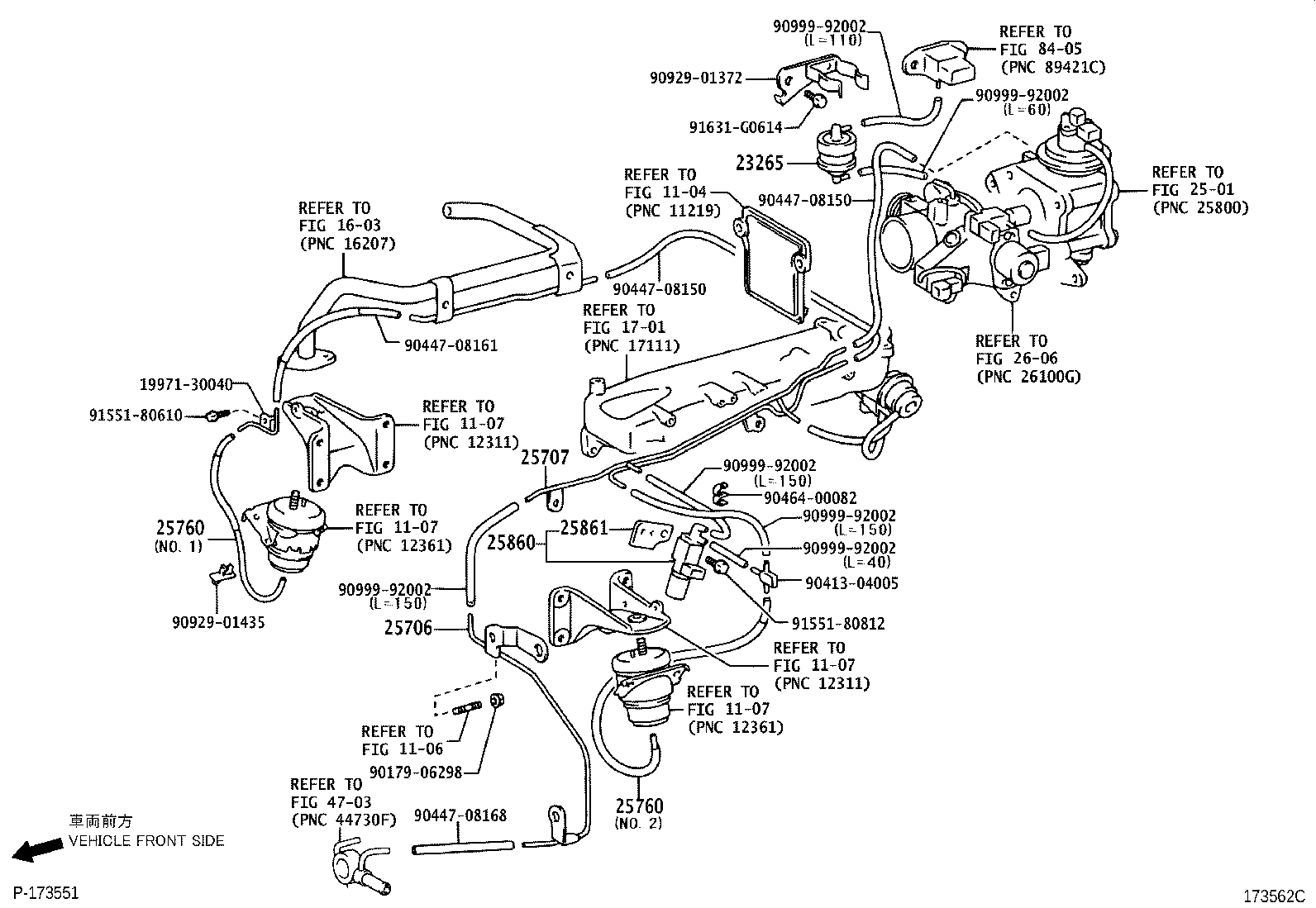

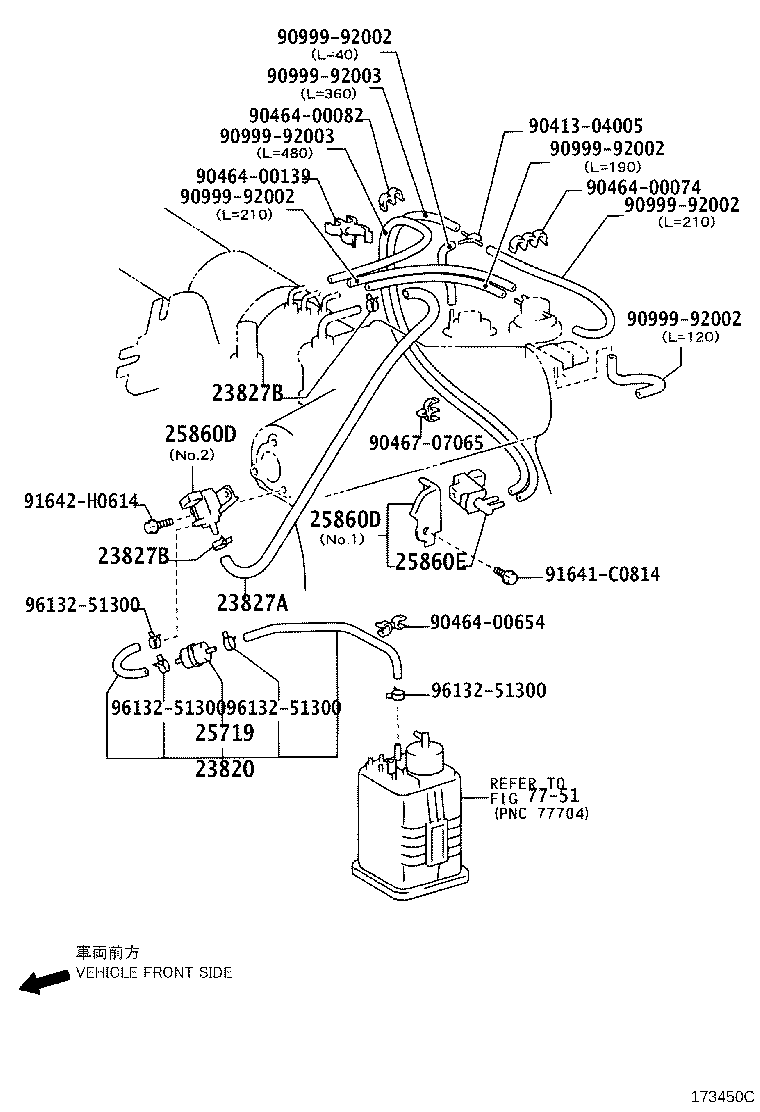

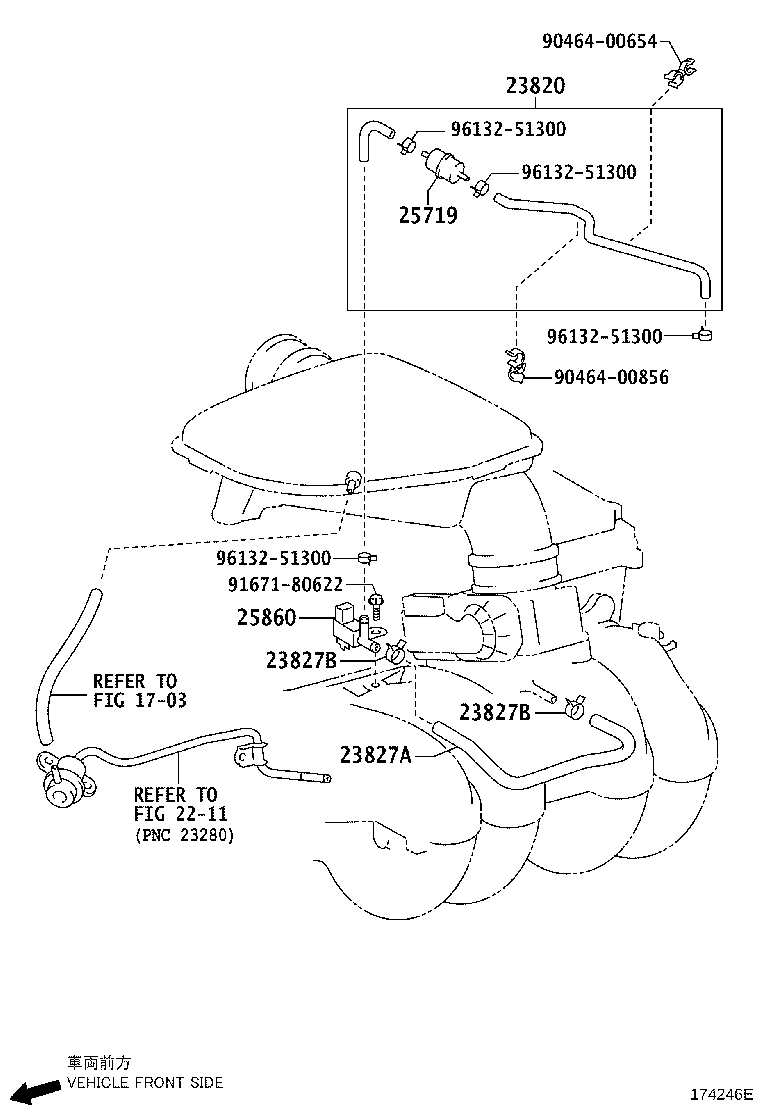

Figure 173614E 173614E 2005-08 → — Figure 170020 170020 2005-08 → — Figure 173562C 173562C 2002-11 → — Figure 173450C 173450C 2002-09 → — Figure 174246E 174246E 2004-08 → — Figure 173438E 173438E 2002-09 → 2005-08

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341T Hose, Air, NO.1
17342L Hose, Air, NO.2
17343B Hose, NO.3(FOR IDLE-UP)
17343F Hose, Air, NO.3
17343H Way, 3(FOR AIR HOSE)
17650G Valve, Duty Vacuum Switching
23265 Filter, Gas, NO.1
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25719 Tank, Vacuum Surge
25760 Hose Assy, Vacuum Transmitting
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
25860E Valve, Vacuum Switching, NO.2
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
