Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12# · catalogue 781150 · Japan

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

13 part groups · 5 illustrations

Illustrations

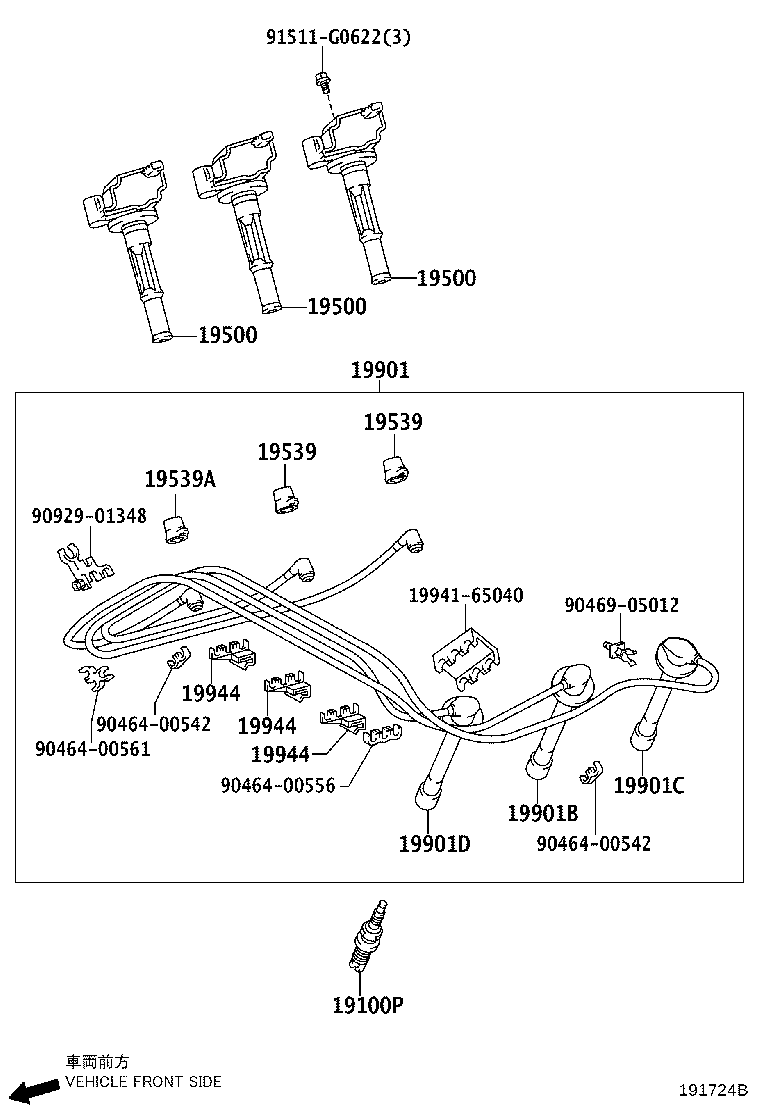

Figure 193264E 193264E 2005-08 → — Figure 191820C 191820C 2002-11 → — Figure 191090A 191090A 2002-09 → — Figure 191938A 191938A 2004-08 → — Figure 191724B 191724B 2002-09 → 2005-08

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19500D Coil, Ignition, NO.1
19539 Holder, Resistive Code, NO.4
19539A Holder, Resistive Code, NO.5
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19871 Connector, Glow Plug NO.1
19901 Cord Set, Coil & Spark, W/Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19944 Plate, Resistive Cord Clamp Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
