Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12# · catalogue 781150 · Japan

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

15 part groups · 5 illustrations

Illustrations

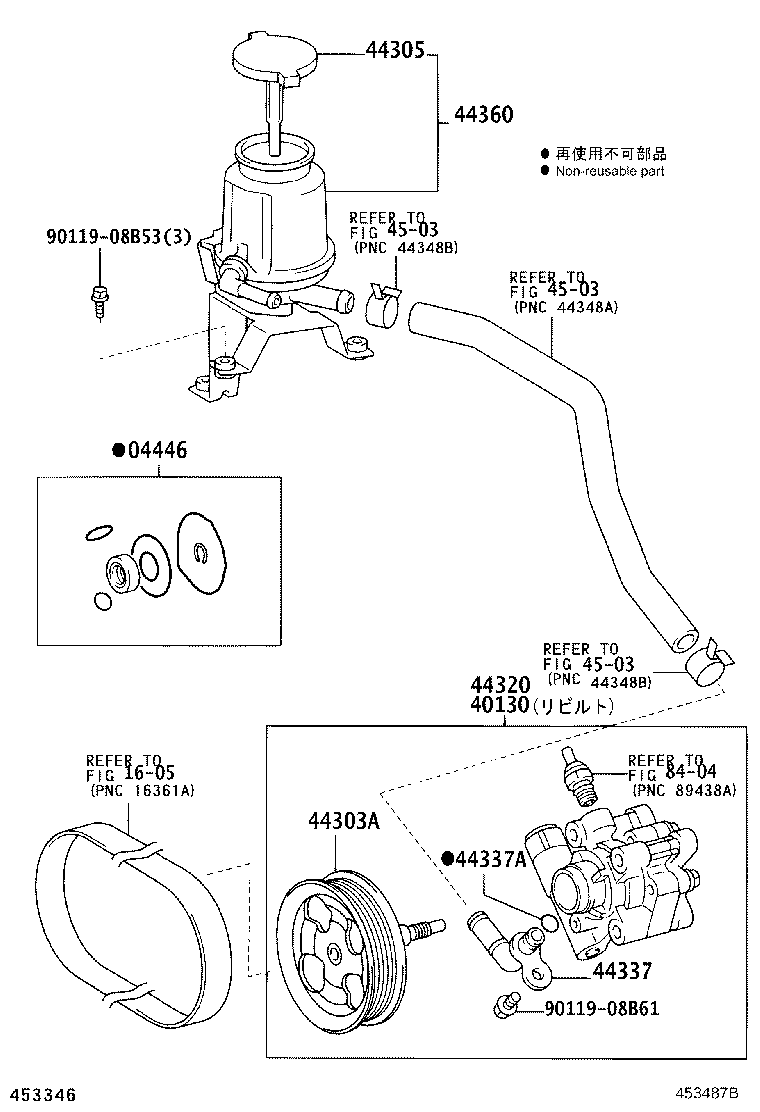

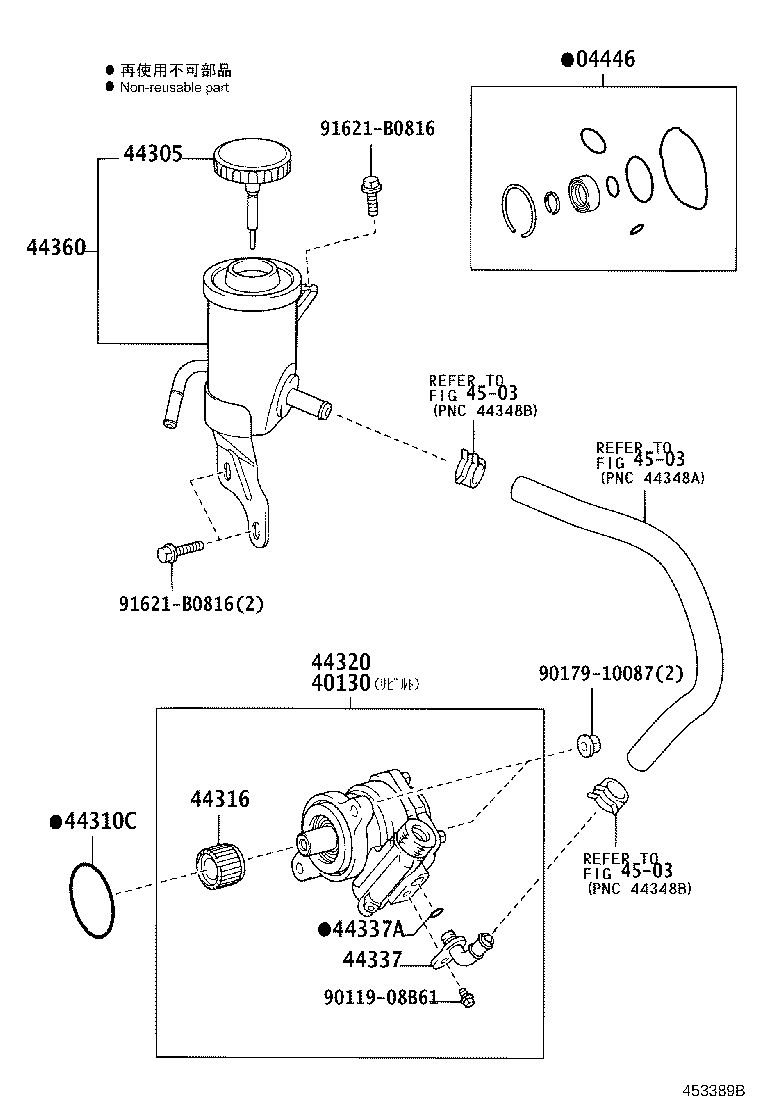

Figure 453283B 453283B 2002-09 → 2004-08 Figure 453284A 453284A 2002-09 → 2005-08 Figure 453389B 453389B 2002-11 → 2007-07 Figure 454022B 454022B 2004-08 → — Figure 453487B 453487B 2005-08 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
40130 Pump Assy,Vane Rebuilt
40140 Pump Assy,Vane Rebuilt
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44306 Reservoir Sub-assy, Vane Pump Oil
44310C Ring, O(FOR VANE PUMP)
44311 Pulley, Vane Pump
44311B Nut(FOR VANE PUMP PULLEY)
44316 Gear, Vane Pump
44320 Pump Assy, Vane
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44360 Reservoir Assy, Vane Pump Oil
44441B Bracket, Pump, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
