Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12# · catalogue 781150 · Japan

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

6 part groups · 3 illustrations

Illustrations

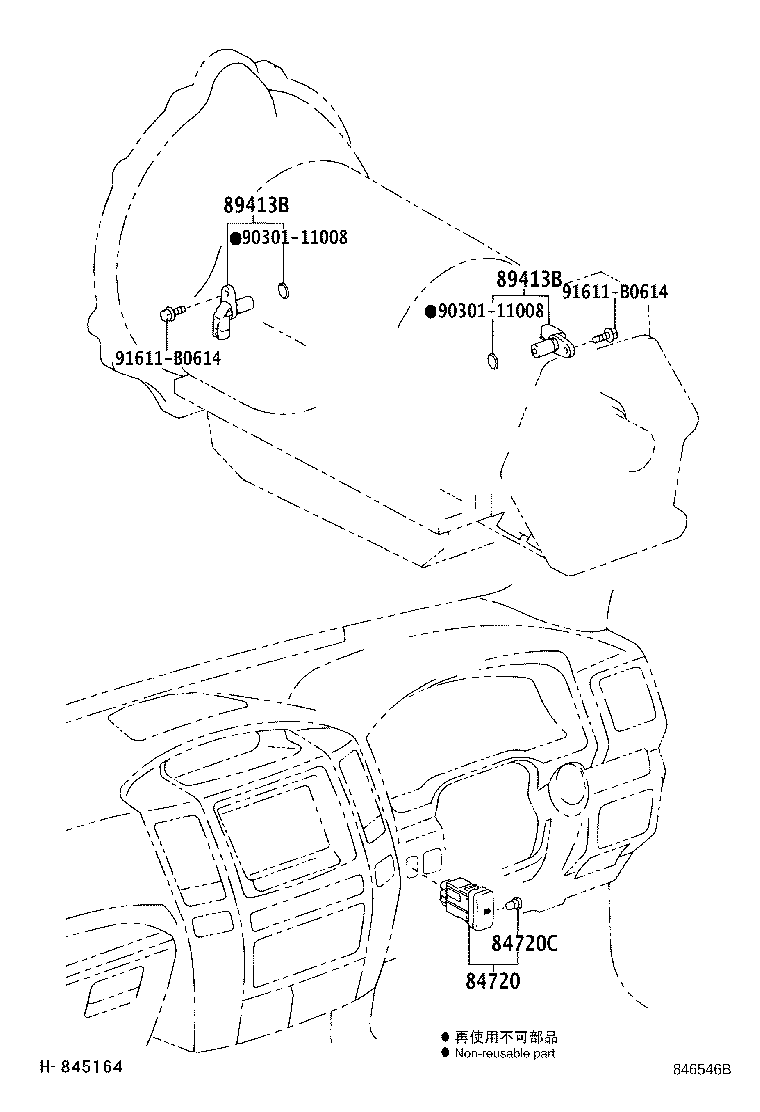

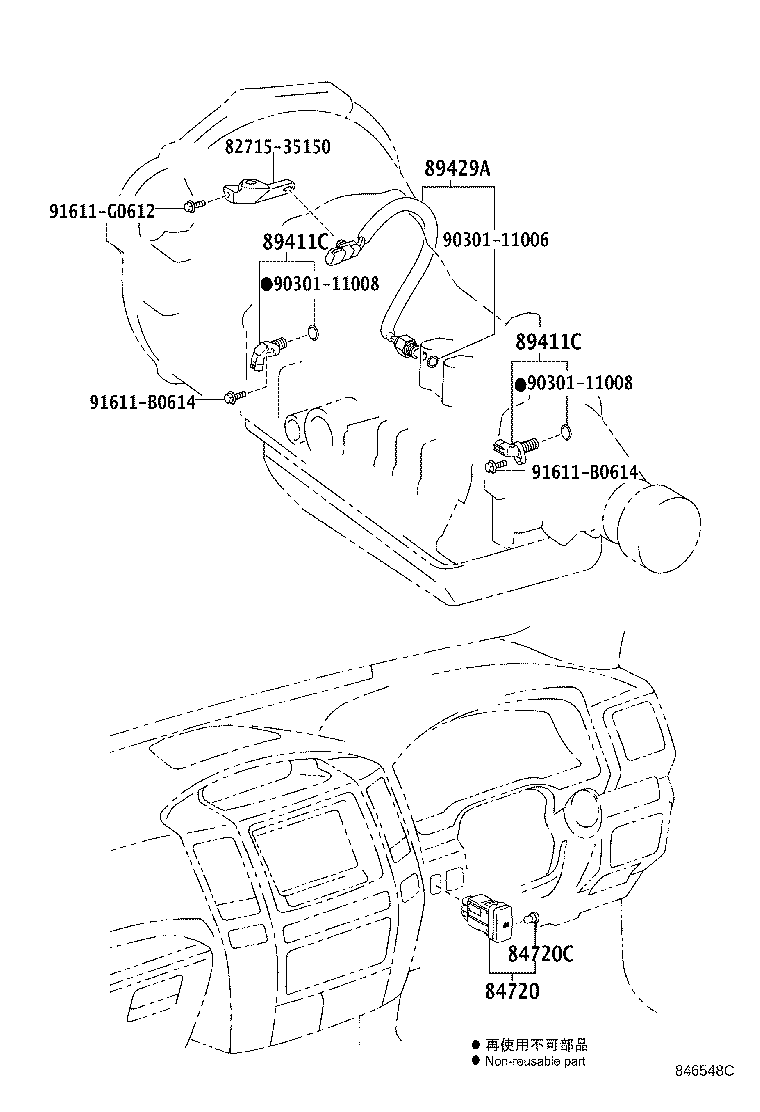

Figure 845135F 845135F 2002-09 → — Figure 846548C 846548C 2004-08 → — Figure 846546B 846546B 2005-08 → —

Part groups

PNCDescription
84720 Switch Assy, Pattern Select
84720C Bulb(FOR PATTERN SELECT SWITCH)
89411C Sensor, Speed
89413B Sensor, Transmission Revolution
89429A Sensor, Temperature
89429D Ring, O(FOR TEMPERATURE SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
