Toyota Land Cruiser Prado
2002-09 → 2009-08 · chassis GRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12# · catalogue 781150 · Japan
Supported model
Data version 2010-01

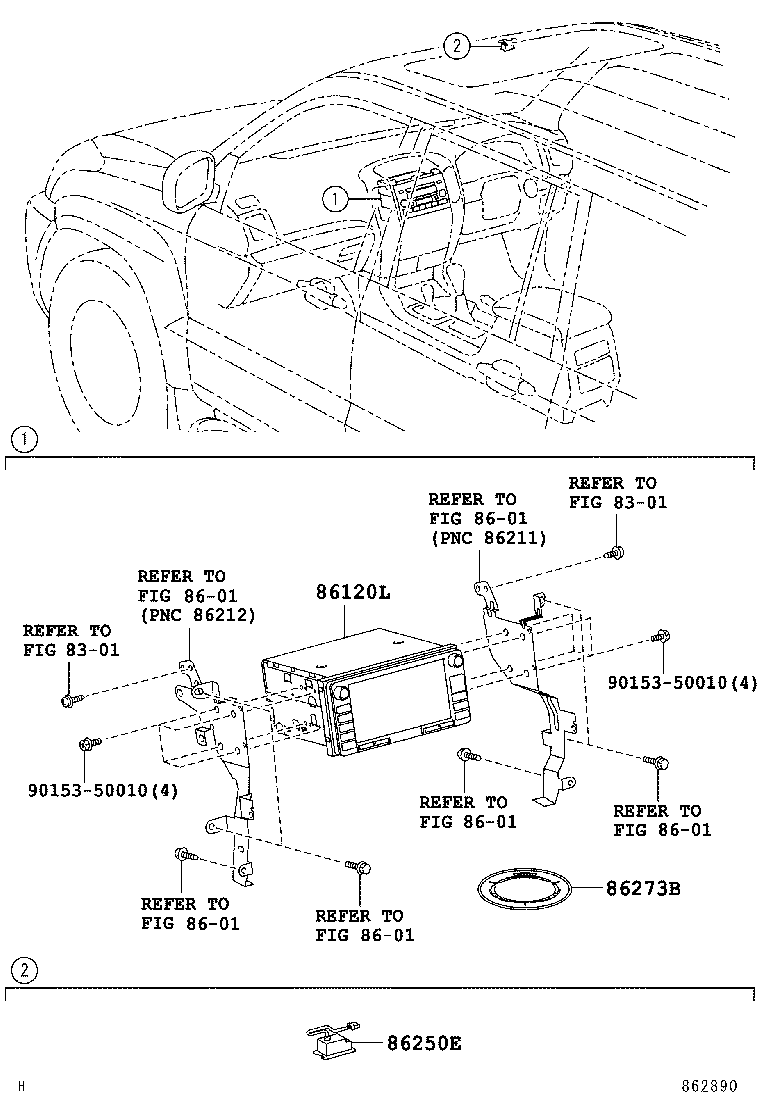

Navigation & Front Monitor Display
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86010 | Tuner Assy, Television |
| 86111 | Multi-display |
| 86120L | Receiver Assy, Navigation |
| 86192 | Terminal, Headphone |
| 86250E | Microphone Assy, Amplifier |
| 86271 | Disc, Disc Player |
| 86273B | Adapter, Disc Player |
| 86274D | Bracket, Disc Player |
| 86274F | Bracket, Disc Player, NO.2 |
| 86274G | Bracket, Disc Player, NO.3 |
| 86841 | Computer, Navigation |
| 86843 | Cover, Navigation Computer |
| 86843A | Cover, Navigation Computer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
