Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12# · catalogue 781150 · Japan

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

5 part groups · 6 illustrations

Illustrations

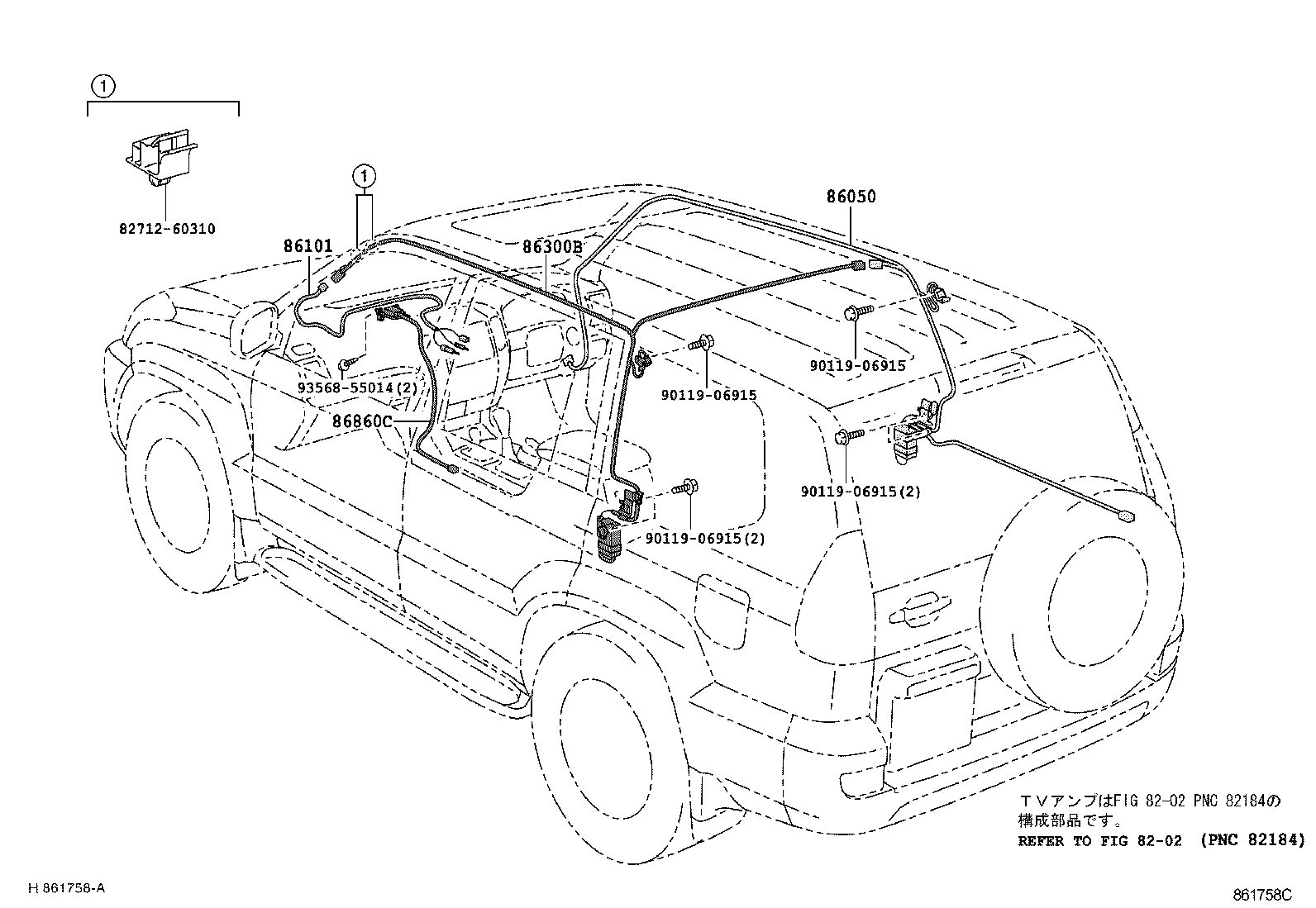

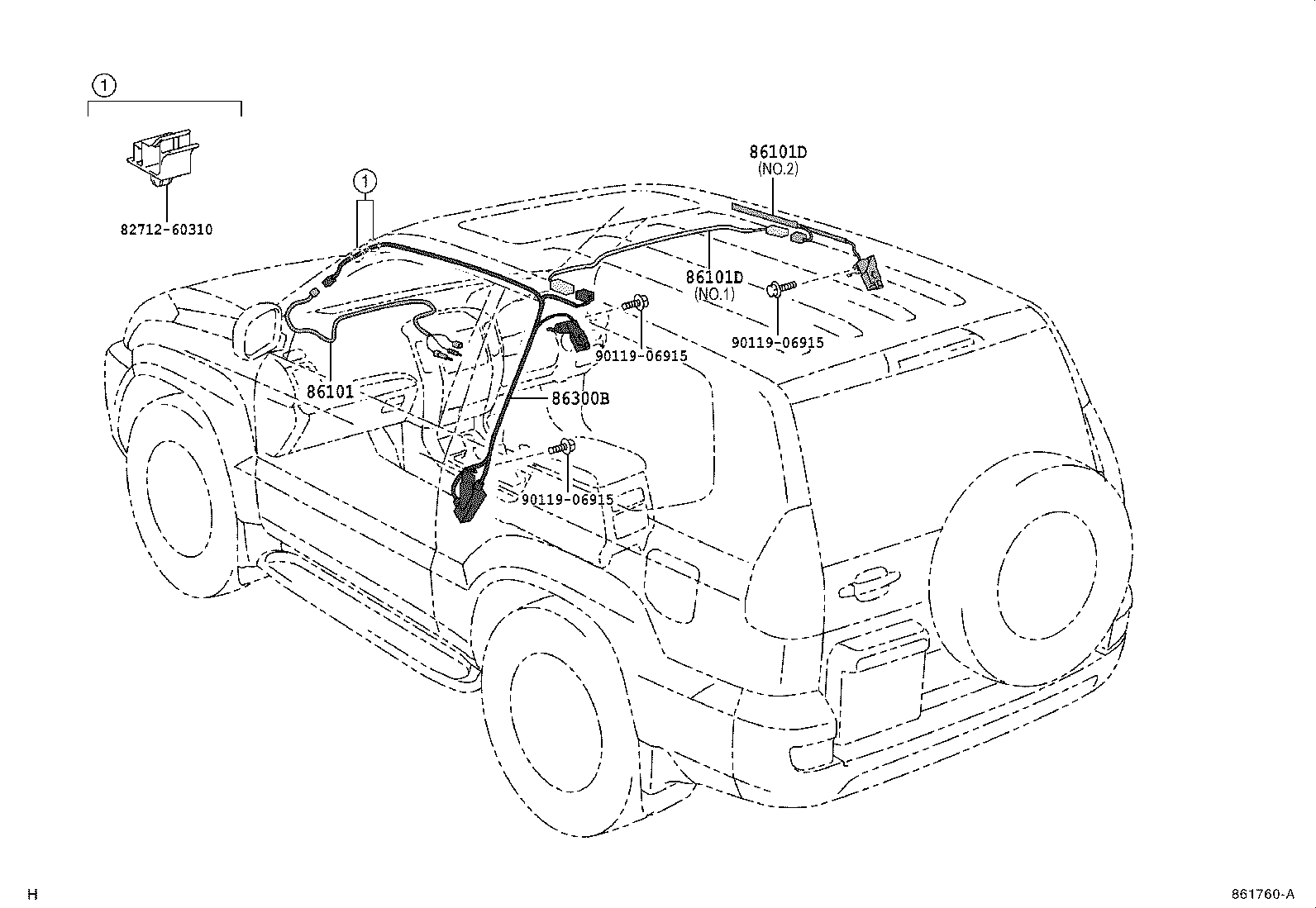

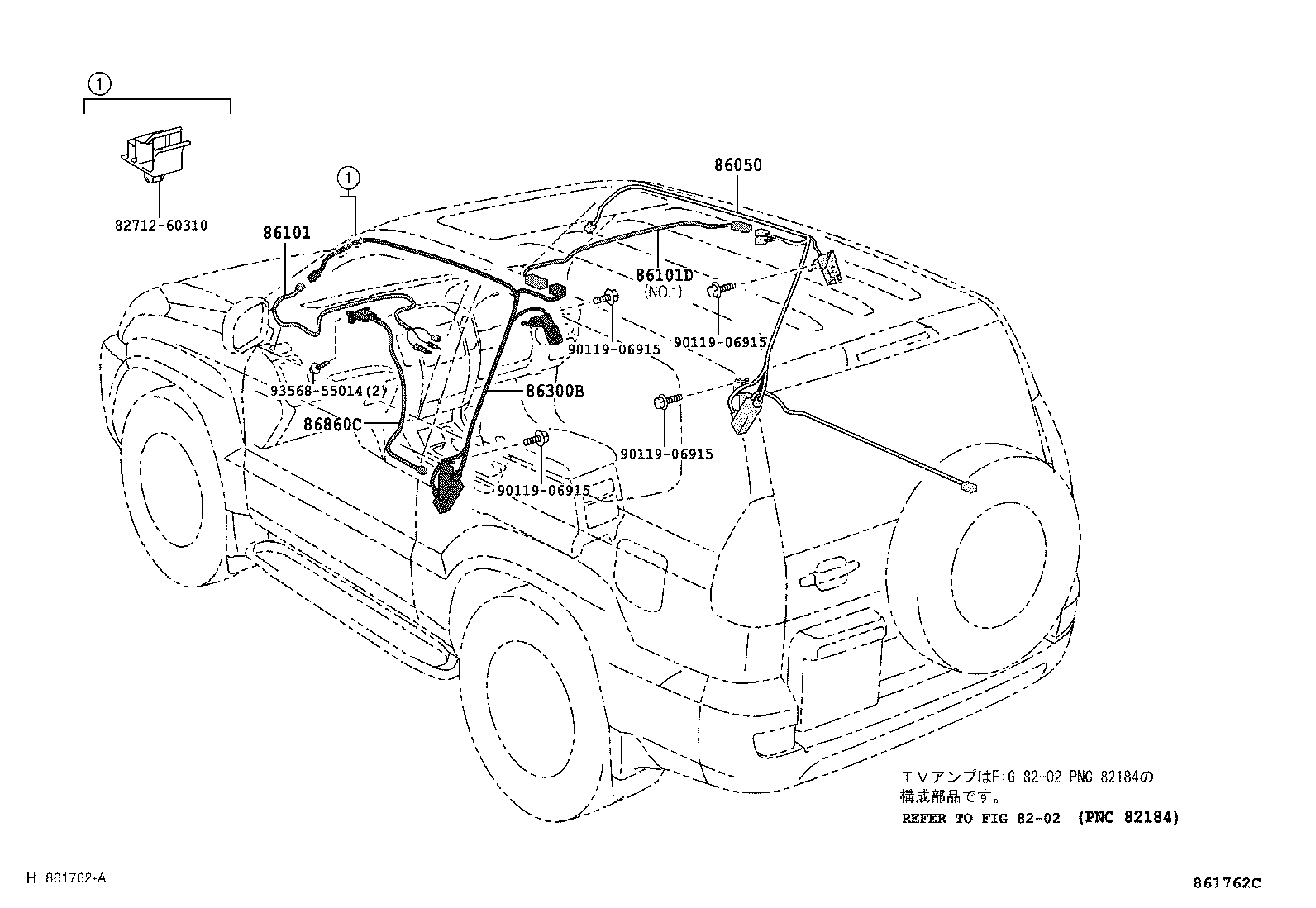

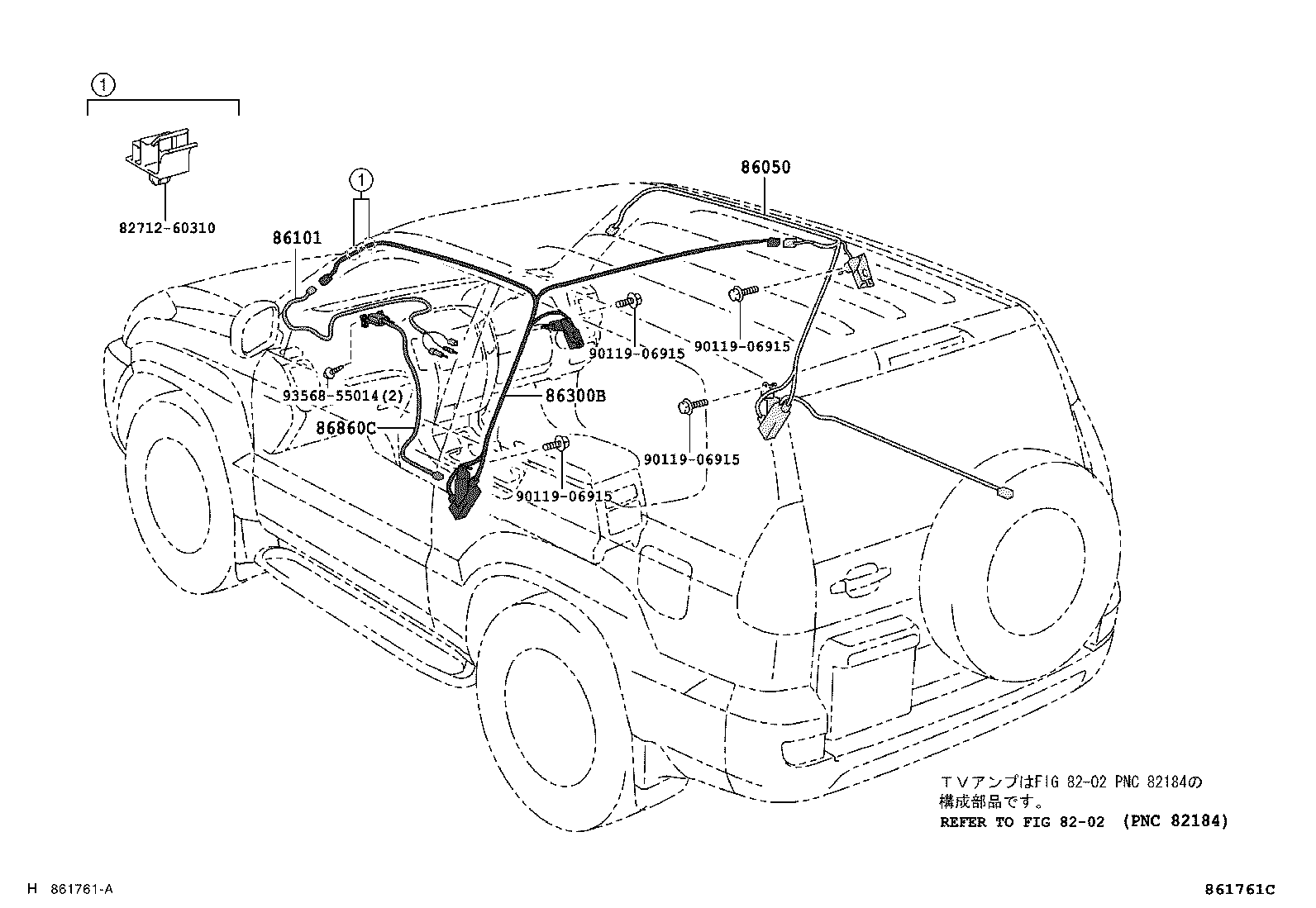

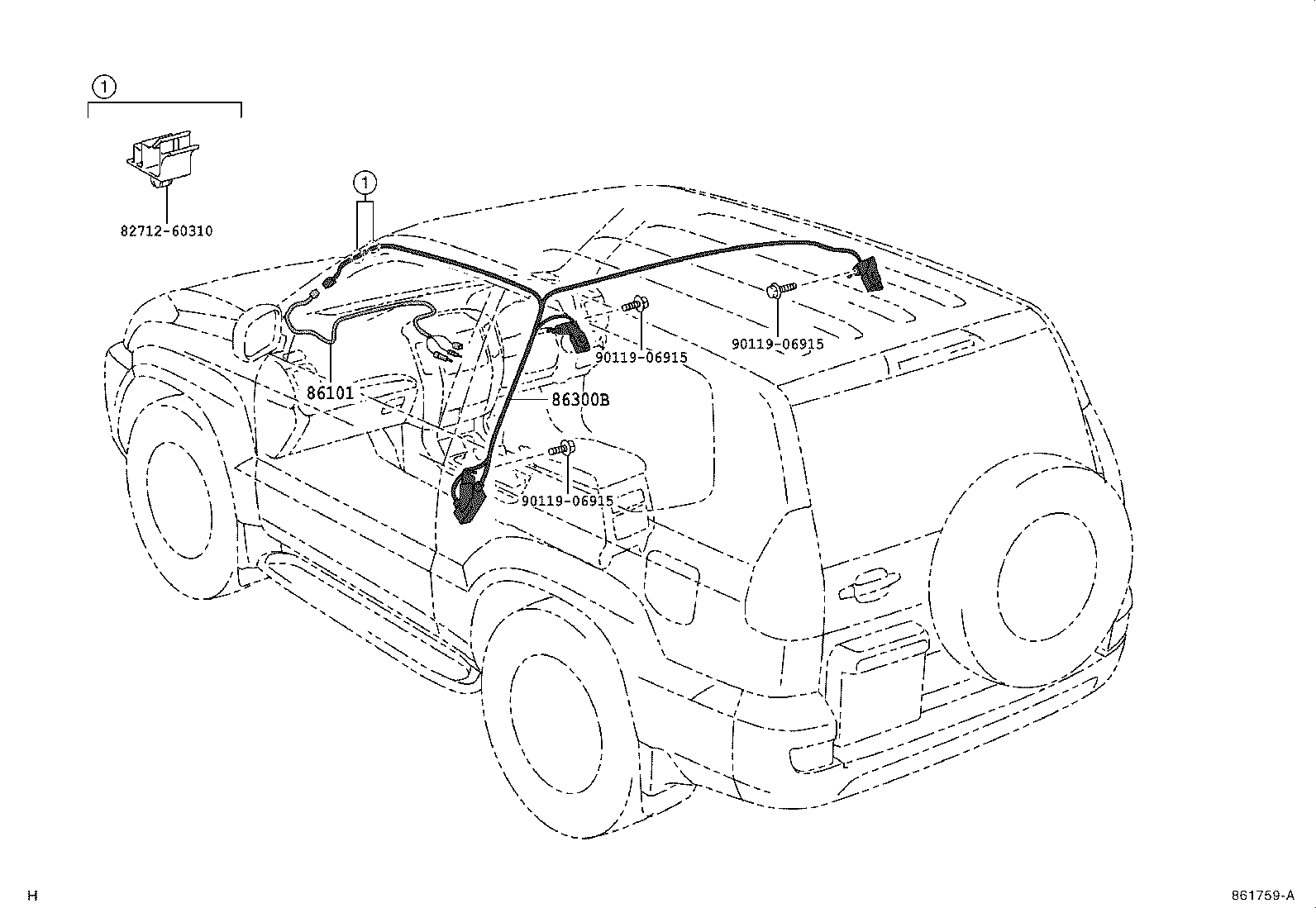

Figure 861709A 861709A 2002-09 → — Figure 861758C 861758C 2002-09 → — Figure 861759A 861759A 2002-09 → — Figure 861760A 861760A 2002-09 → — Figure 861761C 861761C 2002-09 → — Figure 861762C 861762C 2002-09 → —

Part groups

PNCDescription
86050 Antenna Assy, Television
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86300B Antenna Assy, Amplifier, NO.1
86860C Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
