Toyota Land Cruiser Prado
2002-09 → 2009-08 · chassis GRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12# · catalogue 781150 · Japan
Supported model
Data version 2010-01

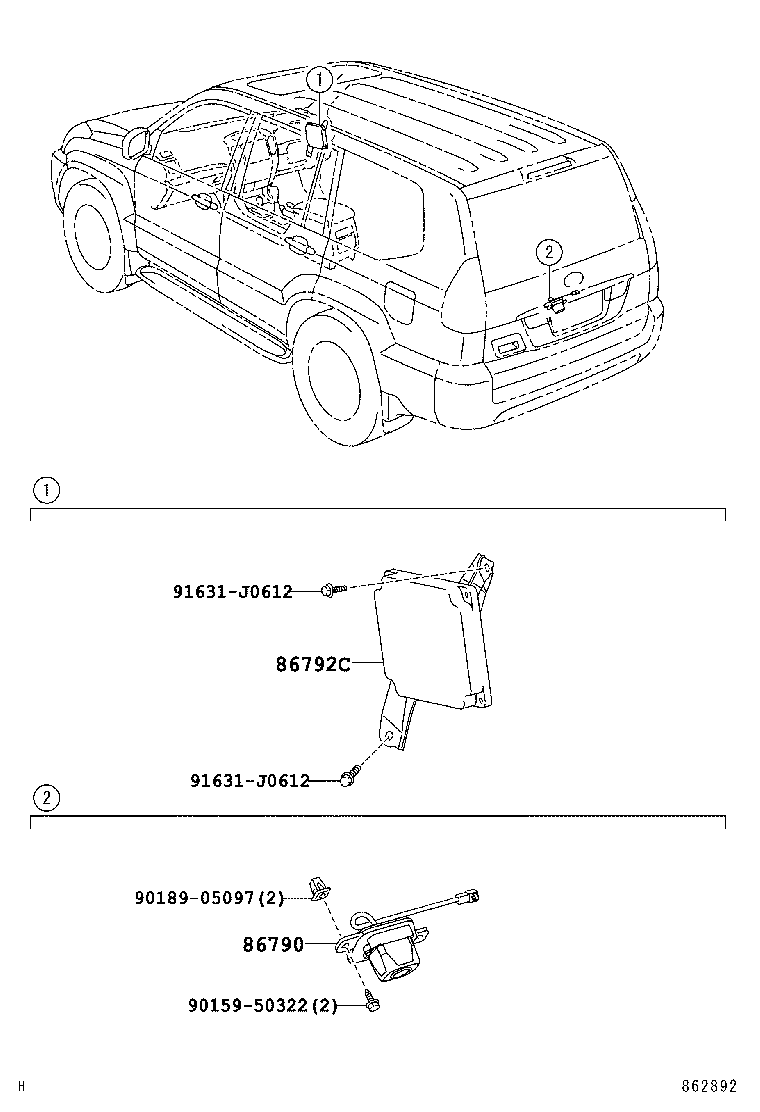

Camera & Rear Monitor Display
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86104 | Controller Sub-assy, Multi-display |
| 86117A | Bracket, Television Display, A |
| 86118A | Bracket, Television Display, B |
| 86170B | Switch & Volume Assy, Television |
| 86174B | Case, Switch & Volume |
| 86295 | Base, Television |
| 86680A | Display Assy, Television |
| 86790 | Camera Assy, Television |
| 86792C | Computer, Parking Assist |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
