Toyota Land Cruiser Prado
2002-09 → 2009-08 · chassis GRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12# · catalogue 781150 · Japan
Supported model
Data version 2010-01
Mirror

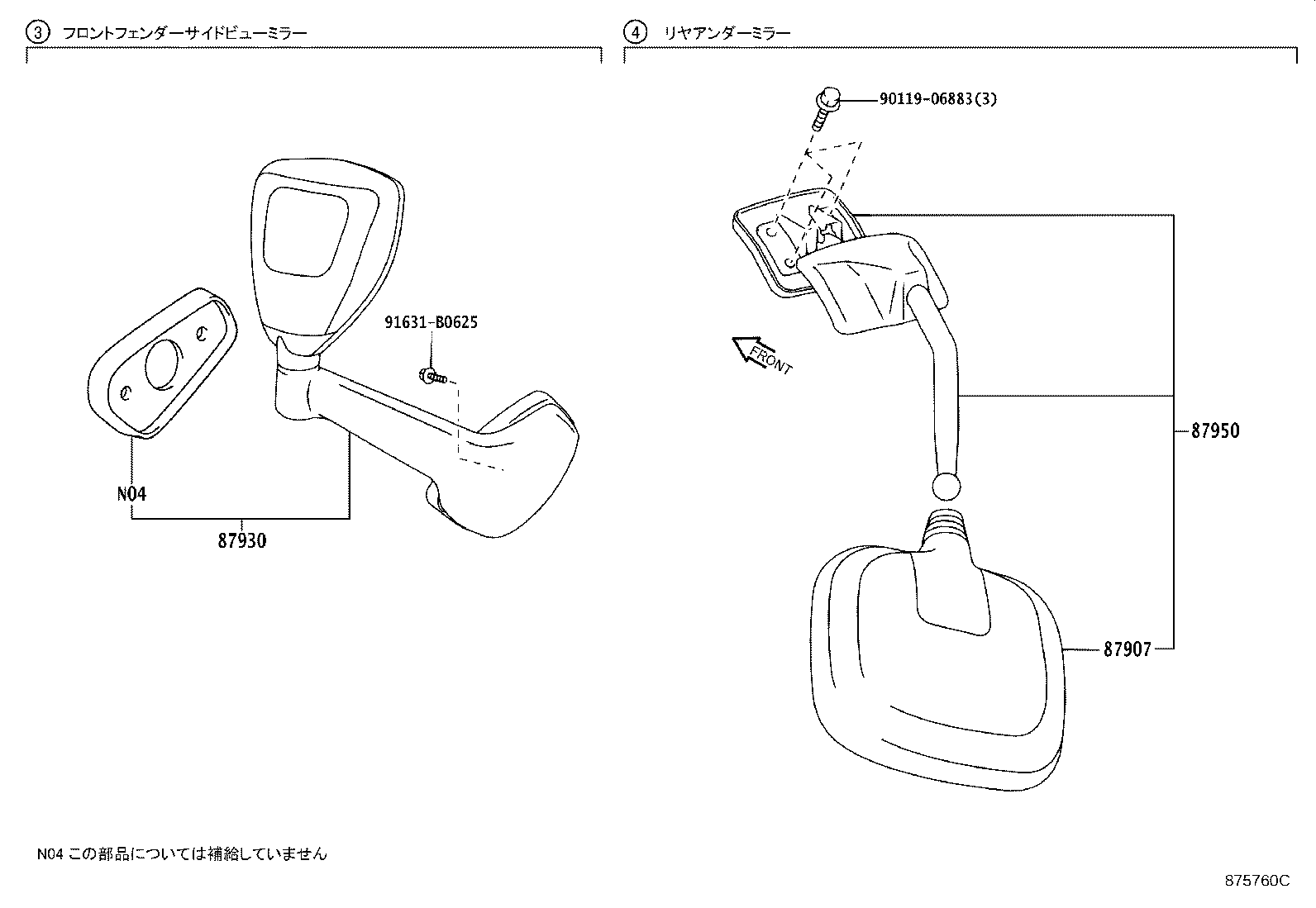

10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87901B | Mirror Sub-assy, Outer Rear View, RH |
| 87906B | Mirror Sub-assy, Outer Rear View, LH |
| 87907 | Mirror Sub-assy, Outer Under View |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87930 | Device Assy, Front Fender Side View, LH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87946 | Retractor, Outer Mirror, RH |
| 87950 | Mirror Assy, Outer Under Rear View |
| 87966 | Retractor, Outer Mirror, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
