Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12# · catalogue 781150 · Japan

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

28 part groups · 15 illustrations

Illustrations

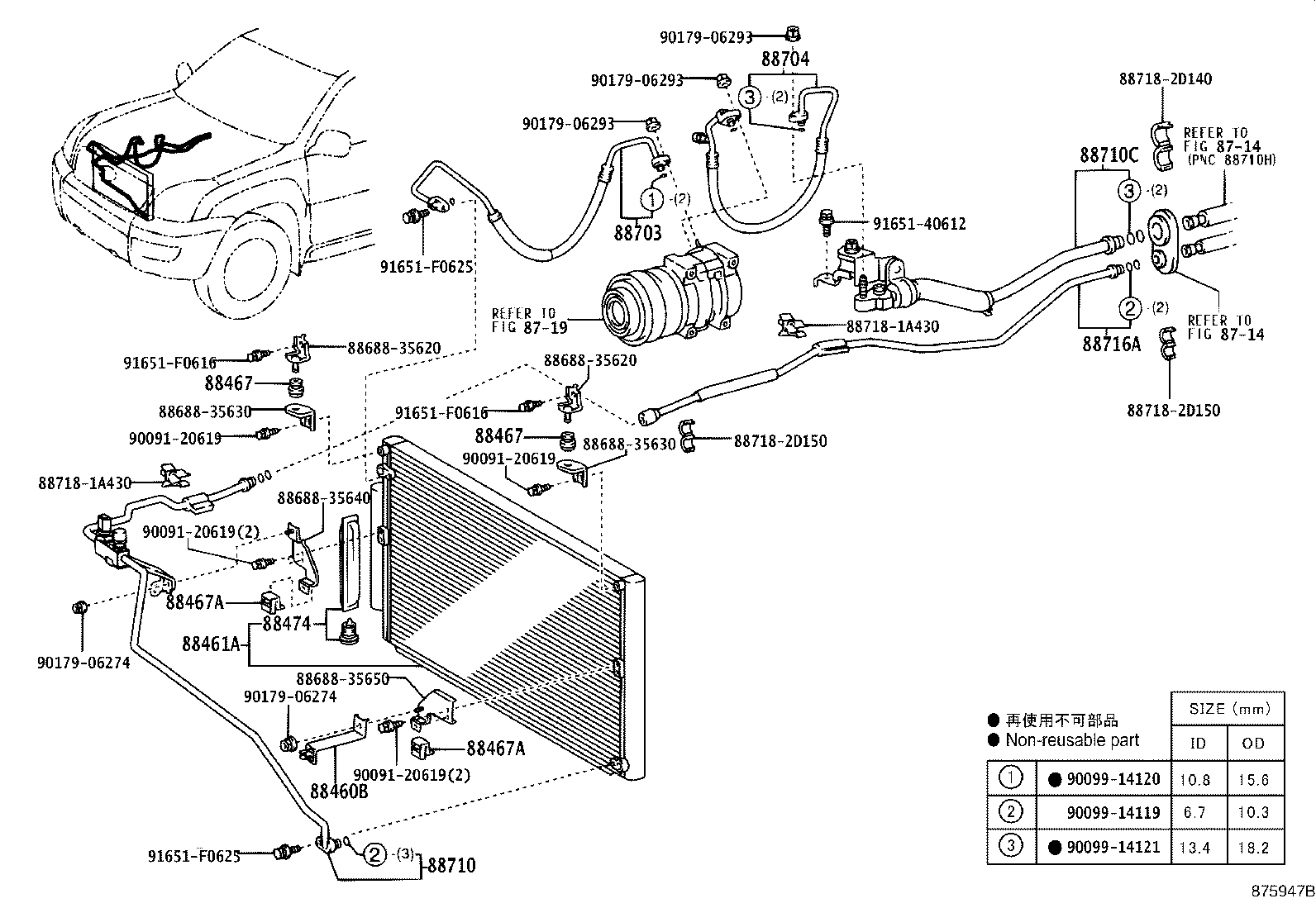

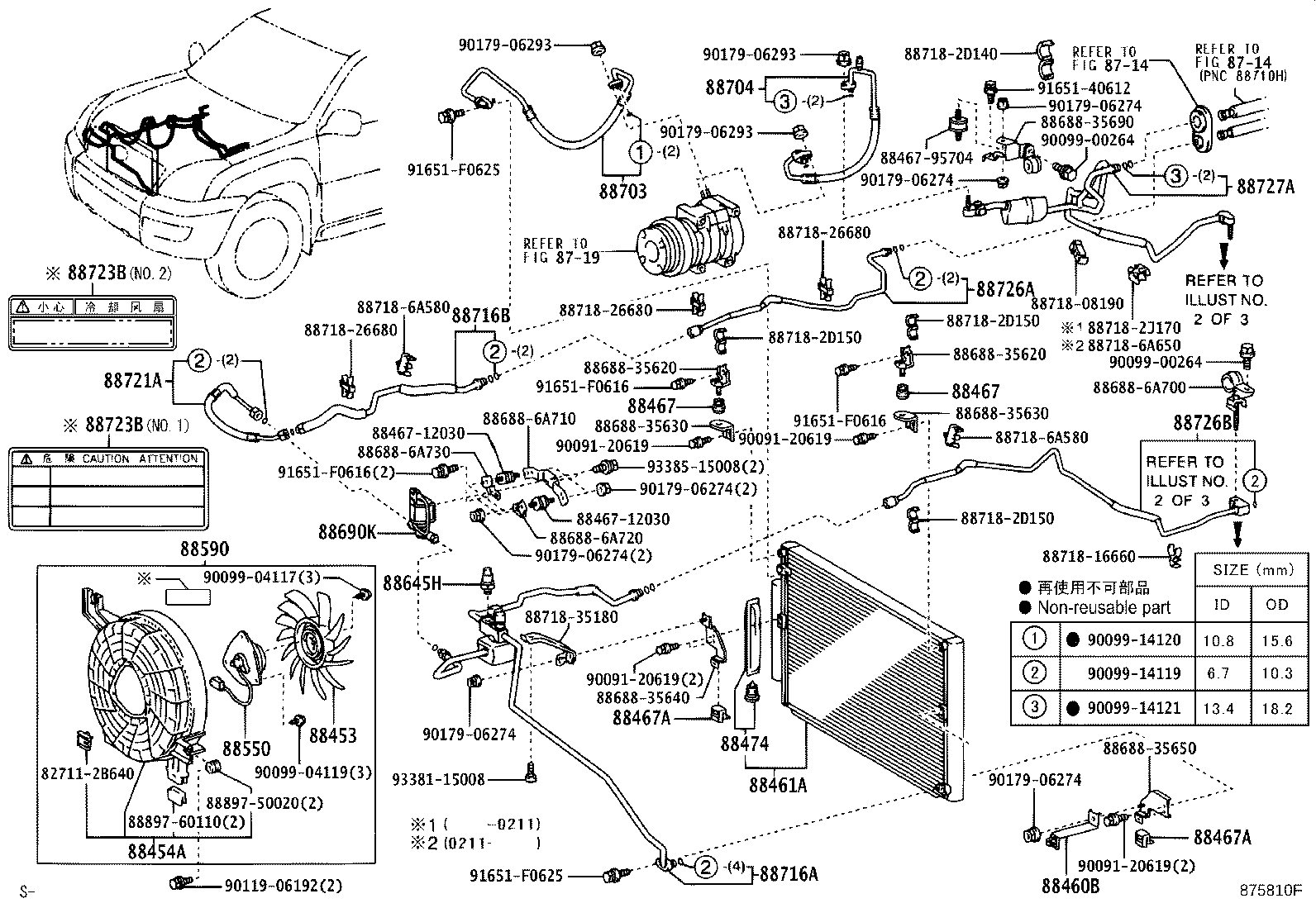

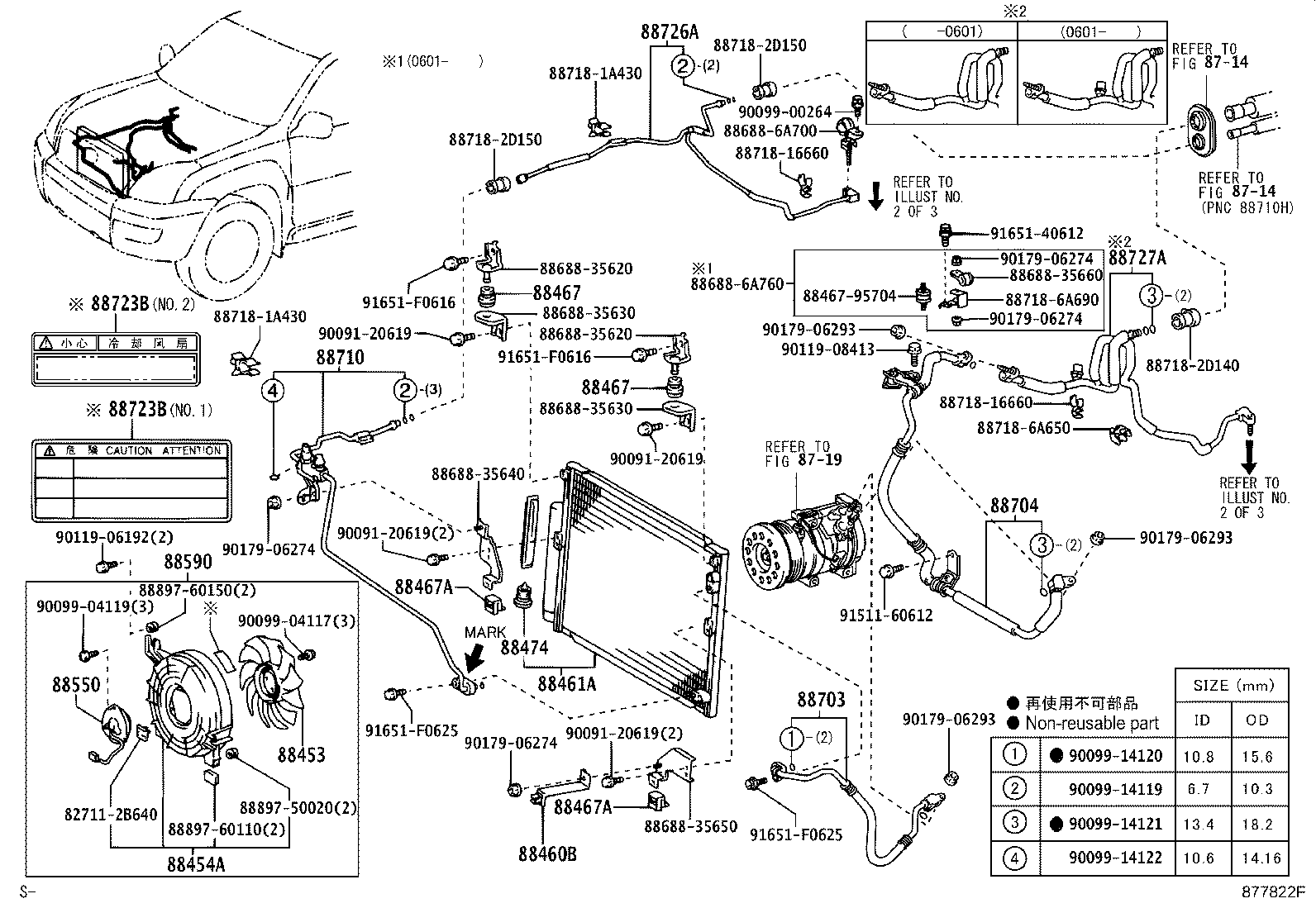

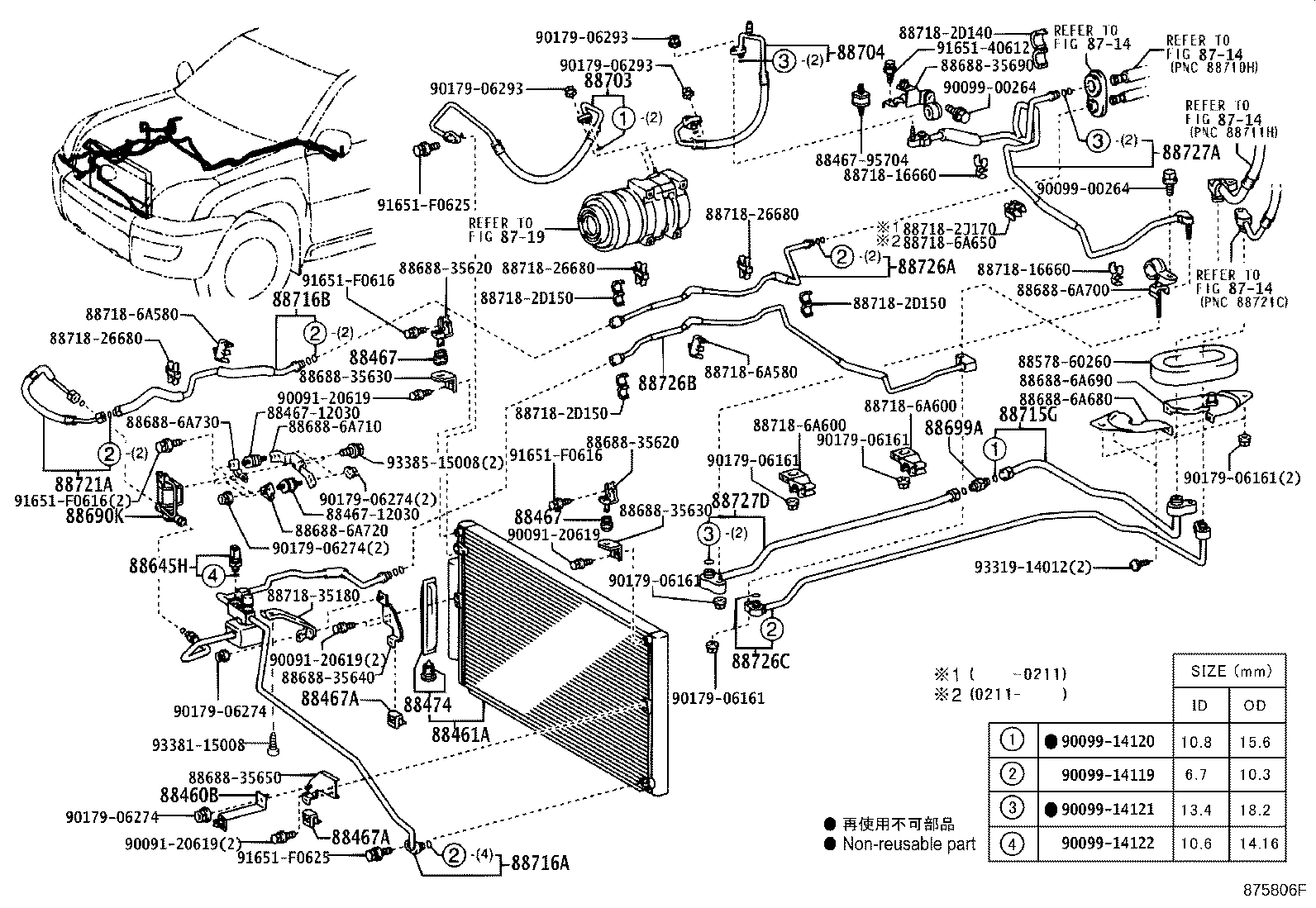

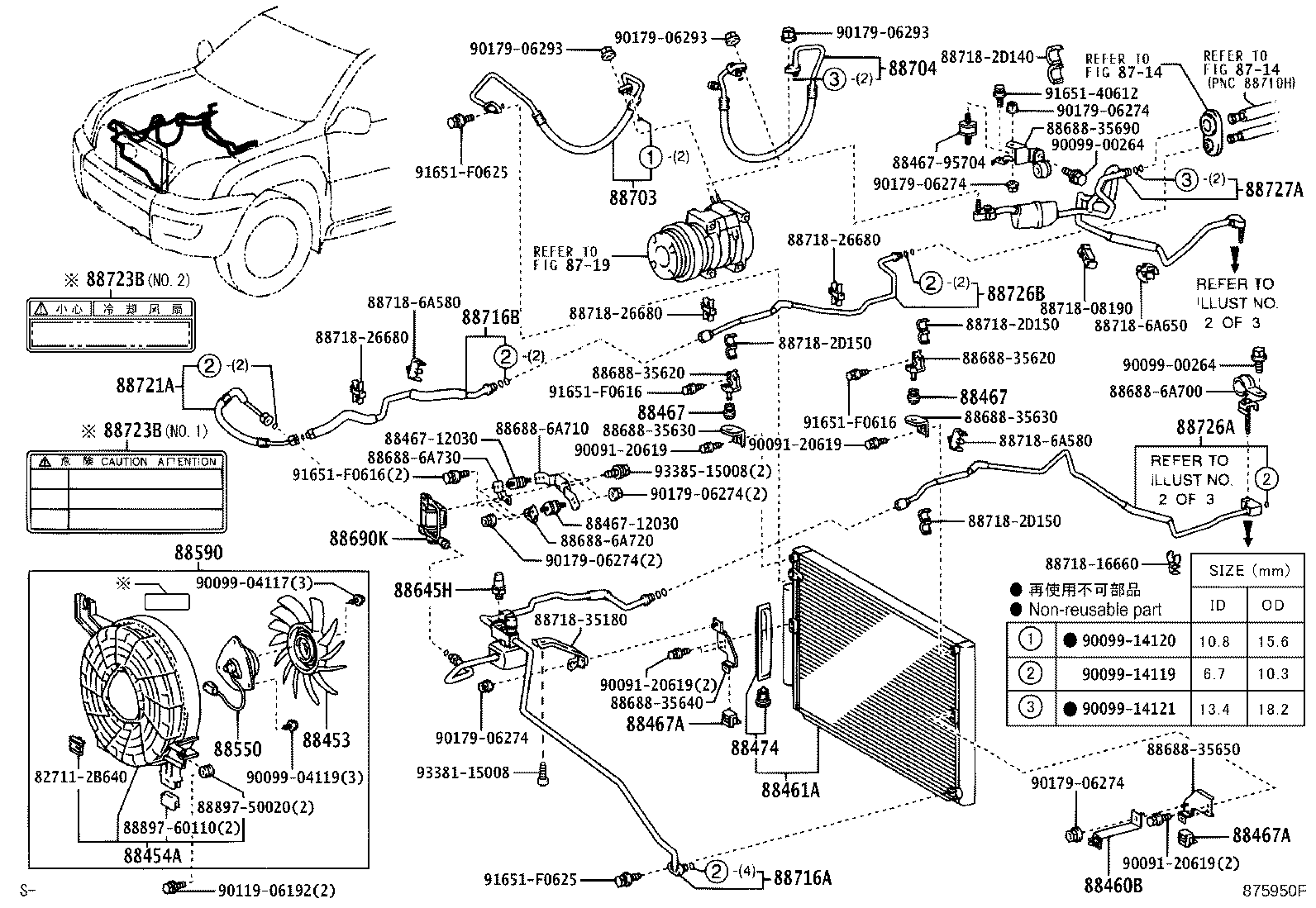

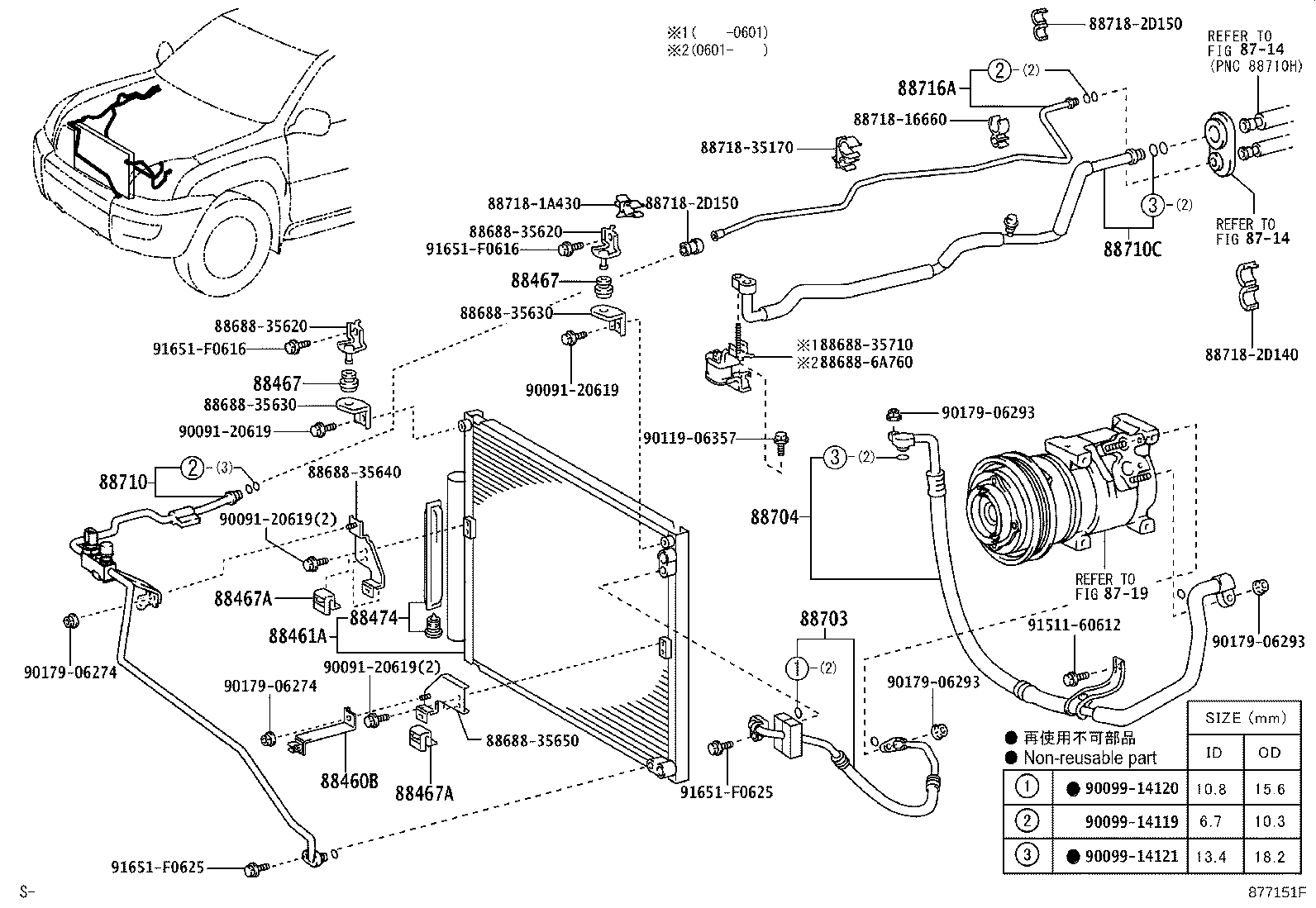

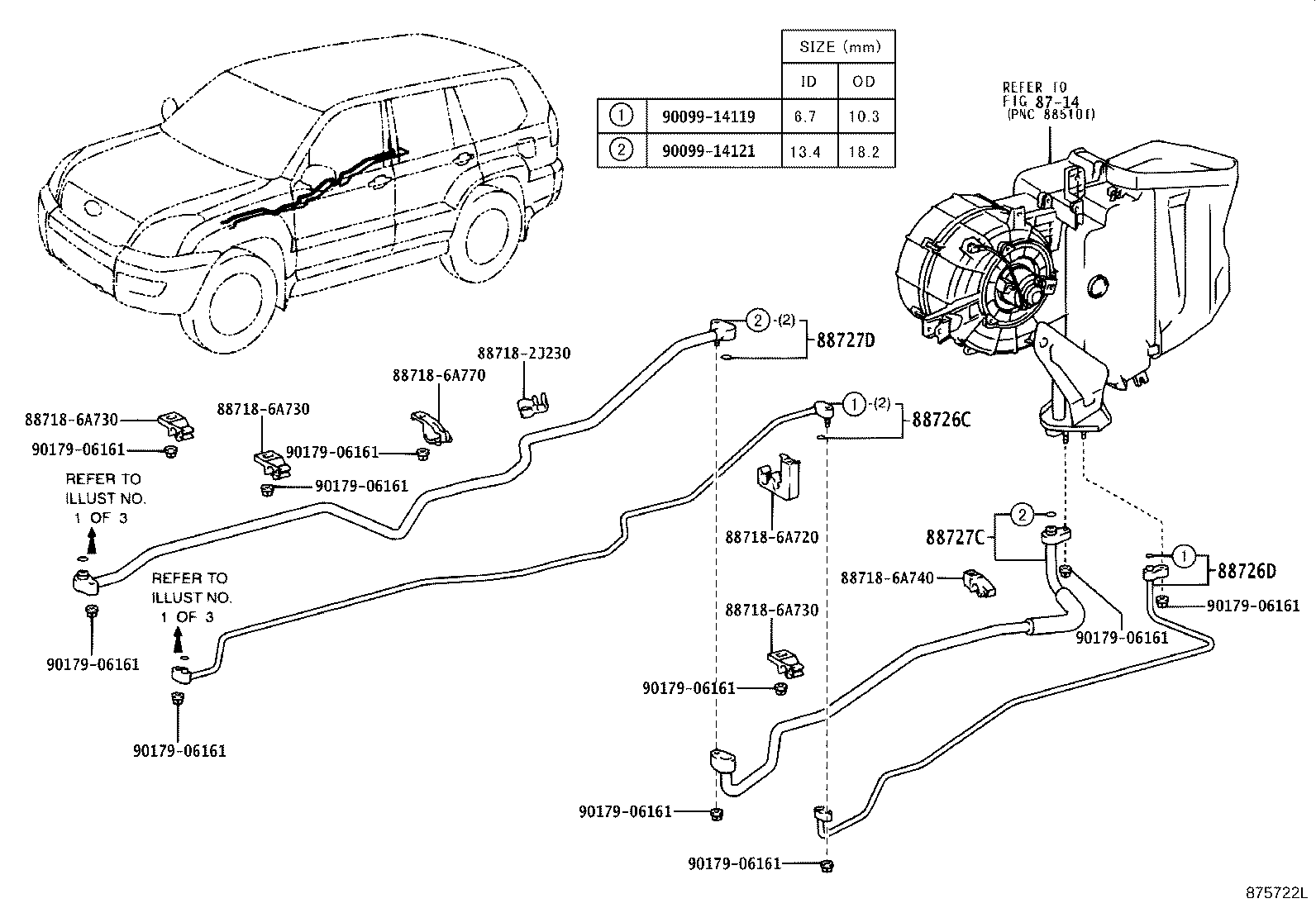

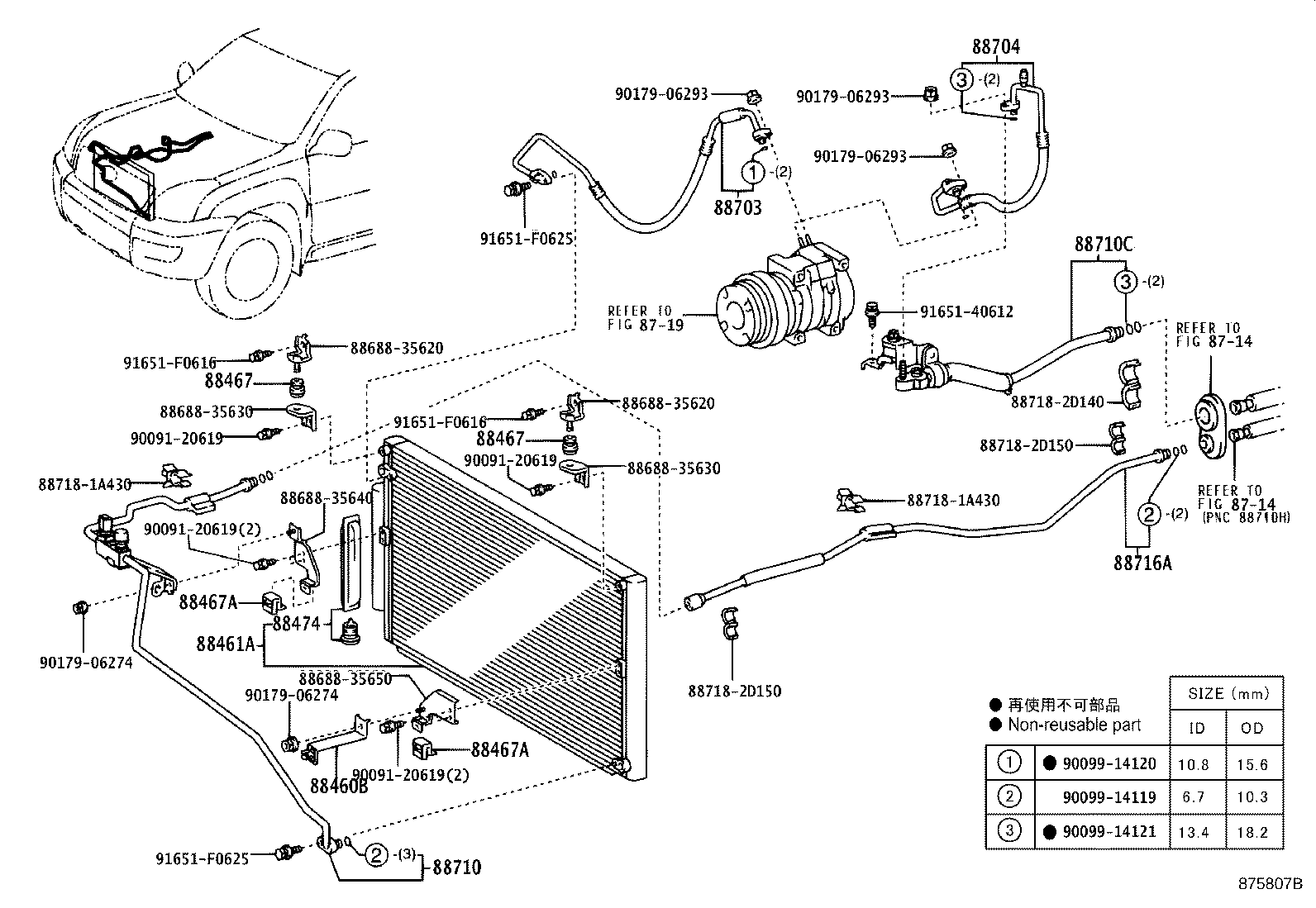

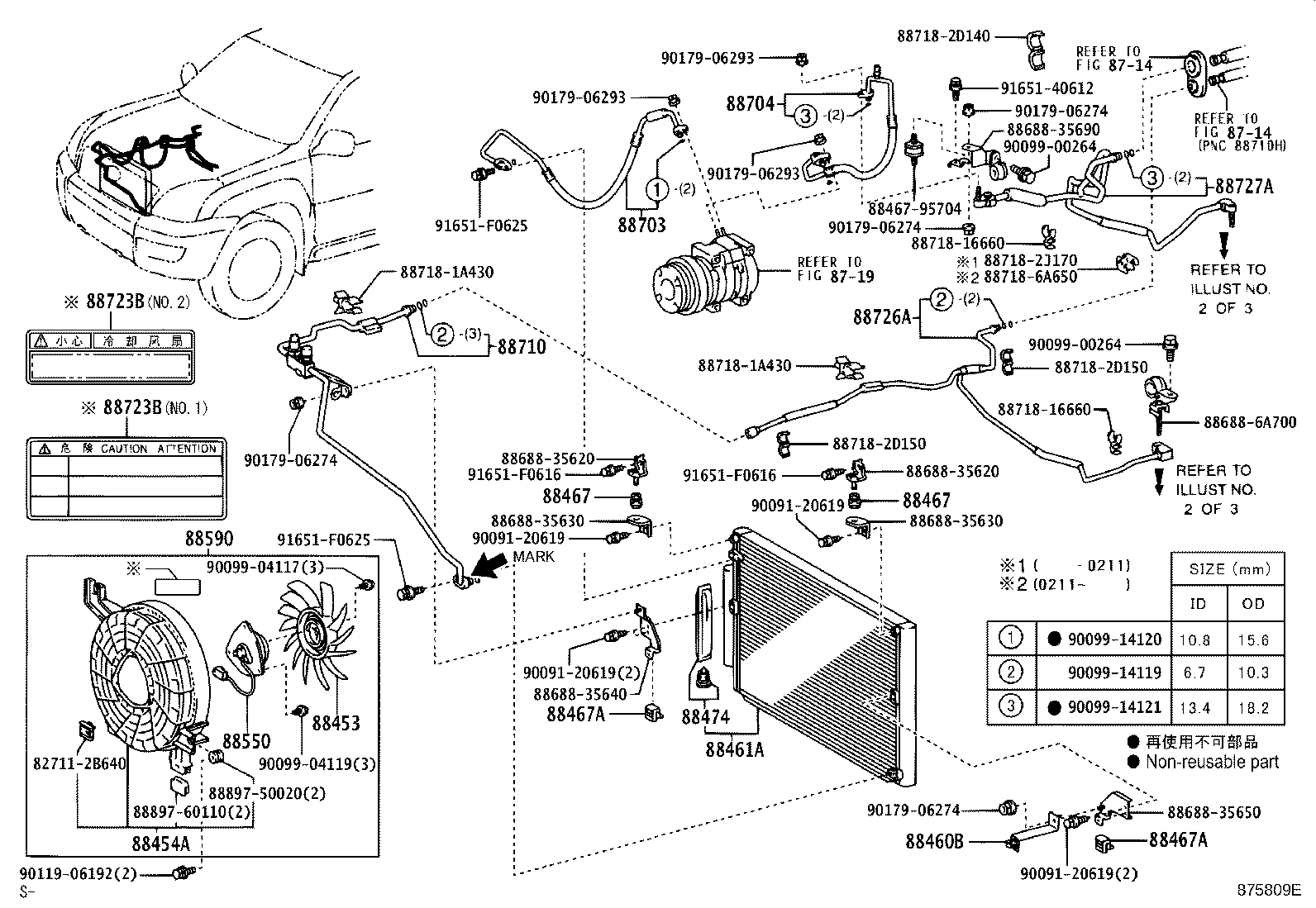

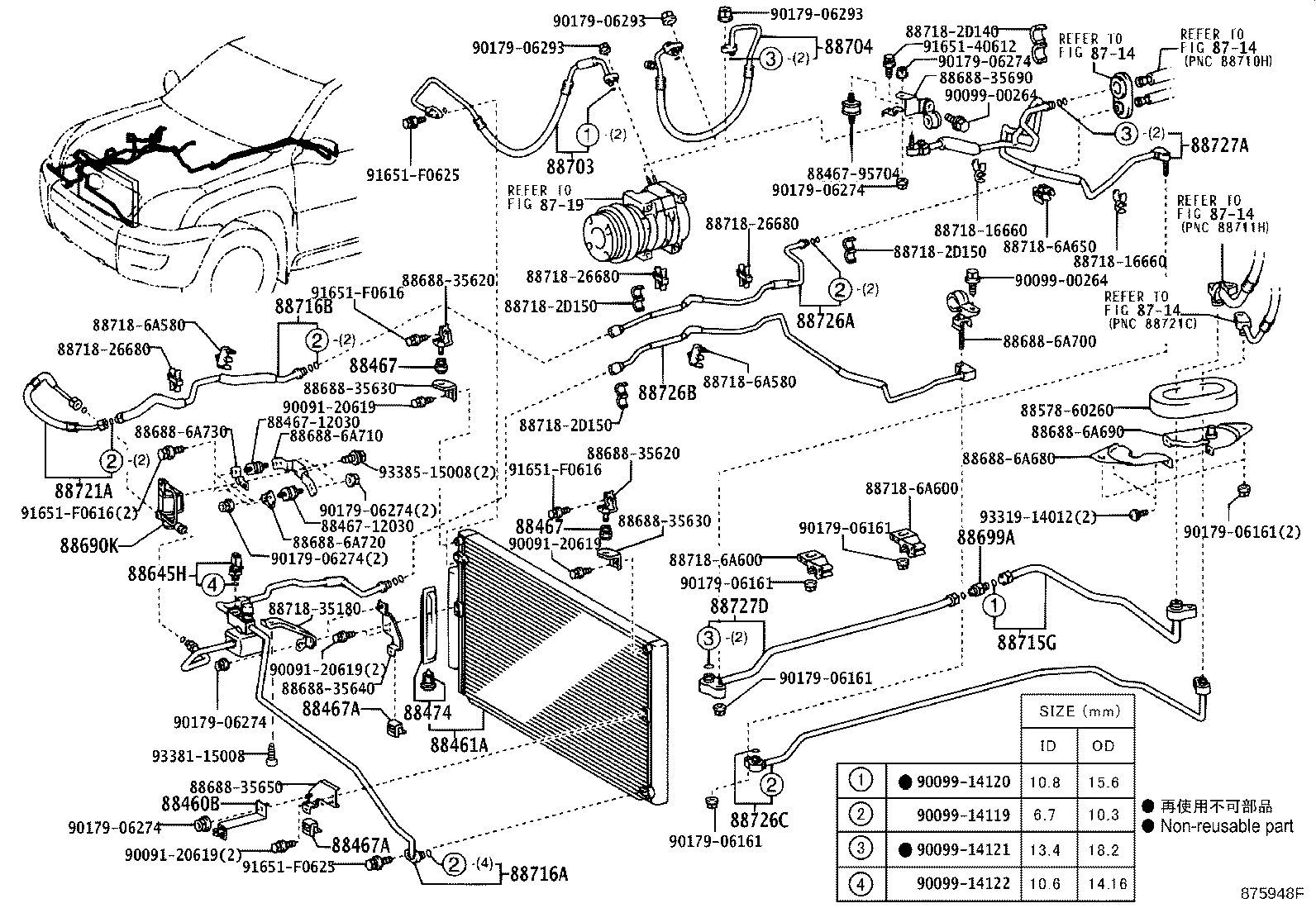

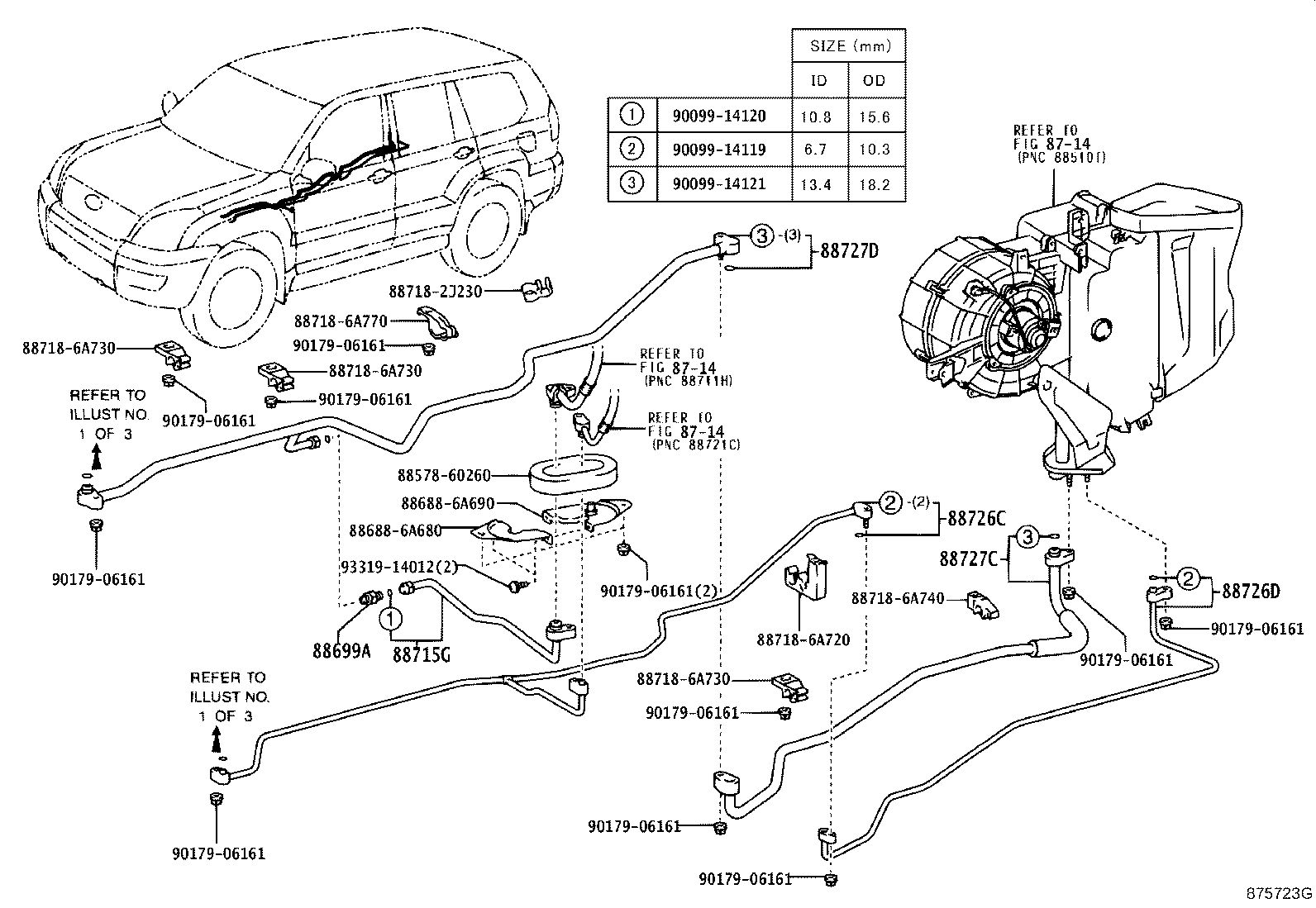

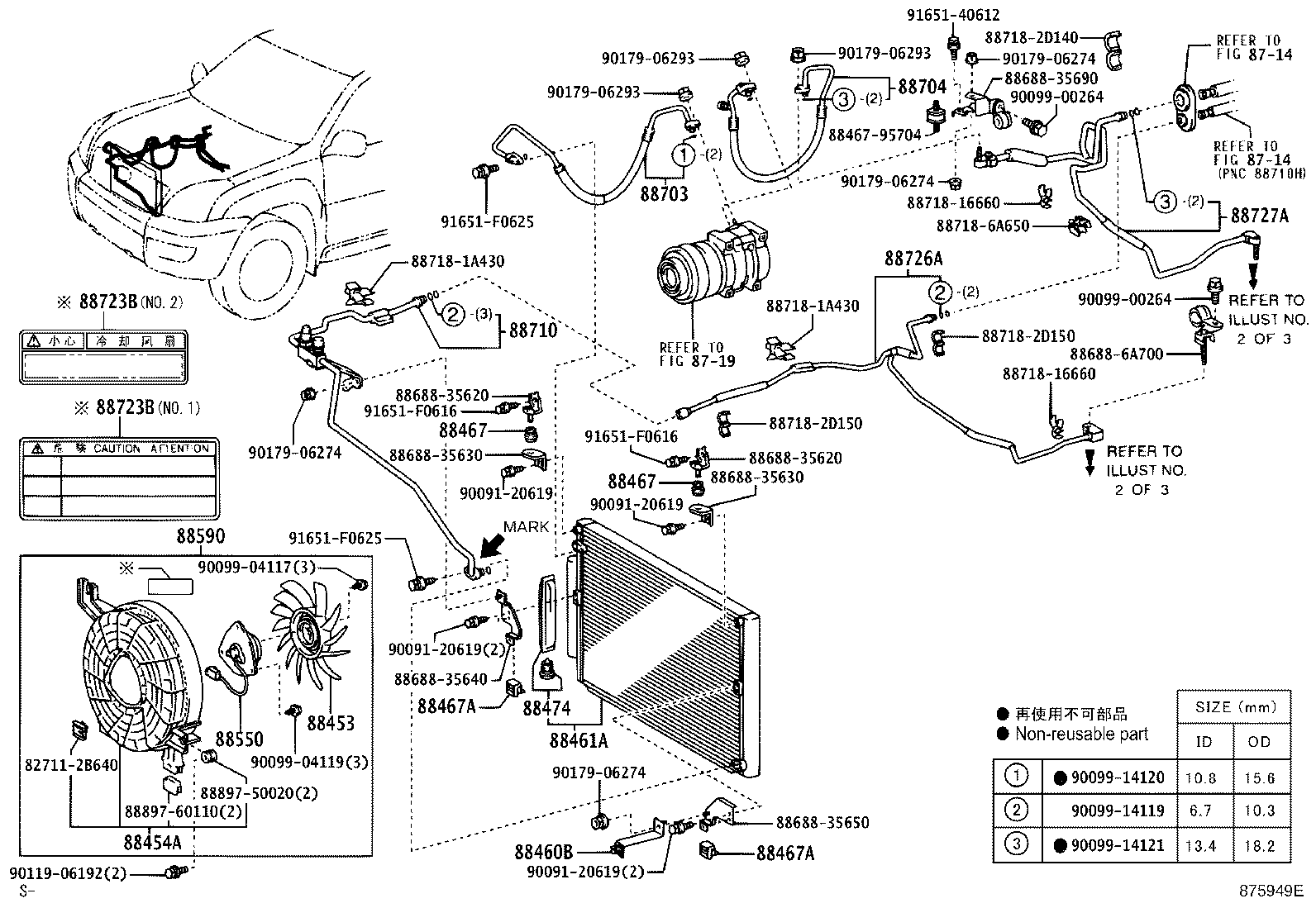

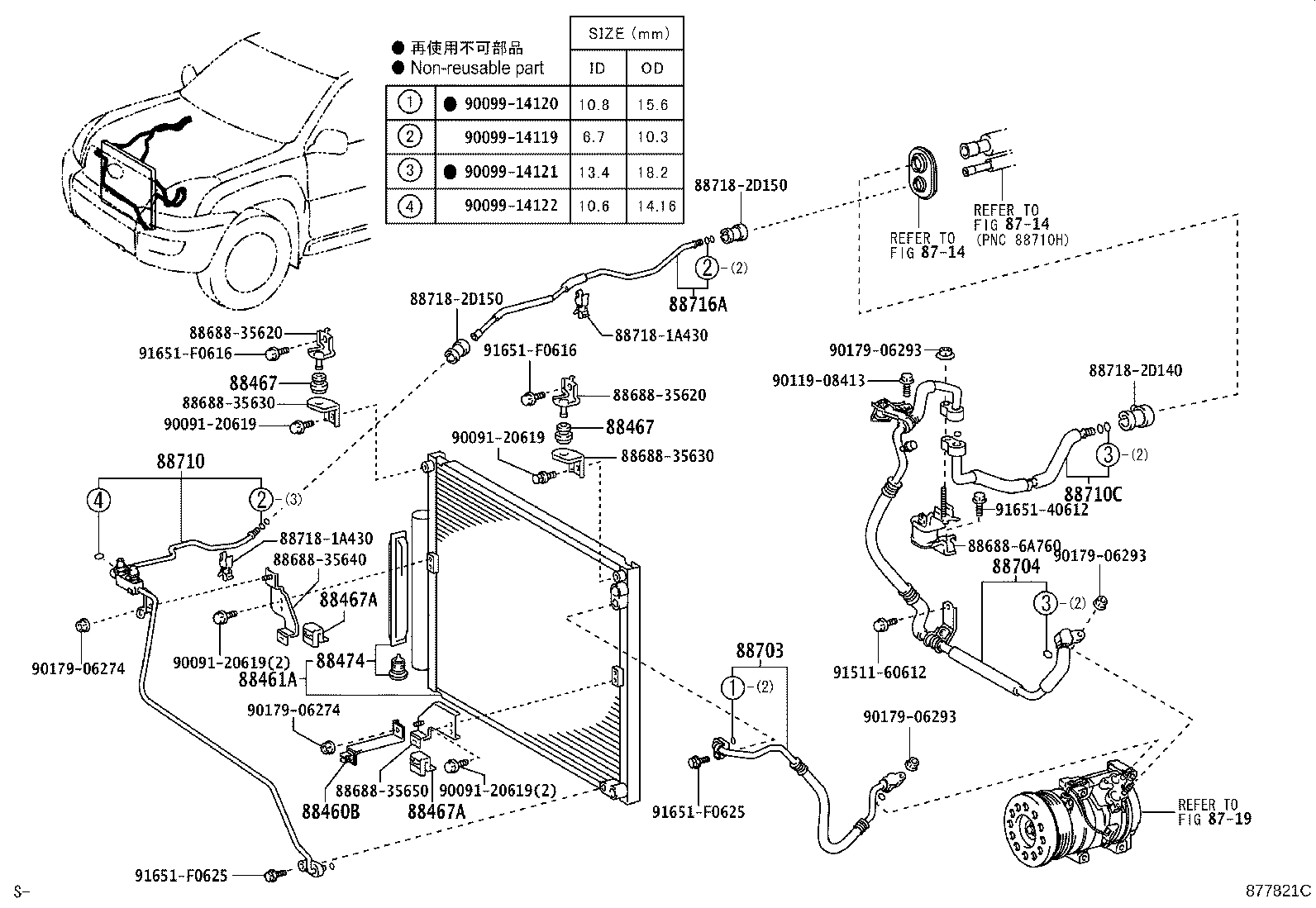

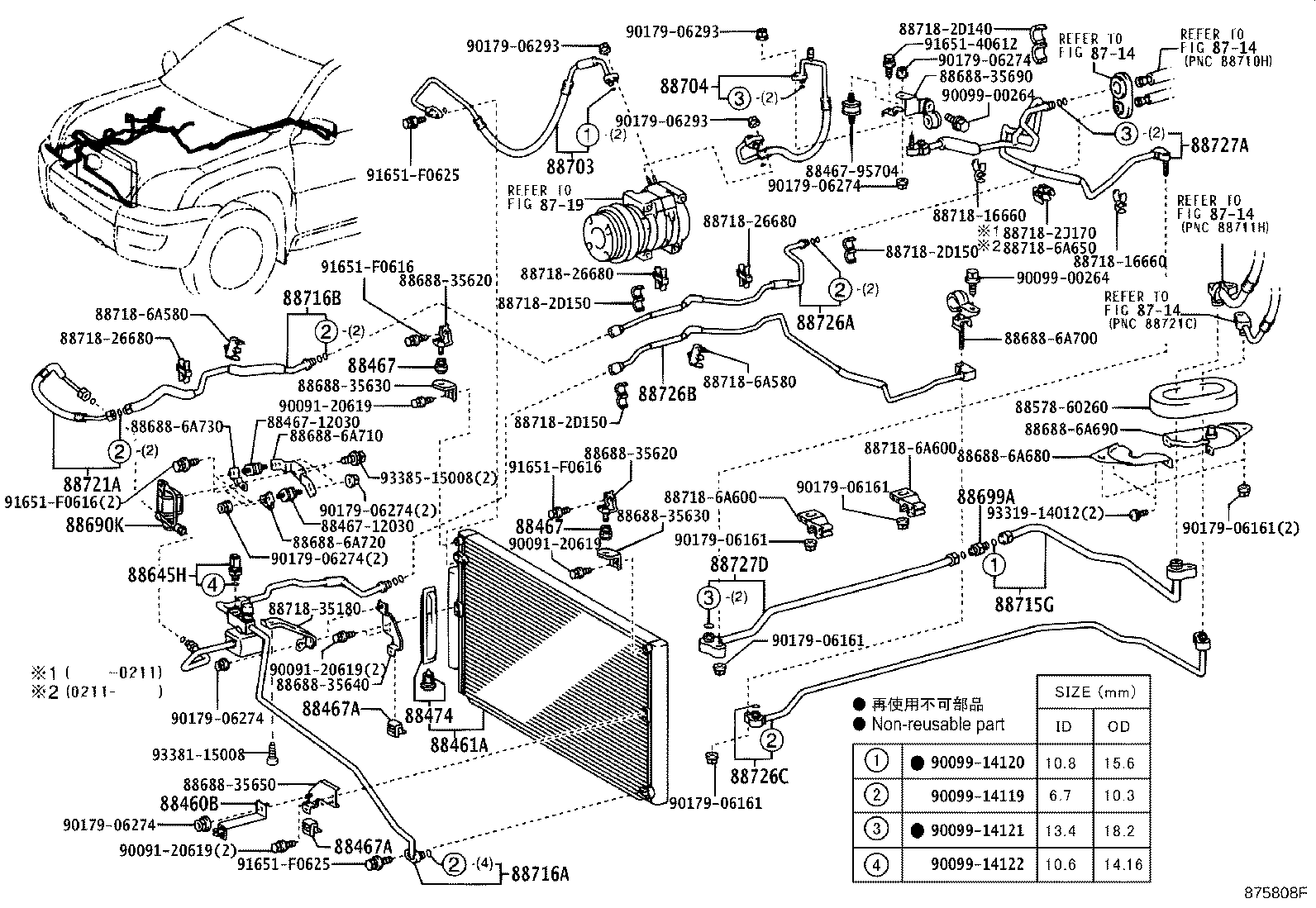

Figure 875805B 875805B 2002-09 → 2004-08 Figure 875806F 875806F 2002-09 → 2004-08 Figure 875807B 875807B 2002-09 → — Figure 875808F 875808F 2002-09 → — Figure 875809E 875809E 2002-09 → — Figure 875810F 875810F 2002-09 → — Figure 875947B 875947B 2002-11 → — Figure 875948F 875948F 2002-11 → — Figure 875949E 875949E 2002-11 → — Figure 875950F 875950F 2002-11 → — Figure 877151G 877151G 2004-08 → — Figure 877821C 877821C 2005-08 → — Figure 877822F 877822F 2005-08 → — Figure 875722L 875722L 2002-09 → — Figure 875723G 875723G 2002-09 → —

Part groups

PNCDescription
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460B Bracket, Cooler Condenser, NO.1
88461A Core, Cooler Condenser
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88690K Valve Assy, Magnet
88699A Valve, Air
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88710C Tube Assy, Air Conditioner
88715G Tube, Discharge, G
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88721A Hose, Liquid, A
88723B Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88726C Pipe, Cooler Refrigerant Liquid, C
88726D Pipe, Cooler Refrigerant Liquid, D
88727A Pipe, Cooler Refrigerant Suction, A
88727C Pipe, Cooler Refrigerant Suction, C
88727D Pipe, Cooler Refrigerant Suction, D
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
