Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12# · catalogue 781150 · Japan

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

9 part groups · 5 illustrations

Illustrations

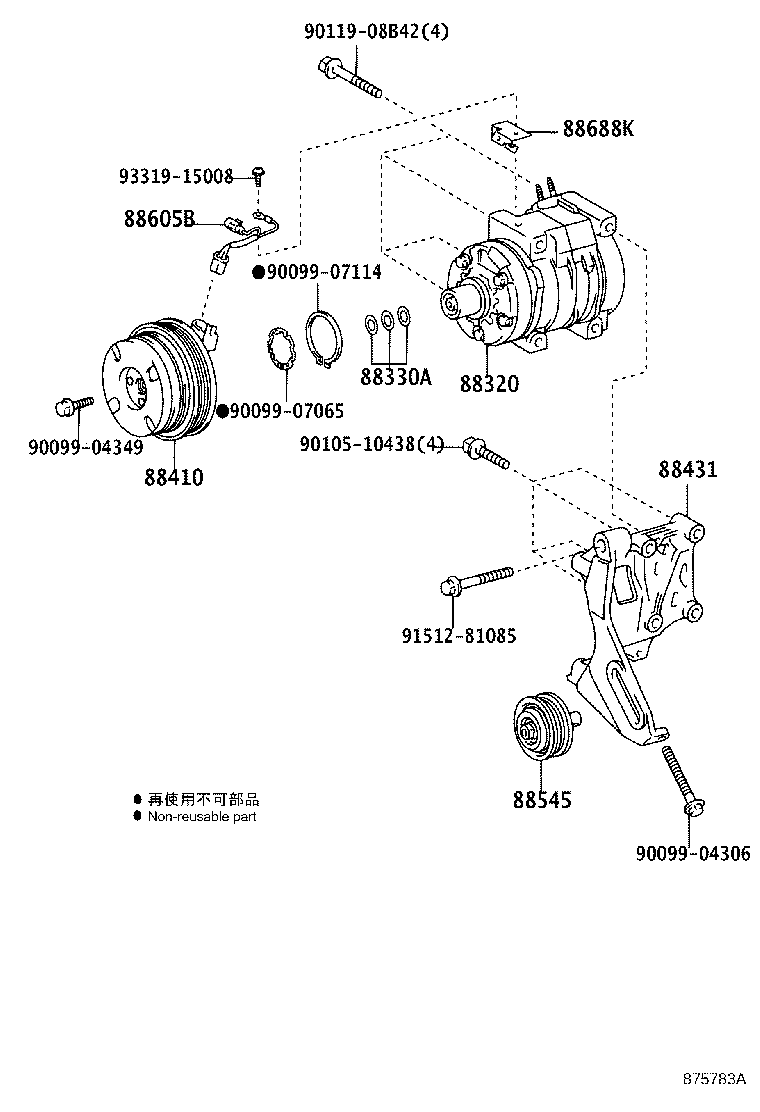

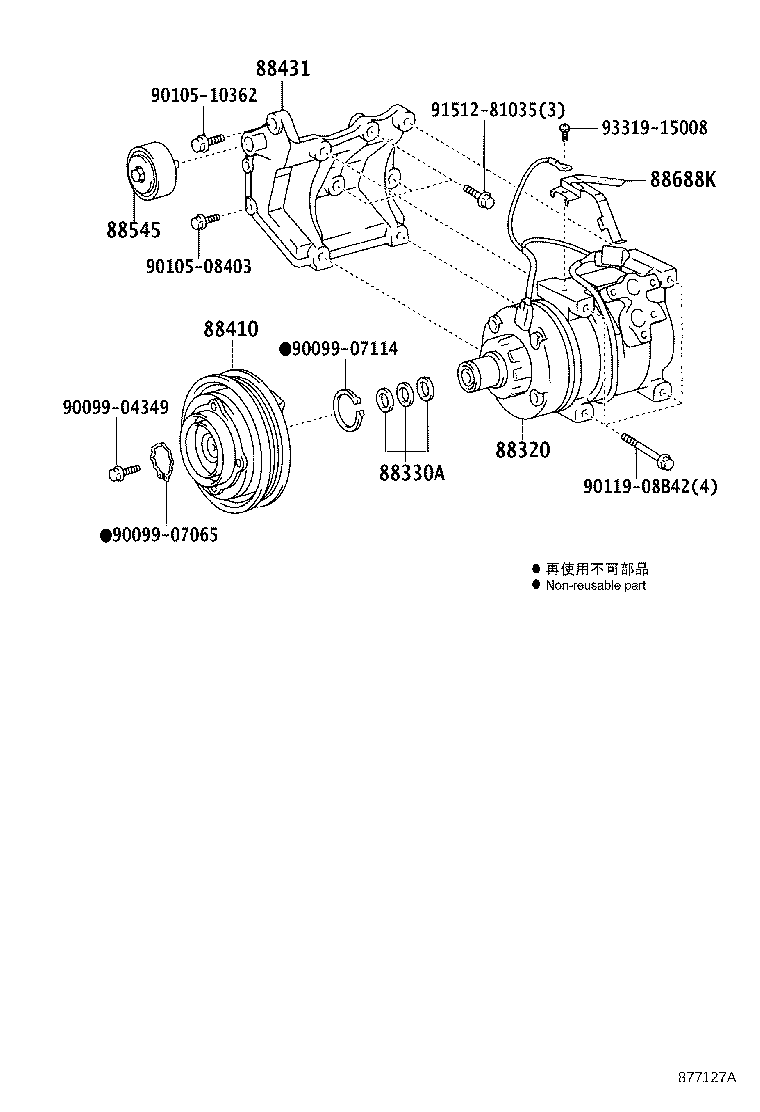

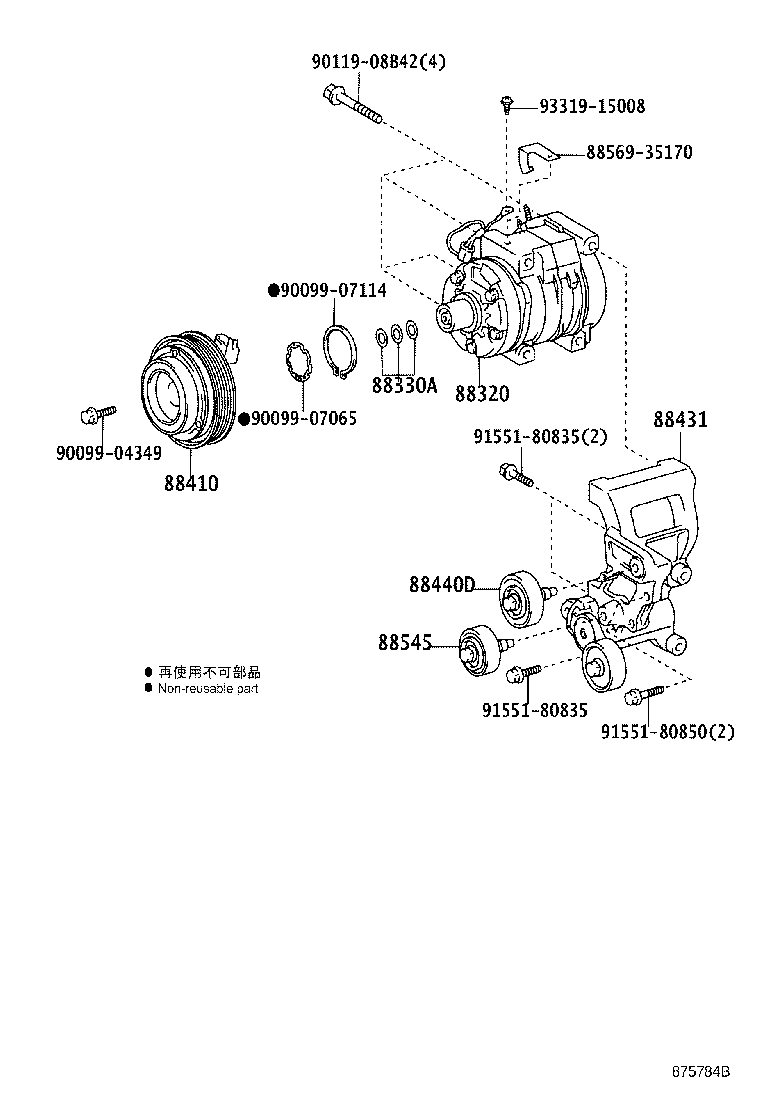

Figure 875680B 875680B 2002-09 → 2004-08 Figure 875783A 875783A 2002-09 → — Figure 875784B 875784B 2002-11 → — Figure 877127A 877127A 2004-08 → — Figure 877816A 877816A 2005-08 → —

Part groups

PNCDescription
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88440D Pulley Assy, Idle NO.2
88451 Pulley, Crankshaft
88545 Pulley Assy, Idle
88605B Harness Sub-assy, Air Conditioner Wiring
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
