Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ15#,TRJ150 · catalogue 781160 · Japan

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 12 illustrations

Illustrations

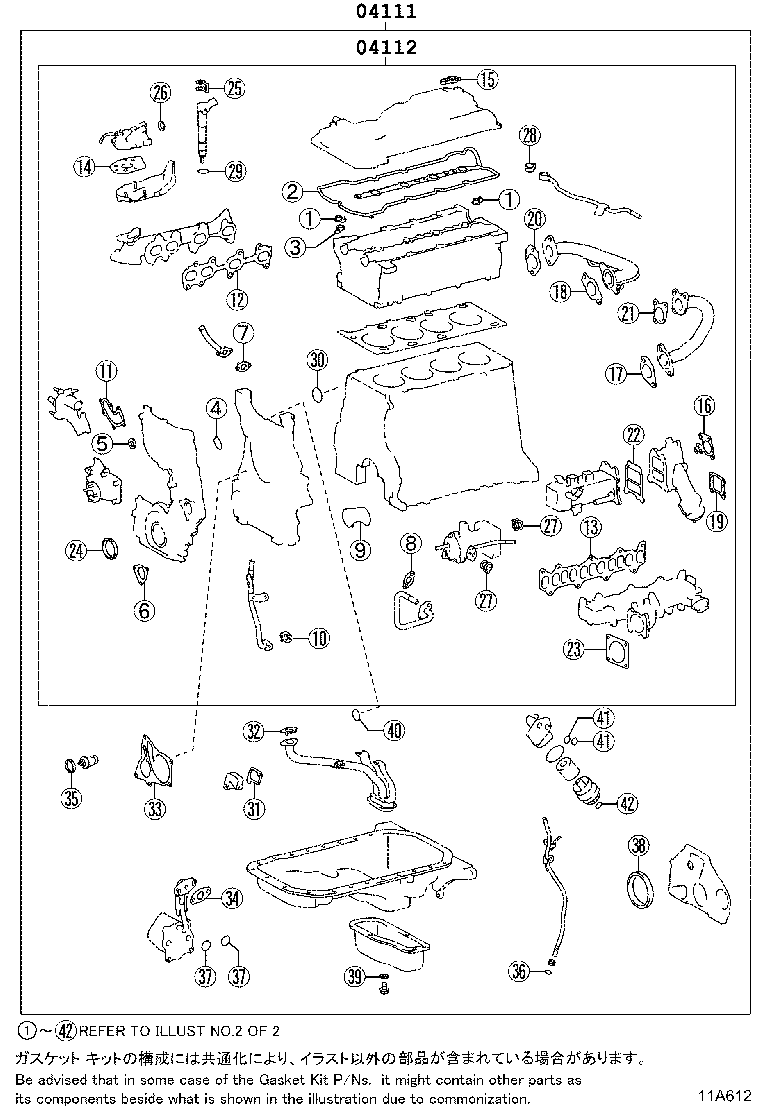

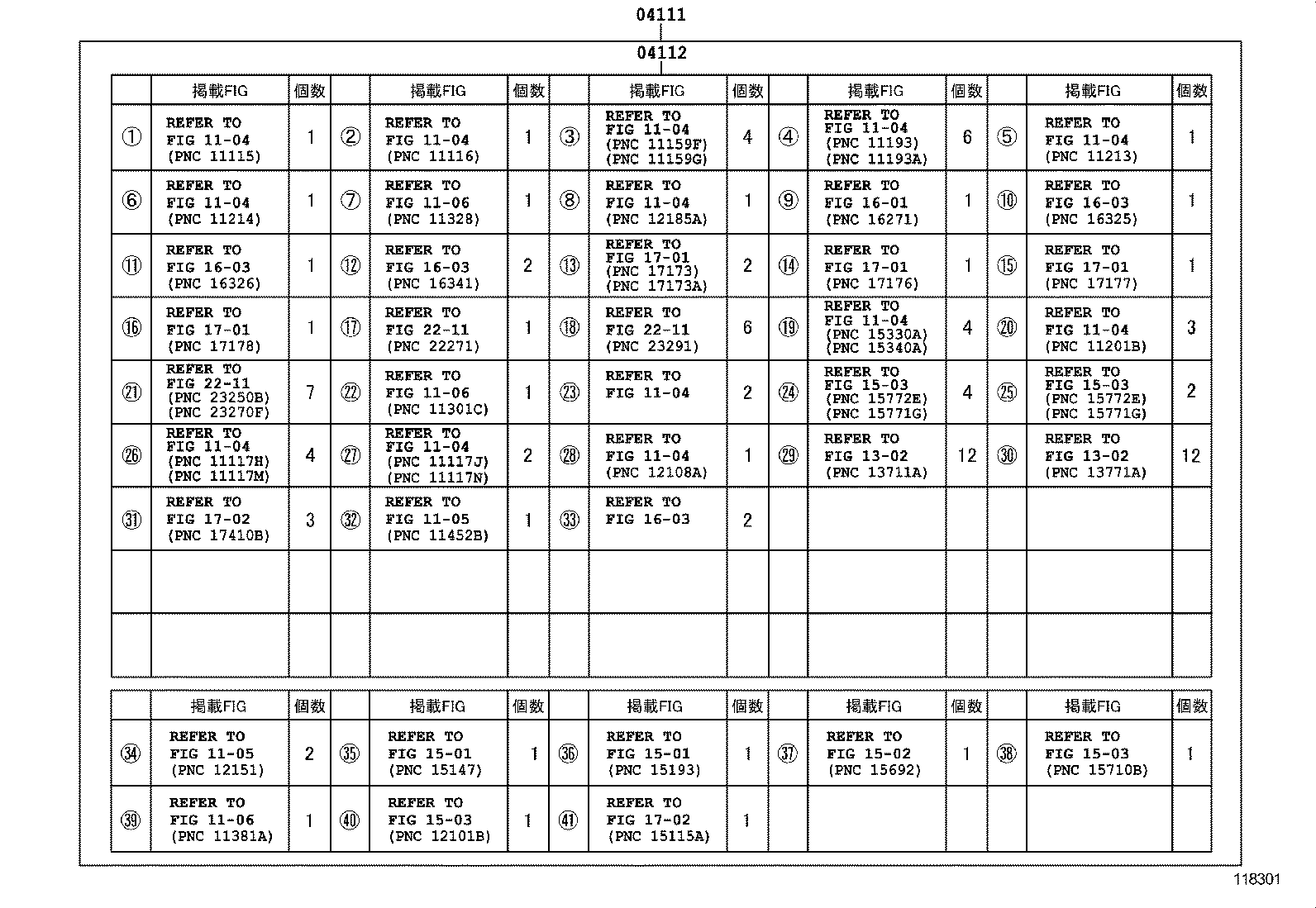

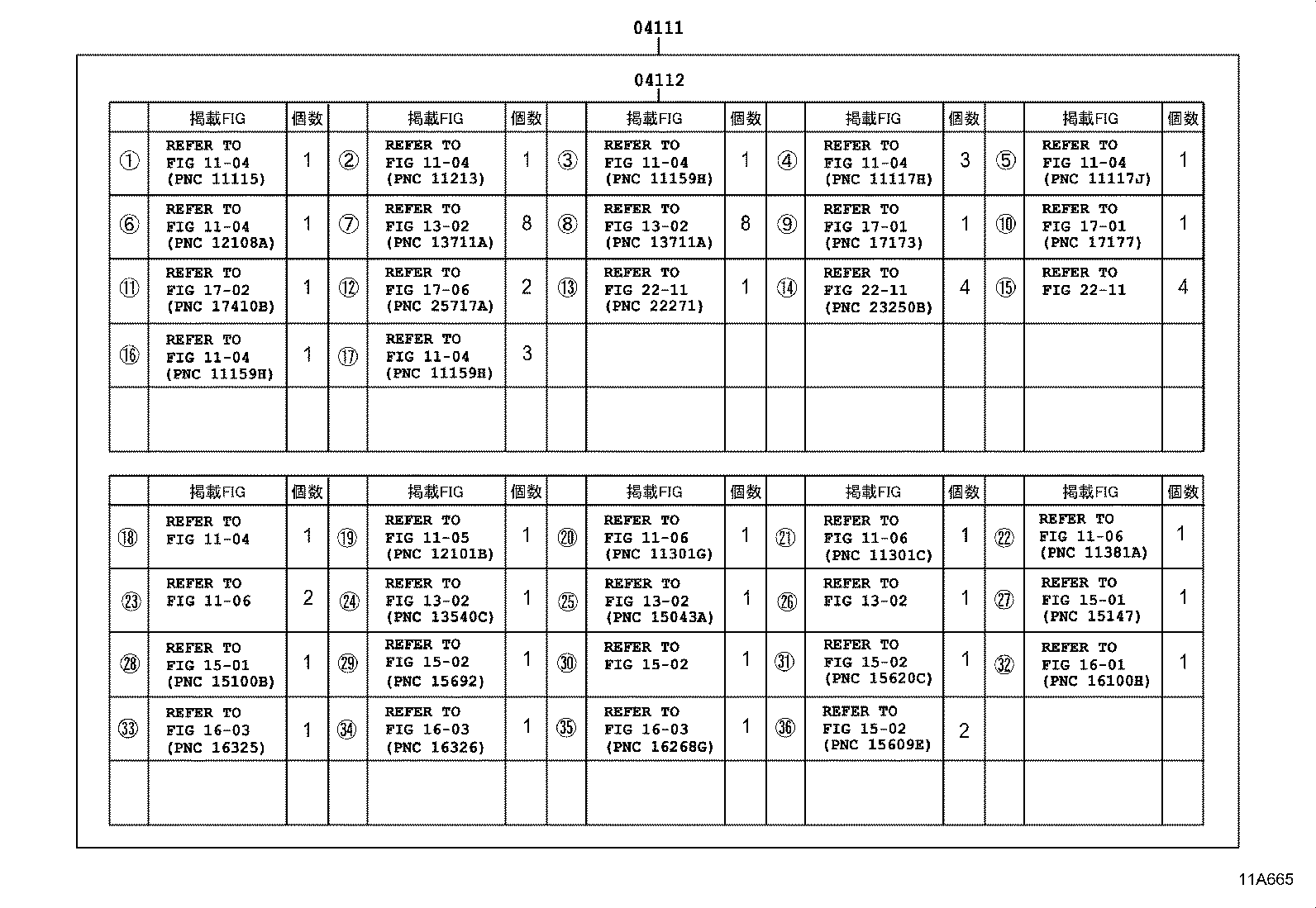

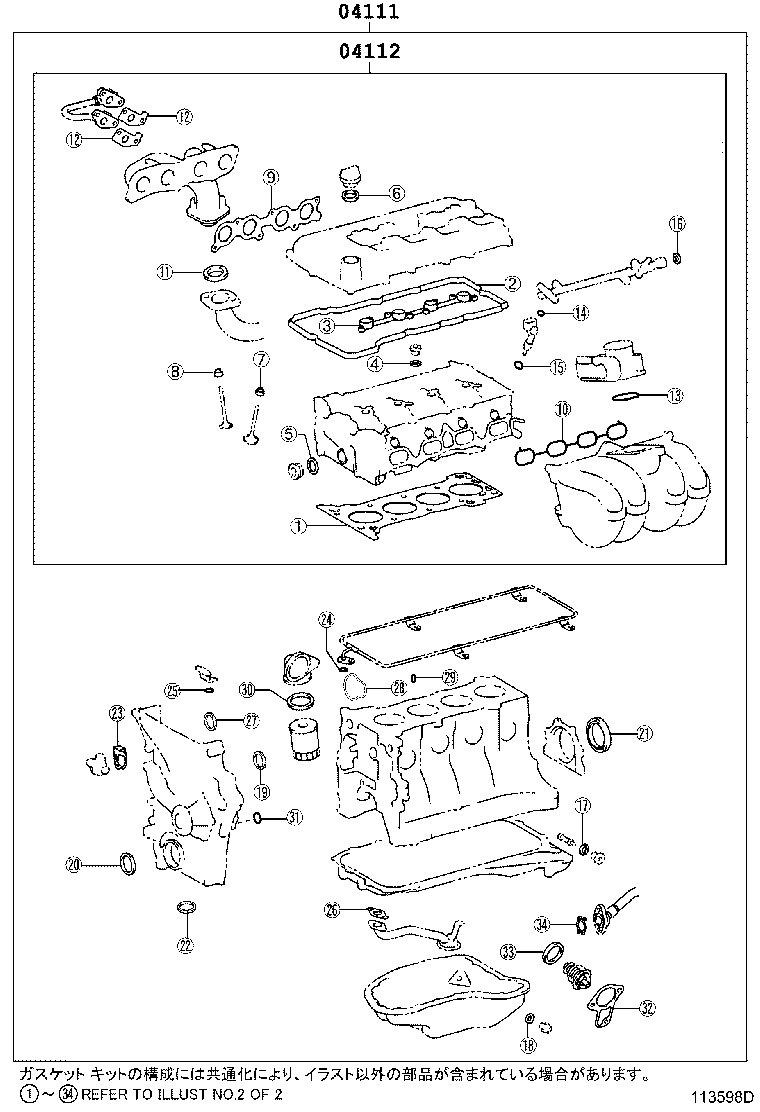

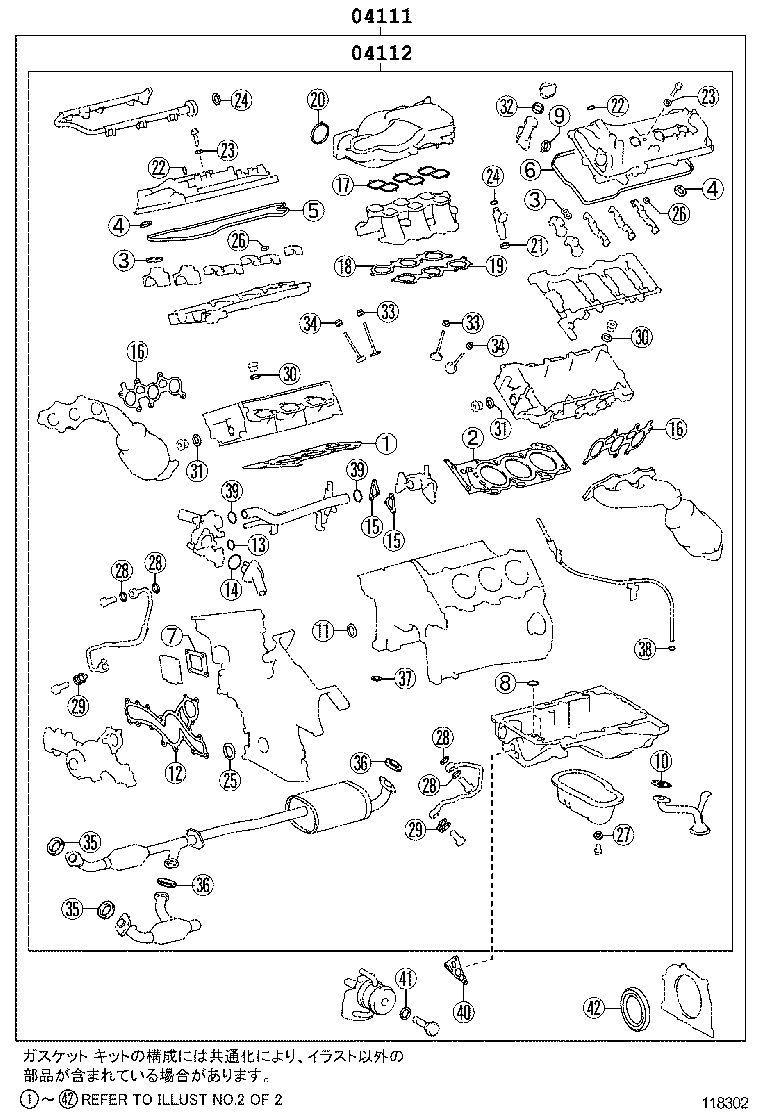

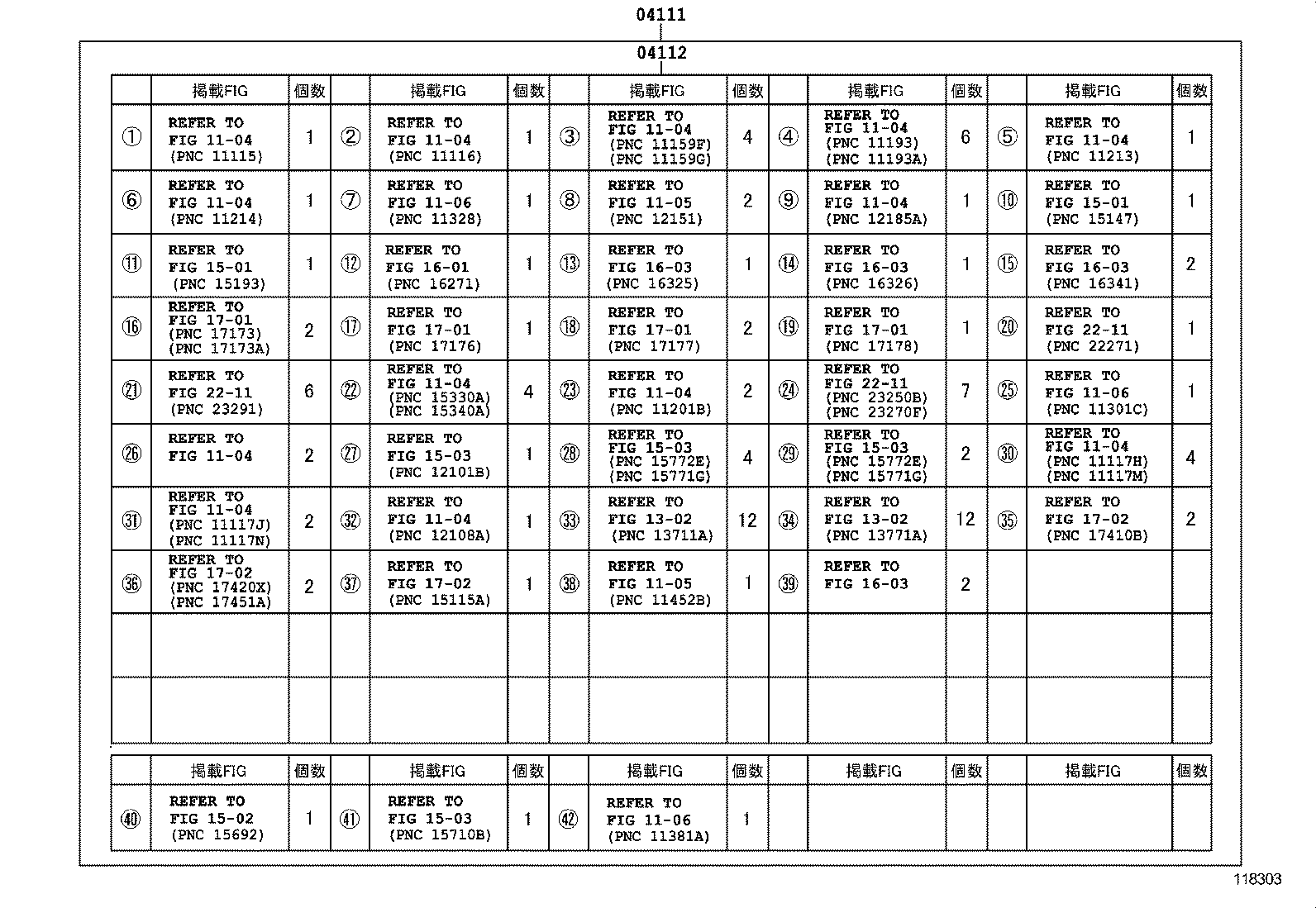

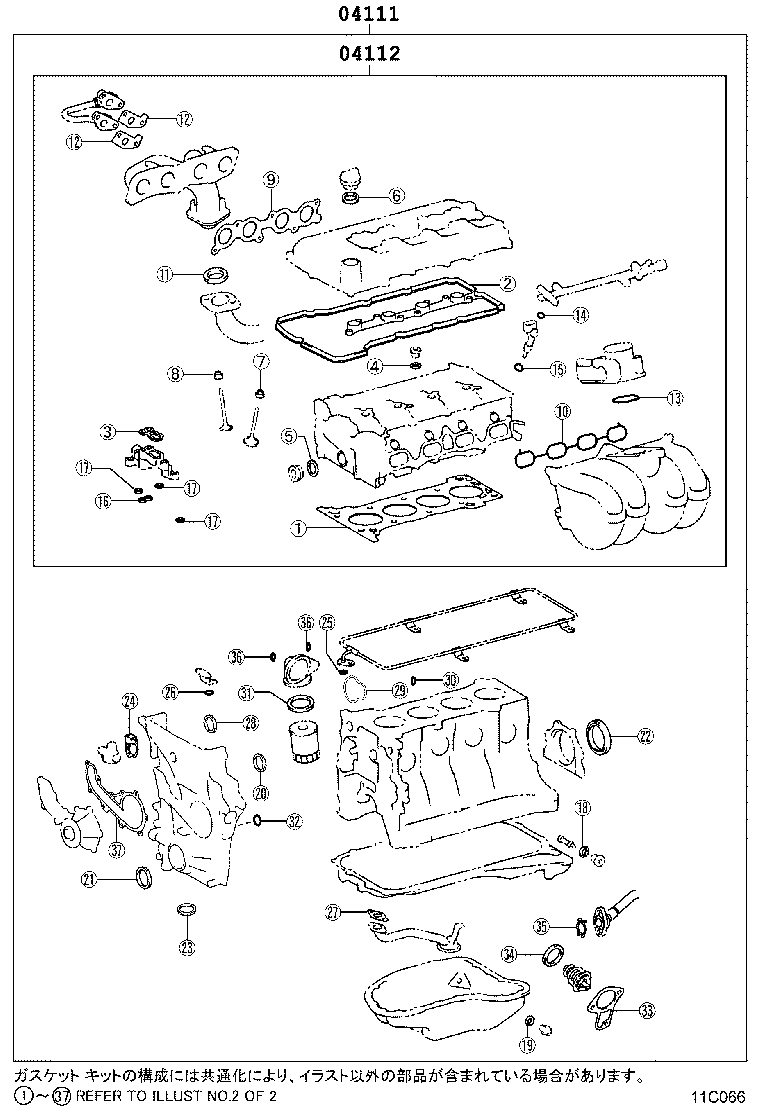

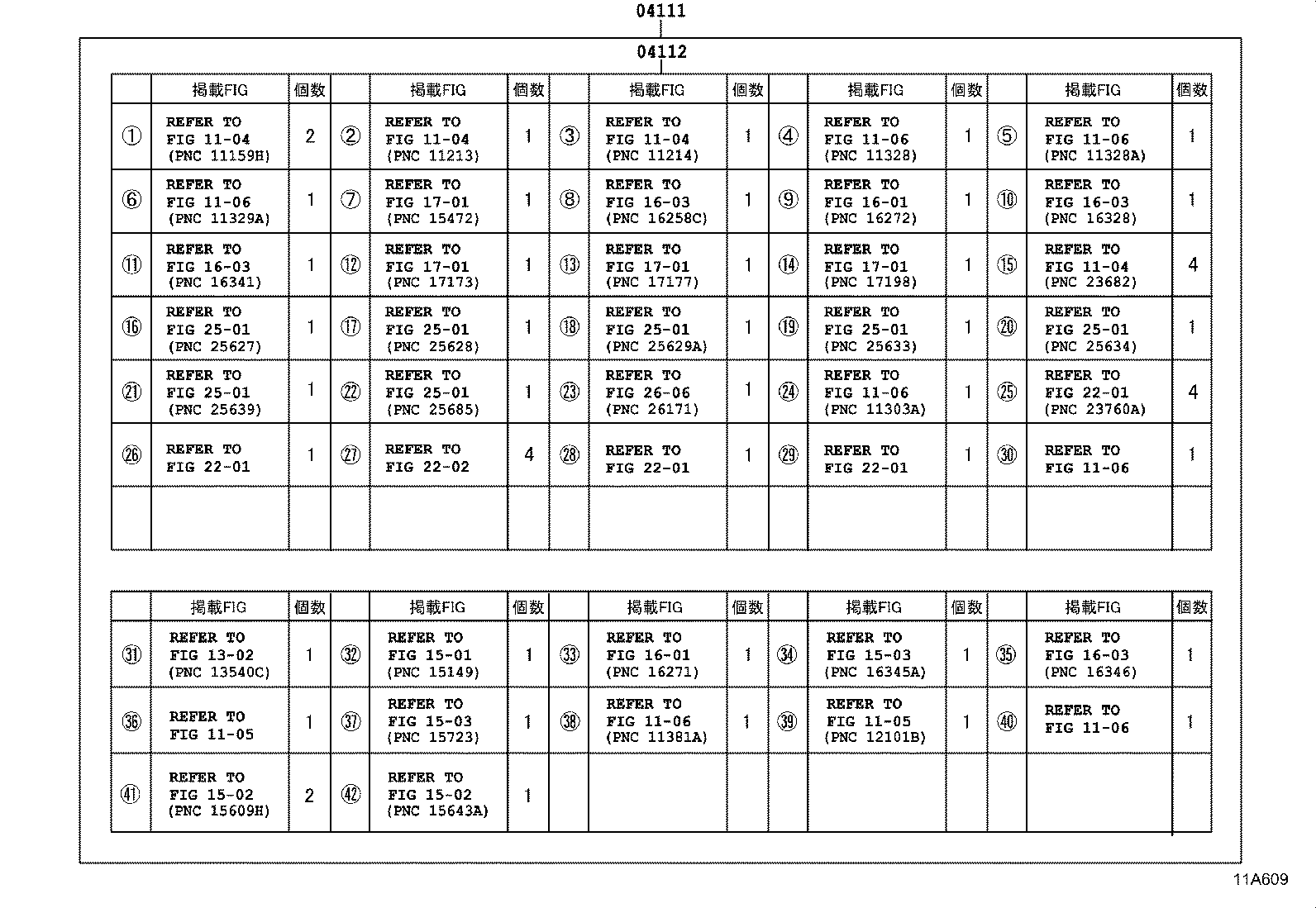

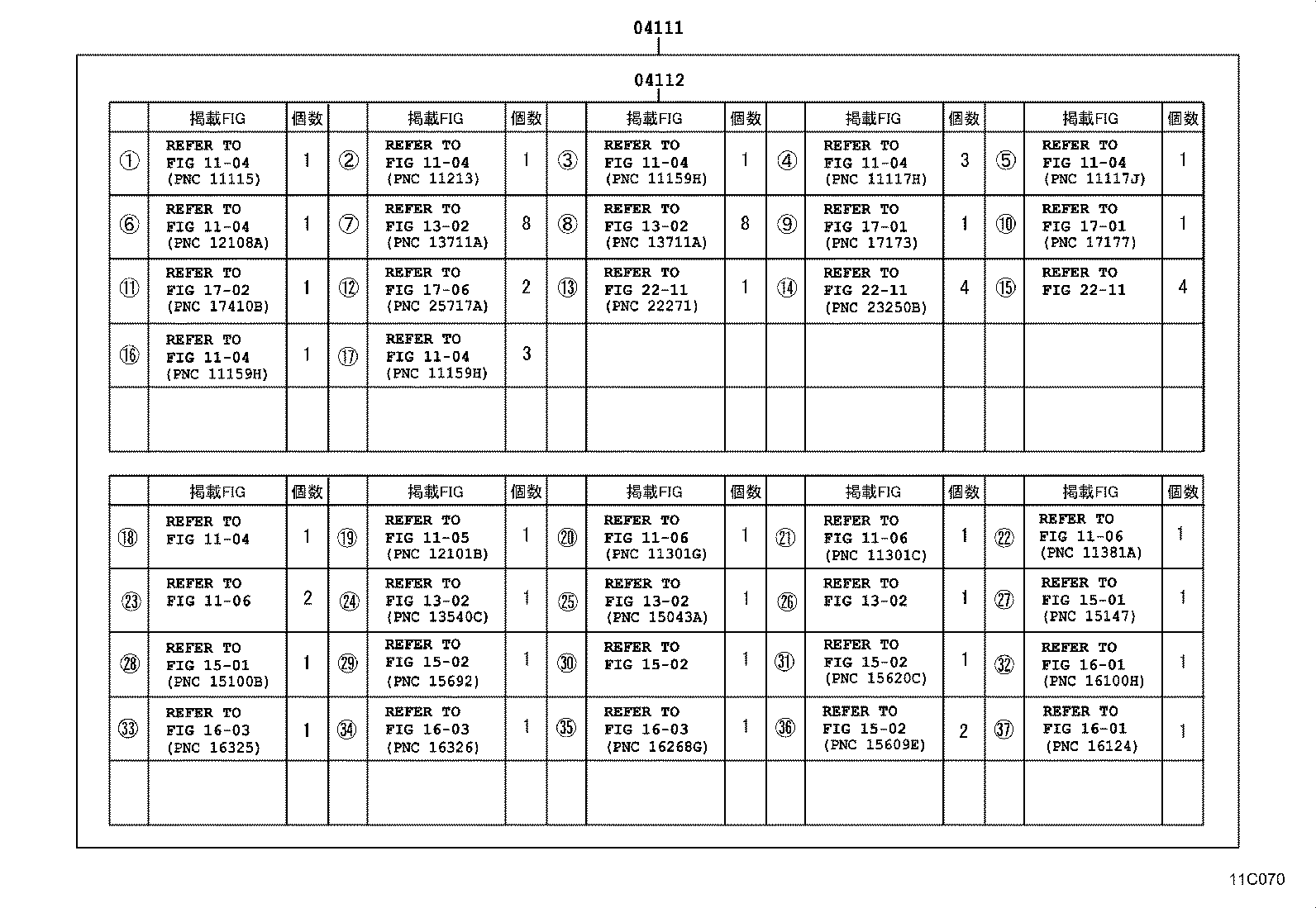

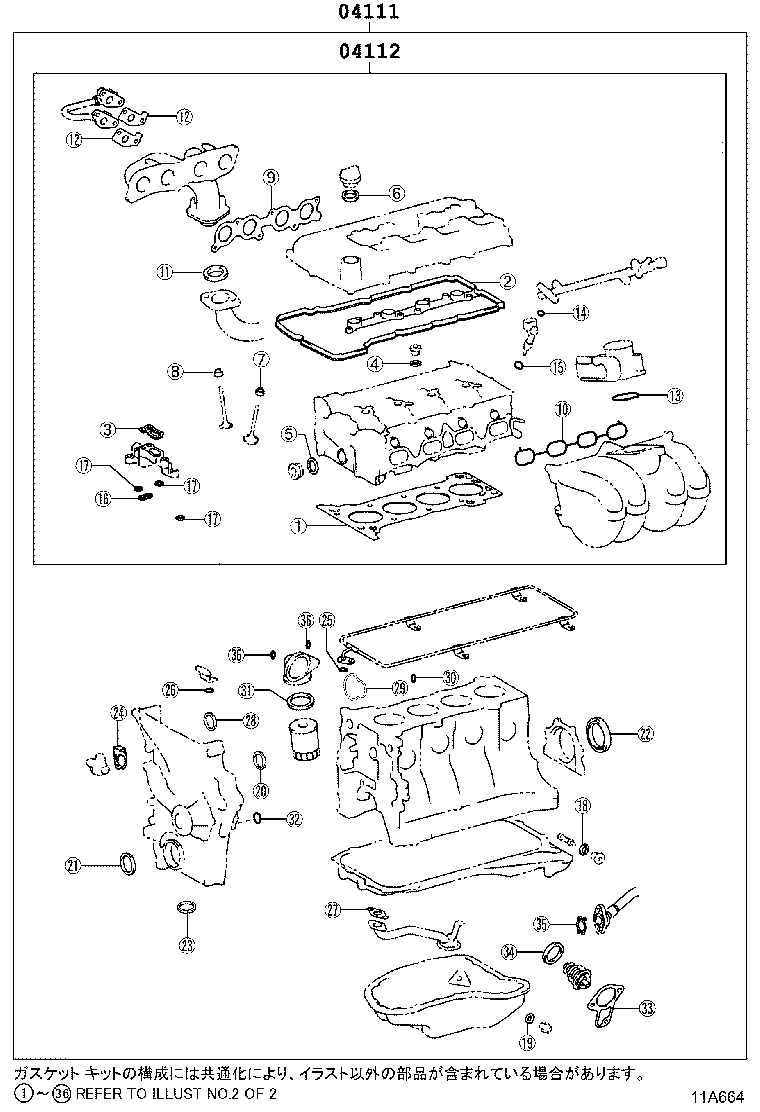

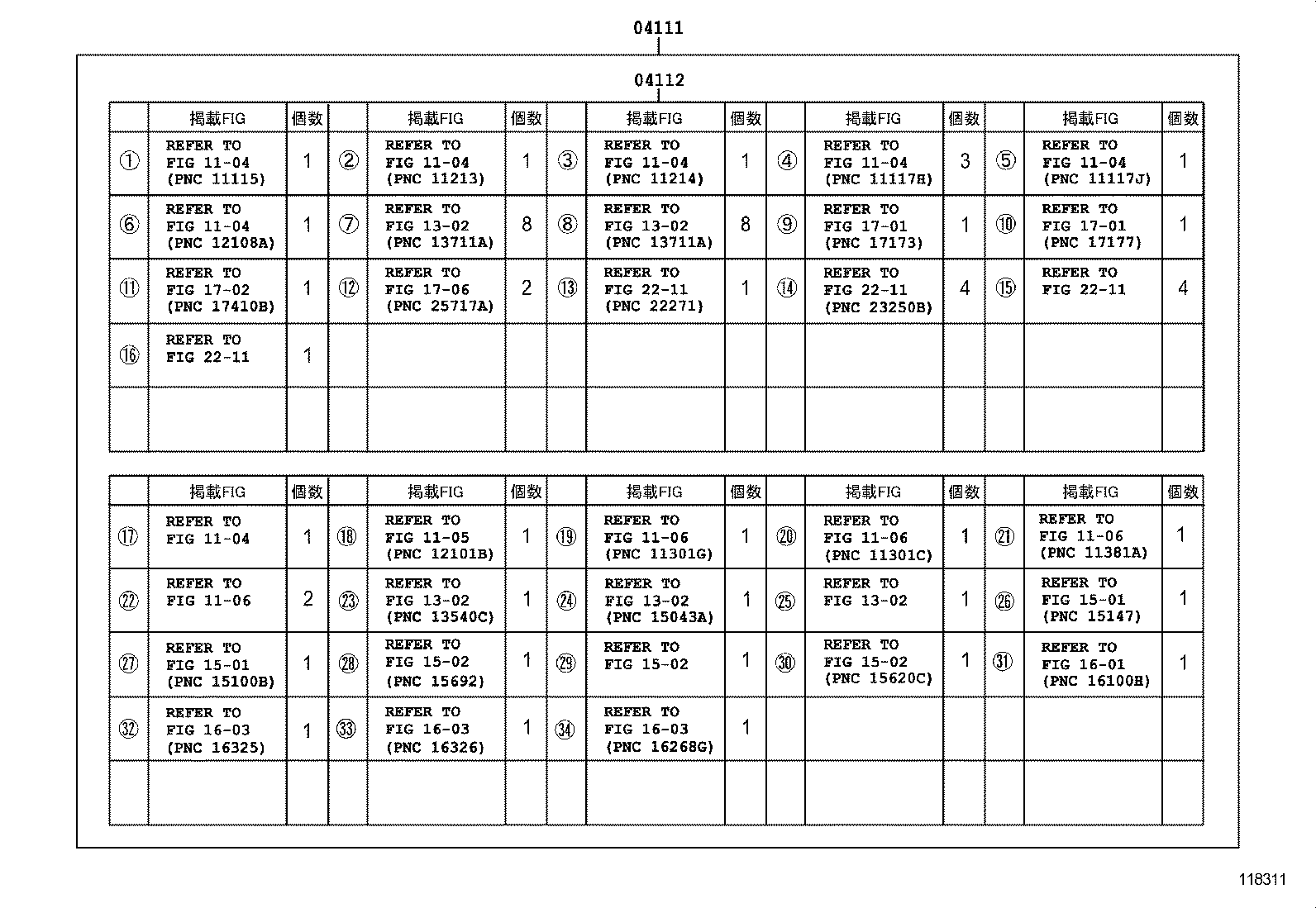

Figure 118300 118300 2009-08 → 2012-09 Figure 118301 118301 2009-08 → 2012-09 Figure 118302 118302 2012-09 → — Figure 118303 118303 2012-09 → — Figure 11A612 11A612 2015-06 → — Figure 11A609 11A609 2015-06 → — Figure 113598D 113598D 2009-08 → 2015-06 Figure 118311 118311 2009-08 → 2015-06 Figure 11A664 11A664 2015-06 → 2017-01 Figure 11A665 11A665 2015-06 → 2017-01 Figure 11C066 11C066 2017-01 → — Figure 11C070 11C070 2017-01 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
