Toyota Land Cruiser Prado
2009-08 → 2017-08 · chassis GDJ15#,GRJ15#,TRJ150 · catalogue 781160 · Japan
Supported model
Data version 2018-02

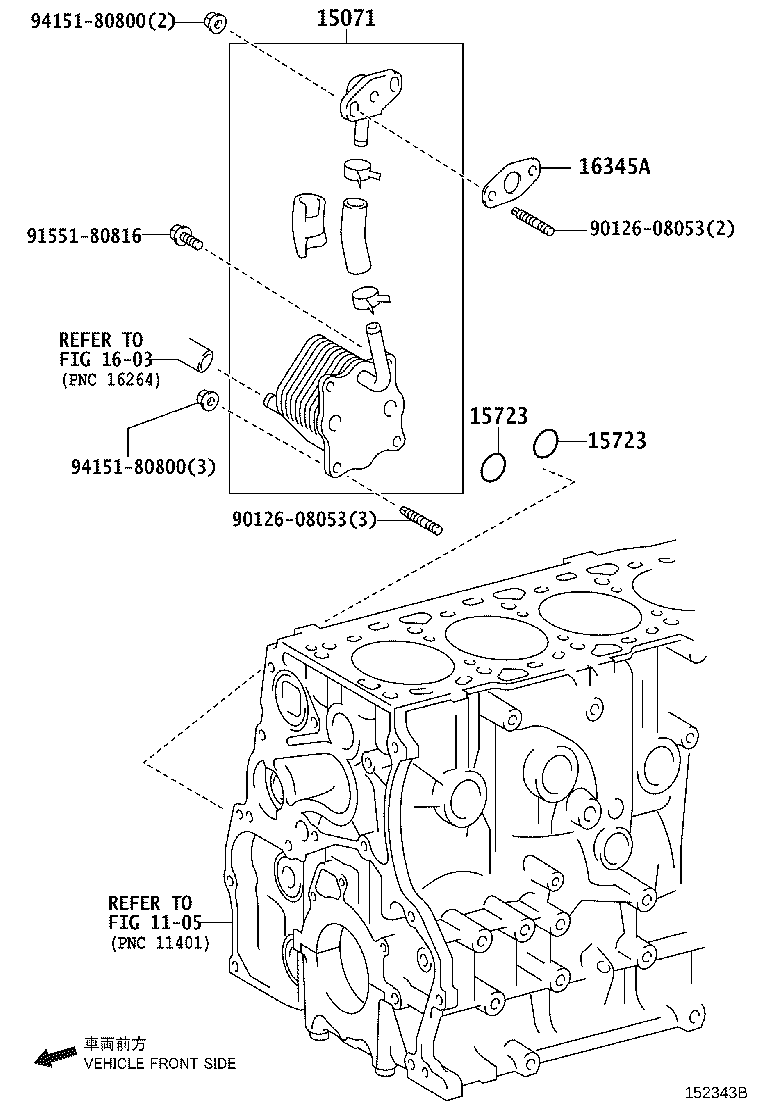

Engine Oil Cooler
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15071 | Cooler Set, Engine Oil |
| 15723 | Ring, O |
| 15771 | Pipe, Oil, NO.1 |
| 15771A | Union(FOR OIL PIPE) |
| 15771G | Gasket |
| 15772 | Pipe, Oil, NO.2 |
| 15772A | Union(FOR OIL PIPE) |
| 15772E | Gasket(FOR OIL PIPE) |
| 16345A | Gasket, Water Outlet Pipe |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
